A tool for creating HTML documents programmatically with Python
Project description
Phractal
Phractal is a tool for creating documents programmatically with Python, powered by Pydantic and Jinja2.
Phractal solves the complexity that can arise when templating complex documents in Python by using nesting. Hence the name; a Phractal document is a fractal arrangement of simple components nested inside one another. Phractal is inspired by React.js's component-driven development style, with the additional utility of Pydantic-enforced type-checking before the page is rendered, making debugging a breeze!
In addition to building your own pages from the ground up, any package that produces HTML output can be integrated into your Phractal documents. For example, Plotly graphs can be inserted into your components with just a few lines of code.
Phractal was originally designed to automatically generate bespoke templated statistical reports in the style of pandas-profiling. This is just the tip of the iceberg, though: anywhere you need to generate a document programmatically, Phractal is useful. Try creating invoices with it!
Key Features
There are two main tools that Practal makes available for document building:
phractal.ValidatedCachedProperty
In the simple examples below, Phractal is barely more efficient than basic Jinja templating. The more complex your documents become, the more Phractal can help.
phractal.Phraction
The base unit of construction of a Phractal document - analagous to React.Component.
- Renders a supplied template as an HTML string, automatically inserting its field values into the template where they are referenced.
- Performs Pydantic-based field validation/type-checking.
Args:
template: A Jinja2-formatted string defining the HTML structure of the Phraction.
Methods:
save(path: str): Save the rendered document to the specified filepath.with_boilerplate(bootstrap: bool=False, title: str="Phractal Document"): Returns a Phraction which wraps the calling Phraction in HTML boilerplate.
Example - phraction useage:
from phractal import Phraction
# A Phraction to render a simple "hello" message
class HelloPara(Phraction):
template = "<p>Hello {{ name }}</p>"
name: str
# Creating an instance of the Phraction
hello_para = HelloPara(name="Murderbot")
# Practions can be rendered to HTML strings using their __str__ method.
print(hello_para)
# Alternatively we can save to file.
# Adding HTML boilerplate here is a good idea.
# hello_para.with_boilerplate().save("./hello_para.html")
Output:
<p>Hello Murderbot</p>
Example - with_boilerplate useage:
from phractal import Phraction
class MyDoc(Phraction):
template="<p>{{ msg }}</p>"
msg: str
my_doc = MyDoc(msg="Hi!")
# Note that the returned object is an instance subclassed from the "Phraction" class.
print(isinstance(my_doc.with_boilerplate(), Phraction))
print(my_doc.with_boilerplate())
# We can save with boilerplate like so.
my_doc.with_boilerplate().save("./my_doc.html")
Output:
True
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<meta http-equiv="X-UA-Compatible" content="ie=edge">
<title>Phractal Document</title>
</head>
<body>
<p>Hi!</p>
</body>
</html>
phractal.ValidatedCachedProperty
A decorator that turns a method on a class into a property which is cached and validated at time of first access, and inserted into the template where its name is referenced. Note that this can be used to nest Phractions!
- Validation is based on return type hints (type hints are compulsory).
- Supports Pydantic style parameterized generics. (Ex:
list[int]matches [1, 2, 3] but not ["a", "b","c"]) - Arbitrary type hinting is allowed. Ex:
def foo(self) -> list[MyCustomClass]: - Value is calculated and cached at first access.
phractal.ValidatedCachedPropertyis subclassed from the inbuiltfunctools.cached_property.- To avoid caching and validation, use the built-in
@propertydecorator. - To skip validation but still cache the result, we recommend using the
typing.Anyhint. Ex:def foo(self) -> Any:
Example 1:
from phractal import Phraction, ValidatedCachedProperty
# A Phraction to display calculated total prices with tax
class TaxBox(Phraction):
template = '''
<p>
Gross: {{ "$%.2f"|format(gross_amount) }}
Total (incl. tax): {{ "$%.2f"|format(total_amount) }}
</p>
'''
gross_amount: float
@ValidatedCachedProperty
def total_amount(self):
return self.gross_amount*1.1
# Creating an instance of the Phraction
my_taxbox = TaxBox(gross_amount=1000)
# Rendering to the console as an HTML string using __str__
print(my_taxbox)
Output:
<p>
Gross: $1000.00
Total (incl. tax): $1100.00
</p>
Example 2 (nesting):
from phractal import Phraction, ValidatedCachedProperty
# Phraction to render a simple "hello" message as an H1 heading
class HelloHeading(Phraction):
template = "<h1>Hello {{ name }}</h1>"
name: str
# A Phraction to render a list item
class ClientItem(Phraction):
template = "<li>{{ client_name }}</li>"
client_name: str
# A Phraction to contain the heading and the list items as nested components
class HelloDiv(Phraction):
template = '''
<div>
{{ hello_para }}
Here's a list of clients:
<ol>
{% for client_item in clients %}
{{ client_item }}
{% endfor %}
</ol>
</div>
'''
name: str
client_names: list[str]
# Validated and cached (calculated at access-time)
@ValidatedCachedProperty
def hello_para(self) -> HelloPara:
return HelloPara(name=self.name)
# Neither validated nor cached.
@property
def clients(self):
return [
ClientItem(
client_name=client_name
) for client_name in self.client_names
]
# Creating an instance of the top-level/parent Phraction
# (No need to create instances for the nested Phractions;
# the parent Phraction does this for us when it is rendered)
my_div = HelloDiv(
name="Murderbot",
client_names=[
"Dr. Mensah",
"Dr. Arada",
"Dr. Ratthi",
"Dr. Bharadwaj"
]
)
# Rendering to the console with __str__
print(my_div)
Output:
<div>
<h1>Hello Murderbot</h1>
<p>Here's a list of clients:</p>
<ol>
<li>Dr. Mensah</li>
<li>Dr. Arada</li>
<li>Dr. Ratthi</li>
<li>Dr. Bharadwaj</li>
</ol>
</div>
Incorporating Other Packages
To incorporate output from other packages that generate document assets, simply incorporate these outputs into your Phractions using @Property or @ValidatedCachedProperty.
Example - Plotly:

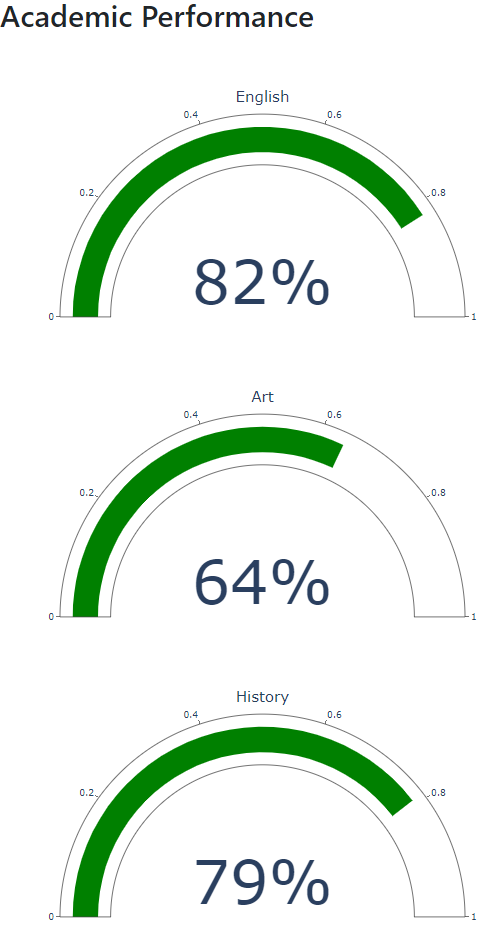

Here we incorporate a Plotly Gauge Plot.
from phractal import Phraction, ValidatedCachedProperty
from pydantic import Field
import plotly.graph_objects as go
import plotly.offline
# A Phraction that renders a gauge plot
class GaugePlot(Phraction):
template = """
<div style="width: 700px; height: 400px;">
{{ gauge }}
</div>
"""
label: str
numerator: int = Field(ge=0)
# This works because plotly.offline.plot returns the plot as an HTML string
# when the output_type='div' kwarg is supplied.
@ValidatedCachedProperty
def gauge(self) -> str:
fig = go.Figure(go.Indicator(
mode = "gauge+number",
value = self.numerator/100,
number = { "valueformat": "%" },
domain = {'x': [0, 1], 'y': [0, 1]},
title = {'text': self.label},
gauge = {
'axis': {'range': [None, 1]},
},
))
return plotly.offline.plot(
fig,
include_plotlyjs=False,
output_type='div'
)
# A parent Phraction to combine three GaugePlot Phractions under a heading
class AcademicPerformance(Phraction):
# Plotly wants us to include plotly-latest.min.js to render the plot
# The best place for both of this is here in the top-level Phraction.
template = """
<script src="https://cdn.plot.ly/plotly-latest.min.js"></script>
<h1>Academic Performance</h1>
{% for plot in plots %}
{{ plot }}
{% endfor %}
"""
grades: list[tuple]
# Nesting those gauge plots
@ValidatedCachedProperty
def plots(self) -> list:
return [
GaugePlot(
label=label,
numerator=numerator
) for (label, numerator) in self.grades
]
# Data to feed to the instance
grades = [
("English", 82),
("Art", 64),
("History", 79)
]
# Creating the instance
academic_performance = AcademicPerformance(grades=grades)
# The output here is a bit longer
# Let's save it to file instead of printing to console
academic_performance.with_boilerplate(bootstrap=True).save("./test.html")
Output:
