pibooth-extra-lights 1.0.2

Pibooth plugin for extra lights management.

pibooth-extra-lights is a plugin for the pibooth application.

It adds 3 extra lights:

• startup : light on at pibooth startup

• sequence : light on during the entire capture sequence

• flash : light on when the capture is taken

Install

$ pip3 install pibooth-extra-lights

Configuration

Here below the new configuration options available in the pibooth configuration. The keys and their default values are automatically added to your configuration after first pibooth restart.

The physical pin numbering is used.

[CONTROLS]

# Physical GPIO OUT pin to light a LED at pibooth startup (list of pins accepted)
startup_led_pin = 29

# If True, startup LED is lighting by setting pin(s) to HIGH else by setting to LOW
startup_led_active_high = True

# Physical GPIO OUT pin to light a LED during the entire capture sequence (list of pins accepted)
preview_led_pin = 31

# If True, preview LED is lighting by setting pin(s) to HIGH else by setting to LOW
preview_led_active_high = True

# Physical GPIO OUT pin to light a LED when the capture is taken (list of pins accepted)
flash_led_pin = 33

# If True, flash LED is lighting by setting pin(s) to HIGH else by setting to LOW
flash_led_active_high = True

Note

Edit the configuration by running the command pibooth --config.

States description

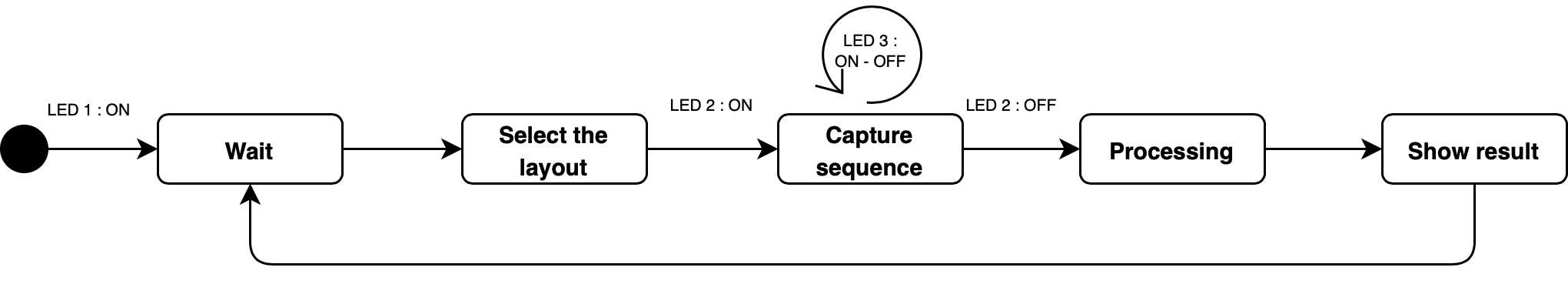

Here is the pibooth state sequence updated with the lights activated by this plugin:

Circuit diagram

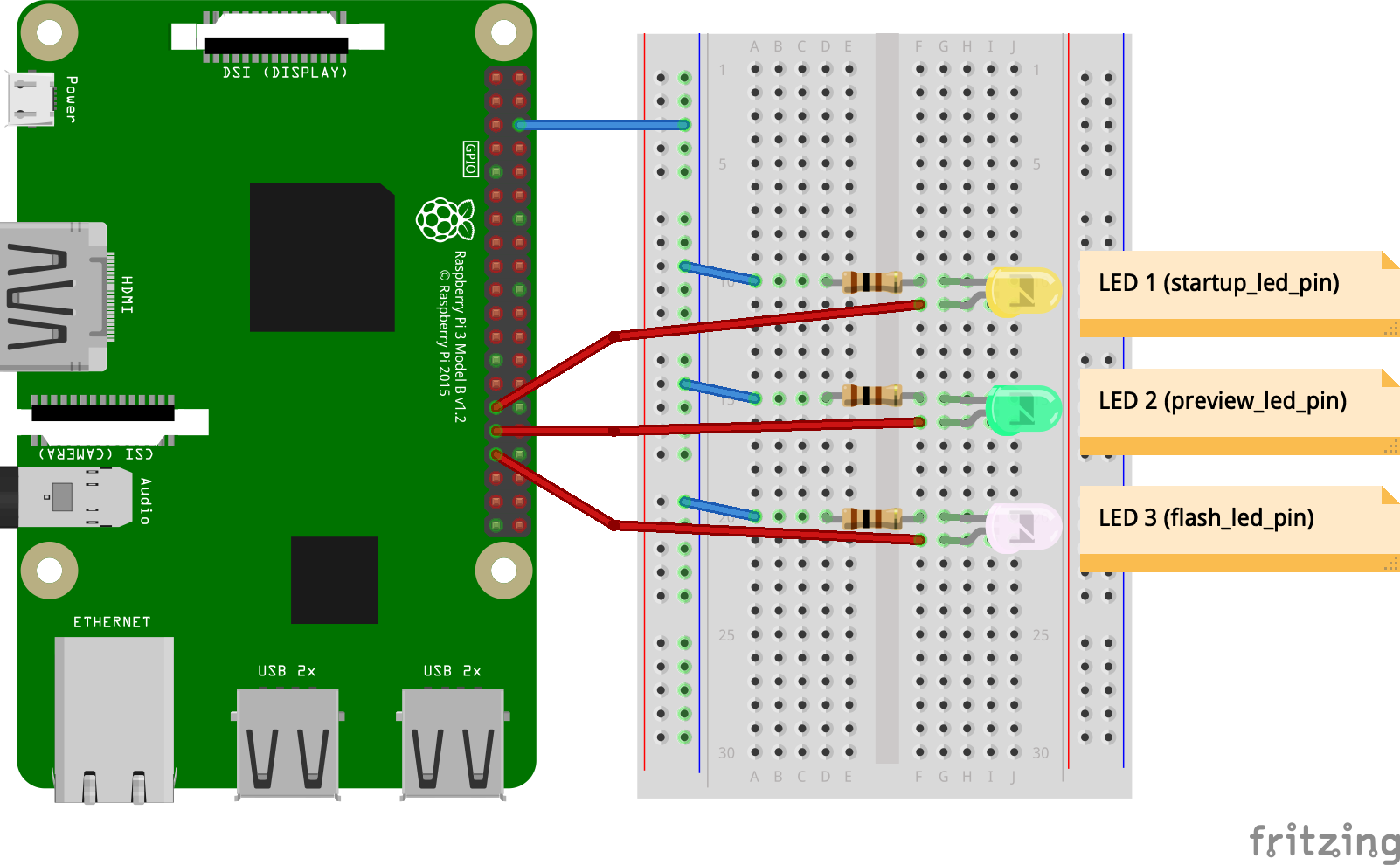

Here is the diagram for hardware connections.
