pingmon 1.0.2

Monitor, record, and display ping results

pingmon

Monitor, record, and graph ping results

License

This library is licensed under the Apache 2.0 License.

Requires

• python => 3.7
• matplotlib

If you are using linux, you will probably need to install python3-tkinter for the pinggraph command to display the plot (building the file will still work). It's required if you see the error matplotlib is currently using agg as background ... non-gui...

Example python3-tkinter install:

yum install python3-tkinter

Tested on

• MacOS
• Amazon Linux 2

Installation

pip install pingmon

Usage

pingmon -i <ip/hostname> [-q]

pinggraph -f CSV_FILE

What it does (standard out and creates three files)

pingmon monitors a ping to a host or ip address, using ping -b 56 -c <ip_or_hostname> and captures the results. Results go to stdout (by default, can be silenced) and three files are created in the directory that pingmon is run from:

• ping.results.csv.<YYYYMMDD> : CSV data that has date.time (YYYYMMDD.HHMMSS) and the how long the ping took in ms.
• ping.results.raw.<YYYYMMDD> : The raw output with date.time and a list output from the ping command.
• ping.results.csv.<YYYYMMDD>.png : A high resolution PNG graph that is created when the day is over (23:59:59 is the last entry) that shows a plot of each ping recorded for the entire day.

Examples of each file:

CSV File:

20200229.161158,26.726
20200229.161159,28.684
20200229.161322,39.558
20200229.161533,26.188
20200229.161535,36.179
20200229.161940,25.488
20200229.162017,28.074
20200229.162018,32.775
20200229.170008,31.615
20200229.170044,33.969

Raw file:

20200229.235949,['PING 8.8.8.8 (8.8.8.8): 56 data bytes', '64 bytes from 8.8.8.8: icmp_seq=0 ttl=54 time=17.110 ms', '', '--- 8.8.8.8 ping statistics ---', '1 packets transmitted, 1 packets received, 0.0% packet loss', 'round-trip min/avg/max/stddev = 17.110/17.110/17.110/0.000 ms', '']
20200229.235950,['PING 8.8.8.8 (8.8.8.8): 56 data bytes', '64 bytes from 8.8.8.8: icmp_seq=0 ttl=54 time=21.047 ms', '', '--- 8.8.8.8 ping statistics ---', '1 packets transmitted, 1 packets received, 0.0% packet loss', 'round-trip min/avg/max/stddev = 21.047/21.047/21.047/0.000 ms', '']
20200229.235951,['PING 8.8.8.8 (8.8.8.8): 56 data bytes', '64 bytes from 8.8.8.8: icmp_seq=0 ttl=54 time=30.030 ms', '', '--- 8.8.8.8 ping statistics ---', '1 packets transmitted, 1 packets received, 0.0% packet loss', 'round-trip min/avg/max/stddev = 30.030/30.030/30.030/0.000 ms', '']
20200229.235952,['PING 8.8.8.8 (8.8.8.8): 56 data bytes', '64 bytes from 8.8.8.8: icmp_seq=0 ttl=54 time=18.898 ms', '', '--- 8.8.8.8 ping statistics ---', '1 packets transmitted, 1 packets received, 0.0% packet loss', 'round-trip min/avg/max/stddev = 18.898/18.898/18.898/0.000 ms', '']
20200229.235954,['PING 8.8.8.8 (8.8.8.8): 56 data bytes', '64 bytes from 8.8.8.8: icmp_seq=0 ttl=54 time=24.082 ms', '', '--- 8.8.8.8 ping statistics ---', '1 packets transmitted, 1 packets received, 0.0% packet loss', 'round-trip min/avg/max/stddev = 24.082/24.082/24.082/0.000 ms', '']
20200229.235955,['PING 8.8.8.8 (8.8.8.8): 56 data bytes', '64 bytes from 8.8.8.8: icmp_seq=0 ttl=54 time=35.844 ms', '', '--- 8.8.8.8 ping statistics ---', '1 packets transmitted, 1 packets received, 0.0% packet loss', 'round-trip min/avg/max/stddev = 35.844/35.844/35.844/0.000 ms', '']
20200229.235956,['PING 8.8.8.8 (8.8.8.8): 56 data bytes', '64 bytes from 8.8.8.8: icmp_seq=0 ttl=54 time=28.508 ms', '', '--- 8.8.8.8 ping statistics ---', '1 packets transmitted, 1 packets received, 0.0% packet loss', 'round-trip min/avg/max/stddev = 28.508/28.508/28.508/0.000 ms', '']
20200229.235957,['PING 8.8.8.8 (8.8.8.8): 56 data bytes', '64 bytes from 8.8.8.8: icmp_seq=0 ttl=54 time=20.307 ms', '', '--- 8.8.8.8 ping statistics ---', '1 packets transmitted, 1 packets received, 0.0% packet loss', 'round-trip min/avg/max/stddev = 20.307/20.307/20.307/0.000 ms', '']
20200229.235958,['PING 8.8.8.8 (8.8.8.8): 56 data bytes', '64 bytes from 8.8.8.8: icmp_seq=0 ttl=54 time=33.487 ms', '', '--- 8.8.8.8 ping statistics ---', '1 packets transmitted, 1 packets received, 0.0% packet loss', 'round-trip min/avg/max/stddev = 33.487/33.487/33.487/0.000 ms', '']
20200229.235959,['PING 8.8.8.8 (8.8.8.8): 56 data bytes', '64 bytes from 8.8.8.8: icmp_seq=0 ttl=54 time=22.552 ms', '', '--- 8.8.8.8 ping statistics ---', '1 packets transmitted, 1 packets received, 0.0% packet loss', 'round-trip min/avg/max/stddev = 22.552/22.552/22.552/0.000 ms', '']

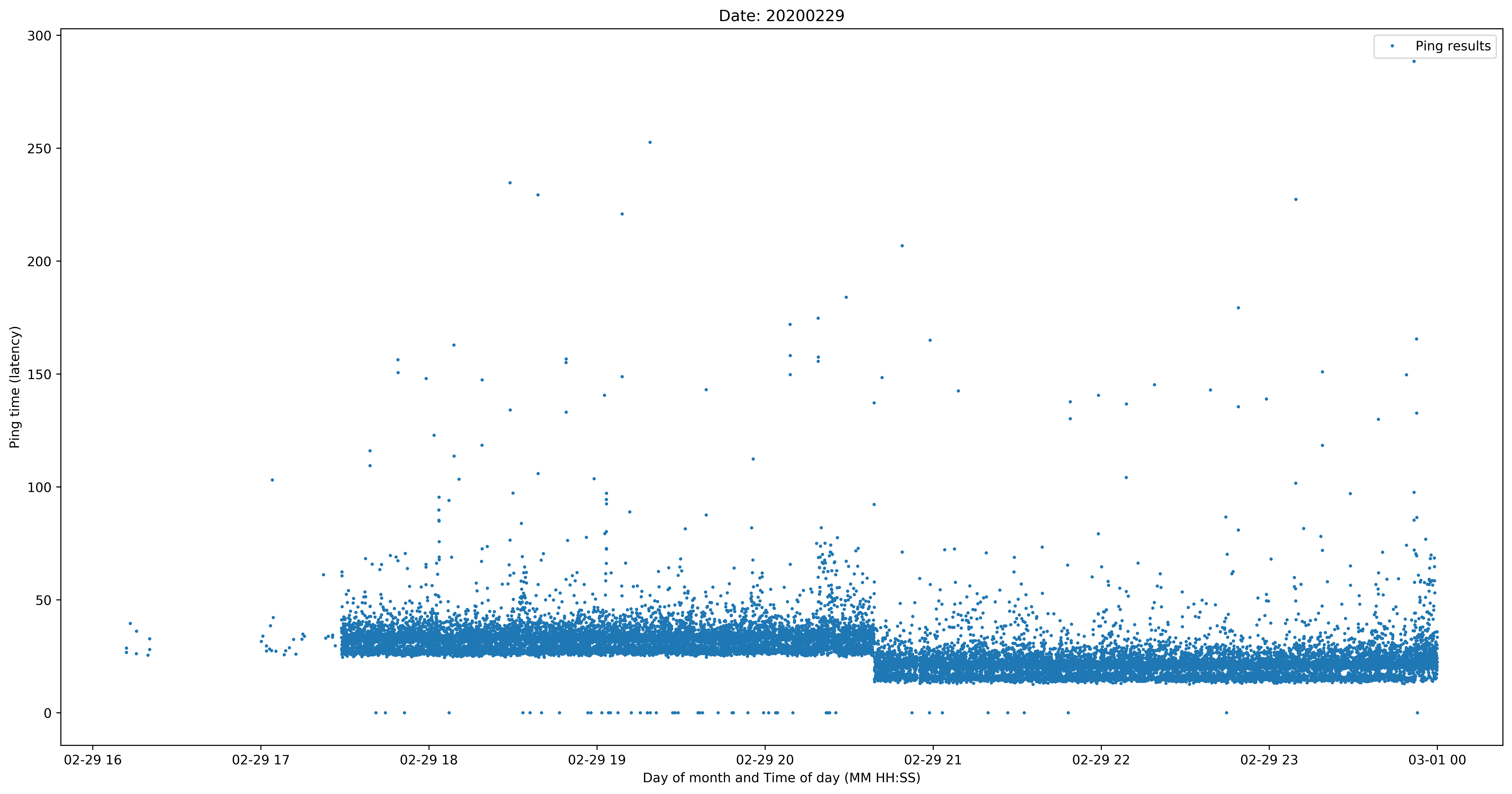

Plot image from CSV file:

Create the graph from an existing CSV file

If you ran the pingmon command and want to see the graph from a CSV file, you can run pinggraph. To display the graph with python run this (does not save to a file):

pinggraph -f CSV_FILE

To create a PNG file, use -c flag, and the graph file is created in your current working directory:

pinggraph -f CSV_FILE -c

To show a full day (00:00 to 23:59) on the graph, rather then just the first and last ping times recorded, use the -d flag:

pinggraph -f CSV_FILE -d

Optional utilities

• ping-wd.sh is a shell script that can be run from cron, that checks the internet (with ping) and will reboot the system from which it is run from.
