popmon 0.8.0

Monitor the stability of a pandas or spark dataset

popmon is a package that allows one to check the stability of a dataset. popmon works with both pandas and spark datasets.

popmon creates histograms of features binned in time-slices, and compares the stability of the profiles and distributions of those histograms using statistical tests, both over time and with respect to a reference. It works with numerical, ordinal, categorical features, and the histograms can be higher-dimensional, e.g. it can also track correlations between any two features. popmon can automatically flag and alert on changes observed over time, such as trends, shifts, peaks, outliers, anomalies, changing correlations, etc, using monitoring business rules.

Announcements

Spark 3.0

With Spark 3.0, based on Scala 2.12, make sure to pick up the correct histogrammar jar files:

spark = SparkSession.builder.config(
    "spark.jars.packages",
    "io.github.histogrammar:histogrammar_2.12:1.0.20,io.github.histogrammar:histogrammar-sparksql_2.12:1.0.20",
).getOrCreate()

For Spark 2.X compiled against scala 2.11, in the string above simply replace 2.12 with 2.11.

Examples

• Flight Delays and Cancellations Kaggle data

• Synthetic data (code example below)

Documentation

The entire popmon documentation including tutorials can be found at read-the-docs.

Notebooks

Tutorial	Colab link
Basic tutorial
Detailed example (featuring configuration, Apache Spark and more)
Incremental datasets (online analysis)
Report interpretation (step-by-step guide)

Check it out

The popmon library requires Python 3.6+ and is pip friendly. To get started, simply do:

$ pip install popmon

or check out the code from our GitHub repository:

$ git clone https://github.com/ing-bank/popmon.git
$ pip install -e popmon

where in this example the code is installed in edit mode (option -e).

You can now use the package in Python with:

import popmon

Congratulations, you are now ready to use the popmon library!

Quick run

As a quick example, you can do:

import pandas as pd
import popmon
from popmon import resources

# open synthetic data
df = pd.read_csv(resources.data("test.csv.gz"), parse_dates=["date"])
df.head()

# generate stability report using automatic binning of all encountered features
# (importing popmon automatically adds this functionality to a dataframe)
report = df.pm_stability_report(time_axis="date", features=["date:age", "date:gender"])

# to show the output of the report in a Jupyter notebook you can simply run:
report

# or save the report to file
report.to_file("monitoring_report.html")

To specify your own binning specifications and features you want to report on, you do:

# time-axis specifications alone; all other features are auto-binned.
report = df.pm_stability_report(
    time_axis="date", time_width="1w", time_offset="2020-1-6"
)

# histogram selections. Here 'date' is the first axis of each histogram.
features = [
    "date:isActive",
    "date:age",
    "date:eyeColor",
    "date:gender",
    "date:latitude",
    "date:longitude",
    "date:isActive:age",
]

# Specify your own binning specifications for individual features or combinations thereof.
# This bin specification uses open-ended ("sparse") histograms; unspecified features get
# auto-binned. The time-axis binning, when specified here, needs to be in nanoseconds.
bin_specs = {
    "longitude": {"bin_width": 5.0, "bin_offset": 0.0},
    "latitude": {"bin_width": 5.0, "bin_offset": 0.0},
    "age": {"bin_width": 10.0, "bin_offset": 0.0},
    "date": {
        "bin_width": pd.Timedelta("4w").value,
        "bin_offset": pd.Timestamp("2015-1-1").value,
    },
}

# generate stability report
report = df.pm_stability_report(features=features, bin_specs=bin_specs, time_axis=True)

These examples also work with spark dataframes. You can see the output of such example notebook code here. For all available examples, please see the tutorials at read-the-docs.

Pipelines for monitoring dataset shift

Advanced users can leverage popmon’s modular data pipeline to customize their workflow. Visualization of the pipeline can be useful when debugging, or for didactic purposes. There is a script included with the package that you can use. The plotting is configurable, and depending on the options you will obtain a result that can be used for understanding the data flow, the high-level components and the (re)use of datasets.

Example pipeline visualization (click to enlarge)

Reports and integrations

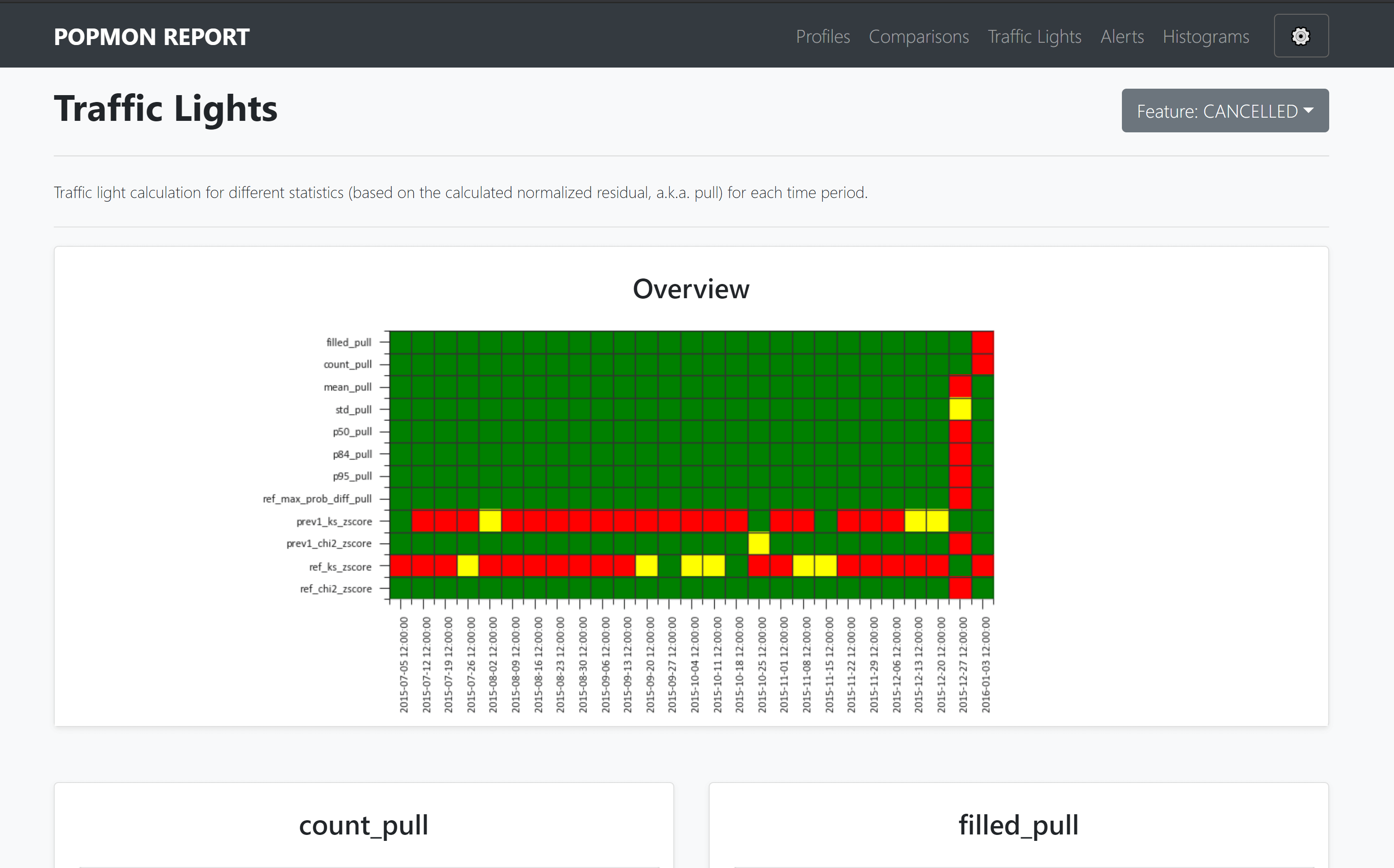

The data shift computations that popmon performs, are by default displayed in a self-contained HTML report. This format is favourable in many real-world environments, where access may be restricted. Moreover, reports can be easily shared with others.

Access to the datastore means that its possible to integrate popmon in almost any workflow. To give an example, one could store the histogram data in a PostgreSQL database and load that from Grafana and benefit from their visualisation and alert handling features (e.g. send an email or slack message upon alert). This may be interesting to teams that are already invested in particular choice of dashboarding tool.

Possible integrations are:

Grafana	Kibana

Resources on how to integrate popmon are available in the examples directory. Contributions of additional or improved integrations are welcome!

Resources

Presentations

Title	Host	Date	Speaker
Popmon - population monitoring made easy	Big Data Technology Warsaw Summit 2021	February 25, 2021	Simon Brugman
Popmon - population monitoring made easy	Data Lunch @ Eneco	October 29, 2020	Max Baak, Simon Brugman
Popmon - population monitoring made easy	Data Science Summit 2020	October 16, 2020	Max Baak
Population Shift Monitoring Made Easy: the popmon package	Online Data Science Meetup @ ING WBAA	July 8 2020	Tomas Sostak
Popmon: Population Shift Monitoring Made Easy	PyData Fest Amsterdam 2020	June 16, 2020	Tomas Sostak
Popmon: Population Shift Monitoring Made Easy	Amundsen Community Meetup	June 4, 2020	Max Baak

Articles

Title	Date	Author
Monitoring Model Drift with Python	April 16, 2022	Jeanine Schoonemann
The Statistics Underlying the Popmon Hood	April 15, 2022	Jurriaan Nagelkerke and Jeanine Schoonemann
popmon: code breakfast session	November 9, 2022	Simon Brugman
Population Shift Analysis: Monitoring Data Quality with Popmon	May 21, 2021	Vito Gentile
Popmon Open Source Package — Population Shift Monitoring Made Easy	May 20, 2020	Nicole Mpozika

Software

• Kedro-popmon is a plugin to integrate popmon reporting with kedro. This plugin allows you to automate the process of popmon feature and output stability monitoring. Package created by Marian Dabrowski and Stephane Collot.

Project contributors

This package was authored by ING Wholesale Banking Advanced Analytics. Special thanks to the following people who have contributed to the development of this package: Ahmet Erdem, Fabian Jansen, Nanne Aben, Mathieu Grimal.

Contact and support

• Issues & Ideas & Support: https://github.com/ing-bank/popmon/issues

Please note that ING WBAA provides support only on a best-effort basis.

License

Copyright ING WBAA. popmon is completely free, open-source and licensed under the MIT license.
