pwdusage 1.0.0

Usage (mainly time of use) proxy microservice for Powerwall-Dashboard.

pwdusage

A usage (mainly time of use) proxy microservice for Powerwall-Dashboard.

Change Log

I'm tracking progress towards v1.0 at: https://github.com/BuongiornoTexas/pwdusage/issues/1.

From v0.9.4, the python/microservice is feature complete. Releases up to v1.0 will address bug fixes and documentation (and incorporate any new agent contributions).

Breaking

This section notes any breaking changes, from newest to oldest.

• v0.9.4.
  • Project renamed to pwdusage to give a shorter name for pypi package.
  • Separated python component from dashboard components. In the interim, the latter can be found at: https://github.com/BuongiornoTexas/Powerwall-Dashboard/tree/main/tools/usage-service, and should be integrated into the main tree after beta phase.
  • First release of python package from pypi, new install procedure.
• v0.9.1. "supplyPriority" in usage.json renamed to "supply_priority" to improve naming consistency.

New Features

v1.0.0

• Documentation for building and testing docker image, instructions for adding the docker container to the Powerwall-Dashboard stack.
• Documentation for grafana configuration.
• Sample dashboards added to the Powerwall-Dashboard repo.

v0.9.1

• Resampling to more useful periods for bar charts.
• Payload features implemented. You can now turn resampling on/off, request summary reports, and select year to date or month to date reporting (which ignore the grafana range).
• Month anchor for annual reporting, weekday anchor for monthly reporting by week.
• CLI interface to dump out csv format files for debugging.

Key Features

The following dot points outline key elements of the usage engine:

• The usage engine provides a framework for time of use energy and cost reporting.
• The framework assumes that a utility's supply agreement/contract can be broken into: a usage plan that describes the mostly-constant elements of the contract, and a calendar that specifies which usage plan should be active at any time and the variable parameters of the plan, such as supply costs, feed in tariffs and savings rates.
• The engine can handle multiple usage plans, where each plan is broken into a number of seasons, and specifies the usage agent that will be used to calculate energy costs and savings.
• Each season is specified as:
  • Repeating groups of week days in a season. For example, weekday and weekends.
  • Repeating tariff periods within each day of the group, where each tariff is active for a portion of that day. For example, Peak, Off-Peak, Shoulder, Super-Peak.
• A calendar which specifies when each usage plan/season is active, and provides cost/savings rate data that should be used while the calendar entry is active. The calendar mechanism is designed to allow compact changes of seasons and rate tables.
• It provides a default simple agent that calculates costs and savings based on energy use in each tariff period.
• Very importantly: It provides hooks for implementing other usage plans, such as tariffs based on tiered consumption. I'm happy to provide assistance in putting these together, but I'm hoping most of the work will be done by the people on those usage plans.

Implementation

The usage engine is implemented as proxy layer between InfluxDB and grafana. This approach the following benefits:

1. The usage engine does not modify data in InfluxDB.
2. It is relatively easy to implement multiple usage plan types.
3. It can be configured via a json file and reset/restarted without needing to restart the pypowerwall server or influx instance (not applicable while developing new usage agents).
4. It's easy to test the effects of different tariff types on historical data (albeit, the historical data may not reflect optimisation for the tariff).

Setup

This section details setup for end users. Developers and users who wish to use the CLI components should refer to "Installation for development/testing", which details setting up a local server instance running under python.

All of the script and configuration files referred to in this document can be found in the tool/usage-service subfolder of the Powerwall-Dashboard repo. (As they belong with the Dashboard rather the python service.)

(If you can't find files that this document refers to, it is possible that this version of pwdusage contains files that have not yet been committed to the main repository - check https://github.com/BuongiornoTexas/Powerwall-Dashboard for work in progress).

Open firewall port

Decide which port the usage micro-service will use and make the changes required to allow your grafana host to access this port (and any other machine that might need access). For example, I'm using ufw on my local network:

ufw allow from 192.168.xxx.0/24 to any port 9050 proto tcp

Build Docker Image

I have provided utility scripts to build the docker image for your local machine. Depending on demand, this may become a distributed image in the future.

Open a terminal and navigate to the tools/usage-service sub-folder of Powerwall-Dashboard. In this folder generate the image using:

bash build.sh

Note for developers: This script will delete any existing pwdusage images and containers (if you are a normal end user, this is most likely what you want to happen).

Test Docker Image

This is an optional step which may be useful for trouble shooting. The test process is as follows:

• Navigate to the tools/usage-service sub-folder of Powerwall-Dashboard.

• Copy the example_usage.json file to usage.json in the usage-service folder.

• Edit usage.json so that file so that influx_url points at your influx server (probably the same machine as your Powerwall-Dashboard) and, optionally, set the correct timezone for your region.

• Run a test script which performs the following actions:

  • Stops and deletes the pwdusage container.
  • Creates and start a new pwdusage container configured by the test usage.json.
  • Pauses while you check the server status.

  The test script command is:

  bash test_service.sh


• Check that the usage server is responding by pointing a web browser at http://server.address:<port>/usage_engine. If everything is as it should be, you should see a page containing the message:

  Usage Engine Status	"Engine OK, tariffs (re)loaded"


• Return to the terminal running the test script and hit enter. This will clean up the test by stopping and deleting the container (but keeps the image you created in the previous section).

The next sections details adding the usage service to your Powerwall-Dashboard stack.

Add pwdusage to Powerwall-Dashboard

This step assumes you have set up a usage.json configuration file in the tools/usage-service subfolder of Powerwall-Dashboard. See the previous section for using the example file, and the following section for details on setting it up to match your own usage plan.

The pwdusage install steps are:

• If powerwall.extend.yml exists in your Powerwall-Dashboard folder, then copy the contents of the pwdusage.extend.yml file starting from the line pwdusage: into powerwall.extend.yml (this should be in the services section).
• Otherwise, copy pwdusage.extend.yml into the Powerwall-Dashboard folder and rename it to powerwall.extend.yml.
• Edit powerwall.extend.yml to reflect your user id and any changes you may have made to the default port and USAGE_JSON file path.

Finally, restart the Powerwall-Dashboard services:

./compose-dash.sh stop
./compose-dash.sh up -d

pwdusage Configuration

Because there are so many different usage plans, pwdusage requires a JSON configuration file to define your usage plans and calendars. This section discusses the layout of this file and the how usage engine locates this file. You will very likely also need to do some customisation in grafana to get report out in the format you prefer, which the next section covers.

The project documentation assumes this file will be named usage.json file. However, you can use any name you like in conjunction with the USAGE_JSON environment variable (see below).

The tools/usage-service folder in Powerwall-Dashboard repository contains a file named example_usage.json that you can use to build your own usage.json. The recommended default location for your usage.json is the tools/usage-service folder. (As a convenience for developers, this example file is also duplicated in the pwdusage usage repostory.)

Loading usage.json

The usage engine will look for the configuration files in the following locations:

• You can use the environment variable USAGE_JSON to specify the (optional) path and the file name for the configuration file. You must use this method for running a usage server in a docker container (most users). See the pwdusage.extend.yml and test_service.sh files in the previous sections for examples of mapping a local copy of usage.json to a docker container volume.
• If the environment variable is not specified, the enginer will try to load usage.json from the working directory.
• If you are running the engine in CLI mode to dump csv files, you must specify the location of the configuration file (optional path + file name) using the --config argument. USAGE_JSON is ignored in this mode.

Note: if you have followed the steps for adding pwdusage to the Powerwall-Dashboard docker stack and your usage.json is in the recommended location, everything should run out of the box.

Strings from common.py

While most of the heavy lifting is done in the usage.json file, this configuration file depends heavily on constants defined in common.py. This section outlines these constants.

The strings defined in the PDColName Enum in common.py are labels for key calculated data columns in the usage engine. You may choose to output any subset of the numeric calculations, and you can also change the default names of the outputs to your preferred labels.

The following table summarises the strings available as at 13 May 2023. This set may be extended in future.

String	Default string	Description and Notes
GRID_SUPPLY	Grid supply	Power from grid, grid import.
GRID_EXPORT	Grid export	Power from home to grid, grid export.
PW_SUPPLY	PW supply	Output from powerwall (total).
HOME_DEMAND	Home Demand	Home power usage.
SOLAR_SUPPLY	Solar supply	Solar generation (total).
GRID_TO_HOME	Grid to Home	Grid supply allocated to home demand.
PW_TO_HOME	PW to Home	Powerwall output allocated to home demand.
SOLAR_TO_HOME	Solar to Home	Solar generation allocated to home demand.
GRID_CHARGING	Grid charging	Grid supply used to charge powerwall (allocated).
RESIDUAL_DEMAND_1	Home demand ex supply 1	See next section for priorities and residuals.
RESIDUAL_DEMAND_2	Home demand ex supply 1+2	See next section for priorities and residuals.
RESIDUAL_DEMAND_FINAL	Home demand ex supplies	See next section for priorities and residuals (should be zero, but don't rely on it, because Tesla.).
SELF_PW_NET_OF_GRID	PW to home-grid charge	Power supply to home less grid charging of powerwall. See next section for discussion.
SELF_SOLAR_PLUS_RES	Solar to home+residual	Power supply to home plus any unaccounted residual demand. See next section for discussion.
SELF_TOTAL	Self consumption	Total self consumption. SELF_PW_TO_HOME + SELF_SOLAR_PLUS_RES.
SUPPLY_CHARGE	Supply Charge	If specified in calendar rate table, will add 1 unit of supply charge to cost output for each data point. Ignored if specified in usage_plans variable report list.
TARIFF	Tariff	String used internally. Not intended for end users.
TIME	_time	String used internally. Not intended for end users.

usage.json structure

Most of the usage engine setup is via the usage.json configuration file. As always with JSON, it's finicky on exact syntax, and the server can be opaque with error messages, so if you have trouble with setting up the usage engine, the first step should be to check this file for syntax errors and typos.

In the following sections, the various elements of the configuration file are identified as either required or optional. Required elements must be supplied, while optional elements typically have standard defaults, or may repeat previously specified input. Both required and optional elements can have additional qualifiers that apply to that input.

The high level structure of the json file is:

{
  "settings": { ... dictionary of settings ...},
  "plans": [
    <usage plan 1>,
    <usage plan 2>,
    <usage plan 3>,
    ...
  ],
  "calendar": {
    "<effective date>": {<calendar data dictionary>},
    "<effective date>": {<calendar data dictionary>},
    "<effective date>": {<calendar data dictionary>},
    ...
  }
}

The settings, plans, and calendar sections are all required.

Settings Section

The structure of the settings dictionary is:

"settings": {
        "influx_url": "http://<hostname>:8086",
        "bucket": "powerwall/kwh",
        "timezone": "Australia/Hobart",
        "supply_priority": [
            "GRID_SUPPLY",
            "PW_SUPPLY",
            "SOLAR_SUPPLY"
        ],
        "cost_unit": "$",
        "energy_unit": "kWh",
        "rename": {
            "GRID_SUPPLY": "Grid supply---",
            "GRID_EXPORT": "Grid export+++"
        },
        "resample": true,
        "week_anchor": "MONTH",
        "year_anchor": "JAN"
    },

The dictionary entries are:

• [required] influx_url points at the influx database service, which is typically the hostname or address of the Powerwall Dashboard host, with a port of 8086.
• [required] bucket is the name of the influx continuous query that supplies data for the usage engine. This should have the same fields as the powerwall/kwh CQ (the default, which provides data on an hourly basis).
• [required] timezone - This should be set to your local timezone.
• cost_unit and energy_unit - optional string appended to the series labels for usage cost and energy data. Default to "$" and "kWh".
• rename - An optional dictionary that allows replacement of the default strings defined in common.py. If you want to have a new label string for the "SOLAR_SUPPLY", you can go nuts. Be my guest. The boring example above adds multiple - and + signs to the strings for grid supply and grid export.
• resample - An optional setting which specifies if data should be downsampled, with a default of true (true or false). This can also be set by a grafana payload. See JSON Payload for discussion on resampling implementation and how to configure the payload.
• week_anchor - An optional setting with default value of "MONTH". This specifies the first day of the week used in data resampling. The default is to anchor the week start to the first day of the month, but you can lock it to a fixed day of the week using one of: ["MON", "TUE", "WED", "THU", "FRI", "SAT", "SUN"].
• year_anchor - An optional setting with default value of "JAN". This specifies the first month of the year for annual reporting (provided in case anyone wants to run reports that line up with local financial years). You can modify using any three day month abbreviation ["JAN", "FEB", "MAR", ... , "DEC"]. Note: the first day of the reporting year corresponds to the first day of the specified month - e.g. 1st July for "JUL".

Finally, "supply_priority" is an optional entry that provides the order in which supply is allocated to meet home demand for power. If specified, the entry must be a three element list that states the order of "GRID_SUPPLY", "PW_SUPPLY" and "SOLAR_SUPPLY". If "supply_priority" is omitted, it defaults to the list specified above (grid, powerwall, and then solar).

This list is used to allocate supply to demand as follows:

• Power from the first supply (e.g. grid supply) is allocated to HOME_DEMAND.
  • If this supply exceeds demand (GRID_SUPPLY > HOME_DEMAND), then all home demand is met from this supply and remaining demand after the first supply is set to zero (RESIDUAL_DEMAND_1 = 0).
  • Otherwise, home demand consumes all of the available supply and the residual demand is calculated from the difference between demand and supply - for our example, it is RESIDUAL_DEMAND_1 = HOME_DEMAND - GRID_SUPPLY.
  • Finally, the total power allocated from the first supply to the home is the difference between the home demand and the first residual - for our example: GRID_TO_HOME = HOME_DEMAND - RESIDUAL_DEMAND_1.
• We apply the same process to the second supply (e.g. PW supply) to residual demand 1. In summary for this case:
  • If PW_SUPPLY > RESIDUAL_DEMAND_1, then RESIDUAL_DEMAND_2 = 0, otherwise RESIDUAL_DEMAND_2 = RESIDUAL_DEMAND_2 - PW_SUPPLY.
  • Power allocated from the second supply to home: PW_TO_HOME = RESIDUAL_DEMAND_1 - RESIDUAL_DEMAND_2.
• And we apply the same process a third time to calculate RESIDUAL_DEMAND_FINAL and the third supply allocation to the home SOLAR_TO_HOME.

Note that the Tesla and/or InfluxDB data is not always to internally consistent. As a result it is possible for RESIDUAL_FINAL_DEMAND to be non-zero (it can't be physically, but rounding, calculation errors and some Tesla oddities result it in happening from time to time - it is zero most of the time). Consequently, all of the residual values are available for reporting if you want to see what is happening. (Aside: Sometimes the energy balance doesn't work at all - more energy coming in than going out/being consumed or vice versa - the usage engine ignores this situation as it is a) infrequent and b) there is no practical method to address it.)

The way I have chosen to address this is to assume that any positive non-zero residual demand must have been met by internal generation (erring on the thinking positive side), and I have also assumed this is under-reported solar generation. So I have also included a corrected solar self consumption variable which is defined as:

SELF_SOLAR_PLUS_RES = SOLAR_TO_HOME + RESIDUAL_DEMAND_FINAL

(This may lead to infrequent small solar consumption being reported in the middle of the night).

The example usage.json file uses this variable, but you can use SOLAR_TO_HOME instead if you don't want to use my assumption. Note total self consumption also includes this residual:

SELF_TOTAL = PW_TO_HOME + SELF_SOLAR_PLUS_RES

If you don't want to include the final residual in total self consumption, you will need to create a custom agent or report SOLAR_TO_HOME and PW_TO_HOME and then sum these in grafana to obtain a total self consumption.

Finally with the calculations above in place, the usage engine calculates two more utility variables:

• GRID_CHARGING = GRID_SUPPLY - GRID_TO_HOME, where I assume any grid supply in excess of that allocated to home demand is used to charge the powerwall.
• SELF_PW_NET_OF_GRID = PW_TO_HOME - GRID_CHARGING, which is the powerwall supply to home less any grid charging of the powerwall in the reporting period. See discussion on powerwall savings in the calendar section for the reason for this variable and its (optional) usage.

Final note: The usage engine does not try to reconcile the energy balance (out of scope).

Plans section

The plans section must contain at least one usage plan, and can contain an any number of usage plans.

  "plans": [
    <usage plan 1>,
    <usage plan 2>,
    <usage plan 3>,
    ...
  ]

Each plan uses the following structure, with user specified names in <>:

{
 "name": "<plan name - for example Utility XYZ>",
 "report": [
     "GRID_SUPPLY",
     "GRID_EXPORT",
     "SELF_PW_NET_OF_GRID",
     "SELF_SOLAR_PLUS_RES"
 ],
 "agent": "Simple",
 "seasons": {
     "<season name - e.g. Summer DST>": [
         {
             "schedule": "<e.g. Weekday> ",
             "days": [
                 0,
                 1,
                 2,
                 3,
                 4
             ],
             "periods": {
                 "22:00": "Off-Peak",
                 "08:00": "Peak",
                 "11:00": "Off-Peak",
                 "17:00": "Peak"
             }
         },
         {
             "schedule": "<e.g. Weekend>",
             "days": [
                 5,
                 6
             ],
             "periods": {
                 "00:00": "Off-Peak"
             }
         }
     ],
     "<season name - e.g. Winter WST>": [
         {
             "schedule": "<e.g. Weekday>",
             "periods": {
                 "21:00": "Off-Peak",
                 "07:00": "Peak",
                 "10:00": "Off-Peak",
                 "16:00": "Peak"
             }
         }
     ]
 }
}

The following points provide more detail on these elements:

• [required] "name" is a unique identifier for the usage plan. For example: "Aurora-TAS-ToU" for the Tasmanian Aurora time of use plan.

• [required] "report" lists the energy variables that you want reported to grafana for the plan. Available variables are defined in common.py strings above. Note: a) you must specify at least one report variable even if you do not plan to use these variables, and b) Cost/savings variables are specified in the calendar section.

• [required] "agent" specifies the usage agent for calculating costs. Right now, only the "Simple" agent is available.

• [required] "seasons". Each plan must contain at least one season, and can contain an arbitrary number of seasons. All seasons in the plan have share the same basic tariff schedule structure, but the timing detail of the tariff schedules varies between seasons (the explanation below makes this clearer). Season timings are defined in the calendar section (and ARE NOT tied to physical seasons). The rules for seasons are:

  • [required] Each season must have a "name".
  • [required] The first season must fully define all of the tariff schedules used in the plan. In the example above the "summer" season defines a "Weekday" and a "Weekend" schedule.
  • [optional] The second season can replace one or more of the tariff schedules named in the first season (technically, it can also add new tariff schedules - I'd advise against this though - outcomes will be unpredictable). In our example above, the "Weekend" schedule is the same in summer and winter, so it is not replaced. However, the timing of the "Weekday" schedule does change, so we replace that.
  • The third applies the same replacement logic, but to the second season, and so on.

  This process is intended to simplify dealing with multi-tariff usage plans where not too much changes between seasons - the alternative is to require definition of every tariff in every season (if users prefer, it would not be hard to switch to this mode).

• Finally, each tariff schedule specifies tariff timings for a group of weekdays. The rules for tariff schedules are:

  • [required] They must have a unique "schedule" name in the plan (you can re-use the schedule name in other plans). The name is required in the first season (initial definition) and future seasons (to identify which tariff schedule will be replaced).
  • [required] When they are first defined in the first season of the plan, you must specify:
    • The week days the schedule will apply with a "days" list (0 = Monday, 6 = Sunday).
    • The start times for each tariff during the day with a "periods" dictionary.
  • [optional When schedules are defined in any season after the first, they must have the same name as the one of the schedules in the first season and must define either "days" and "periods" (and may define both), which will replace the relevant elements of the tariff schedule in the preceding season.

  See the example above for the structure of these entries.

  Specific notes on "periods" and "days":

  • At least one day must be specified in "days".
  • At least one period must be specified in "periods".
  • Each entry is "[tariff start time in 24:00 notation]": "[tariff name]".
  • Tariffs must appear in chronological order! The usage engine calculates the tariff active duration as the difference between two entries.
  • You can pick any period to start the list (but to keep your head in one piece, it makes most sense to start with the first one after midnight and end with the last one before midnight).
  • The usage engine automatically rolls around between the last and first entries, and handles midnight crossover (so you don't have to think about start and end of day issues).
  • The schedule replacement mechanism replaces the entire "days" and "periods" entries (you can't modify a single day or period entry - you must fully respecify day groups and periods within the day).

Calendar section

The calendar section is a dictionary of calendar entry dictionaries, where each entry dictionary has the following structure:

"2022-10-06": {
    "plan": "Aurora-TAS-ToU",
    "season": "Summer",
    "tariffs": {
        "Peak": {
            "GRID_SUPPLY": -0.33399,
            "GRID_EXPORT": 0.08883,
            "SELF_PW_NET_OF_GRID": 0.33399,
            "SELF_SOLAR_PLUS_RES": 0.33399,
            "SUPPLY_CHARGE": -0.04579291666
        },
        "Off-Peak": {
            "GRID_SUPPLY": -0.15551,
            "GRID_EXPORT": 0.08883,
            "SELF_PW_NET_OF_GRID": 0.15551,
            "SELF_SOLAR_PLUS_RES": 0.15551,
            "SUPPLY_CHARGE": -0.04579291666
        }
    }
},

[required] The date key specifies the starting date for the calendar entry. The first entry in date order must contain the following sub-elements:

• [required] "plan": "[plan name]", where plan name is the plan that will be active from the start date, and must correspond to one of the plans in the "plans" section.

• [required] "season": "[season name]", where season name is the season of plan name that will be active from the start date, and must match one of the seasons in plan name.

• [required] "tariffs": [dictionary of tariff rate tables]. In the above example, "Peak" and "Off-peak" rate tables specify cost and savings rates for various supplies and exports - you can flip the sign of savings and costs if you prefer. Unfortunately, if you are not interested in cost data, you must still specify at least one tariff rate table, but you can ignore cost output in your final dashboard.

  Agent implementation note: Agents generally should report cost and savings for any variable specified in the rate tables.

See the following section for a discussion of how the simple usage agent works and for a discussion of why I use the special variables SELF_SOLAR_PLUS_RES and SELF_PW_NET_OF_GRID in my savings calculations (if you don't like my logic, you can use any of the other variables specified in common.py instead).

The second and following calendar entries operate by difference to the previous entry in calendar order. You may specify any or all of the elements required for the first entry, and these will then replace the values used in the the previous entry. In the following example, the plan and tariffs remain the same as the previous entry, but the season is changed to Winter.

"2023-04-02": {
    "season": "Winter"
}

Simple usage agent

The simple usage agent is very straight forward. For each energy variable in the rate table, it calculates the cost/saving as Variable value x variable rate, and performs this calculation for each time interval record returned from the influx database.

As noted previously, I use two special variables in my savings calculations:

• SELF_SOLAR_PLUS_RES, which is the total solar energy allocated for home use plus any residual from the demand allocation calculations. I do this based on the following reasoning:

  • As noted previously, the final residual may be non-zero either due calculation methods (integration, rounding, etc) or Tesla's caprice.
  • I'm arbitrarily assuming that Tesla's calculation of household demand and grid supply is correct. Hence, any residual demand is real and should be supplied by the solar system or the powerwall. I've arbitrarily assumed the solar system supplies this residual.

  If you don't like this assumption, I suggest you use SOLAR_TO_HOME instead and ignore the residual.

• SELF_PW_NET_OF_GRID, which is energy supplied to the house less energy used to charge the powerwall, where I value the powerwall savings rate as the negative of the grid supply cost at the time (e.g. peak/off peak grid supply of -$0.30/-$0.20 results in a powerwall saving of $0.30/$0.20). The argument here is a bit more subtle than the previous case - in effect the powerwall saving is the sum of two effects:

  • Total powerwall supply to home X generates a saving of X * r in a given period.
  • If we charge the powerwall with an amount Y from the grid in the same period (e.g. the battery breaks an hour into 40 minutes powering the home, 10 minutes charging from the grid, 10 minutes idle), we don't get a home supply benefit from that grid power until it discharges to the home. So we allocate a negative saving of -Y * r.
  • Taken together, we get the "savings" from the power wall of (X - Y) * r, or powerwall supply to home net of grid charging to powerwall for that period.

  This approach has two benefits:

  • First, it deals with the potential problem of valuing energy use twice: once when buying from the grid to charge the battery, and again when discharging the same energy from the battery for use by the house. For example, if I take an example of spending 40c to charge the battery with 2kWh at night and then using that 2kWH the next day at the same rate of 20c/kWh, then
    • Using a simple model, I pay 40c to fill the battery, and then recover 40c in savings when I use the grid power. Which results in free electricity. To fix this simple model requires tracking both solar and grid energy in the battery (which I'm too lazy to contemplate), or doing some complicated math with savings rates (again, too lazy).
    • Using the net of grid model, the battery in effect pays 40c for the grid charge energy and then recovers that 40c when it discharges the energy, resulting in zero saving associated with the grid energy in and out of the powerwall and the correct charge of 40c for the original supply of grid power (more or less how we'd like the math to work).
  • Secondly, and more importantly, it automatically handles grid supply at one tariff and discharge at another. For example, if we charge the battery with 2kWh at an off peak tariff of 20c and our peak tariff is 30c, then:
    • We pay 40c for the grid supply.
    • The battery has a savings reduction of 40c at the time of supply.
    • If we use the energy at off peak time, the battery generates savings of 40c (net 0c).
    • But, if we use the energy at peak time, the battery generates a savings of 60c (net 20c). This effect would reverse for charging on peak (net savings reduction of 20c).

As can be seen from this, the net of grid charging approach provides a relatively elegant (if not perfectly accurate) method for accounting for grid supply arbitrage using the battery.

The main disadvantage of this approach is that it doesn't account correctly for round trip efficiency on the grid energy. But to do this, we'd need to build an agent that tracks supply and discharge from solar and grid and do a continuous allocation calculation as to which supply is going via the powerwall to the home. This problem promptly went into my "this-is-too-hard-and-the-current-approximation-is-good-enough" basket.

If you don't like this approach, you can use PW_TO_HOME instead. But note that you will need to adjust your savings rate to manage the double dipping effect above, and it doesn't address the issue of charging at one tariff and discharging at another. A final alternative is to implement a better usage agent yourself (offers welcomed!).

Other usage agents

Right now, I have only implemented the simple usage agent detailed in the previous section. However, the system provides hooks for extension with additional usage agents. If you know your way around python, you can follow the structure of simple_agent.py to build your own agent (if not, let me know via an issue and I'll see if I can help built an agent for your use case).

Grafana setup

This section assumes you have already got a docker or stand alone pwdusage server up and running, and you know the hostname/host address and port for the server.

JSON datasource

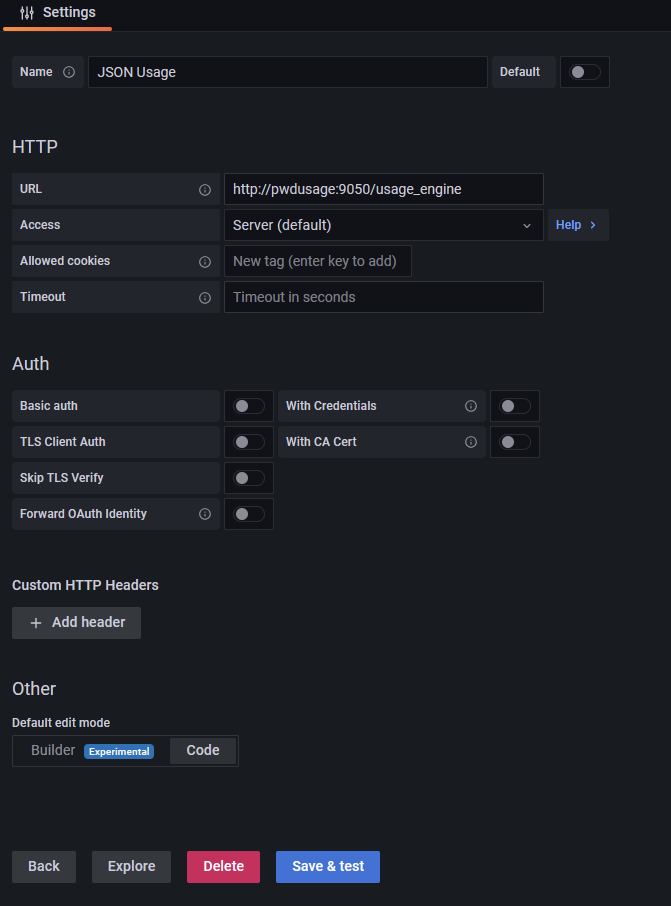

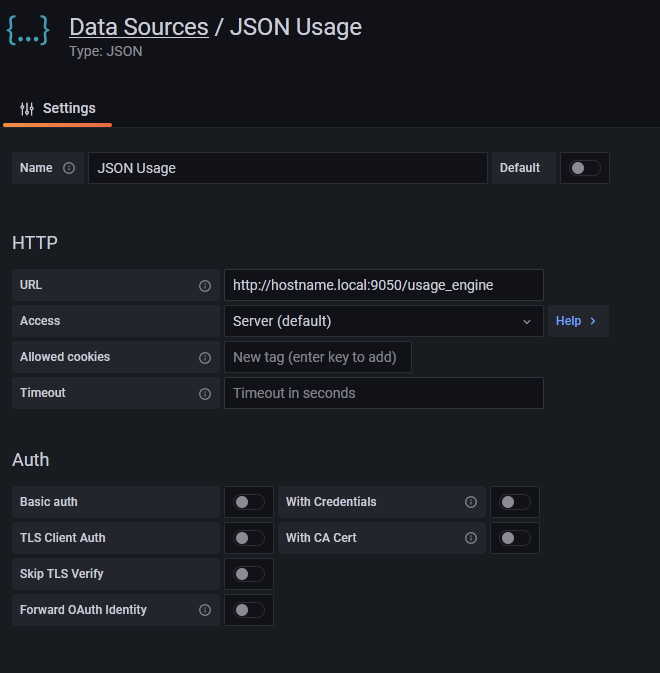

From the general grafana configuration (cog wheel icon, bottom left):

• Select Data sources.

• Click Add data source and add a JSON data source.

• Give it a name - the example dash board uses JSON Usage.

• Set the URL to: http://<hostname>:<port>/usage_engine. The default usage engine port is 9050, but you can override this via the docker .yml configuration or via USAGE_PORT for a stand alone server.



• Hit "Save and Test". You should see two green tick messages "Datasource updated" and "Data source is working".

Datasource troubleshooting

If the usage engine service has not started properly, the second message will show a green "Testing ..." for a while, followed by a red/pink "Gateway Timeout".

If the datasource url is incorrect, the second message will read: "Not Found".

If the server has started and the url is correct, but there is problem with the usage engine configuration, the second message will read: "status code 599". In this case, try:

• Using a web browser to open http://<hostname>:<port>/usage_engine. The page may give some hints.
• Check the server log (if you are running docker, check the docker log).
• If none of this helps, raise an issue at: https://github.com/BuongiornoTexas/pwdusage/issues.

Grafana Dashboard setup

This section outlines setting up grafana dashboards based on usage queries. It refers to the example dashboards in the tools/usage-service folder, and these also provide useful starting points for developing your own dashboard. The sample dashboards are:

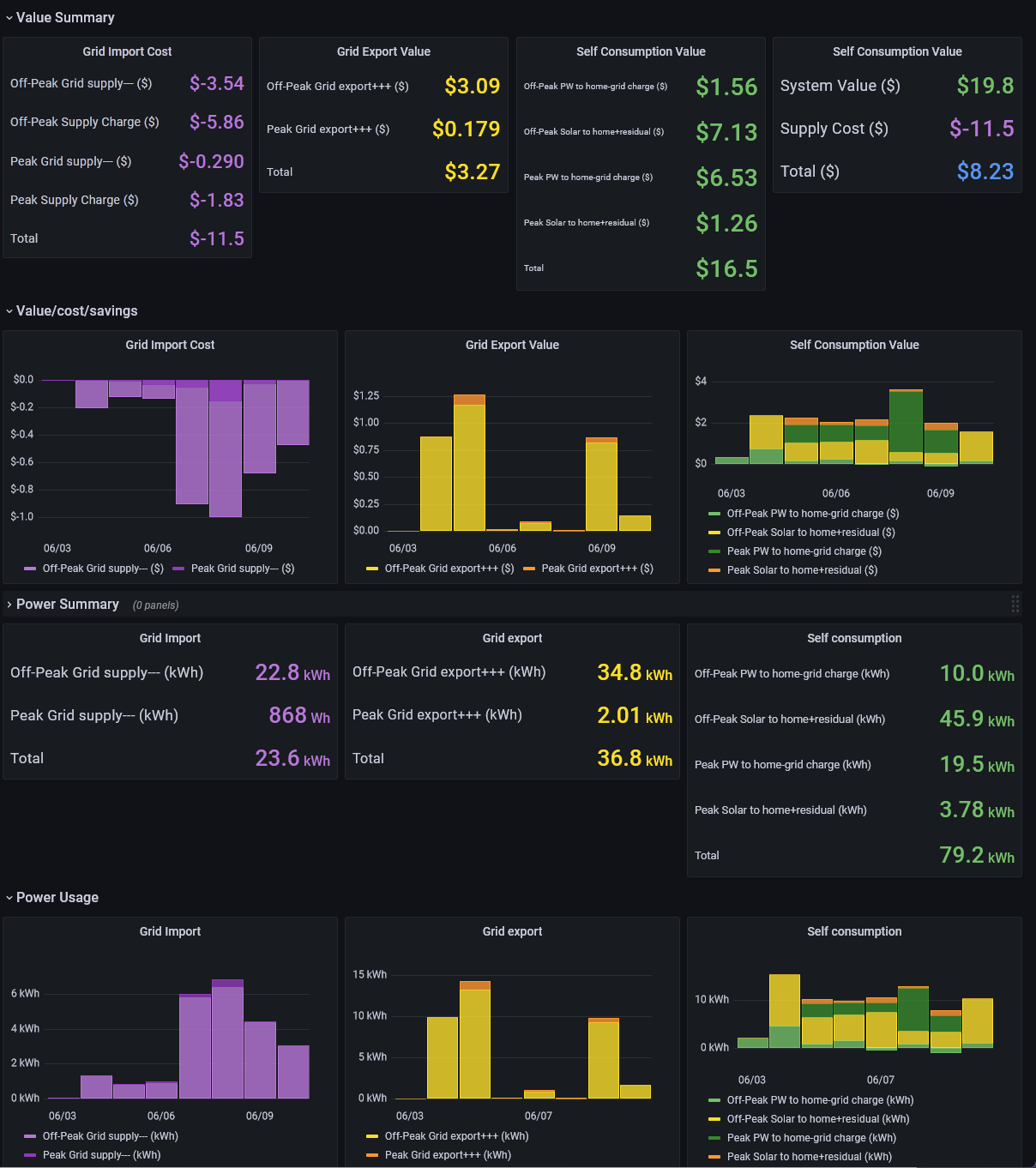

• A usage detail dashboard (the image at the top of this README), which uses hourly data generated from the example usage.json.

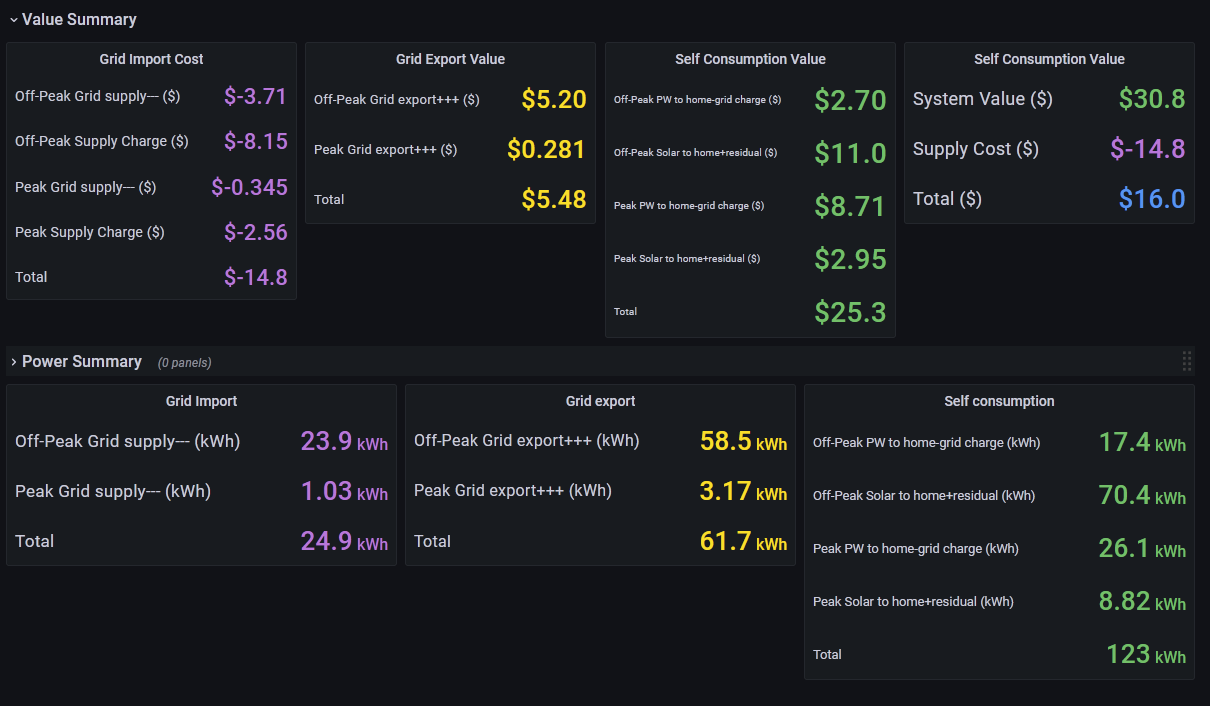

• Two versions of of a summary statistics dashboard, which use the summary payload entry. The performance sidebar below explains the difference between the versions, and the JSON payload section details payload options. The v1 output is shown in the following image and is similar to that presented in the detailed dashboard.

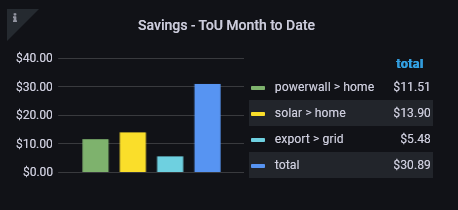

The usage-service folder also includes an example drop in replacement panel for the main dashboard savings panel - built around summary and month_to_date reporting (via JSON payload) and the sample usage.json (you'll need to tweak it to match your utility). This panel loads a little slower than most of the dashboard elements, but still much faster than the Tesla power flow animation.

Note 1: I have not spent much time on colors or layout, as each user will need to customise these reports to match their utility and their own reporting needs. (I know I've still got a bit of work to do on my own!) However, the example dashboards do provide a reasonable idea of what you can do with the usage data and how you can manipulate it.

Note 2: Both the detail usage and v1 summary dashboards can be slow to load regardless of reporting time interval - refer to the performance sidebar for reasons and methods to address this issue. The v2 summary dashboard and savings panel are quick to load for shorter time intervals (< 1month), but like other grafana queries, these will slow down for longer intervals.

The main thing to be aware of when setting up a usage dashboard is that the usage datasource performs a set of computationally expensive (i.e. slow) calculations and then returns all time of use data in a single table. Because of this, and as discussed in the performance side bar, you should call the usage datasource in only one hero panel per dashboard. If you want to use the same usage data in any other panels on a dashboard, you should then duplicate this data using the internal grafana -- Dashboard -- datasource. Finally, because the usage datasource returns all of the data, you will need to apply filter transforms in each usage panel to get the data that you want to present (and discard the data you don't want) - this process is outlined below.

The process for setting up usage panels in a dashboard is:

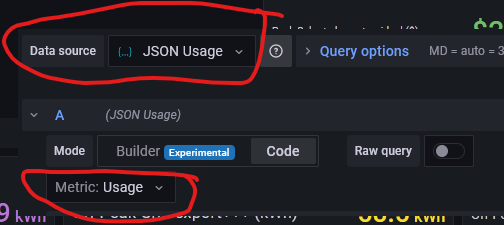

• Choose a hero panel which you will use as your main usage data source. In the "Usage Detail" example dashboard, the "Grid Import" panel is the hero panel. Set the Data source to match your JSON pwdusage data source ("JSON Usage" in the examples) and set the metric to "Usage".



• For all other usage panels in the dashboard, set the data source to "-- Dashboard --" and set the Use results from panel field to the name of your hero panel ("Grid Import").



• For each usage panel, apply a "Filter by Name" transform to select the variables you want to present in the panel. You can either select the variables individually, or you can use a regex. Either way, if you want to plot against time, you must select "_time" or you will get "No data" errors (ask me how I know ...). An example of regexp that selects all grid export power and time is "_time|(Grid export).*(kWh)".

• The "Add field from calculation" transform is useful for creating subtotals and totals, and the "Organise fields" transform can be useful for hiding intermediate values and arranging fields. To see examples of these transforms, check the "Self Consumption Value" summary stat table in the "Usage Detail" example dashboard.

Performance sidebar

Unfortunately, there are two interacting performance issues that impact grafana presentation of usage engine data. For reference, the performance benchmarks in this section are for a 2013 Celeron NUC with 2GB(?) memory and a SATA SSD.

1. A usage engine query is slower than a normal grafana/influxdb query. This is because it includes a set of transform calculations to generate the usage data and another set of transforms that convert the usage data to a JSON format for export to grafana. While it is definitely possible to improve this performance, it will be at the cost of much harder development effort - I've accepted the performance hit as as consequence of simpler development using pandas under python.

   The speed of usage engine responses is non-issue for shorter time intervals (< 1 month), but becomes significant above this: ~6s for 6 months, 14s for 10 months. This is slower than other Powerwall-Dashboard queries, but still acceptable for most uses.

   However! Grafana usage panels will timeout if a dashboard includes two usage queries with long (6+ months)intervals.

   To avoid the timeout problem for long interval queries, I recommend using only one usage query per dashboard, and then duplicating the query via the grafana Dashboard data source. This process is detailed in the previous section.

2. The second performance problem arises if we want to use a lot of usage panels and we use the grafana Dashboard data source (e.g. the example detail dashboard and the v1 summary dashboard). In this situation, the dashboard loads slowly for all time intervals (the first load can be very slow). But, they do load!

There are two possible approaches to addressing the performance problems:

• If you need multiple panels for complex views on the data (e.g. the detailed usage dashboard), you will have to accept the slow load times.

• If the data you want to present is simpler, you may be able to rework your dashboard to use fewer usage panels. This is the approach taken in the v2 summary dashboard, which replaces the 7 panels in the v1 dashboard with 2 panels - albeit at the cost of some readability.

In summary, regardless of the approach adopted, you should only use one usage engine query per dashboard and duplicate data to other panels via grafana Dashboard data sources. If you don't you may run into panel timeouts.

JSON payload

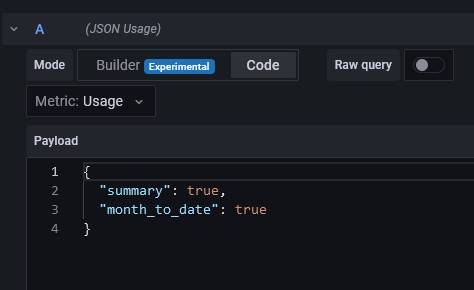

The usage datasource supports a payload dictionary, which can be specified in the grafana query configuration, as shown in the following image.

The supported payload entries are:

{
  "summary": [true | false],
  "month_to_date": [true | false],
  "year_to_date": [true | false],
  "resample": [true | false]
}

1. Note that true and false are both uncapitalised and unquoted.

2. If summary is true (default false), the values for each variable over the reporting range are summed to give total power and total costs, and the resulting totals are returned (per interval values are not reported/discarded). Note that transforms can be used in grafana to get the same result if you want to work with both time series and summary values (use false in this case).

3. Setting month_to_date to true (default false), the report time range is replaced with the current calendar month (utility for dashboard reporting). Both summary and resample apply normally.

4. Setting year_to_date to true (default false), the report time range is replaced with the current year based on the year_anchor setting (utility for dashboard reporting). Both summary and resample apply normally. If month_to_date and year_to_date are both true, year_to_date takes priority and is reported.

5. If resample is true (default), the usage data is resampled according to the following rules:

   Query time range	Resampling
   Within a single day	Hourly
   Within a single month	Weekly
   Within a single year	Monthly
   Larger intervals	Yearly

   In this context within a single day means the query interval is for one calendar day maximum, and so on for the other intervals. If resample is set to false, the data is not resampled and output is returned at the raw influx database query intervals.

   The default resampling is true, and this can also be over-ridden in usage.json. If summary is true, resample is ignored.

Installation for development/testing

Testing pwdusage

As of version 0.9.4, pwdusage is available as a pypi package, and it and its dependencies can be installed using pip. This is the recommended method if you want to test the service and don't want to set up the docker container or do any development.

Optional, but strongly recommended: set up a python virtual environment for installing and running pwdusage (please refer to the python documentation for details). To install:

pip install pwdusage

After installation, you can run the server with:

py -m pwdusage.server

If you want to generate .csv dumps for testing/debugging, the CLI help is available from:

py -m pwdusage.engine -h

Debugging and Development

If you are debugging the current code or developing new usage agents, this section outlines my approach to setting up a test/development environment (based on my fairly limited python experience - if you know what you are doing, this section can be ignored).

The main steps are:

• You will need to be running python 3.11 or higher.

• I strongly suggest using a separate python virtual environment for development.

  py -m venv usage_test

• Activate your environment (refer python docs) and install simplejson, and the influxdb Flux client (I'm running without the high efficiency c iso 8601 library for now). The [extra] also installs numpy and pandas.

  pip install simplejson

  pip install influxdb-client[extra]

• Clone my (@BuongiornoTexas) usage engine repository to a working directory.

• Use pip to create an editable install from the working directory:

  pip install --editable .

  (When you are done, you can uninstall with pip uninstall pwdusage)

• Configure your usage proxy server. You can specify environment variables for the JSON configuration file, server bind address, debugging, server port and HTTPS mode [TODO - https is not working at the moment] (USAGE_JSON, USAGE_BIND_ADDRESS, USAGE_DEBUG, USAGE_PORT, USAGE_HTTPS). For example, my vscode launch.json specifies port 9050 (the default) for the test server and the location of the configuration file:

{
    "version": "0.2.0",
    "configurations": [
        {
            "name": "Python: Current File",
            "type": "python",
            "request": "launch",
            "program": "${file}",
            "console": "integratedTerminal",
            "justMyCode": true,
            "env": {
                "USAGE_PORT": "9050",
                "USAGE_JSON": "C:/users/xxxx/yyy/usage.json"
            }
        }
    ]
}

• For initial testing, create a usage.json configuration file as detailed in Test Docker Image.

• Set the USAGE_JSON environment variable to point at this usage.json.

• At this point, you should be able to run the server using:

  py -m pwdusage.server


  You should then check that the usage server is responding by pointing a web browser at http://server.address:<port>/usage_engine.

• If everything is as it should be, you should see a page containing the message:

  Usage Engine Status	"Engine OK, tariffs (re)loaded"


If you don't see this, please check that usage.json matches the description in Test Docker Image. If you still have problems, let us know on the dev issue thread to see if we can trouble shoot.

If you do get the expected response, you can now modify the usage.json file to reflect your own tariff structure pwdusage Configuration.

Finally, you can run the engine in cli mode to generate .csv dump files for debugging. For this, use py -m pwdusage.engine [arguments], with help available from py pwdusage.engine -h.
