py-draughts 1.0.0

A draughts library for Python, with move generation and validation, PDN parsing and writing. Supprots multiple variants of game.

py-draughts

Efficient modern and flexible implementation of the draughts game with a beautiful web interface. Supports multiple variants of the game and allows playing against AI.

Installation

pip install py-draughts

Key features

1. Provides beautiful web interface for testing your engine/playing against AI.
2. Supports multiple variants of the game (with different board size). standard, american etc.
3. Follows international draughts standards. like fen pdn etc.
4. Allows to easily create new variants of the game. by extending the Board class.
5. Accurate documentation generated from code.

Documentation

Usage

Displays simple ascii board

>>> from draughts.standard import Board
>>> board = Board()
Board initialized with shape (10, 10). (base.py:108)
>>> board
 . b . b . b . b . b
 b . b . b . b . b .
 . b . b . b . b . b
 . . . . . . . . . .
 . . . . . . . . . .
 . . . . . . . . . .
 . . . . . . . . . .
 w . w . w . w . w .
 . w . w . w . w . w
 w . w . w . w . w .

Make and undo moves

>>> board.push_from_str("37-32")
>>> board.push_from_str("14-19")
>>> board.push_from_str("32-28")
>>> board.push_from_str("19-23")
>>> board.pop() # undo last move
>>> board.push_from_str("19-23")
>>> board.push_from_str("28x19")
>>> board
 . b . b . b . b . b
 b . b . b . b . b .
 . b . b . b . . . b
 . . . . . . w . . .
 . . . . . . . . . .
 . . . . . . . . . .
 . . . . . . . . . .
 w . . . w . w . w .
 . w . w . w . w . w
 w . w . w . w . w .

Generate legal moves and validate moves

>>> board.push_from_str("10x42")
Move: 10->42 is correct, but not legal in given position.
 Legal moves are: [Move: 36->31, Move: 37->32, Move: 37->31, Move: 38->33, Move: 38->32, Move: 39->34, Move: 39->33, Move: 40->35, Move: 40->34]

>>> list(board.legal_moves)
[Move: 36->31, Move: 37->32, Move: 37->31, Move: 38->33, Move: 38->32, Move: 39->34, Move: 39->33, Move: 40->35, Move: 40->34]

Generate fen string and load board from fen string

>>> board =Board.from_fen("W:W4,11,28,31,K33,K34,38,40,K41,43,K44,45,K46,47:BK3,21,27,32")
Board initialized with shape (10, 10). (base.py:109)
>>> board.push_from_str("28-37")
>>> board.fen
'[FEN "B:W4,11,31,K33,K34,37,38,40,K41,43,K44,45,K46,47:BK3,21,27"]'

American checkers

>>> from draughts.american import Board
>>> board = Board()
Board initialized with shape (8, 8). (base.py:108)
>>> board
 . b . b . b . b
 b . b . b . b .
 . b . b . b . b
 . . . . . . . .
 . . . . . . . .
 w . w . w . w .
 . w . w . w . w
 w . w . w . w .

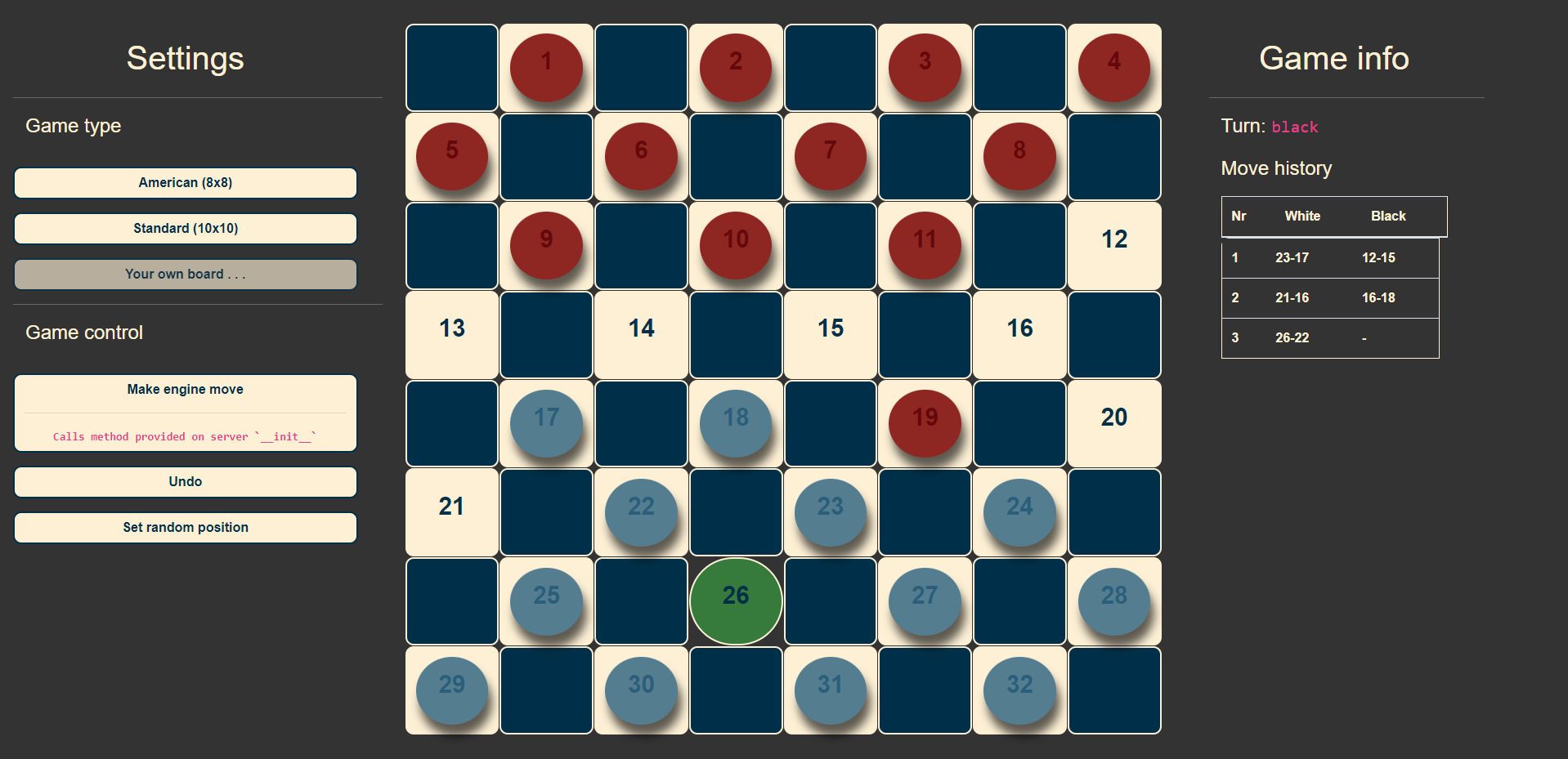

UI

from draughts.server import Server
Server().run()

Use for testing your engine.

Example with simplest possible engine.

>>> server = Server(get_best_move_method=lambda board: np.random.choice(list(board.legal_moves)))
>>> server.run()
INFO:     Started server process [1617]
INFO:     Waiting for application startup.
INFO:     Application startup complete.
INFO:     Uvicorn running on http://127.0.0.1:8000 (Press CTRL+C to quit)

It is as simple as that!

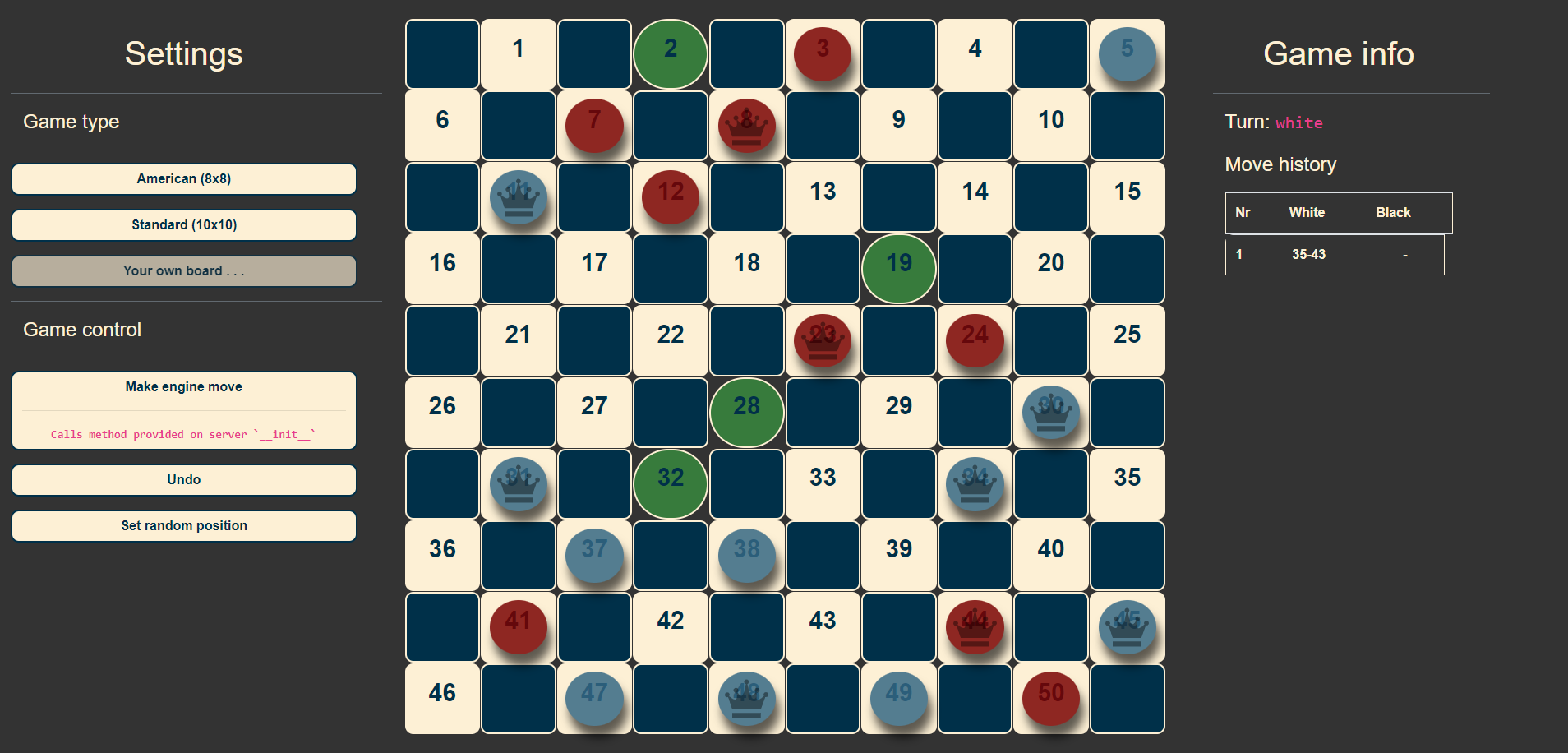

Legal moves for selected square (on image "11")

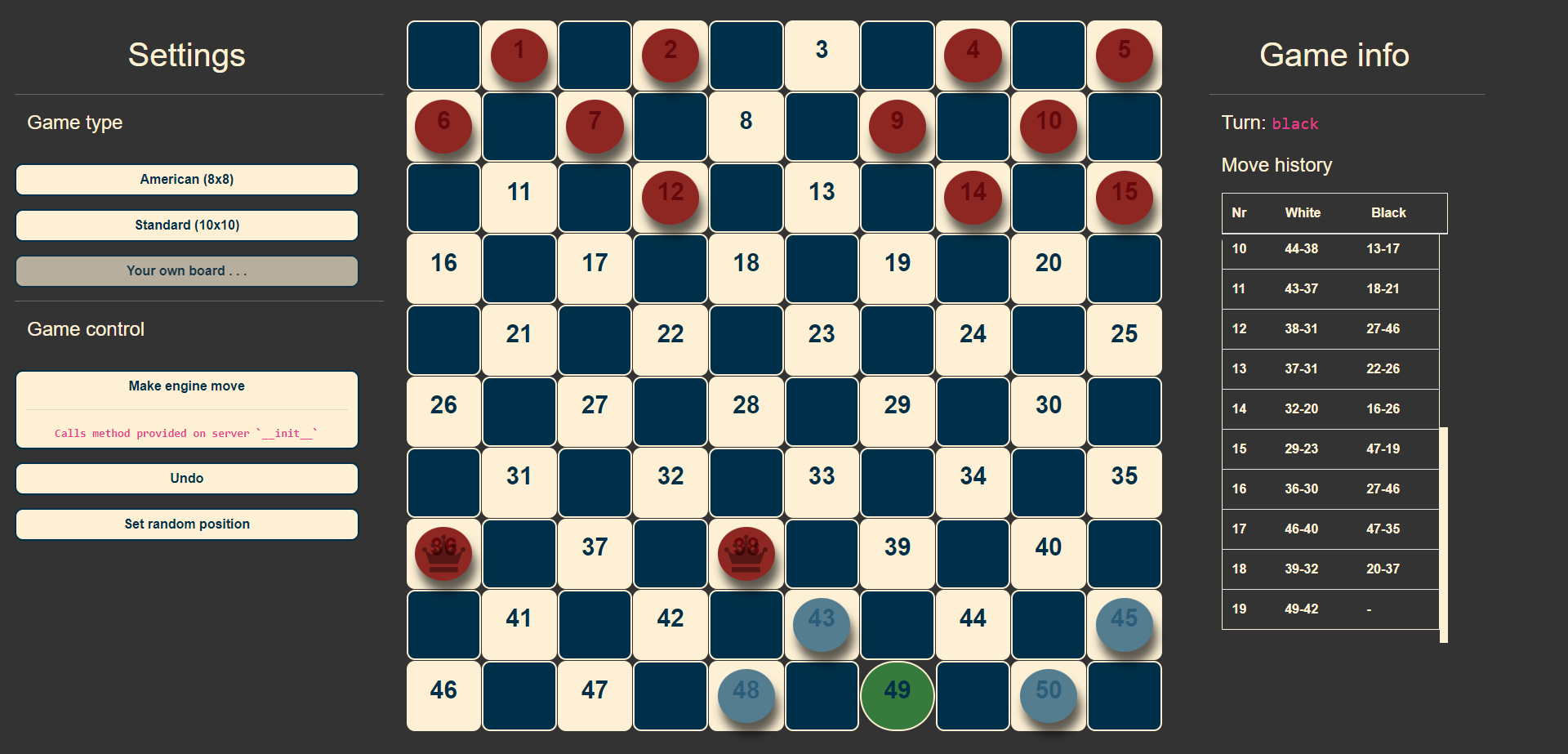

testing best moves finding methods:

Example

Contributing

Contributions to this project are welcome. If you encounter any issues or have suggestions for improvements, please open an issue or submit a pull request on the project repository.

Bibliography

1. Notation
2. Rules and variants
3. List of PDNs
4. Draughts online
5. Additional 1 (Checkers online)
6. Additional 2 (Chinook)
