pyams-lib 0.2.4

Simulation modeling of analog, digital and mixed-signal electronic elements and circuits

pyams_lib

Python library for analog and mixed-signal simulation (PyAMS Library)

---

PyAMS Library

What is pyams-lib?

pyams_lib is a Python package designed to simplify the modeling of analog and digital elements and the simulation of electronic circuits. It provides:

• The ability to create custom models of electrical components.
• Simulation of circuits in different modes of operation.
• Visualization of simulation results using matplotlib.
• Compatibility with Python 3+ and PyPy, working across Linux, Windows, and macOS.
• PyAMS library (pyams_lib) documentation https://pyams-lib.readthedocs.io/.
• For circuit design using the CAD system, visit the software section at https://pyams.sf.net.

Installation

To install pyams_lib, use the following command:

pip install pyams_lib

To upgrade to the latest version:

pip install --upgrade pyams_lib

License

pyams_lib is free to use and distributed under the GPLv3 license.

---

Example

Example of modeling resistor and simulation in circuit

Modeling Resistor

from pyams.lib import model,signal,param
from pyams.lib import voltage,current

#Creat resistor model------------------------------------------------------------
class resistor(model):
    """
    This class implements a Resistor model.
    init(): initals Signals and  Parameters
    analog(): Defines the resistor behavior using Ohm's Law:
                  I = V / R
    """
    def __init__(self, p, n):
        #Signals declarations---------------------------------------------------
        self.V = signal('in',voltage,p,n)
        self.I = signal('out',current,p,n)

        #Parameters declarations------------------------------------------------
        self.R=param(1000.0,'Ω','Resistance')
        self.Pout=param(1000.0,'Ω','Resistance')

    def analog(self):
        """Defines the resistor's current-voltage relationship using Ohm's Law."""
        #Resistor equation-low hom (Ir=Vr/R)------------------------------------
        self.I+=self.V/self.R

Voltage Divider Circuit Simulation

This example demonstrates a simple voltage divider circuit consisting of:

• A DC voltage source (V1) supplying the input voltage.
• Two resistors (R1 and R2) connected in series.
• The output voltage measured across R2.

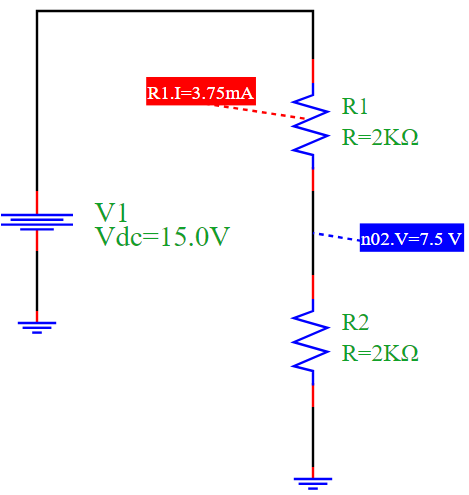

Circuit Diagram

Code:

from pyams.lib import circuit
from pyams.models  import  DCVoltage


# Elements of circuit
V1= DCVoltage('n1', '0')    # Voltage source between node 'n1' and ground '0'
R1= resistor('n1', 'n2')   # Resistor R1 between node 'n1' and 'n2'
R2= resistor('n2', '0')    # Resistor R2 between node 'n2' and ground '0'

# Set parameters for the elements
V1.setParams("Vdc=15V")  # Set input voltage to 10V
R1.setParams("R=2kΩ")    # Set R1 to 2kΩ
R2.setParams("R=2kΩ")    # Set R2 to 2kΩ

# Create a circuit instance
myCircuit = circuit()

# Add elements to the circuit
myCircuit.addElements({'V1': V1,'R1': R1, 'R2': R2})


# Perform DC analysis (operating point analysis)
myCircuit.analysis(mode='op')
myCircuit.run()


# print value voltage at node 'n2' and current in 'R1'
myCircuit.print('n2', R1.I)

Expected Output:

Output Voltage at node n2: 7.50 V
Output current R1.I: 3.75 mA

---

This example demonstrates how pyams_lib simplifies circuit simulation, making it easier to analyze electronic components and their behavior efficiently.

Support the Project 💖

If you need more support or assistance with this project, and would like to contribute to the development of the PyAMS library, consider donating through my Ko-fi page: https://ko-fi.com/pyams/
