pycircuit 0.0.2

Library for composing circuits and pcb layouts

# Circuit Description Library

## Getting started

`joule_thief.py`
```python
from pycircuit.circuit import *
from pycircuit.library import *


Device('BAT0805', 'BAT', '0805',
Map('1', '+'),
Map('2', '-'))

Package('TDK ACT45B', RectCrtyd(5.9, 3.4), DualPads(4, 2.5, radius=2.275),
package_size=(5.9, 3.4), pad_size=(0.9, 1.35))

Device('TDK ACT45B', 'Transformer_1P_1S', 'TDK ACT45B',
Map('1', 'L1.1'), Map('2', 'L2.1'), Map('3', 'L2.2'), Map('4', 'L1.2'))


@circuit('TOP')
def top():
vcc, gnd, n1, n2, n3 = nets('VCC GND n1 n2 n3')

with Inst('TR1', 'Transformer_1P_1S') as tr1:
tr1['L1', 'L1'] = n1, n2
tr1['L2', 'L2'] = vcc, n3

Inst('BAT1', 'BAT')['+', '-'] = vcc, gnd
Inst('R1', 'R', '10k 0805')['~', '~'] = vcc, n1
Inst('Q1', 'Q', 'npn sot23')['B', 'C', 'E'] = n2, n3, gnd
Inst('LED1', 'D', 'led red 0805')['A', 'C'] = n3, gnd
```

`build.py`
```python
import joule_thief
from pycircuit.build import Builder
from pycircuit.compiler import Compiler
from pycircuit.library.design_rules import oshpark_4layer
from placer import Placer
from router import Router
from pykicad.pcb import Zone


def compile(filein, fileout):
compiler = Compiler()
compiler.compile(filein, fileout)


def place(filein, fileout):
placer = Placer()
placer.place(filein, fileout)


def route(filein, fileout):
router = Router()
router.route(filein, fileout)


def post_process(pcb, kpcb):
xmin, ymin, xmax, ymax = pcb.boundary()
coords = [(xmin, ymin), (xmin, ymax), (xmax, ymax), (xmax, ymin)]

zone = Zone(net_name='GND', layer='F.Cu',
polygon=coords, clearance=0.3)

kpcb.zones.append(zone)
return kpcb


if __name__ == '__main__':
Builder('joule_thief', joule_thief.top, oshpark_4layer,
compile, place, route, post_process).build()
```

`Makefile`
```make
PYCIRCUIT = ../..

build:
python3 build.py

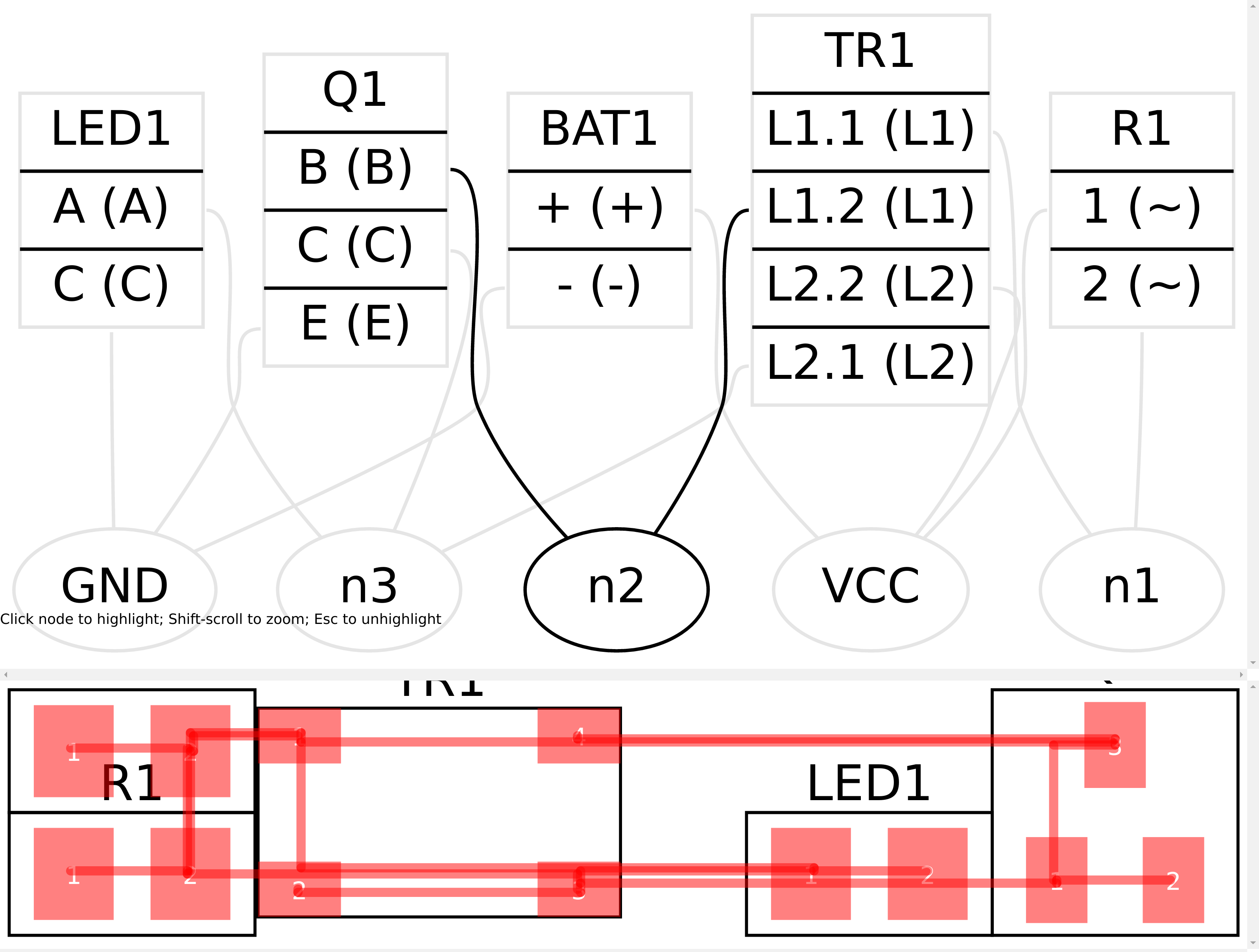

view:
node $(PYCIRCUIT)/viewer/app.js 3000 net.dot.svg pcb.svg

kicad:
pcbnew *.kicad_pcb &>/dev/null &

clean:
rm -f *.net *.hash *.dot *.svg *.place *.route *.pro *.kicad_pcb

.PHONY: build view kicad clean
```
