pyfish 1.0.3

Plotting tool for evolutionary population dynamics. Creates a Fish (Muller) plot.

PyFish

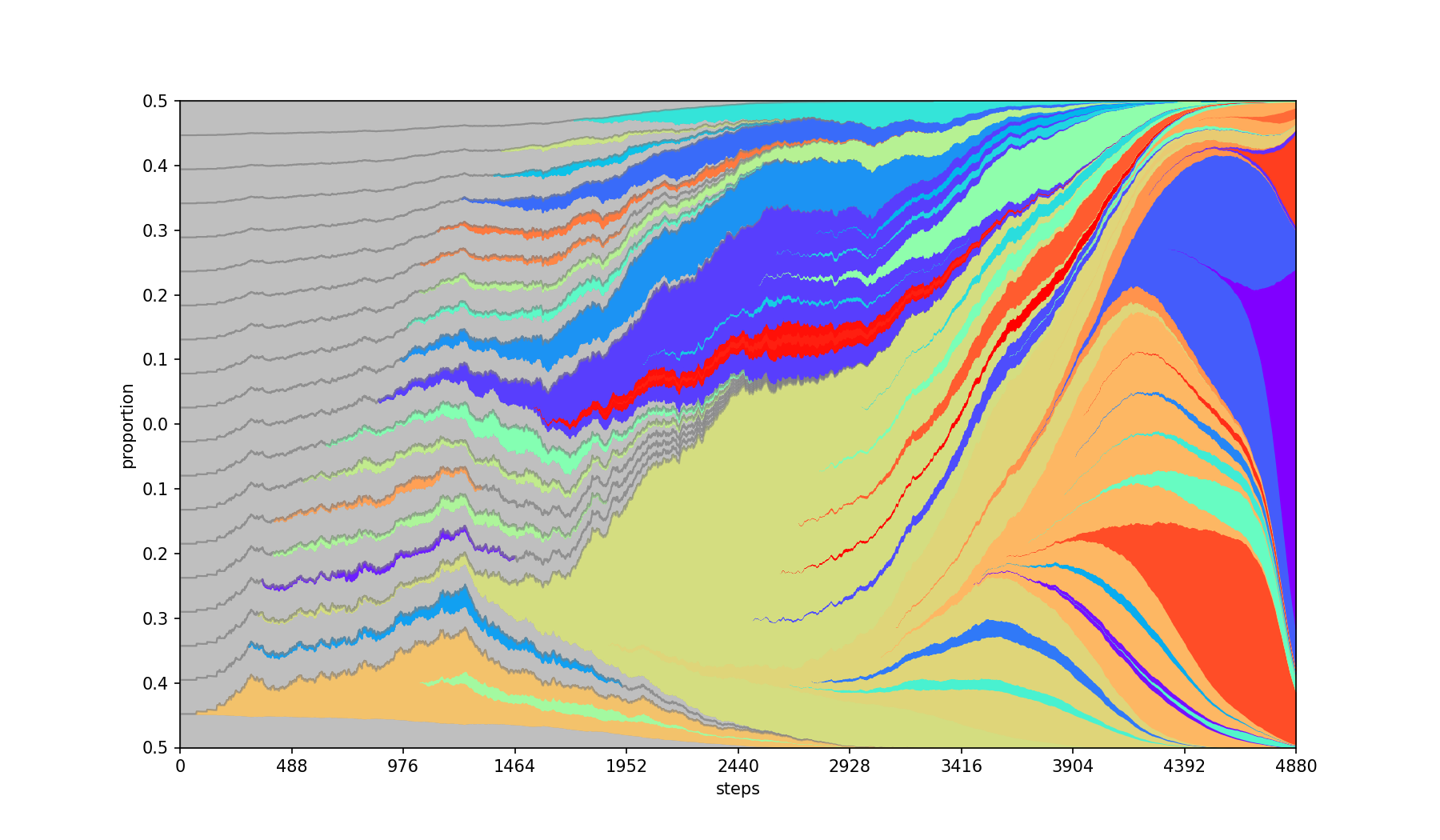

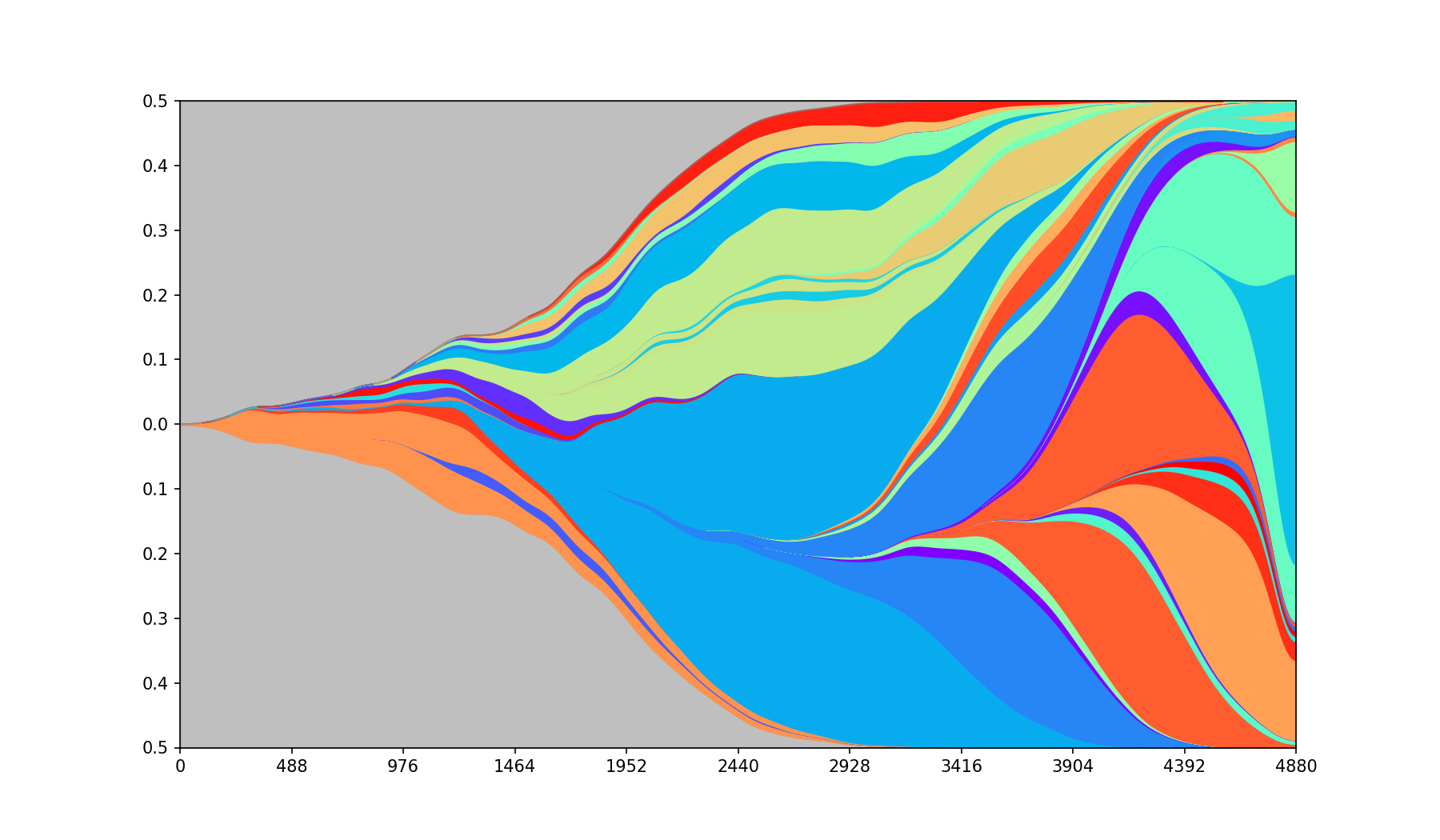

PyFish is a Python 3 package for creation of Fish (Muller) plots like the one below.

Primary features

• polynomial interpolation
• curve smoothing
• high performance
• works with low and high density data

PyFish can be used either as a stand-alone tool or as a plotting library.

Installation

PyFish requires Python >= 3.8

The package can be installed using Conda (from the bioconda channel)

conda install -c bioconda pyfish

or Pip

pip install pyfish.

Input

The program takes two tables:

• one describing the size of individual subgroups at given points in time, referred to as populations,
• one describing the parent-child relationships between the subgroups, referred to as parent tree.

Populations

Populations table has the schema (Id: +int, Step: +int, Pop: +int), where:

• Id is a numerical identifier of a subgroup`,
• Step is a natural ordinal describing the logical time when the population is measured,
• Pop is the size of the population of the subgroup at the given step.

An example populations table:

Id	Step	Pop
0	0	100
0	1	40
0	2	20
0	3	0
1	0	10
1	3	50
1	5	100
2	4	20
2	5	50
3	0	10
3	1	20
3	5	10

Parent Tree

Parent tree has the schema (ParentId: +int, ChildId: +int), where:

• ParentId is an id matching the population table,
• ChildId is an id matching the population table describing the direct progeny of the parent.

An example parent tree:

ParentId	ChildId
0	1
1	2
0	3

Note: there must be exactly one node in the parent tree that has no parent. This is the root (0 in the example above).

Tool

We provide example data. From the root folder of the project call:

pyfish tests/populations.csv tests/parent_tree.csv out.png

This will create a plot called out.png in the folder.

Additional execution parameters are described below.

Library

The populations and parent_tree tables can be constructed directly as dataframes.

The library contains three public functions:

• process_data Takes the input data and parameters and creates data suitable for plotting. Additional arguments match the parameters as described below.
• setup_figure Resizes the figure and adds labels for axes.
• fish_plot Calls the plotting function on the input parameters.

Example:

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from pyfish import fish_plot, process_data, setup_figure

populations = np.array([[0, 0, 100], [0, 1, 40], [0, 2, 20], [0, 3, 0], [1, 0, 10], [1, 3, 50],
    [1, 5, 100], [2, 4, 20], [2, 5, 50], [3, 0, 10], [3, 1, 20], [3, 5, 10]])
parent_tree = np.array([[0, 1], [1, 2], [0, 3]])
populations_df = pd.DataFrame(populations, columns=["Id", "Step", "Pop"])
parent_tree_df = pd.DataFrame(parent_tree, columns=["ParentId", "ChildId"])
data = process_data(populations_df, parent_tree_df)
setup_figure()
fish_plot(*data)
plt.show()

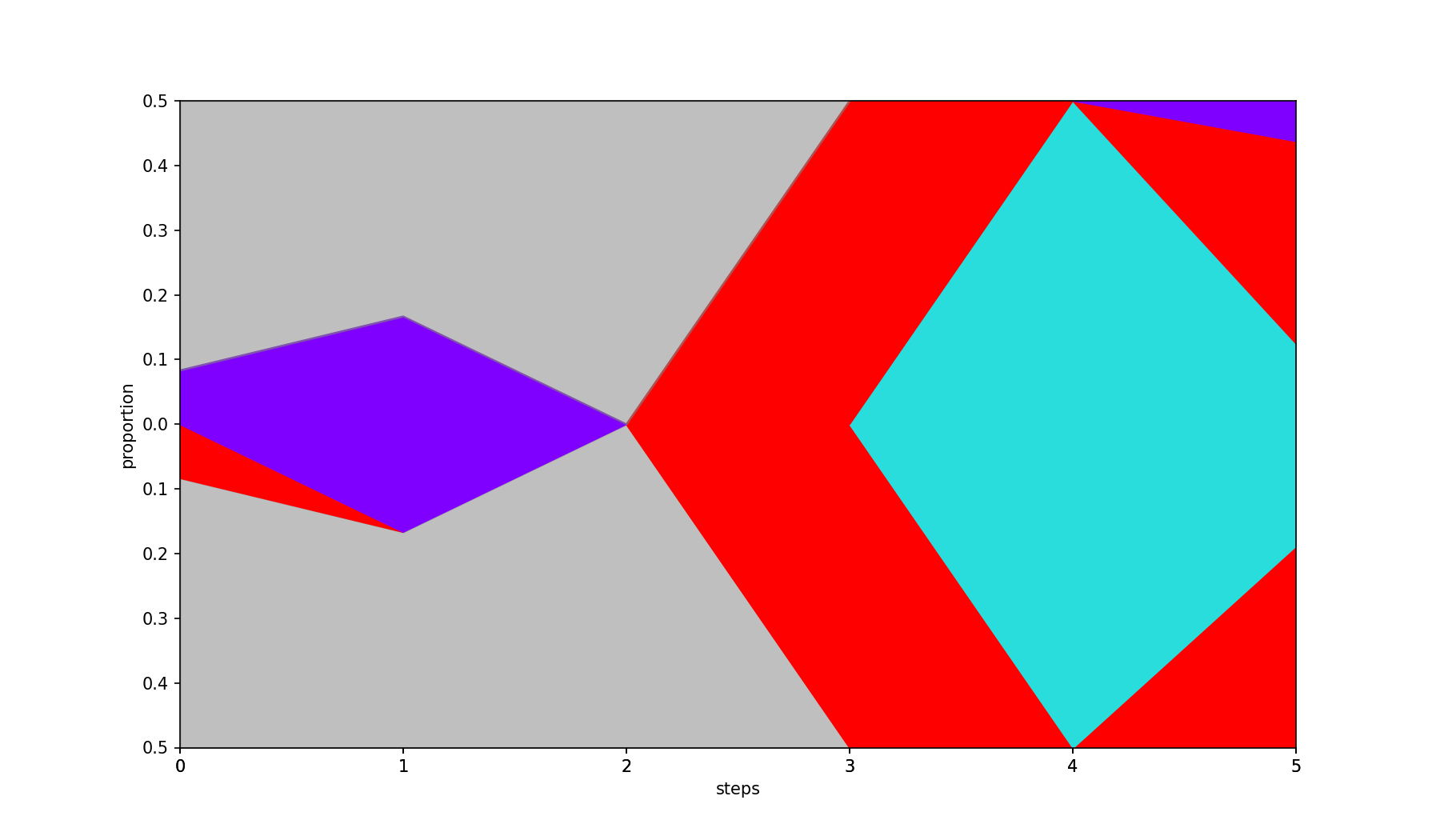

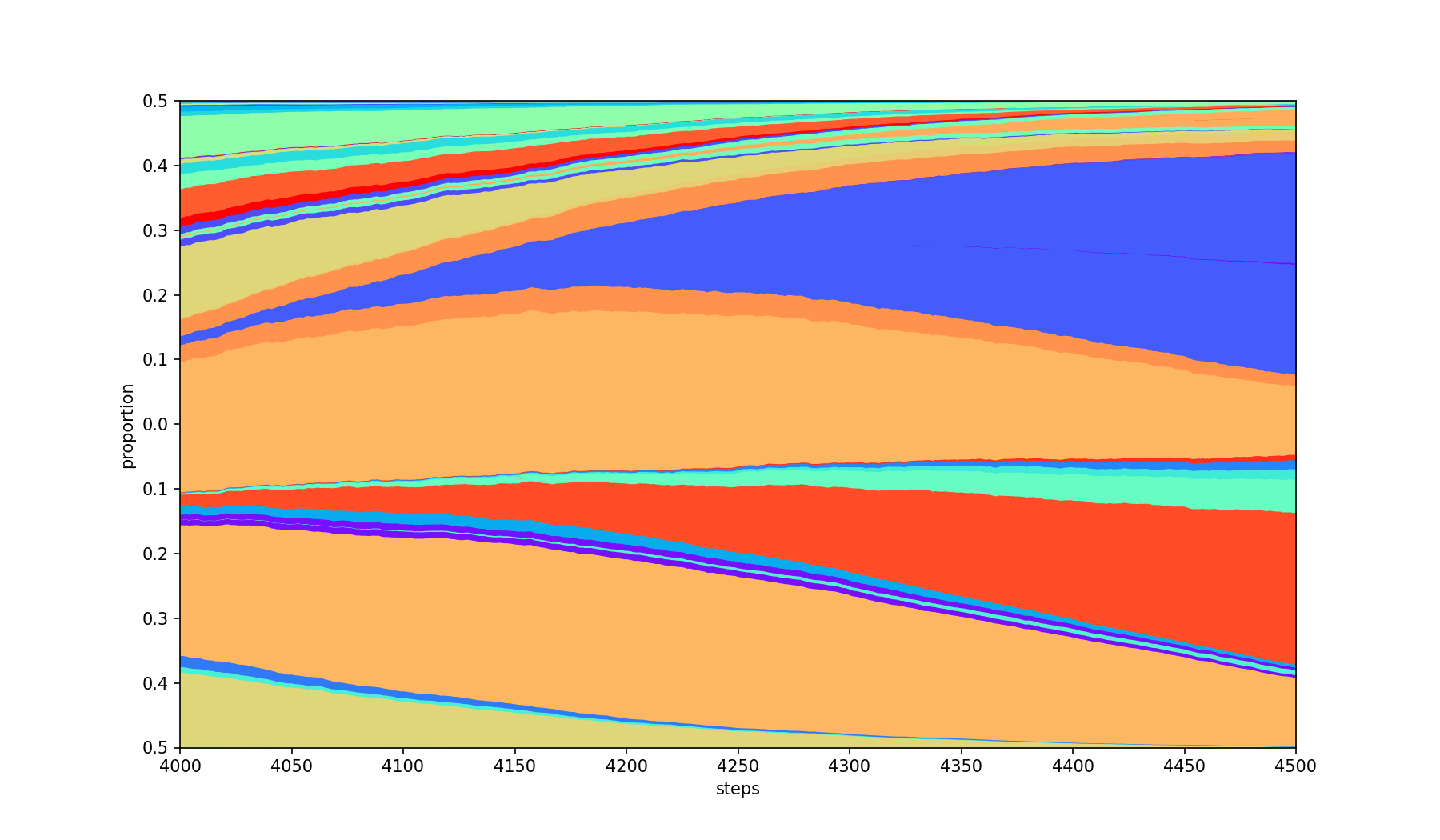

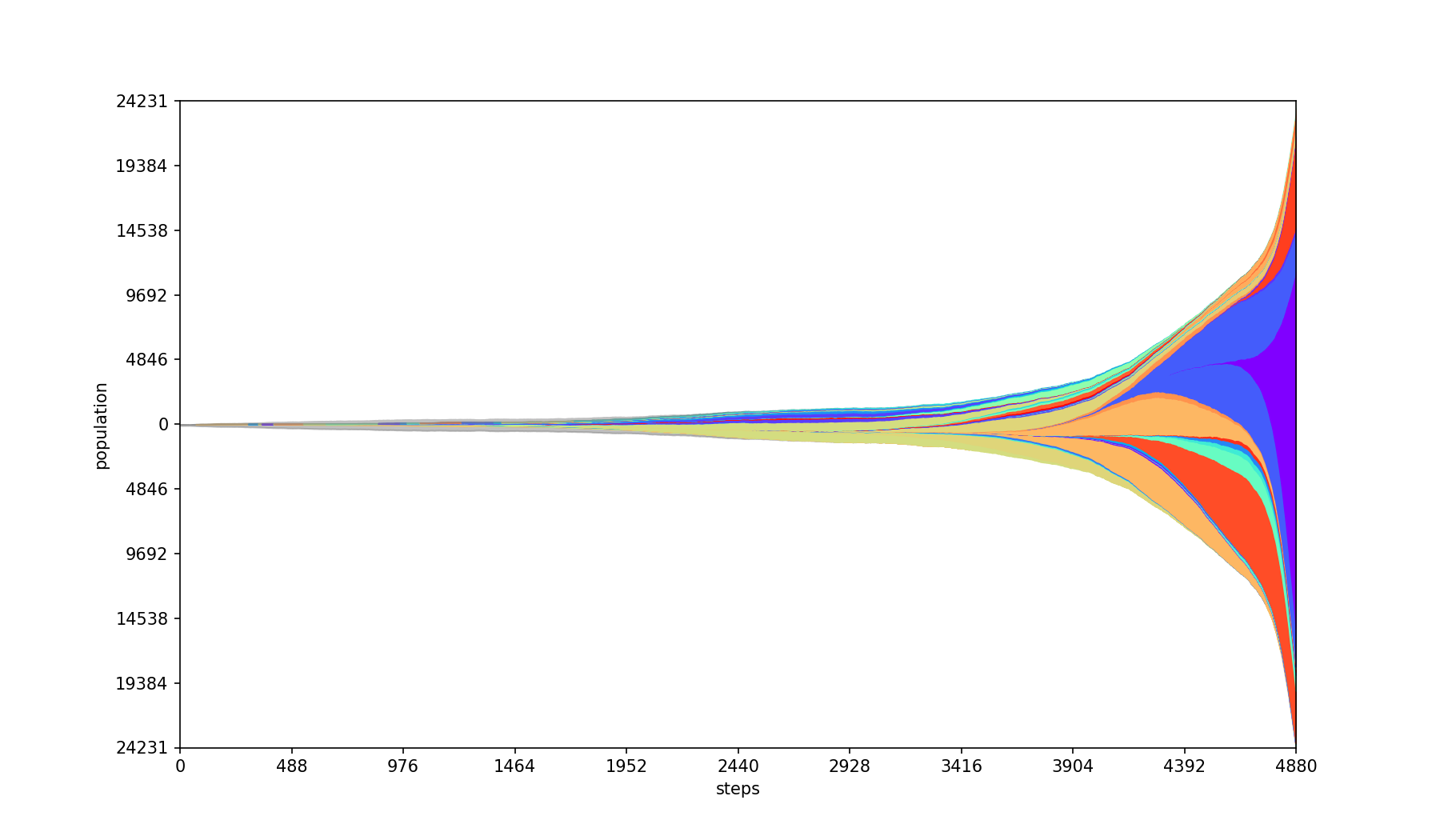

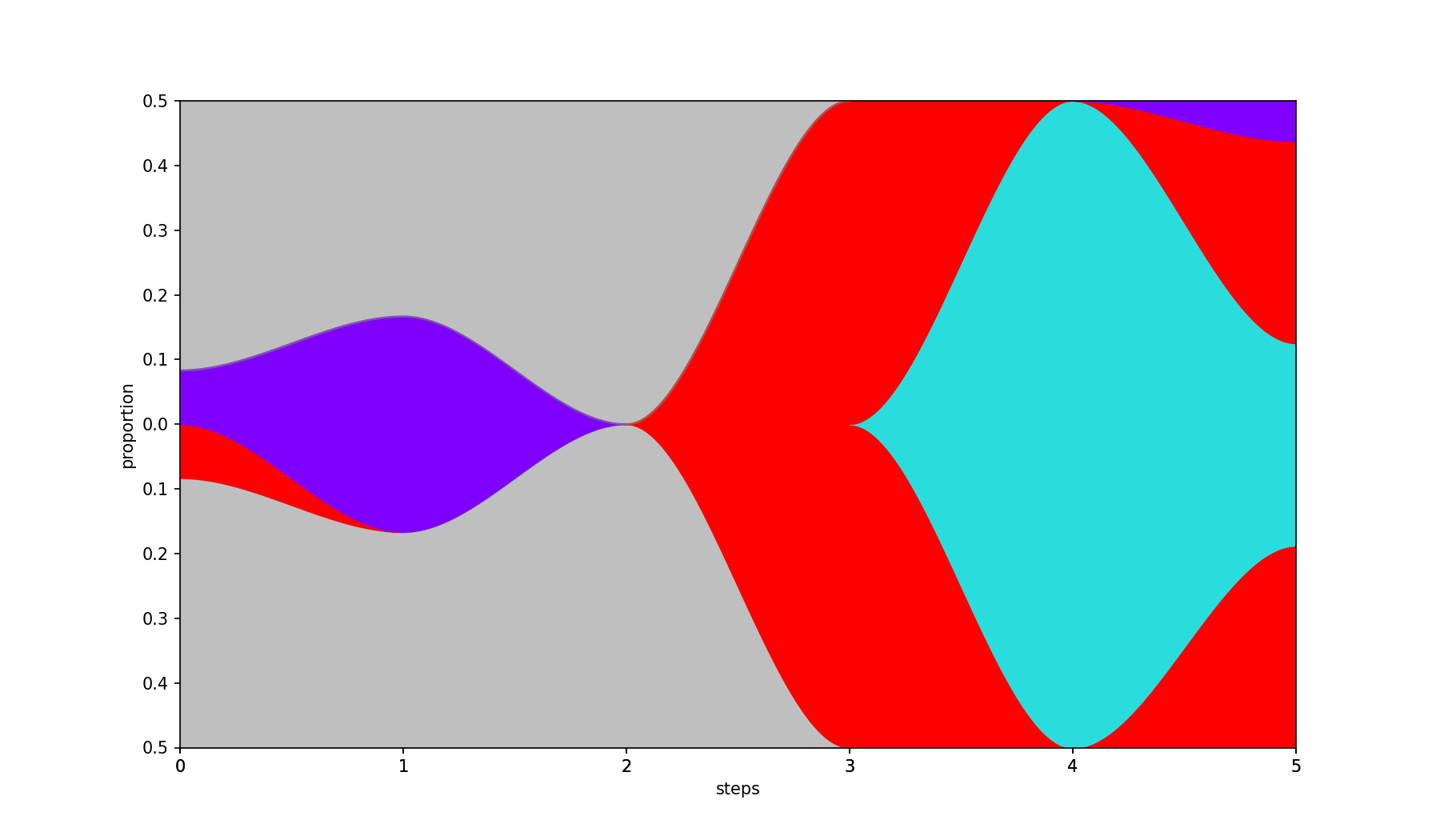

Calling the above code displays the following image:

Parameters

-a, --absolute

Plots absolute population counts at each step.

Base	--absolute

-I, --interpolate int

Fills in missing values by interpolation by a polynomial of the given degree. If a value is not given, each population is set to 0 at the first and last step.

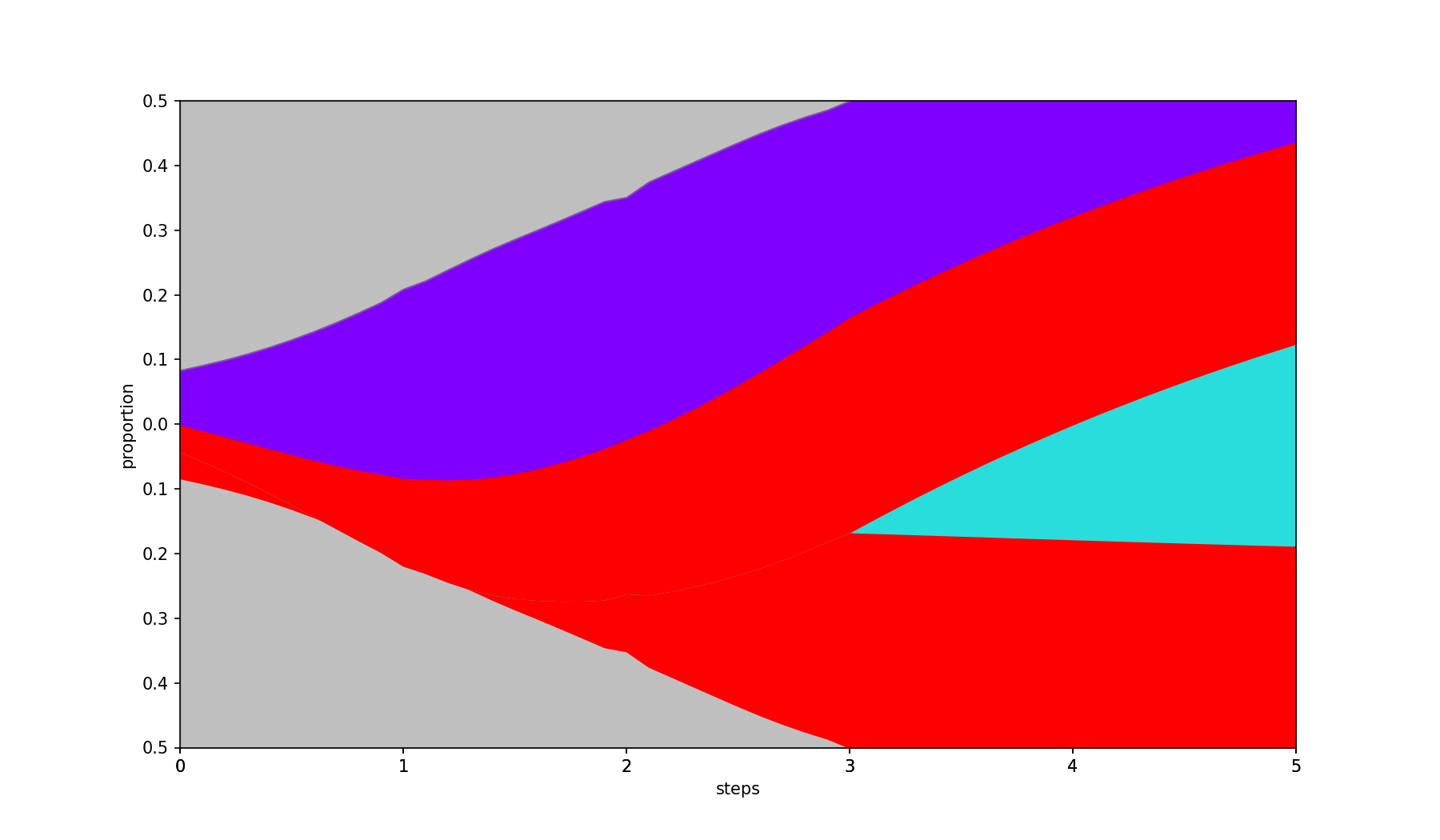

Base	--interpolate 2

-S, --smooth float

Smoothing of the graph using Gaussian filter. The parameter value is the standard deviation of the kernel. The bigger the population the bigger the value should be.

NOTE: If the population values are sparse, using smoothing without interpolation might lead to misleading population sizes.

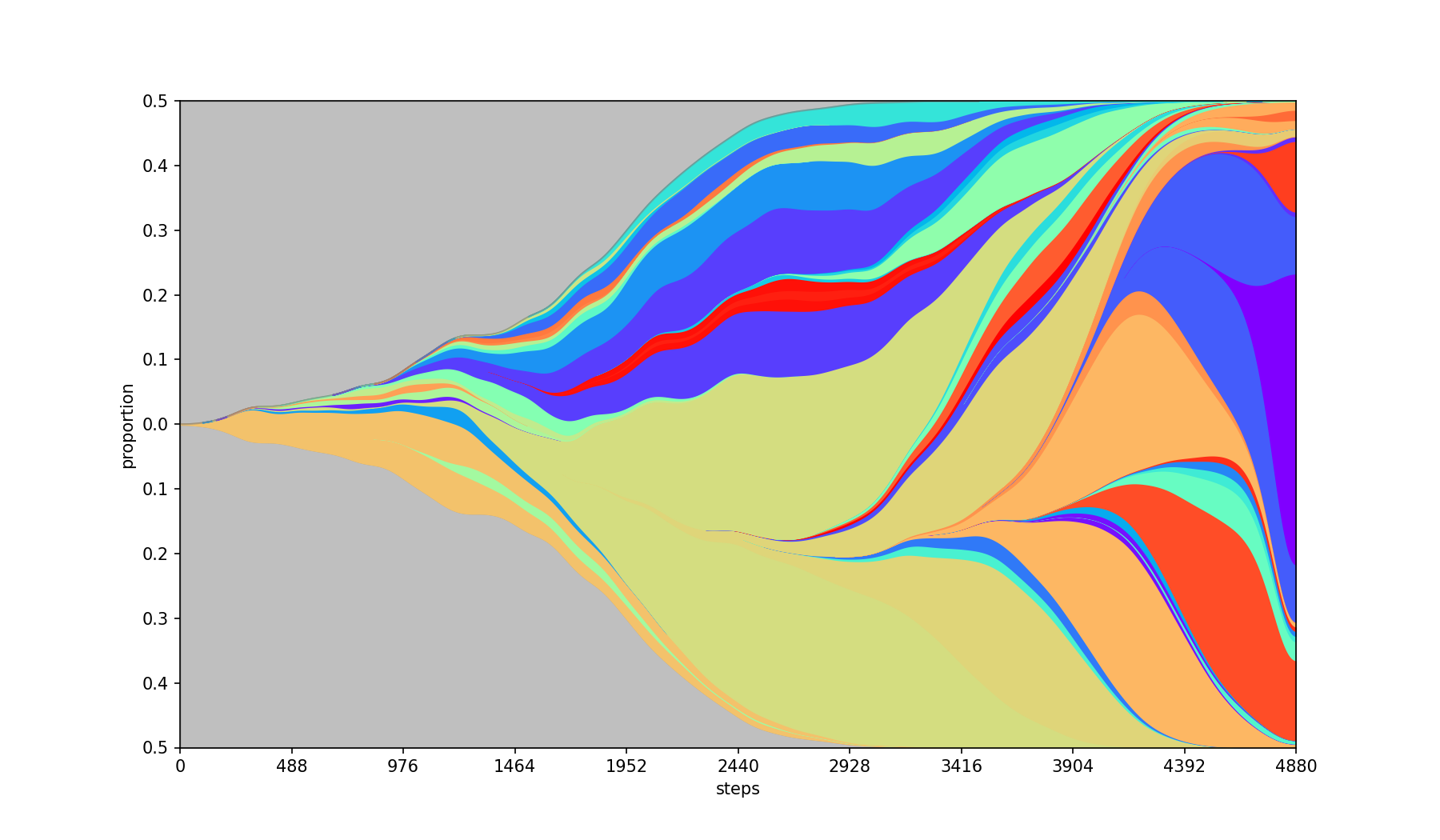

Base	--smooth 50

-F, --first int+, -L, --last int+

Only limits the steps to the range [first, last] inclusive.

Base	--first 4000 --last 4500

-M, --cmap string

Use the specified matplotlib colormap.

Default colormap is rainbow.

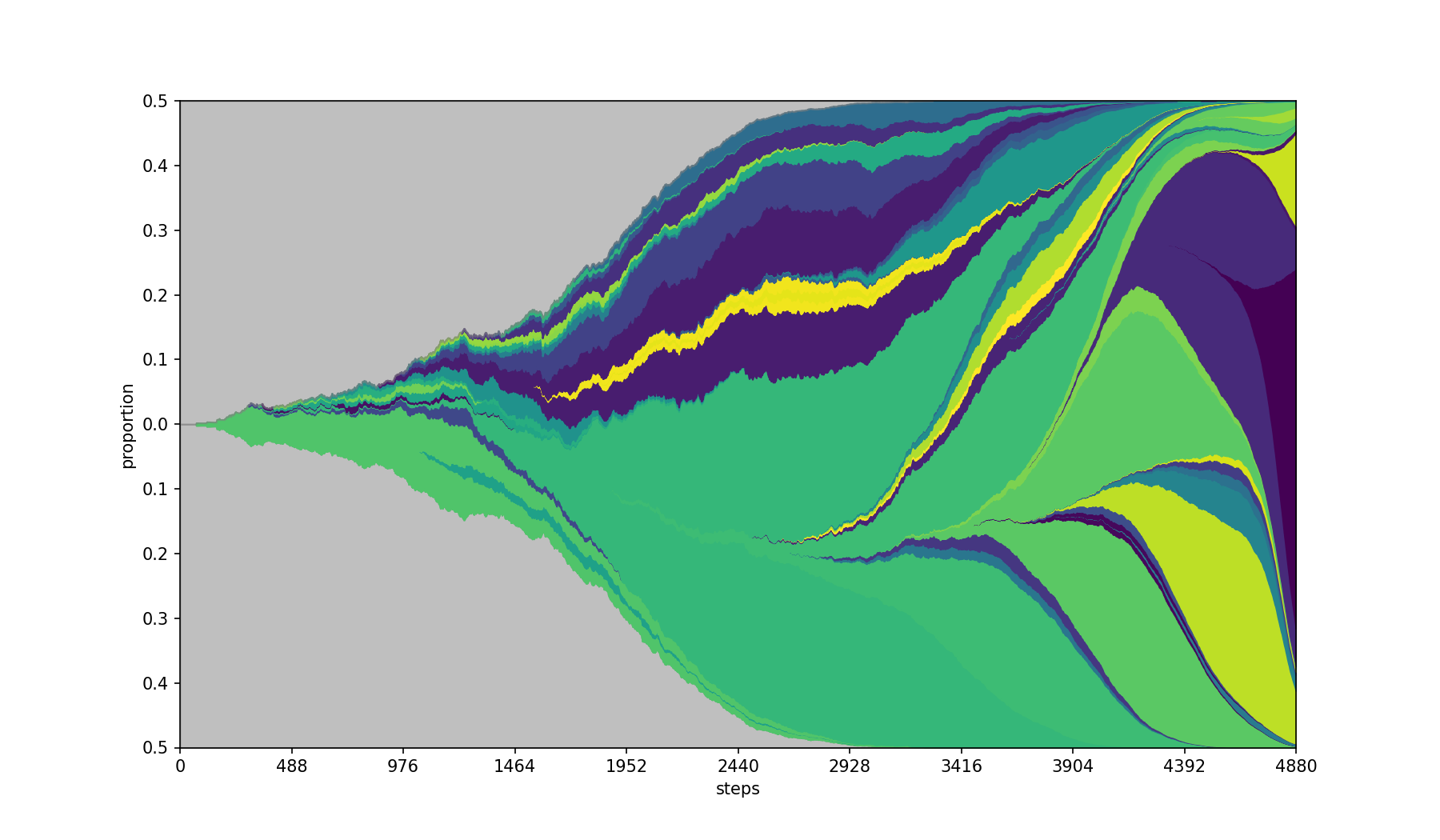

Base	--cmap viridis

-C, --color_by string

Color the ids based on a separate column in the populations.csv file. It will select the first value of the column per id, so the value should be constant for all entries with the same id.

Best combined with a sequential colormap using --cmap

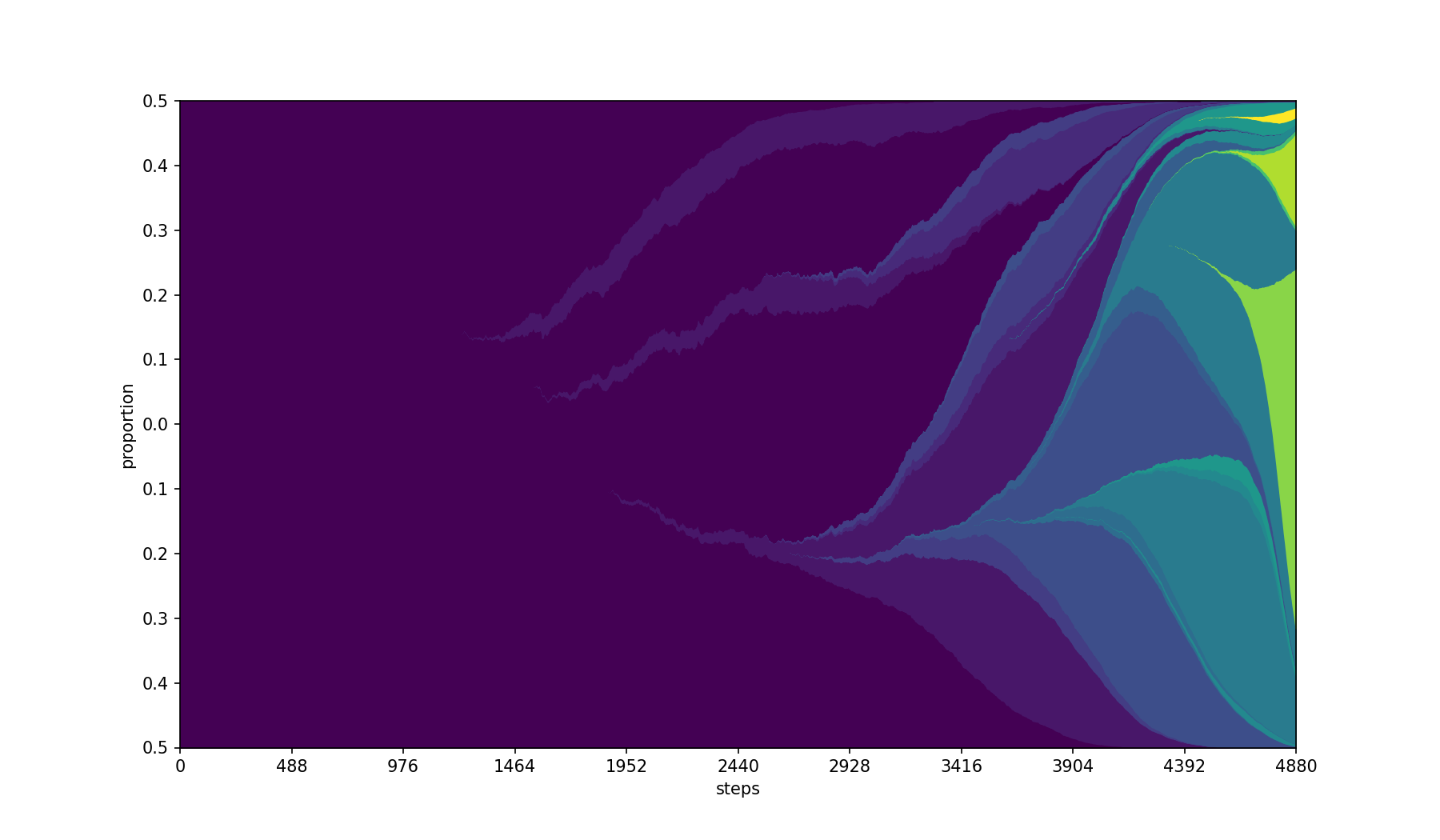

Base	--color-by Feature --cmap viridis

-R, --seed int+

Specifies the seed for the randomization of colors.

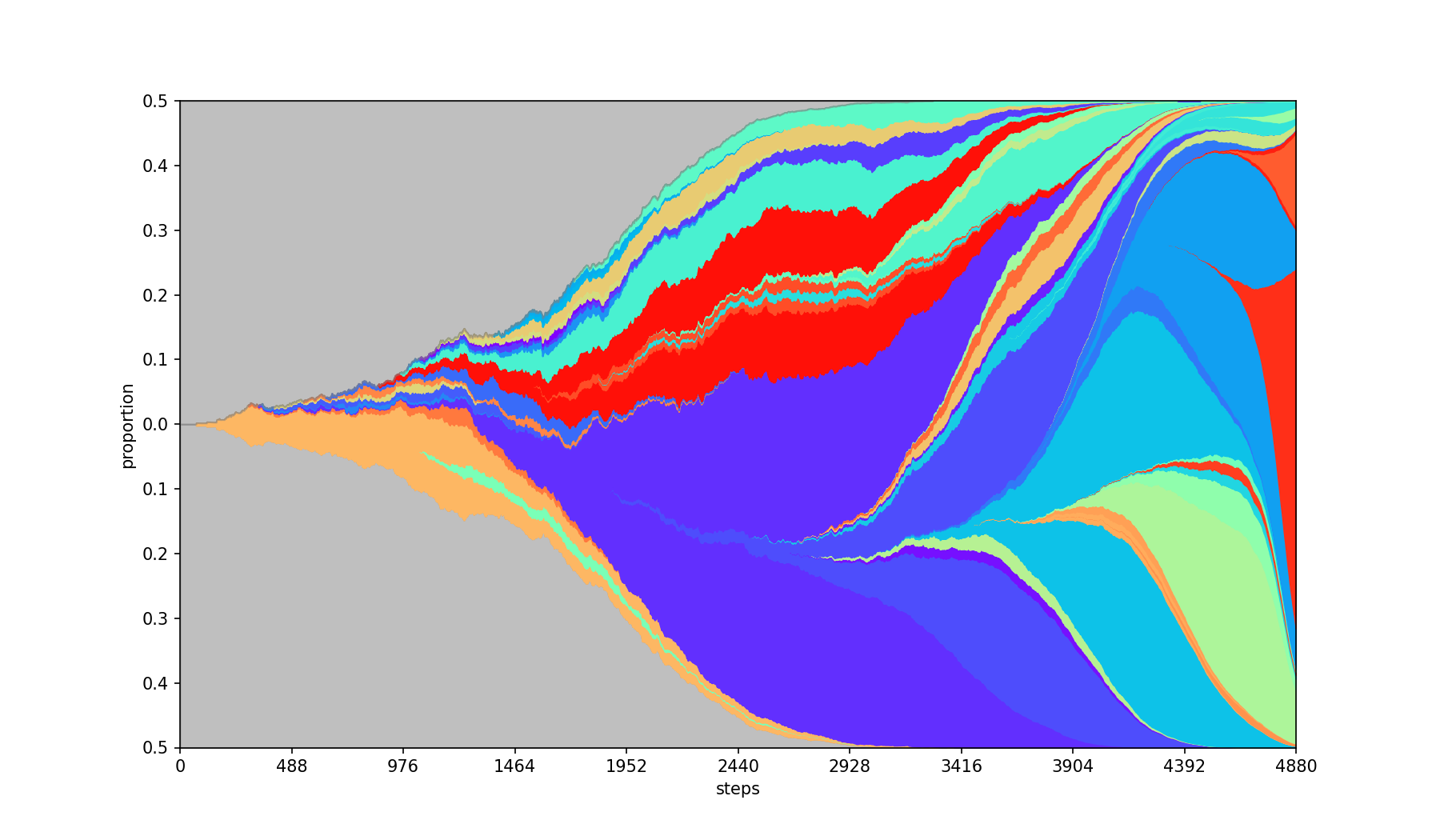

Base	--seed 2022

-W, --width int+, -H, --height int+

Specifies the dimensions for the output image. The size is including the axes' labels.

Citation

Please cite as: Adam Streck, Tom L Kaufmann, Roland F Schwarz, SMITH: Spatially Constrained Stochastic Model for Simulation of Intra-Tumour Heterogeneity, Bioinformatics, 2023; https://doi.org/10.1093/bioinformatics/btad102

Contact

Email questions, feature requests and bug reports to Adam Streck, [e-mail].

License

PyFish is available under the MIT License.

Development

To actively develop the package, we recommend to install pyfish in development mode using pip pip install -e . --user. In order to run the main routine from the command line without installing it first, run python -m pyfish.main -- tests/populations.csv tests/parent_tree.csv out.png.

To trigger testing, run pytest -v ..
