Friends-of-friends cluster finding in python

Project description


Friends of Friends cluster finding in python.

This implements the friends-of-friends algorithm to find clusters of points,
accelerated with an R*-tree.

## Requirements
* c++11 complient compiler
* [Cython](
* [numpy](
* [boost](

## Installation

If your boost installation is in a normal place you should just be able to install
the latest release of the package directly from PyPI

```pip install pyfof```

If that fails then you will need to tell pip where to find your boost include
directory. This can be done by creating a file in your home directory called ```.pydistutils.cfg``` containing:


Then running the above command.

## Examples

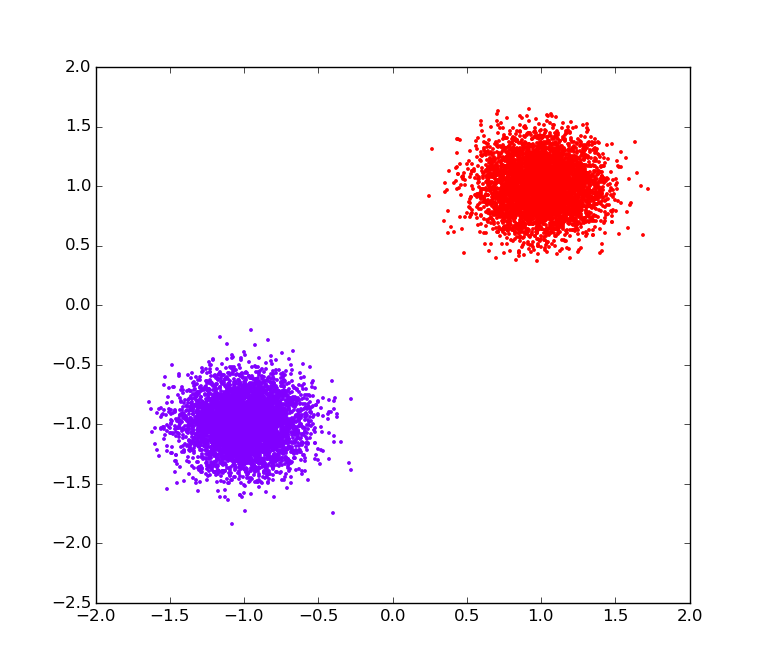

### Two Gaussian blobs

import numpy as np
import matplotlib.pyplot as plt
import as cm
import pyfof

npts = 10000
data = np.vstack((np.random.normal(-1,0.2,(npts/2,2)),\

groups = pyfof.friends_of_friends(data, 0.4)

colors = cm.rainbow(np.linspace(0, 1, len(groups)))
for g,c in zip(groups, colors):
plt.scatter(data[g,0], data[g,1], color=c, s=3)

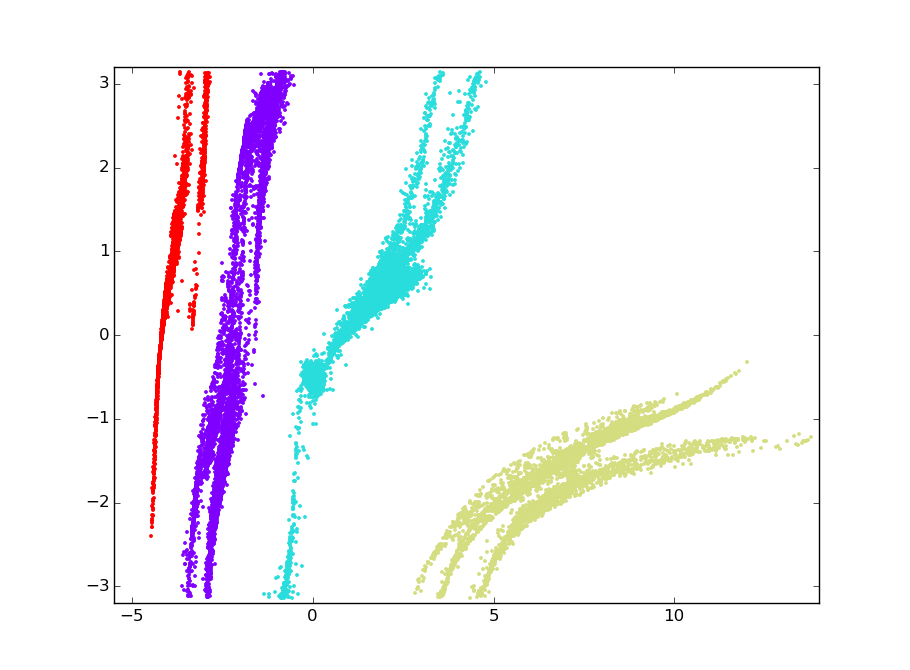

### A more complicated example
