User Friendly Magnetic Field Calculations
Project description
Pymagnet
User friendly magnetic field calculations in Python
Getting Started
Installing pymagnet
can be done using
python -m pip install pymagnet
or
conda install -c pdunne pymagnet
Examples
Additional examples are in the examples directory of the repository.
3D calculation and render using plotly

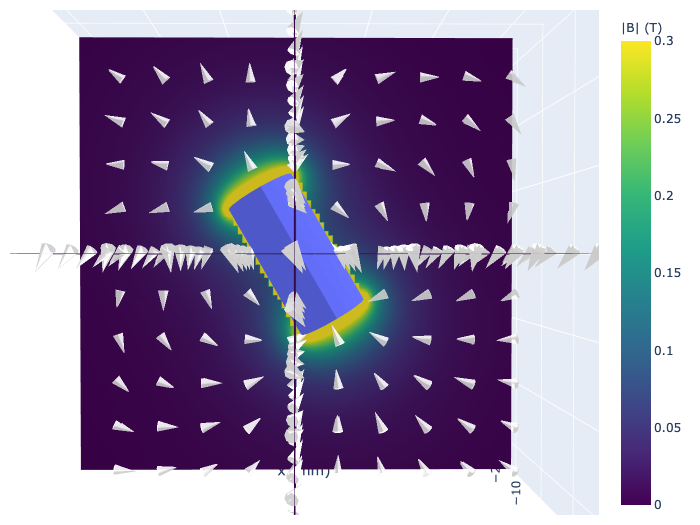

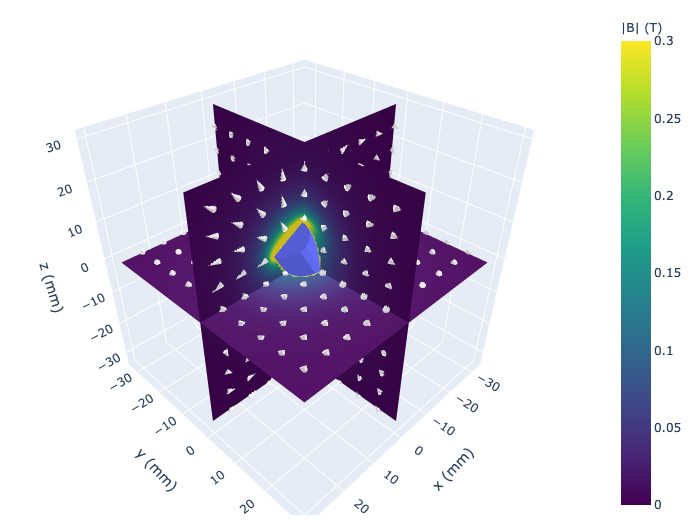

A cylinder of radius 5 mm, length 20 mm, is instantiated and rotated by 30 degrees about the x-axis by 330 degrees. Two example plots are shown, using surface slices along the three principal axes, and a volume plot.
import pymagnet as pm
pm.reset_magnets() # clear magnet registry
center = (0, 0, 0)
radius = 5e-3
length = 20e-3
# Create a magnet instance
m_cyl = pm.magnets.Cylinder(radius = radius, length = length, Jr = 1.0,
center=center,
alpha = 0, # rotation of magnet w.r.t. z-axis
beta = -30, # rotation of magnet w.r.t. y-axis
gamma = 0, # rotation of magnet w.r.t. x-axis
)
# Calculate and display 3 slices
# Cache is a dictionary containing all the calculated values
cache = pm.plots.surface_slice3(cmin=0.0, # minimum field value
cmax=0.3, # maximum field value
opacity=1.0, # opacity of slices
num_arrows=10, # number of arrows in vector field
cone_opacity=0.9, # opacity of arrows
)

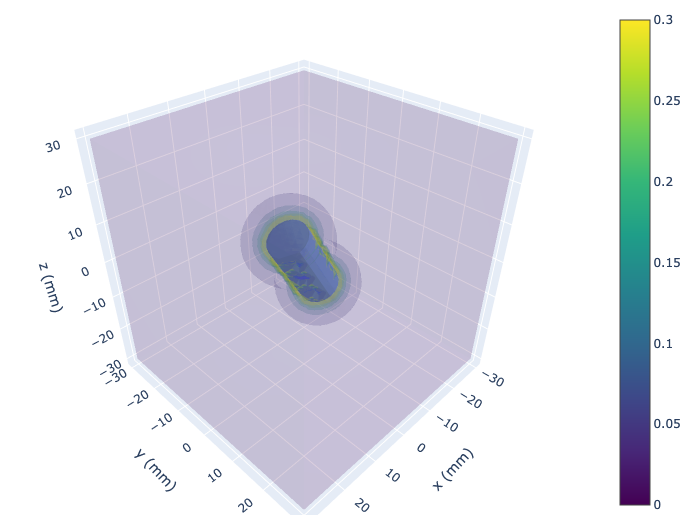

# Calculate and display volume plot
# volume_cache is a dictionary containing all the calculated values
volume_cache = pm.plots.volume_plot(cmin=0.0, # minimum field value
cmax=0.3, # maximum field value
opacity=0.1, # needs to be small for visibility
num_levels=6, # number of color levels to be plotted
# number of points in each direction, total number is num_points^3
num_points=50,
)
2D calculation and render using matplotlib

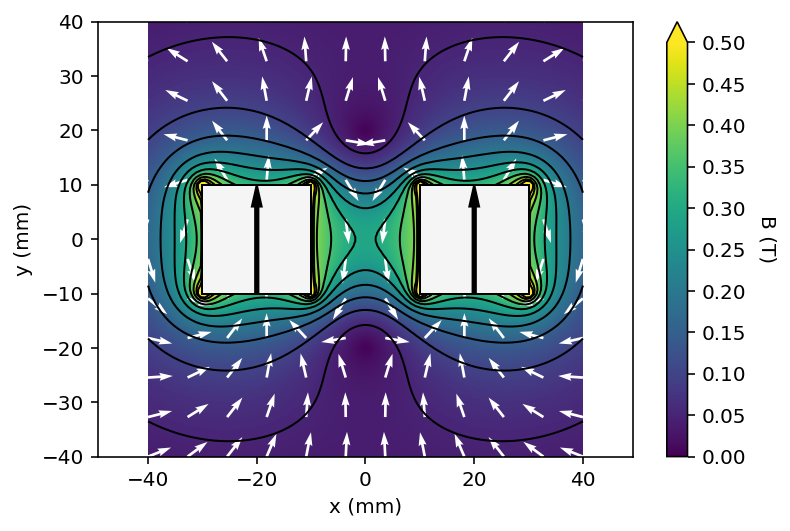

Two square magnets of 20x20 mm are added, and a contour plot with a vector field are drawn.
import pymagnet as pm
pm.reset_magnets() # clear magnet registry
cmap = 'viridis' # set the colormap
radius = 10e-3
center = (0, 0)
# Create magnet
_ = pm.magnets.Circle(radius=radius, Jr = 1.0, center=center, alpha=45)
# Prepare 100x100 grid of x,y coordinates to calculate the field
x, y = pm.grid2D(2*radius, 2*radius)
# Calculate the magnetic field due to all magnets in the registry
B = pm.B_calc_2D(x, y)
# Plot the result, vector_plot = True toggles on the vector field plot
pm.plots.plot_2D_contour(x, y, B,
cmax=0.5,
num_levels=6,
cmap=cmap,
vector_plot=True,
vector_arrows=11)
# Plot the result as a streamplot
pm.plots.plot_2D_contour(x, y, B,
cmin = -0.3,
cmax=0.3,
cmap='coolwarm',
plot_type="streamplot",
stream_color= 'vertical', # 'vertical', 'horizontal', 'normal':
# corresponds to coloring by B.x, B.y, B.n
)
import pymagnet as pm
pm.reset_magnets() # clear magnet registry
cmap = 'viridis' # set the colormap
width = 20e-3
height = 20e-3
# Set the space between magnets to be the width of one
half_gap = width / 2
# Center of first magnet
center = (-width / 2 - half_gap, 0)
# Create first magnet
_ = pm.magnets.Rectangle(width=width, height=height,
Jr=1.0, center=center, theta=0.0)
# Centre of second magnet
center = (width / 2 + half_gap, 0)
# Create second magnet
_ = pm.magnets.Rectangle(width=width, height=height,
Jr=1.0, center=center, theta=90.0)
# Prepare 100x100 grid of x,y coordinates to calculate the field
x, y = pm.grid2D(2 * width, 2 * height)
# Calculate the magnetic field due to all magnets in the registry
B = pm.B_calc_2D(x, y)
# Plot the result, vector_plot = True toggles on the vector field plot
pm.plots.plot_2D_contour(x, y, B, cmin=0.0, # minimum field value
cmax=0.5, # maximum field value
vector_plot=True, # plot the vector field
cmap=cmap, # set the colormap
)
Calculating Magnetic Fields and Forces
Forms of this library have been used in a number of projects including Liquid flow and control without solid walls, Nature 2020.
Features
This code uses analytical expressions to calculate the magnetic field due to simple magnets. These include:
- 3D objects: cubes, cuboids, cylinders, spheres
- 2D: rectangles, squares
There are helper functions to plot the data as either line or countour plots, but the underlying data is also accessible.
Prerequisites
Ensure you have Python version >= 3.6 (to use f-strings), and the following packages:
- numpy
- matplotlib
- numba
- plotly
TODO:
- Calculation of magnetisation and the H field inside the magnets
- Complete documentation
Licensing
Source code licensed under the Mozilla Public License Version 2.0
Documentation is licensed under a Creative Commons Attribution-ShareAlike 4.0 International (CC BY-SA 4.0) license.
This is a human-readable summary of (and not a substitute for) the license, adapted from CS50x. Official translations of this license are available in other languages.
You are free to:
- Share — copy and redistribute the material in any medium or format.
- Adapt — remix, transform, and build upon the material.
Under the following terms:
- Attribution — You must give appropriate credit, provide a link to the license, and indicate if changes were made. You may do so in any reasonable manner, but not in any way that suggests the licensor endorses you or your use.
- ShareAlike — If you remix, transform, or build upon the material, you must distribute your contributions under the same license as the original
- No additional restrictions — You may not apply legal terms or technological measures that legally restrict others from doing anything the license permits.
Contribution
Unless you explicitly state otherwise, any contribution intentionally submitted for inclusion in the work by you shall be licensed as above, without any additional terms or conditions.
