PyMaple 3.1

Maple Container Utility

Maple is a productivity tool that acts a wrapper around docker, podman, and singularity containerization services to provide a seamless interface to deploy High Performance Computing (HPC) applications on cloud and supercomputing platforms. It comprises a python based library and command line interface to manage developer and production environment for running complex multiphysics simulations.

Open-source tools for numerical simulation of partical engineering problems provide state-of-art methods and techniques, and undergo continous development for accuracy and performance on modern computing architectures. Accessibility of these tools for core industry users has been a challenge due to the presence of complexities associated with setting up desired problems with external dependencies. Consider the problem illustrated below where a backend developer for an open-source simulation tool manages/creates images for application users, who in turn can customize it for their specific use case. Maple can be used to manage/deploy this workflow.

Another important aspect that Maple aims to address is the reproducibility in research and development. As illustrated below, a scientist can publish software images using Maple to allow their peers to: (1) Reproduce their research datasets (2) Work with existing datasets to gain more insight. Maple aims to make the process of publishing/use of images organized and systematic.

Tutorial

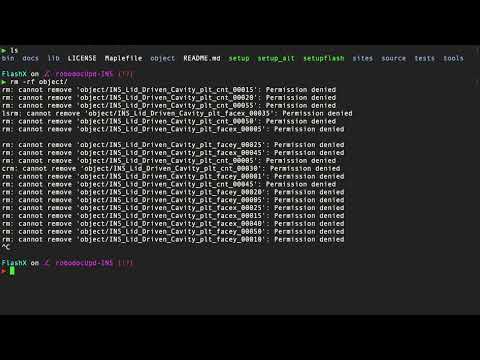

The link below provides an overiew of Maple within the context of Flash-X (https://flash-x.org), a multiphysics simulation software instrument. Some of the details maybe be outdated, but we are working on updating the tutorial.

Installation

Stable releases of Maple are hosted on Python Package Index website (https://pypi.org/project/PyMaple/) and can be installed by executing,

pip install PyMaple

Note that pip should point to python3+ installation package pip3.

Upgrading and uninstallation is easily managed through this interface using,

pip install --upgrade PyMaple
pip uninstall PyMaple

There maybe situations where users may want to install Maple in development mode $\textemdash$ to design new features, debug, or customize options/commands to their needs. This can be easily accomplished using the setup script located in the project root directory and executing,

./setup develop

Development mode enables testing of features/updates directly from the source code and is an effective method for debugging. Note that the setup script relies on click, which can be installed using,

pip install click

The maple script is installed in $HOME/.local/bin directory and therfore the environment variable, PATH, should be updated to include this location for command line use.

Dependencies

click toml docker singularity podman

Writing a Maplefile

Maplefile is a TOML configuration file that is placed in a project root directory. Location of the Maplefile marks the directory which will be mounted inside container,

$ tree Flash-X

├── bin
├── docs
├── LICENSE
├── NOTICE
├── RELEASE
├── sites
├── tools
├── container
├── lib
├── Maplefile
├── README.md
├── setup
├── source

The example above shows the directory tree for Flash-X, which contains a Maplefile along with files/folders that comprise the project. The corresponding Maplefile looks like,

# Maplefile for Flash-X

# Base Image
base = "akashdhruv/amrex:ppc64le"

# Platform
platform = "linux/ppc64le"

# Name of the container/image
container = "flashx"

# MPI path from host
mpi = "/path/to/host/mpi"

# Commands for building local image
# from base image, and installing dependencies
build = [
  "dnf install <packages>",
  "pip install <python-packages>",
]

# Commands to execute inside the container
# using the current mount directory and
# update the local image
publish = [
  "./setup <simulation> <options>",
  "make && cp <app> </path/inside/image>",
]

# Backend for service
# docker/singularity/podman
backend = "podman"

Image versus Container

Following is how Maple differentiates between an Image and a Container:

• Image

  Blueprint for running containers, provides environment to work with code/data in working directory

• Container

  Instance of an image

  Interacts with an image by mounting data/code from working directory

  Writes data to working directory when running applications from an image

  Updates an image using data/code from working directory

Usage

• Build a local image from base image

  maple image build --base=<image-name>

• Activate local container from an image

  maple container pour --image=<image-name>

• Step inside container shell

  maple container shell

• Save changes from a local container to an image

  maple container commit --image=<image-name>

• Stop and delete local container

  maple container rinse

• Prune redundant layers from a local image (reduce size)

  maple image squash --image=<image-name>

• Launch an ipython notebook inside the container

  maple container notebook --image=<image-name> --port=<port-id>

• Run commands inside the container

  maple container run --image=<image-name> "echo Hello World!"

• Delete containers

  maple container rinse <container1> <container2> <container3>

• Delete images

  maple image delete <image1> <image2> <image3>

• Remote interface

  maple pull <image-name>

  maple push <image-name>

Citation

@software{akash_dhruv_2022_7255622,
  author       = {Akash Dhruv},
  title        = {akashdhruv/Maple: October 2022},
  month        = oct,
  year         = 2022,
  publisher    = {Zenodo},
  version      = {22.10},
  doi          = {10.5281/zenodo.7255622},
  url          = {https://doi.org/10.5281/zenodo.7255622}
}
