pymwm 0.5.6

A metallic waveguide mode solver

PyMWM

PyMWM is a metallic waveguide mode solver written in Python.

It provides the dispersion relation, i.e. the relation between propagation constant β = α + iγ (with phase constant α and attenuation constant γ) and angular frequency ω, for cylindrical waveguide, coaxial waveguide, and planer waveguide (slits). It also provides the distribution of mode fields.

Version

0.5.6

Install

Install and update using pip

$ pip install -U pymwm

Install using conda

$ conda create -n pymwm python=3.8
$ conda activate pymwm
$ conda install -c mnishida pymwm
$ pip install "ray[default]"

Dependencies

• python 3
• numpy
• scipy
• pandas
• pytables
• ray
• matplotlib
• riip

Uninstall

$ pip uninstall pymwm

or

$ conda deactivate
$ conda remove -n pymwm --all

Usage

Let's consider a cylindrical waveguide whose radius is 0.15μm filled with water (refractive index : 1.333) surrounded by gold. You can specify the materials by the parameters for RII_Pandas. Wavelength range is set by the parameters 'wl_min' (which is set 0.5 μm here) and 'wl_max' (1.0 μm). PyMWM compute the dispersion relation the two complex values, ω (complex angular frequency) and β (propagation constant). The range of the imaginary part of ω is set from -2π/wl_imag to 0 with the parameter 'wl_imag'. Usually, the cylindrical waveguide mode is specified by two integers, n and m. The number of sets indexed by n and m are indicated by the parameters 'num_n' and 'num_m', respectively.

>>> import pymwm
>>> params = {
     'core': {'shape': 'cylinder', 'size': 0.15, 'fill': {'RI': 1.333}},
     'clad': {'book': 'Au', 'page': 'Stewart-DLF'},
     'bounds': {'wl_max': 1.0, 'wl_min': 0.5, 'wl_imag': 10.0},
     'modes': {'num_n': 6, 'num_m': 2}
     }
>>> wg = pymwm.create(params)

If the parameters are set for the first time, the creation of waveguide-mode object will take a quite long time, because a sampling survey of βs in the complex plane of ω will be conducted and the obtained data is registered in the database. The second and subsequent creations are done instantly. You can check the obtained waveguide modes in the specified range by showing the attribute 'modes';

>>> wg.modes
{'h': [('E', 1, 1),
  ('E', 2, 1),
  ('E', 3, 1),
  ('E', 4, 1),
  ('M', 0, 1),
  ('M', 1, 1)],
 'v': [('E', 0, 1),
  ('E', 1, 1),
  ('E', 2, 1),
  ('E', 3, 1),
  ('E', 4, 1),
  ('M', 1, 1)]}

where 'h' ('v') means that the modes have horizontally (vertically) oriented electric fields on the x axis. The tuple (pol, n, m) with pol being 'E' or 'M' indicates TE-like or TM-like mode indexed by n and m. You can get β at ω=8.0 rad/μm for TM-like mode with n=0 and m=1 by

>>> wg.beta(8.0, ('M', 0, 1))
(0.06187318716518497+10.363105296313996j)

and for TE-like mode with n=1 and m=2 by

>>> wg.beta(8.0, ('E', 1, 2))
(0.14261514314942403+19.094726281995463j)

For more information, see the tutorial notebook and User's Guide.

Examples

Cylindrical waveguide

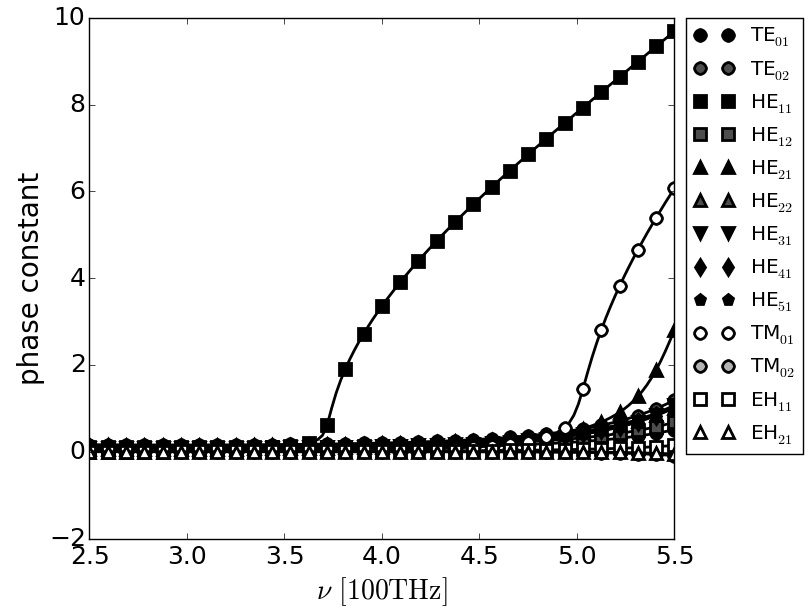

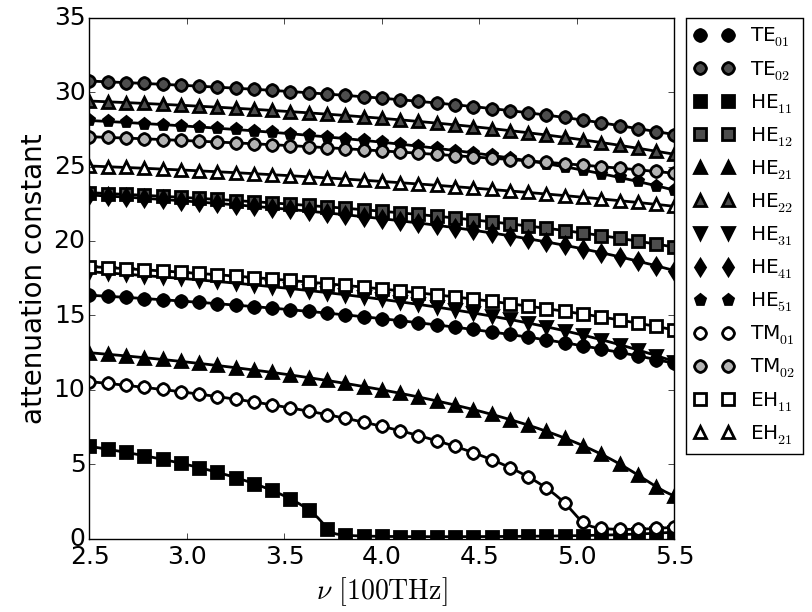

Propagation constants

Electric field and magnetic field distributions

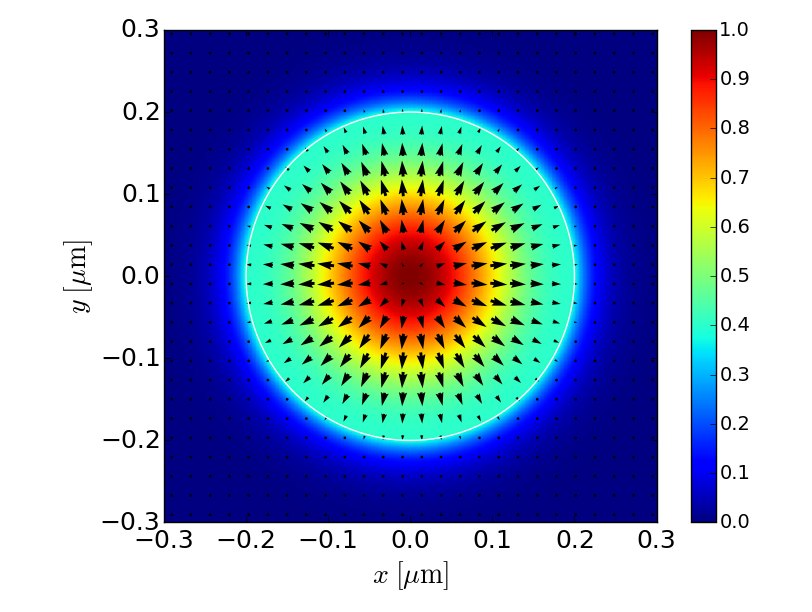

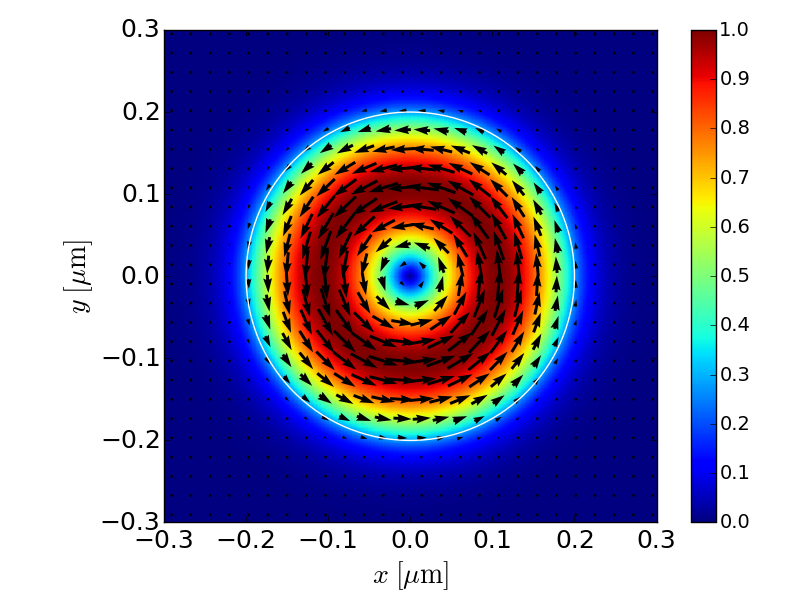

• TE01

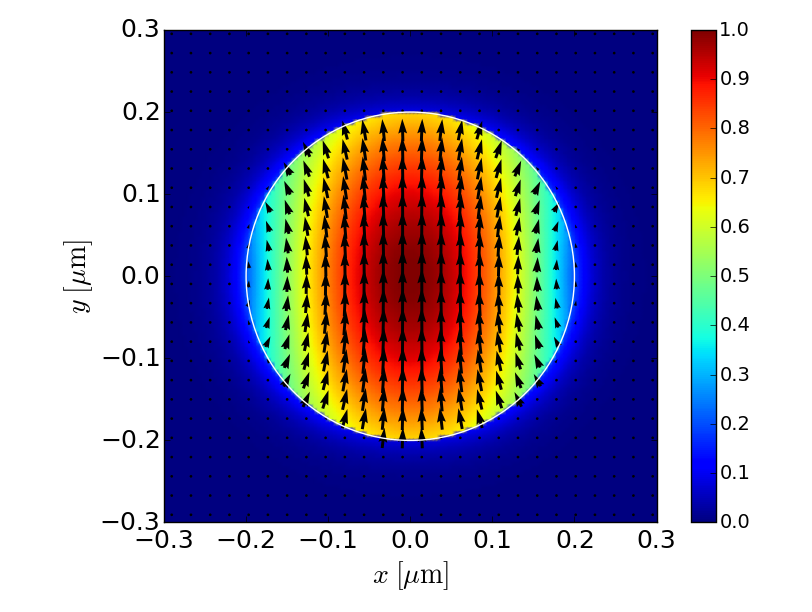

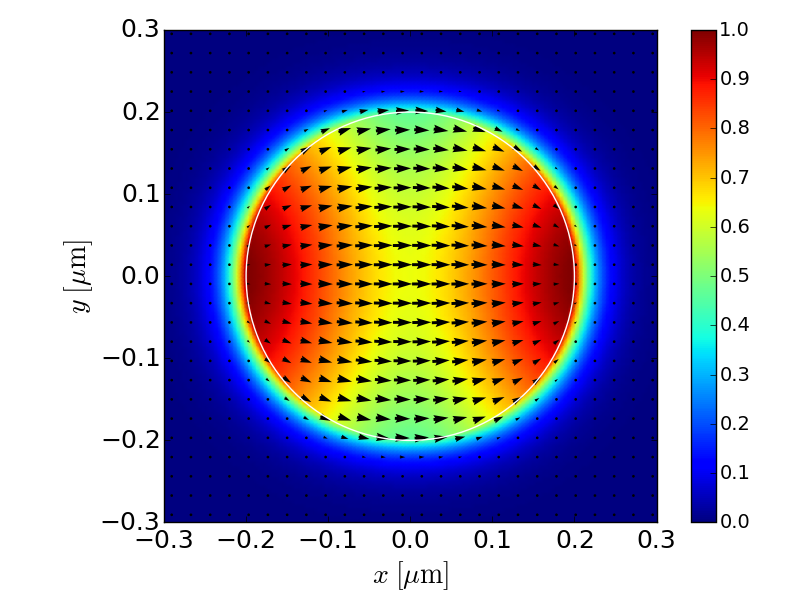

• HE11

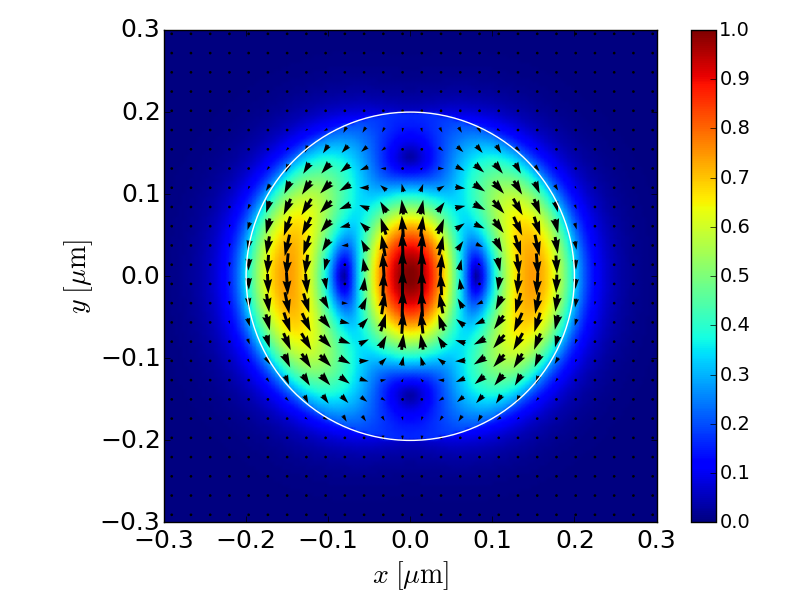

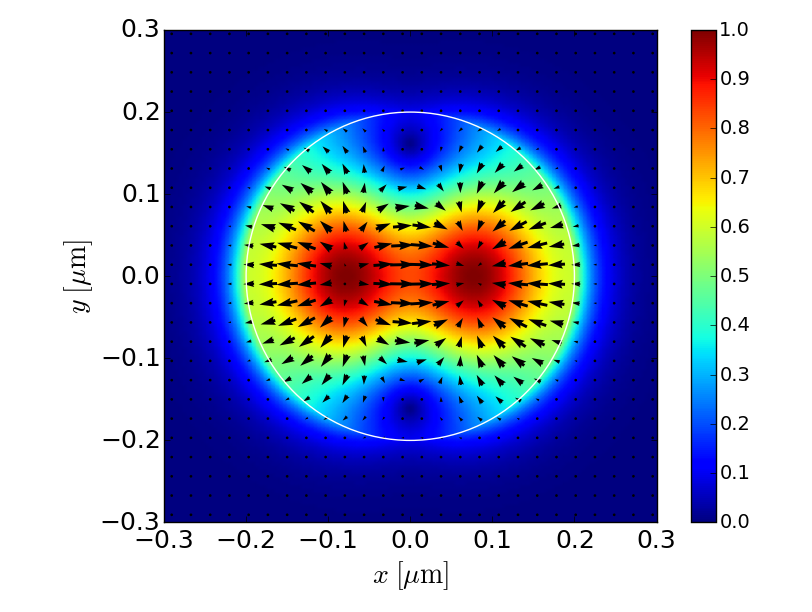

• HE12

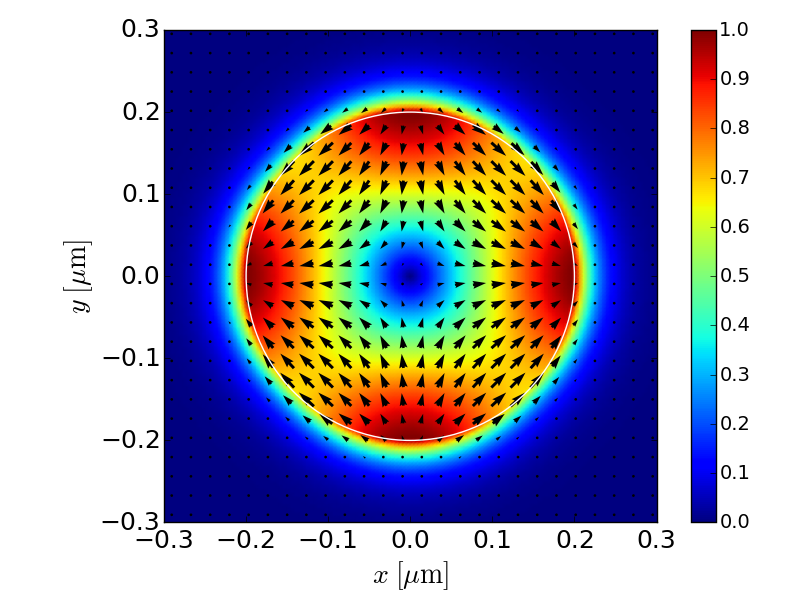

• HE21

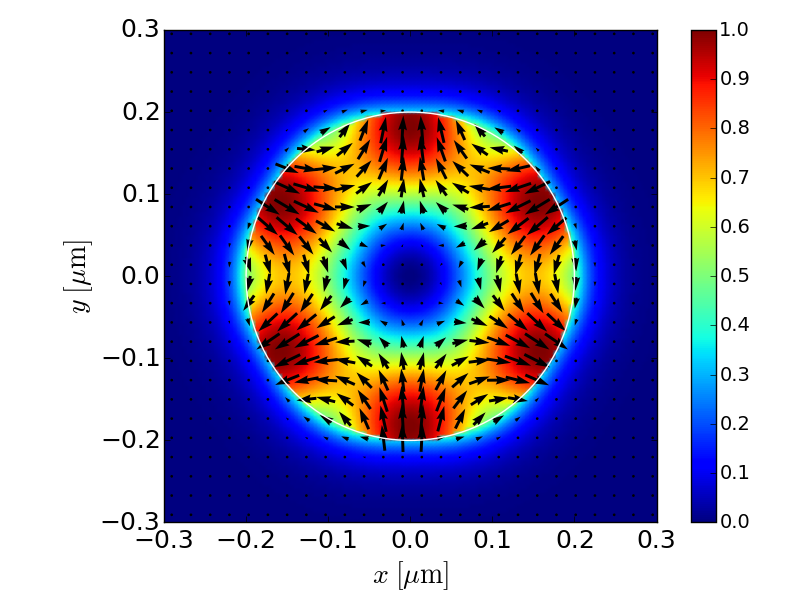

• HE31

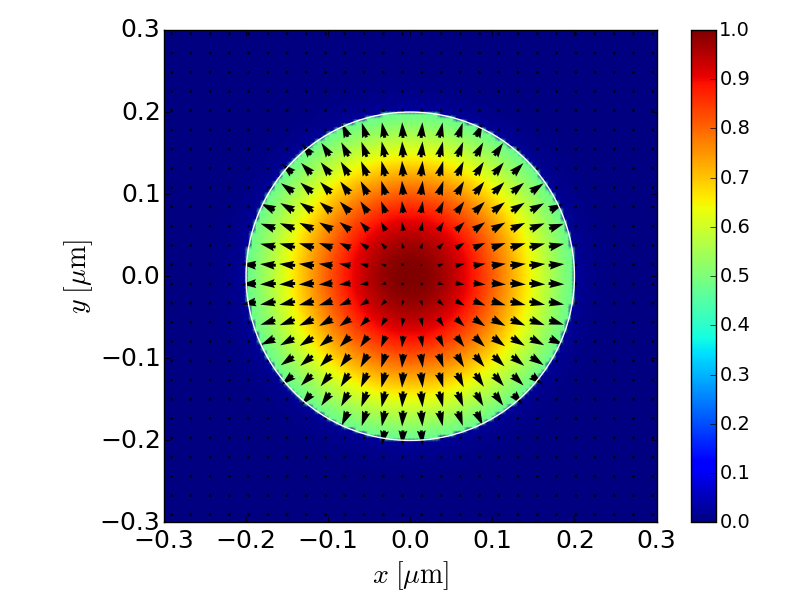

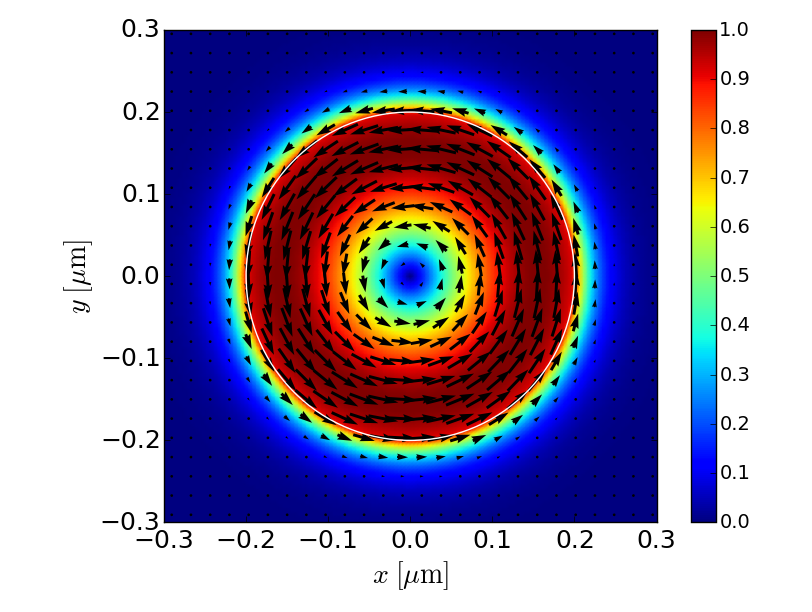

• TM01

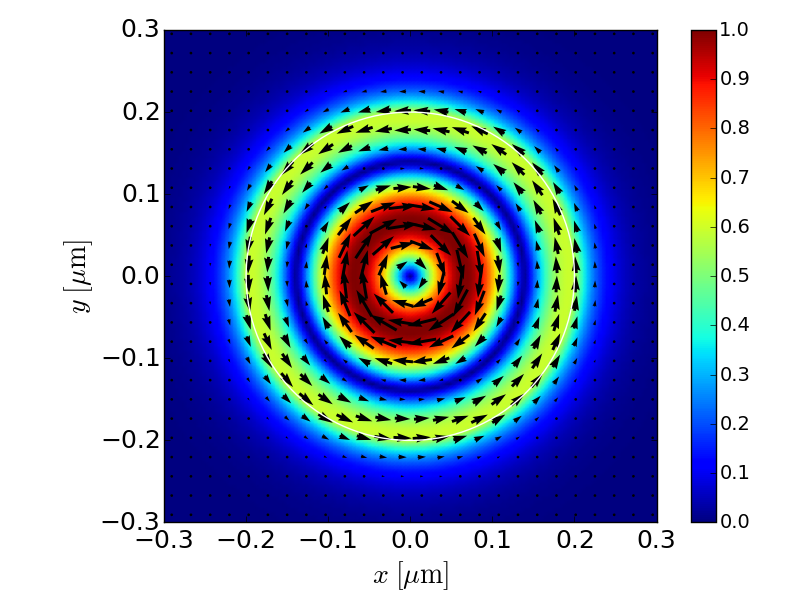

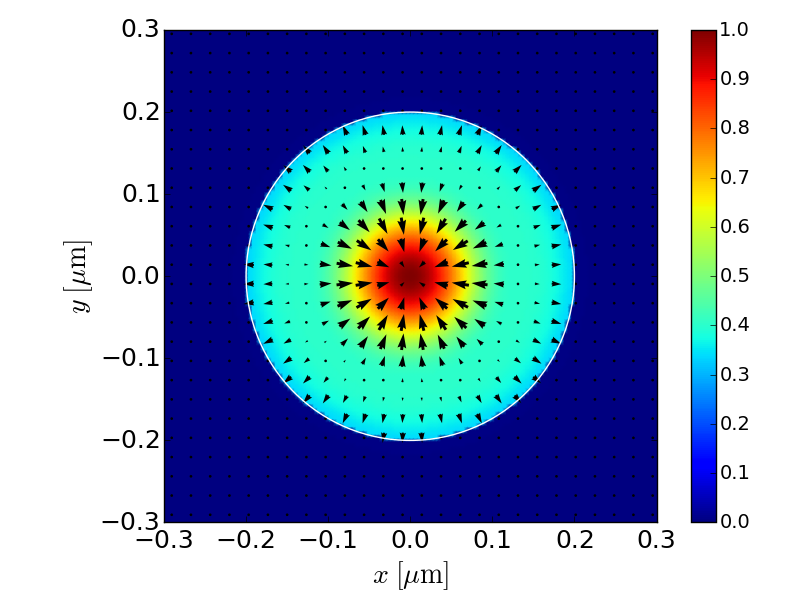

• TM02

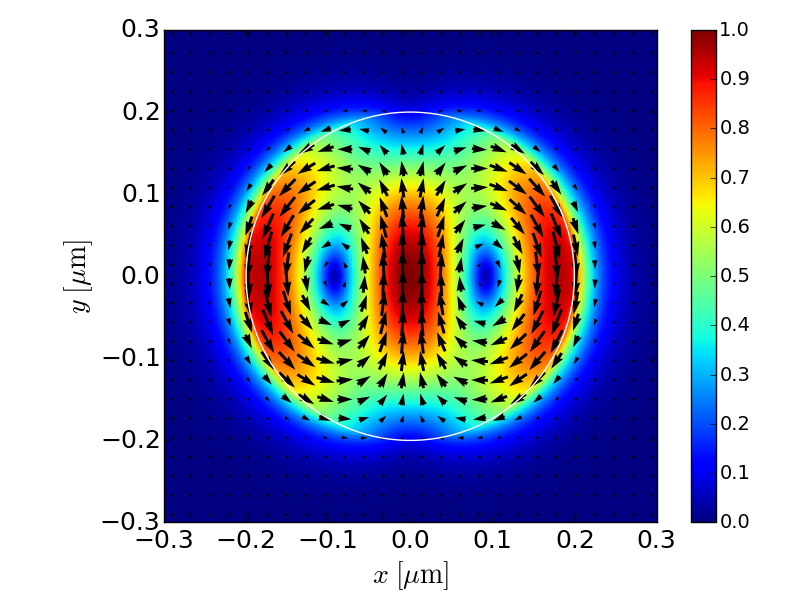

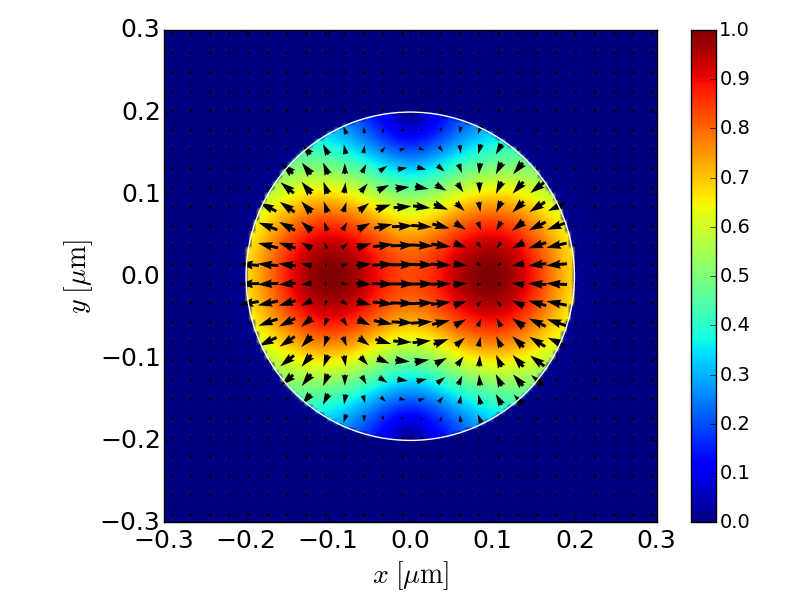

• EH11

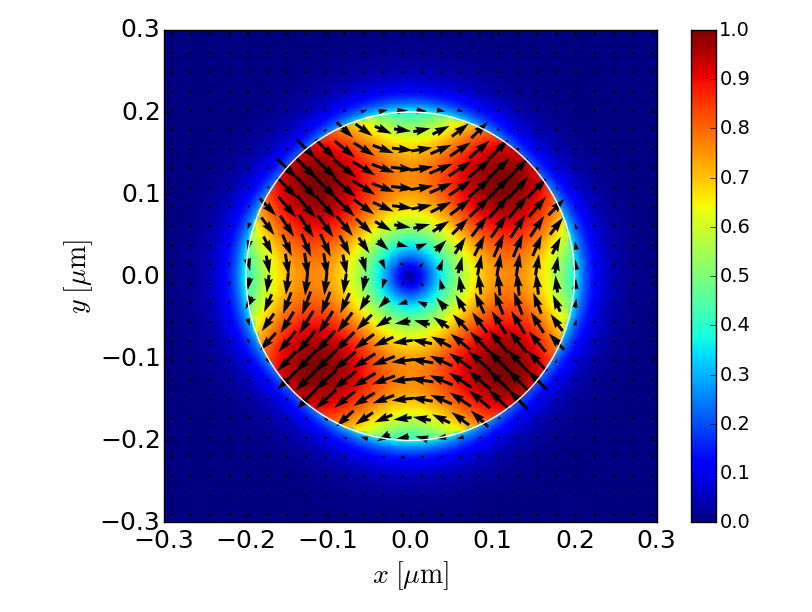

• EH21

Slit waveguide

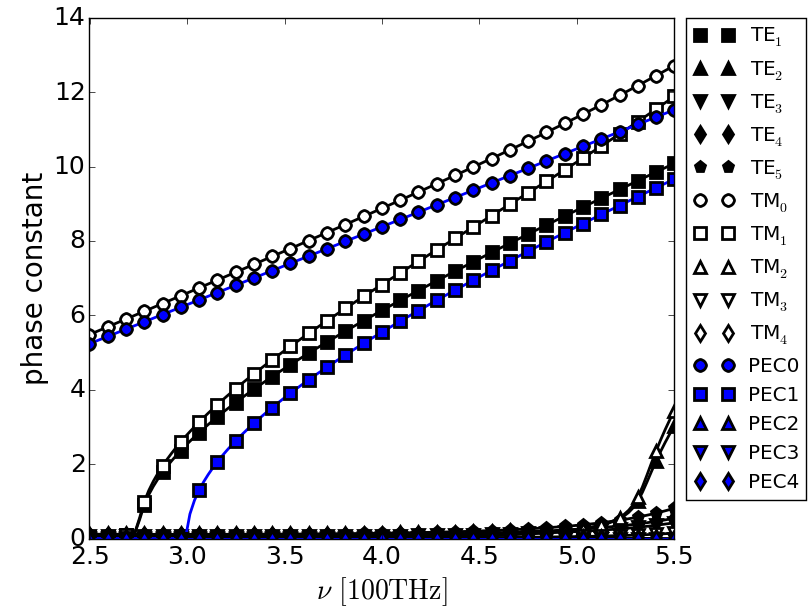

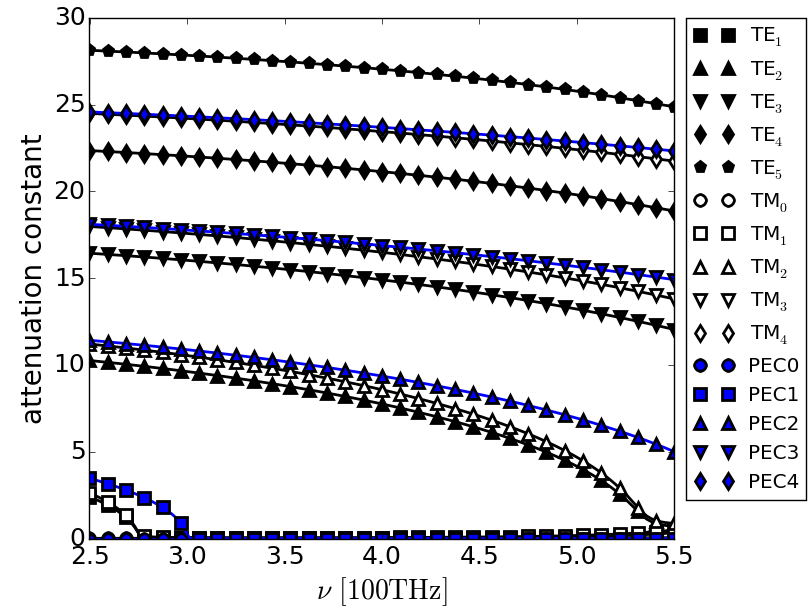

Propagation constants

Electric field and magnetic field distributions

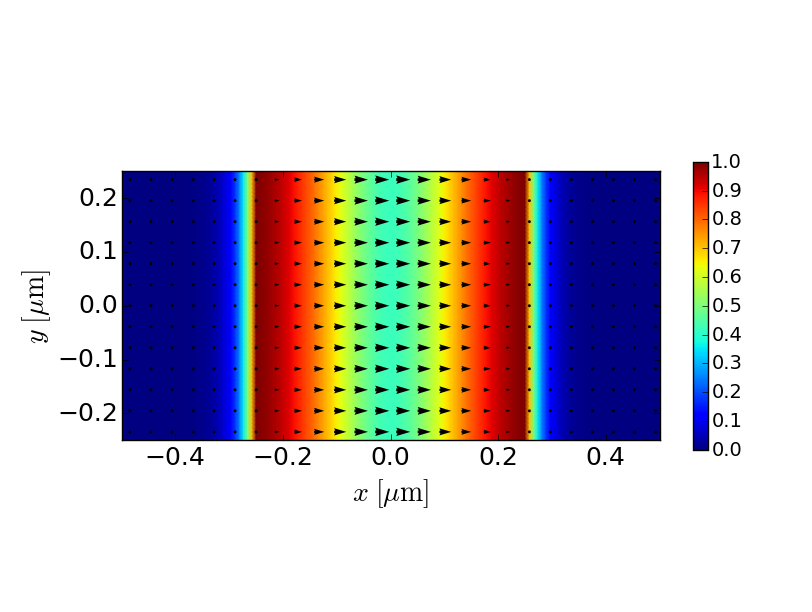

• TE1

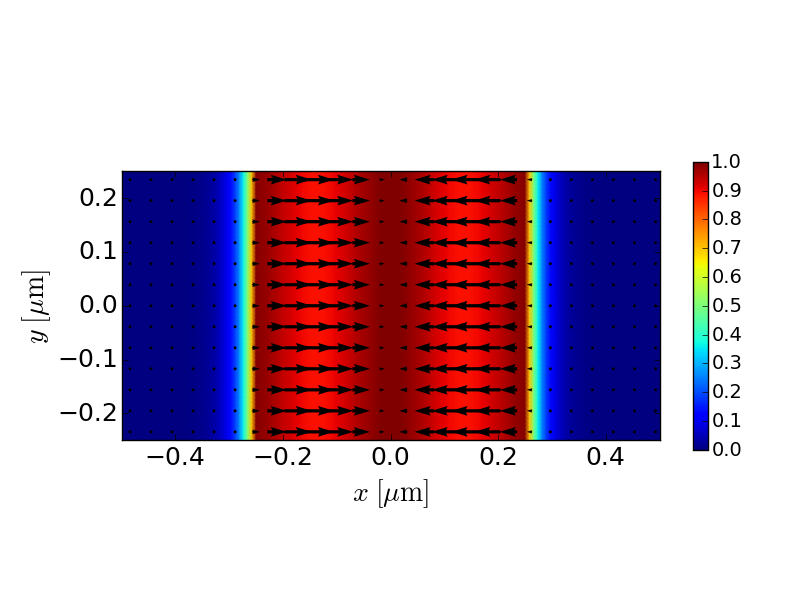

• TE2

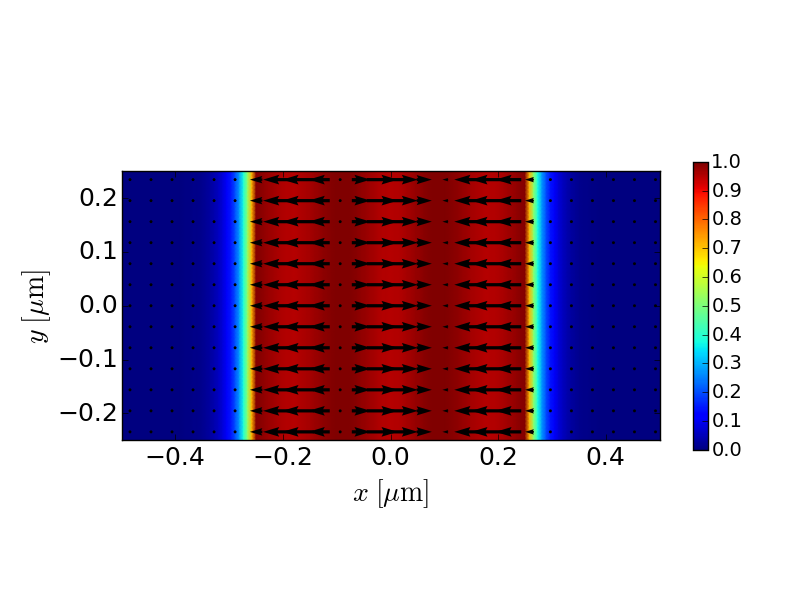

• TE3

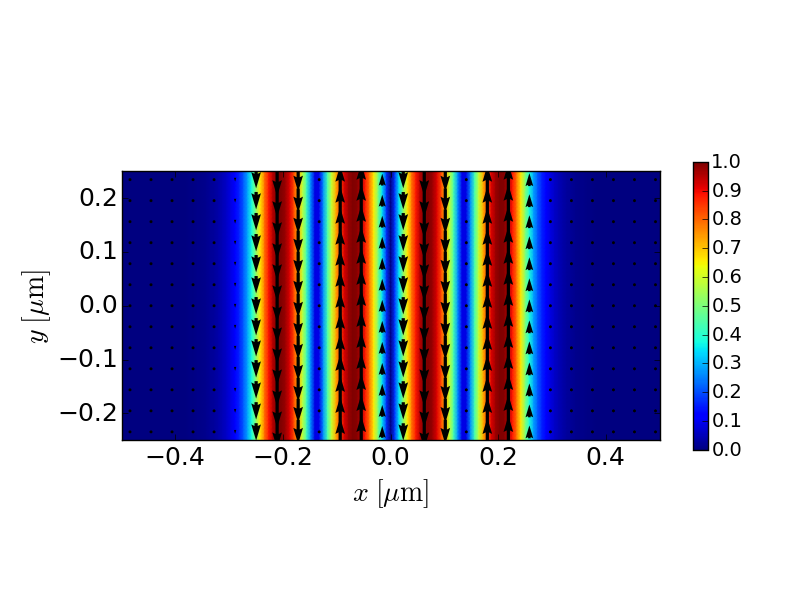

• TE4
• TM0

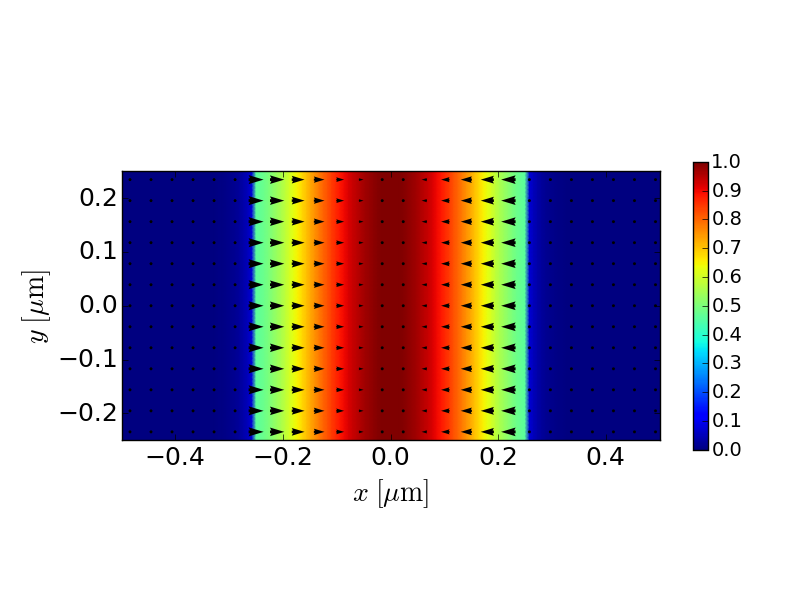

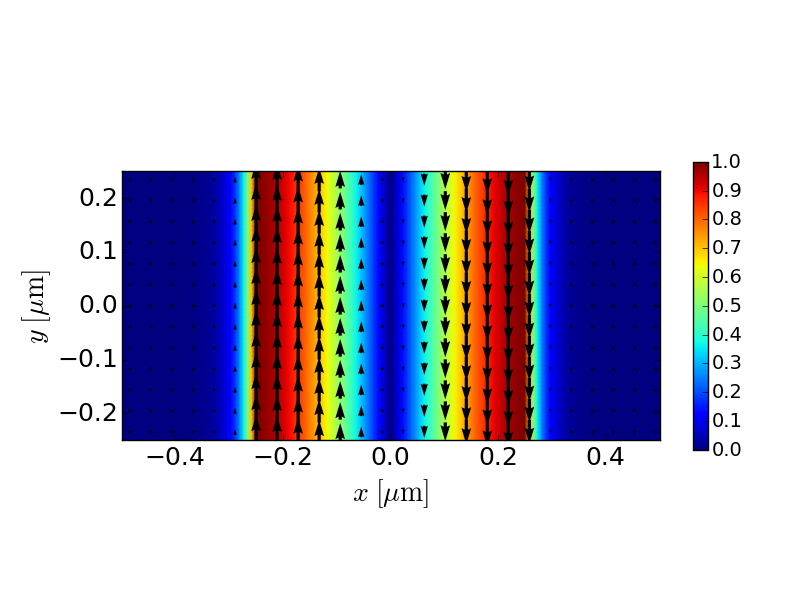

• TM1
• TM2

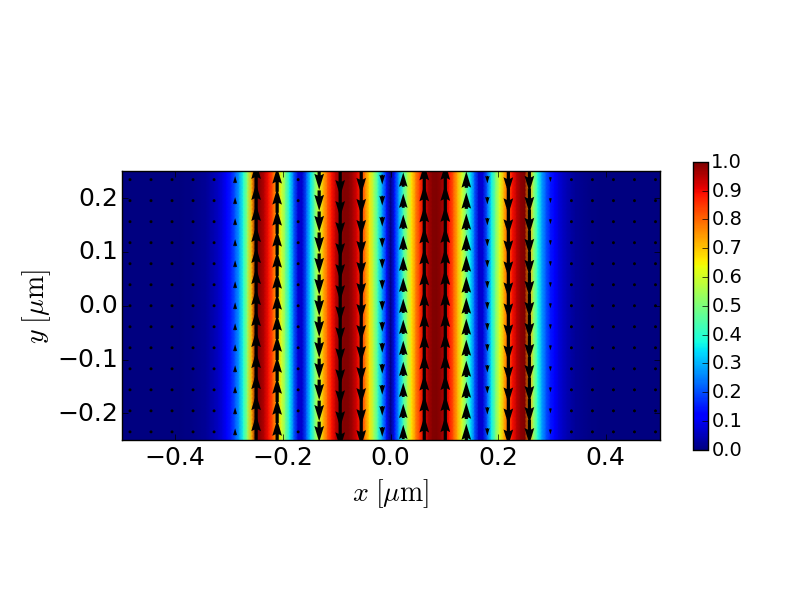

• TM3
