A python tool for N-squared chart plotting

Project description

PyN2


PyN2 is a Python library (based on OpenMDAO project), designed to easily create dynamic n-squared (N²) charts. N² charts are essential in systems engineering and project management to visualize and manage complex interactions between components, subsystems, or processes. PyN2 provides an intuitive API to generate customizable N² diagrams.

Features

  • Generate n² charts to visualize component interactions
  • Customizable labels for rows and columns
  • Highlight important relationships and dependencies
  • Export charts in various formats (e.g., SVG, HTML)
  • Easy-to-use API with minimal setup

Use Cases

  • Systems engineering: Interface mapping and interaction management
  • Project management: Task dependencies and relationship tracking
  • Complex system design: Visualizing module communications and dependencies

Installation

pip install pyn2

Dependencies

PyN2 relies on the following dependencies, which are managed through Poetry:

[tool.poetry.dependencies]
python = "^3.12"
openmdao = "^3.34.2"

Usage

Run the following code to generate the gen_diag.html file.

from pyn2.chart import Element, Group, N2

n2 = N2('test_chart')
s_dev = Group('Software_development')
e_analyze = Element('Analyze')
e_code = Element('Code')
e_build = Element('Build')
e_deploy = Element('Deploy')

t_vnv = Group('Software_vnv')
e_review = Element('Review')
e_test = Element('Test')

e_analyze.connect_to(e_code)
e_code.connect_to(e_build)
e_code.connect_to(e_review)
e_review.connect_to(e_analyze)
e_build.connect_to(e_test)
e_test.connect_to(e_deploy)
e_test.connect_to(e_analyze)

s_dev.add_element(e_analyze)
s_dev.add_element(e_code)
s_dev.add_element(e_build)
s_dev.add_element(e_deploy)

t_vnv.add_element(e_review)
t_vnv.add_element(e_test)

n2.add_group(s_dev)
n2.add_group(t_vnv)
n2.generate_report()

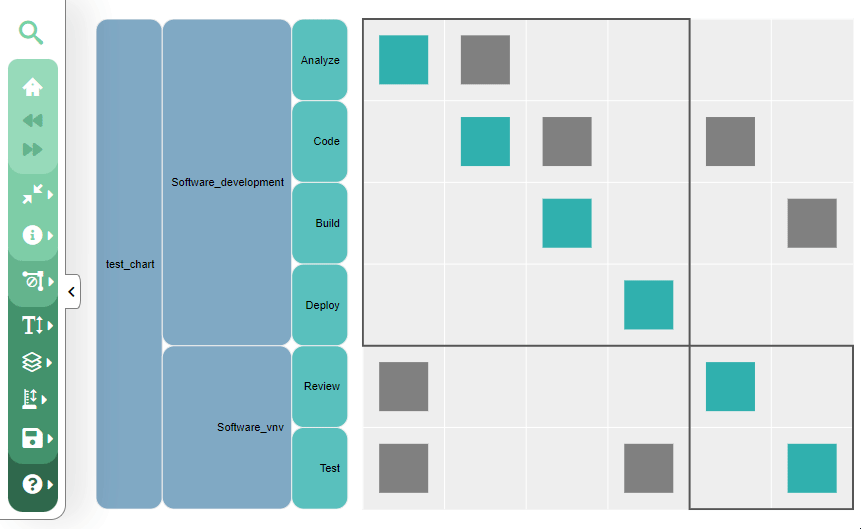

And produce the following chart:


Contributing is awesome!

See CONTRIBUTING

Contact

Developed with :heart: by the internet

Mainteiner: Leonardo Mariga

Did you like it? Remember to click on :star2: button.
