pypolar 1.2.0

Routines for analysis of polarization

pypolar

pypolar is a Python library for simulating, analyzing, and visualizing the polarization state of light as it propagates through optical systems. The package supports modeling with both Jones and Mueller calculus frameworks and includes functionality relevant to education, research, ellipsometry, and polarimetric system design.

The library provides computational tools, visualization utilities, and symbolic analysis support, making it suitable for laboratory instruction, computational optics coursework, and applied research in polarization optics.

---

Modules

pypolar is organized into several computational and symbolic components:

Numerical computation modules

• pypolar.fresnel — Fresnel reflection and transmission calculations

• pypolar.jones — Analysis of polarization using Jones calculus

• pypolar.mueller — Polarization modeling using the Mueller calculus

• pypolar.ellipsometry — Ellipsometry modeling tools

Visualization support

• pypolar.poincare — Dedicated Poincaré sphere plotting routines

• pypolar.visualization — Poincaré sphere and vector-based visualization routines

Symbolic computation

• pypolar.sym_fresnel — Symbolic Fresnel reflection and transmission expressions

• pypolar.sym_jones — Symbolic polarization modeling using Jones calculus

• pypolar.sym_mueller — Symbolic Mueller matrix manipulation

---

Installation

pypolar may be installed via pip:

pip install pypolar

or using conda:

conda install -c conda-forge pypolar

Quickstart

This short example combines numerical Jones/Mueller calculations with a symbolic result.

import numpy as np
import sympy
import pypolar.jones as jones
import pypolar.mueller as mueller
import pypolar.sym_jones as sym_jones

# Jones: left-circular light through a linear polarizer at 30 degrees
J = jones.op_linear_polarizer(np.pi / 6) @ jones.field_left_circular()
print("Jones output:", J)

# Mueller: unpolarized input through the same polarizer
S = mueller.op_linear_polarizer(np.pi / 6) @ mueller.stokes_unpolarized()
print("Stokes output:", S)

# Symbolic: Malus' law
theta = sympy.symbols("theta", real=True)
I = sympy.simplify(
    sym_jones.intensity(sym_jones.op_linear_polarizer(theta) * sym_jones.field_horizontal())[0]
)
print("Symbolic intensity:", I)

Documentation and Examples

Comprehensive user documentation, theory notes, and executable Jupyter examples are available at:

📄 https://pypolar.readthedocs.io

or use immediately in your browser via the JupyterLite button below

---

Examples

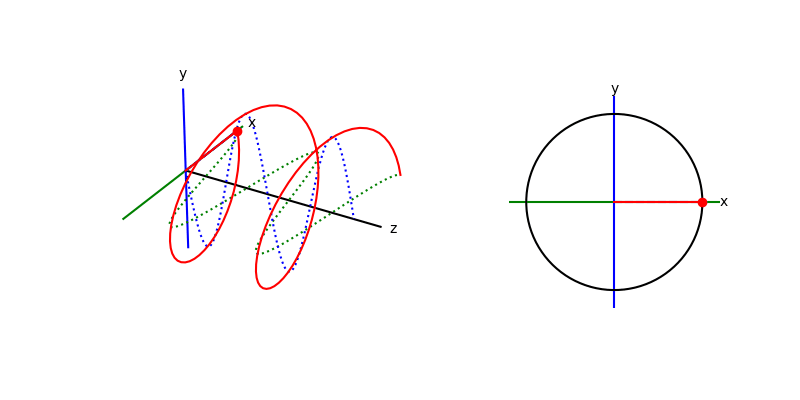

Circular Polarization Visualization

from pypolar import jones
from pypolar import visualization as vis

v = jones.field_left_circular()
print("Jones vector for left circularly polarized light:", v)
ani = vis.draw_jones_animated(v, nframes=32)
ani

will produce something like

---

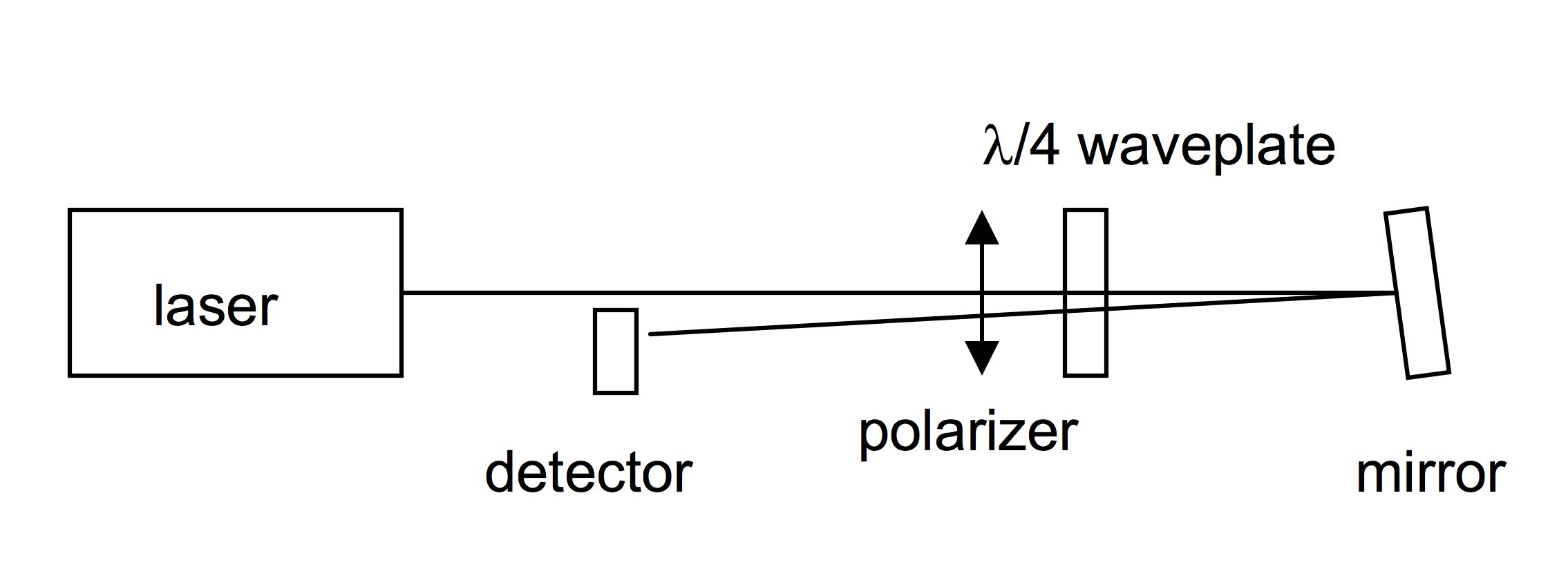

Optical Isolator

The following example demonstrates modeling an optical isolator using the Jones formalism.

import numpy as np
import matplotlib.pyplot as plt
from pypolar import jones
from pypolar import visualization as vis

b = jones.op_linear_polarizer(0)
c = jones.op_quarter_wave_plate(np.pi / 4)
d = jones.op_mirror()
e = jones.op_quarter_wave_plate(-np.pi / 4)

fig = plt.figure(figsize=(8, 8))
ax = fig.add_subplot(111, projection="3d")
vis.draw_empty_sphere(ax)

j1 = jones.field_elliptical(np.pi / 6, np.pi / 6)
j2 = b @ j1
j3 = c @ j2
j4 = d @ j3
j5 = e @ j4

vis.draw_jones_poincare(j1, ax, label="  start", color="red", va="center")
vis.draw_jones_poincare(j2, ax, label="  after Polarizer", color="blue", va="center")
vis.draw_jones_poincare(j3, ax, label="  after QWP", color="blue", va="center")
vis.draw_jones_poincare(j4, ax, label="  after mirror", color="blue", va="center")
vis.draw_jones_poincare(j5, ax, label="  final", color="red", va="center")

vis.join_jones_poincare(j1, j2, ax, color="blue", lw=2, linestyle=":")
vis.join_jones_poincare(j2, j3, ax, color="blue", lw=2, linestyle=":")
vis.join_jones_poincare(j3, j4, ax, color="blue", lw=2, linestyle=":")
vis.join_jones_poincare(j4, j5, ax, color="blue", lw=2, linestyle=":")

plt.show()

---

Symbolic Jones: Half-Wave Plate Rotation

This symbolic example verifies a useful identity: a half-wave plate with fast axis angle theta rotates linear polarization from alpha to 2*theta - alpha (up to a global phase factor, which does not affect the physical polarization state). It also derives the analyzer transmission in closed form.

import sympy
import pypolar.sym_jones as sym_jones

theta, alpha = sympy.symbols("theta alpha", real=True)

J_in = sym_jones.field_linear(alpha)

# Pass through a half-wave plate with fast axis at theta
J_out = sympy.simplify(sym_jones.op_half_wave_plate(theta) * J_in)

# Identity check using half wave plate
J_expected = sympy.I * sym_jones.field_linear(2 * theta - alpha)
print("Identity check:", sympy.simplify(J_out - J_expected))

# Pass through a vertical analyzer and get intensity
J = sym_jones.op_linear_polarizer(sympy.pi / 2) * J_out
I = sym_jones.intensity(J)[0].simplify().trigsimp()
print("I(theta, alpha) =", I)

produces:

Identity check: Matrix([[0], [0]])
I(theta, alpha) = sin(alpha - 2*theta)**2

---

Mueller Matrix Example

import numpy as np
import pypolar.mueller as mueller

A = mueller.stokes_right_circular()
B = mueller.op_linear_polarizer(np.pi/4)
C = mueller.op_quarter_wave_plate(0)
D = mueller.op_mirror()
E = mueller.op_quarter_wave_plate(0)
F = mueller.op_linear_polarizer(-np.pi/4)
F @ E @ D @ C @ B @ A

produces:

array([0., 0., 0., 0.])

---

Citation

If you use pypolar in academic, instructional, or applied technical work, please cite:

Prahl, S. (2026). pypolar: A Python module for polarization using Jones and Mueller calculus (Version 1.1.0) [Computer software]. Zenodo. https://doi.org/10.5281/zenodo.8358111

BibTeX

@software{pypolar_prahl_2026,
  author    = {Scott Prahl},
  title     = {pypolar: A Python module for polarization using Jones and Mueller calculus},
  year      = {2026},
  version   = {1.1.0},
  doi       = {10.5281/zenodo.8358111},
  url       = {https://github.com/scottprahl/pypolar},
  publisher = {Zenodo}
}

---

License

pypolar is distributed under the terms of the MIT License.
