pyqt-color-picker 0.0.20

PyQt color picker dialog

pyqt-color-picker

PyQt color picker dialog which contains color picker widget.

You can either use dialog or widget.

Requirements

PyQt5 >= 5.8

Setup

python -m pip install pyqt-color-picker

Class, Method Overview

ColorPickerDialog

• ColorPickerDialog(color=QColor(255, 255, 255), orientation='horizontal')

  • color argument's type can be QColor or str.

  • orientation argument decides the overall layout direction of the dialog. There are two values. 'horizontal', 'vertical'. See layout preview below.

• getColor() -> QColor - get the color.

If you only want to use this as a part of window(not as whole dialog), use ColorPickerWidget(color=QColor(255, 255, 255), orientation='horizontal'). See the example below.

ColorPickerWidget

• colorChanged(color: QColor) - signal. After color being changed, this will be emitted.

• getCurrentColor() -> QColor - get the current color.

Layout type

Horizontal

Vertical

Usage

Dialog

Code Sample

dialog = ColorPickerDialog()

reply = dialog.exec()

if reply == QDialog.Accepted:

  color = dialog.getColor() # return type is QColor

  //..

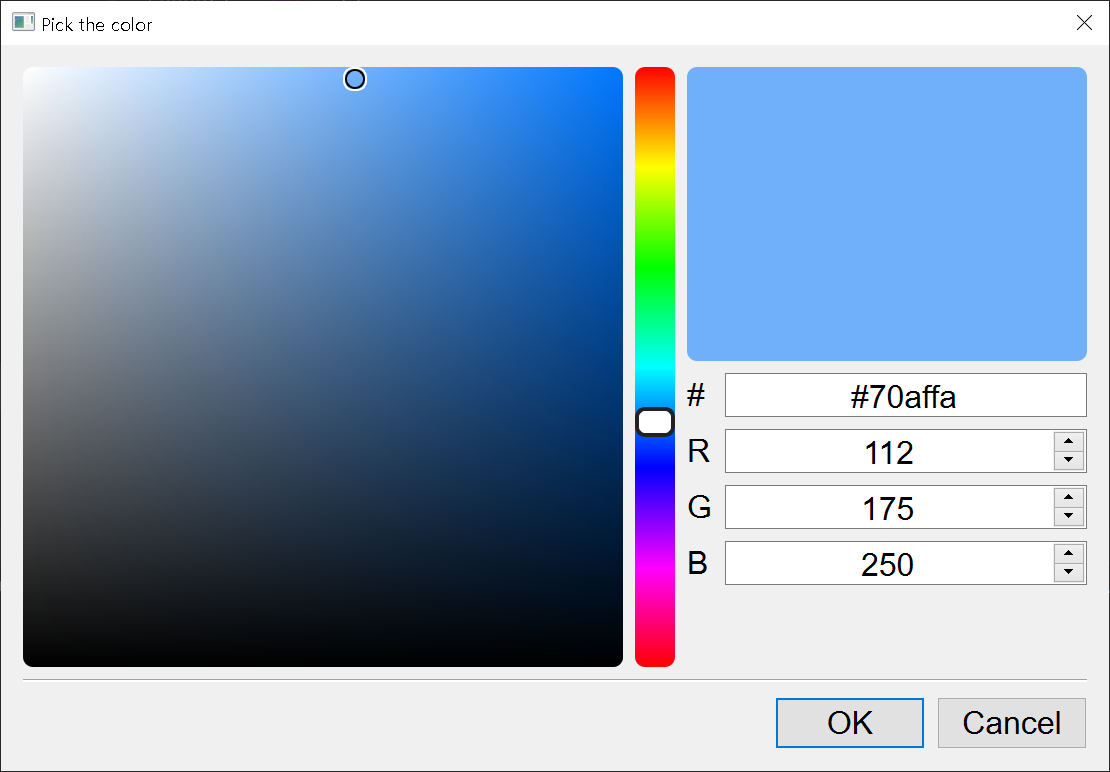

Result

https://user-images.githubusercontent.com/55078043/144693507-7b078c86-8c71-4df5-869f-8380885b9108.mp4

Using as a part of window

Code Sample

from PyQt5.QtWidgets import QMainWindow, QApplication, QHBoxLayout, QWidget, QTextEdit

from pyqt_color_picker import ColorPickerWidget





class Window(QMainWindow):

    def __init__(self):

        super().__init__()

        self.__initUi()



    def __initUi(self):

        self.__te = QTextEdit()

        self.__colorPicker = ColorPickerWidget(orientation='vertical')

        self.__colorPicker.colorChanged.connect(self.colorChanged) # when color has changed, call the colorChanged function

        lay = QHBoxLayout()

        lay.addWidget(self.__te)

        lay.addWidget(self.__colorPicker)

        mainWidget = QWidget()

        mainWidget.setLayout(lay)

        self.setCentralWidget(mainWidget)



    def colorChanged(self, color):

        self.__te.setStyleSheet(f'QTextEdit {{ color: {color.name()} }}')





if __name__ == "__main__":

    import sys



    app = QApplication(sys.argv)

    ex = Window()

    ex.show()

    sys.exit(app.exec_())

Result

https://user-images.githubusercontent.com/55078043/189460590-18bc80b5-fb48-43f7-891f-dd6cf48243ee.mp4
