pyqt-custom-titlebar-window 0.0.11

PyQt custom titlebar window (resizable, movable, minimize/maximize/close, etc.)

pyqt-custom-titlebar-window

PyQt custom titlebar window(resizable, movable, minimize/maximize/close).

User can set modernized and customized frame surrounding the widget you made.

You can set the title bar separately or set the menu bar as title bar.

You can drag title bar or menu bar on widget to move the window, double-click it to show maximize/normal.

If you want to set custom titlebar easily than use pyqt-custom-titlebar-setter.

If you want to use this in various ways than use this directly. see the example below.

Table of Contents

• Requirements

• Setup

• Included Packages

• Feature

• Example

  • Code Sample (Menu bar only)

  • Code Sample (Including title bar)

Requirements

PyQt5 >= 5.15 - This package is using startSystemMove, startSystemResize which were both introduced in Qt 5.15.

Setup

python -m pip install pyqt-custom-titlebar-window

Included Packages

• pyqt-frameless-window - To import parent class FramelessWindow

• pyqt-windows-buttons-widget - To provide Windows 10 OS style min/max/close buttons with menu bar

• pyqt-mac-buttons-widget - To provide macOS style of min/max/close buttons with menu bar

• pyqt-top-titlebar-widget - For adding top title bar feature

• python-get-absolute-resource-path - For get absoulte resource path of svg icon to set window icon

Feature

• If you drag the frame, window will be resized.

• If you drag the title bar(menu bar if there is no title bar) of inner widget, window will be moved.

• If you double-click the menu bar, window will be maximized/normalized.

• Set the window title by itself if you set your inner widget's title with setWindowTitle. It also catches the windowTitleChanged signal of your inner widget.

• Support full screen feature. When full screen feature turns on, top title bar will disappear. Reappear when it turns off.

• CustomTitlebarWindow(CustomizedWidgetByUser()) - Constructor.

• setTopTitleBar(self, title: str = '', icon_filename: str = '', font: QFont = QFont('Arial', 12), align=Qt.AlignCenter, bottom_separator=False) to set title bar on the top of the window.

• setButtons() to add min/max/close button on the top right corner of title/menu bar

• setButtonHint(hint) to set hints of buttons. There are three options available(close, min/close, min/max/close). Default value is min/max/close.

• setButtonStyle(style) to set style of buttons, This accepts only two string('Windows', 'Mac').

• setMenuTitle(title: str, icon_filename: str, font=QFont('Arial', 12)) to set the icon and title not only on the left side of menu bar, but also set it as window icon and title.

• Frame's color synchronizes with the QMenuBar's background color or inner QWidget's color if inner widget is not QMainWindow.

• getCornerWidget() to get corner widget of QMenuBar easily

• getInnerWidget() to get inner widget easily

Example

Code Sample (Menu bar only)

from PyQt5.QtWidgets import QApplication

from pyqt_custom_titlebar_window import CustomTitlebarWindow

from pyqt_dark_calculator import Calculator



if __name__ == "__main__":

  import sys



  app = QApplication(sys.argv)

  customTitlebarWindow = CustomTitlebarWindow(Calculator())

  # customTitlebarWindow.setButtonHint(hint=['close'])

  # customTitlebarWindow.setButtonStyle(style='Mac')

  customTitlebarWindow.setButtons()

  customTitlebarWindow.show()

  app.exec_()

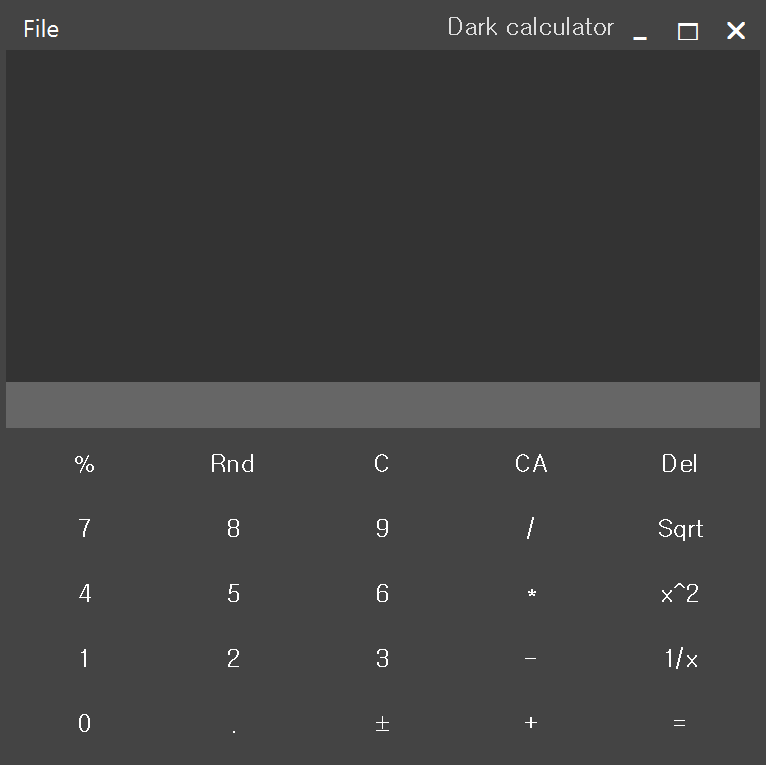

In the code sample, pyqt-dark-calculator is being used as inner widget.

Result

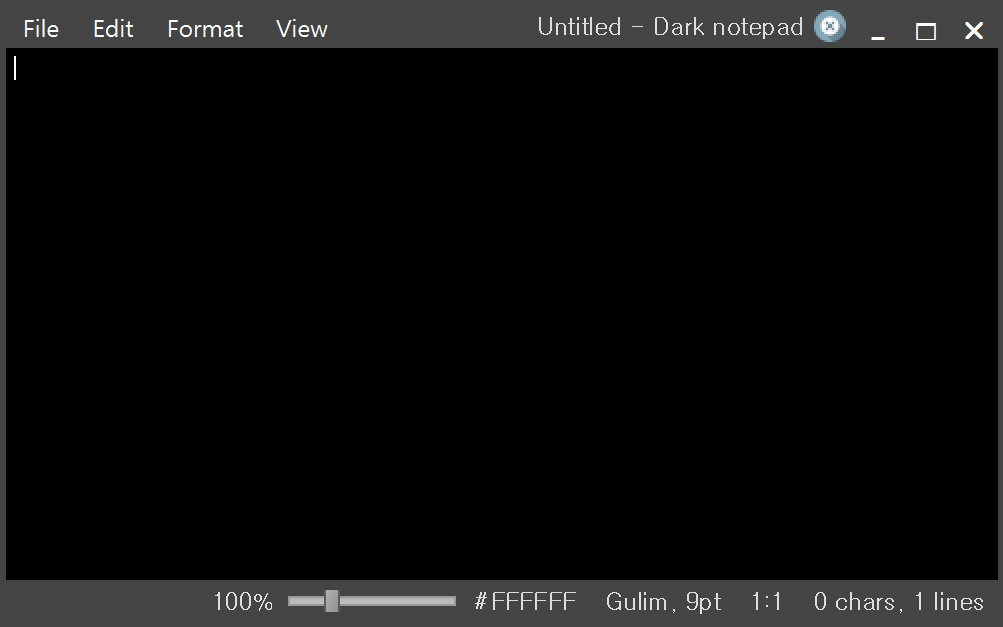

Here's another example with pyqt-dark-notepad.

As you see, existing corner widget doesn't matter.

Code Sample (Including title bar)

from PyQt5.QtWidgets import QApplication

from pyqt_custom_titlebar_window import CustomTitlebarWindow

from pyqt_dark_notepad import DarkNotepad



if __name__ == "__main__":

  import sys



  app = QApplication(sys.argv)

  window = DarkNotepad()

  customTitlebarWindow = CustomTitlebarWindow(window)

  customTitlebarWindow.setTopTitleBar(icon_filename='dark-notepad.svg')

  # customTitlebarWindow.setButtonHint(['close'])

  # customTitlebarWindow.setButtonStyle(style='Mac')

  customTitlebarWindow.setButtons()

  customTitlebarWindow.show()

  app.exec_()

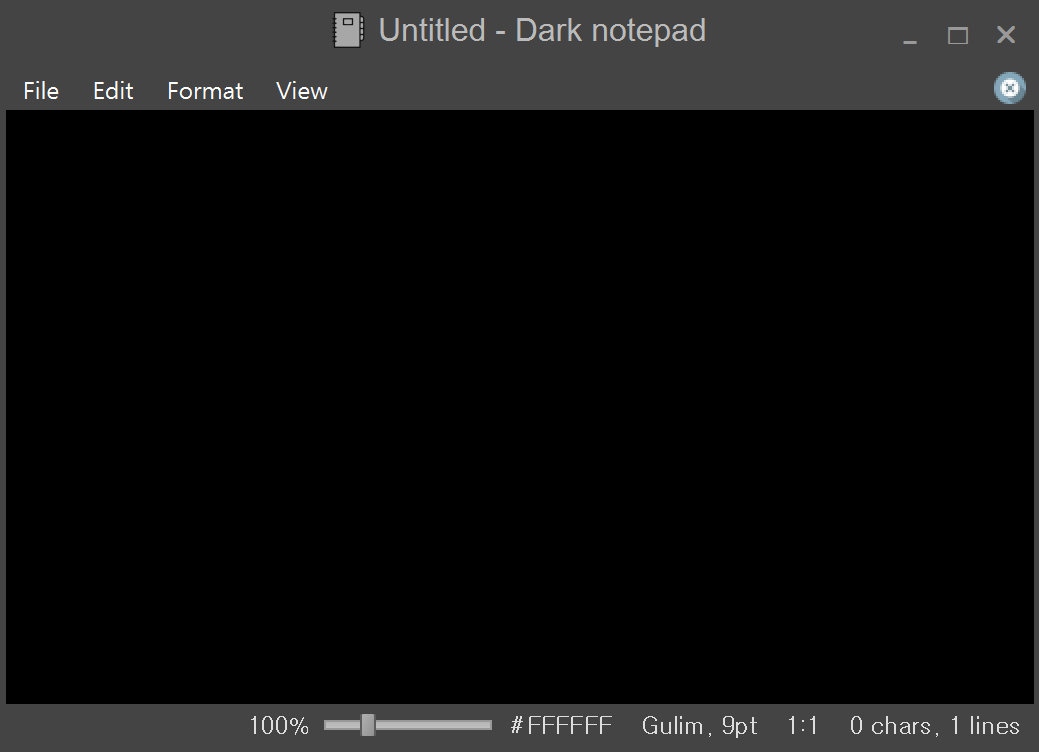

Result
