PySMLFM 1.0.0

Single Molecule Light Field Microscopy Reconstruction

Single Molecule Light Field Microscopy Reconstruction (PySMLFM)

A Python solution inspired by MATLAB scripts in hexSMLFM project.

This 3D reconstruction code accompanies the preprint titled "High-density volumetric super-resolution microscopy". In brief, 2D localisation data (x,y) captured using a (square or hexagonal) fourier light field microscope are turned into 3D localisations (x,y,z). It does this by first assigning (x,y) to (x,y,u,v) space and using microscope parameters to calculate z position via parallax. For more information, see: R. R. Sims, et al. Optica, 2020, 7, 1065.

Getting Started

Although this project is pure Python, one of its optional features talks to ImageJ/Fiji via PyImageJ wrapper and uses PeakFit from GDSC SMLM2 plugin. That basically defines main requirements as well as restrictions for this project.

If you don't plan to use PeakFit directly from this project, feel free to configure your Python environment in a way you are used to. You can still follow the instruction below, just skip installation of PyImageJ and OpenJDK.

Following instructions assume you don't have Python installed yet and focuses to Windows platform only.

Initial Setup

Initial setup follows PyImageJ instructions.

PyImageJ should be installed using Conda + Mamba. You can also pip install pyimagej, but will then need to install OpenJDK and Maven manually.

1. Install Miniforge3 to get whole Python environment. When asked how to install, select Just me, because All users option would only complicate system-wide installation. If you really need to share the installation with other users, select location everybody can access and manually copy there also a Start menu shortcut to Miniforge prompt created by installer for you only.

2. Run Miniforge Prompt from Start menu. It opens in your home folder by default (e.g. C:\Users\Me).

3. Create new isolated virtual environment for this project (with name MyEnv) to not clutter dependencies with your existing or new projects:

   (base) C:\Users\Me> mamba create -n MyEnv -c conda-forge python=3.8 pyimagej openjdk=8


   This command will install PyImageJ with OpenJDK 8 in new virt. env. using Python 3.8 (the minimal Python version required).
   If you don't want PyImageJ, remove last two package names from the command to get clean environment.
   Adjust Python version if needed.

   Note:
   If you have an AMD processor and experience low performance compared to similar Intel CPU, installing an alternative BLAS library could help. For example, to initialize new environment with BLIS library run:

   (base) C:\Users\Me> mamba create -n MyEnv -c conda-forge python=3.8 pyimagej openjdk=8 blas=*=blis


4. Whenever you want to use MyEnv environment, activate it first:

   (base) C:\Users\Me> mamba activate MyEnv


5. Ensure conda-forge is the first update channel:

   (MyEnv) C:\Users\Me> conda config --add channels conda-forge
   (MyEnv) C:\Users\Me> conda config --set channel_priority strict


6. Download Fiji from official source, unpack it, run ImageJ-win64.exe and install 'GDSC SMLM2' plugin via Help‑>Update... menu.

Install PySMLFM

Install either stable release or development version as shown below.

Latest Stable Release

• Install the package from Python Package Index (PyPI):

  (MyEnv) C:\Users\Me> pip install PySMLFM


Latest Development Version

• Get the ZIP archive with sources from GitHub (PySMLFM-main.zip).
• Install the package from source archive extracted e.g. in your home folder (C:\Users\Me\PySMLFM-main):

  (MyEnv) C:\Users\Me> cd PySMLFM-main
  (MyEnv) C:\Users\Me\PySMLFM-main> pip install .


Execution

There are two ways how to run an application installed by this project - by running a Python command from Miniforge Prompt or via installed .exe helper script.

Via Python Command

Run the command line application:

(MyEnv) C:\Users\Me> python -m smlfm_cli

or the GUI application:

(MyEnv) C:\Users\Me> python -m smlfm_gui

Via Helper Script

During the installation is created a helper script that simplifies the execution of the application. It is a self-extracting ZIP file that executes similar command as above but uses for it the python.exe from the virt. env. where it was created from. Because of that, the EXE helper works only on the that computer and cannot be shared with anyone else, but it can be copied anywhere on your computer.

Simply run it with:

(MyEnv) C:\Users\Me> smlfm-cli

or:

(MyEnv) C:\Users\Me> smlfm-gui

Notice the dash in the command name, it is not an underscore.

Usage

If you already tried running the CLI application, you saw an error message. It is because the CLI application requires one or two options as input.

Configuration

The type of the input option is detected automatically from given file extension:

• A configuration with .json file extension.
  It contains all possible parameters for the localisation process, output location, graphs to show, etc. If not specified, a default configuration file is used. As a starting point, make your own copy and modify the parameters accordingly. See C:\Users\Me\miniforge\envs\MyEnv\Lib\site-packages\smlfm\data\default-config.json.
• A 2D localisations with .csv or .xls file extension.
  If not specified on command line, the path to the file must be set in the configuration file under csv_file key.
  By default the CSV is expected in the format generated by PeakFit plugin in ImageJ/Fiji. A few other formats are supported, namely Thunderstorm and Picasso. Adjust the configuration file key csv_format where the value is all in upper-case.

For example, run the application with customized configuration and data, all stored C:\MyExperiment folder:

(MyEnv) C:\MyExperiment> python -m smlfm_cli my-config.json my-localisations.csv

For quick access to the EXE helper script without opening command prompt you can create a shortcut on the desktop or in your experiment folder. Open the path with smlfm-cli.exe in File Explorer (by default it is in C:\Users\Me\miniforge\envs\MyEnv\Scripts\ ), drag the EXE file with mouse and drop it on the desktop or target folder while holding the Alt key.
The shortcut has working directory set by default to the folder with the EXE file. It is recommended changing it to a location where you want the results to be stored. Right-click on the shortcut, select Properties and modify 'Start in:' box accordingly. Also don't forget to add the input options at the end of the command in the 'Target:' box. Now you can double-click the shortcut anytime you want to re-run the 3D localisation.

Processing

With valid configuration the 2D localisation data is loaded from CSV file and every localisation point is assigned to the nearest lens from micro-lens array. With default configuration the localisations and lens centres are shown in form of 2D graph. The user can visually check the alignment. To continue, the graph window must be closed and then the user must either confirm the alignment or abort the process to adjust the configuration to fix the alignment. Simply follow the instructions in the command prompt window.

Based on the amount of input localisations and computer performance, the processing can take from a few seconds to minutes or even hours. The command prompt window prints a message about the progress every 1000 frames processed.

Results

If everything completed successfully, three graphs with results are shown and the results are stored in the disk. In the current working directory (e.g. C:\MyExperiment) is created a subdirectory for every execution. The subdirectory name starts with 3D Fitting prefix followed by a timestamp and a CSV filename used.
Each folder contains JSON configuration file used (config.json), calculated 3D localisations (locs3D.csv), an output for ViSP viewer (ViSP.3d) and a Python script (figures.pyw) that reconstructs exactly the results graphs at any time later without a need to start the processing from beginning.

To open the saved figures run a command that takes relative path to it like this (quote the path with spaces):

   (MyEnv) C:\MyExperiment> python "3D Fitting - 20240213-203318 - my-localisations.csv/figures.pyw"

When you use python command like above, the prompt will be blocked until all graphs are closed. To open the figures without blocking the prompt use pythonw instead.

Screenshots

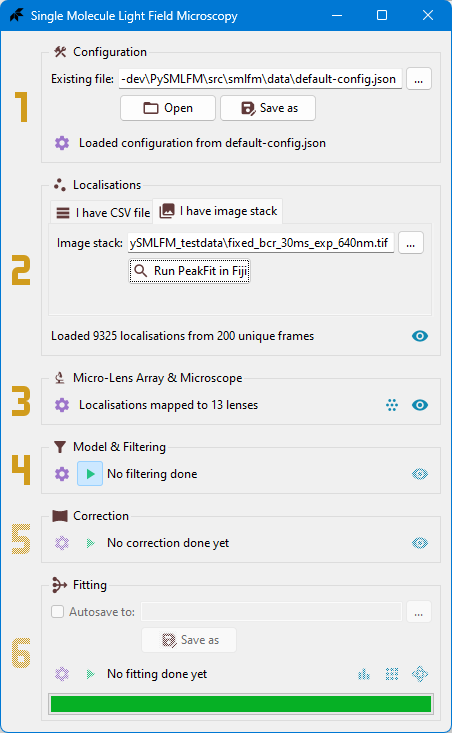

Main Window

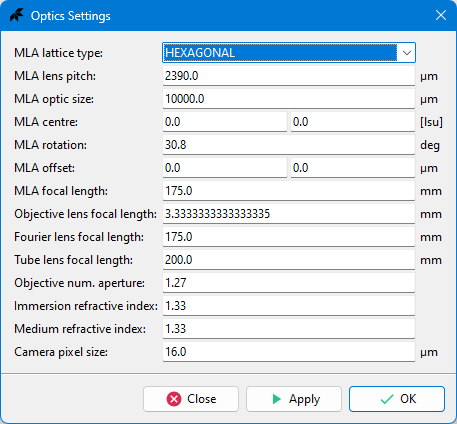

Optics Settings Dialog

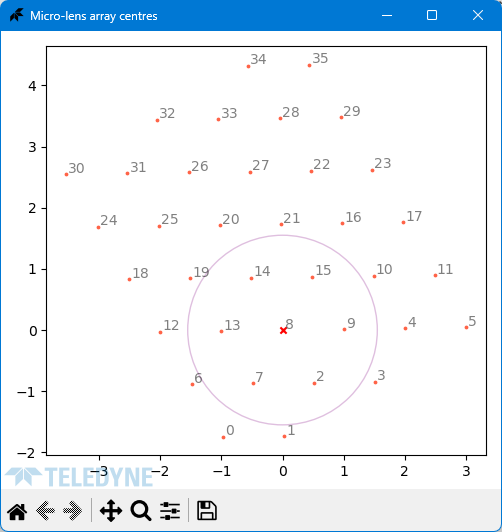

Micro Lens Array Layout

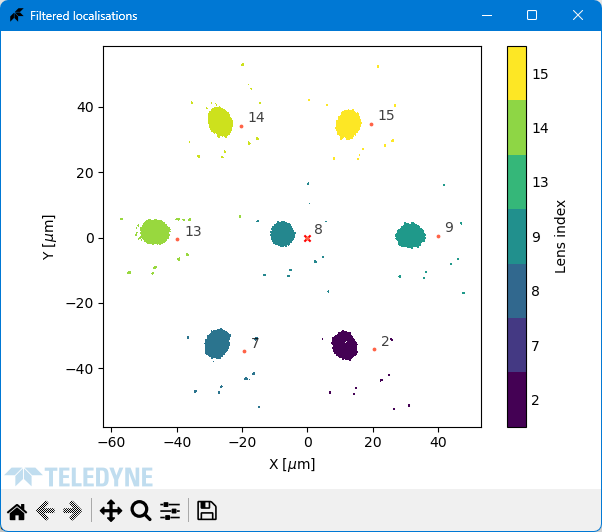

Filtered Localisations

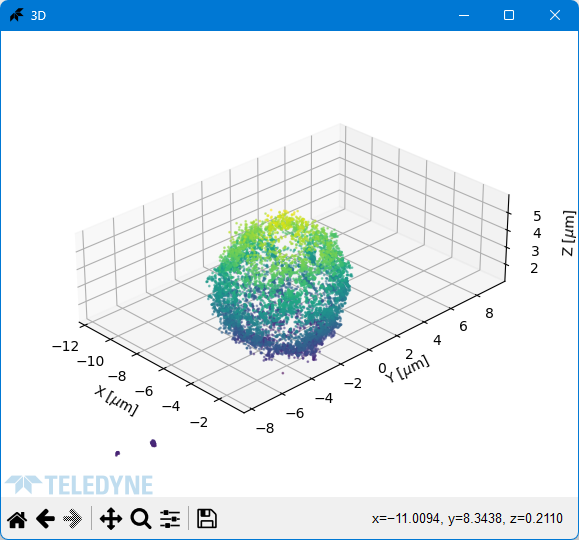

3D Reconstruction
