pystarboundmap 1.0.0b7

Starbound Map Viewer

Python Starbound Mapper

Yet another Starbound mapper!

This project is a reasonably basic Starbound map viewer, focusing on a few simple map introspection tasks, rather than on 100% accurate map rendering. It does pretty much everything that I'd been hoping to have in a viewer when starting out, such as: looking for interesting areas to head while spelunking; checking my home base for "holes" in the background tiles; clicking on tiles to get some detailed information such as the images being used, etc.

The app is far from perfect, and in specific could really use some performance improvements, but my time playing Starbound is more or less at an end, and my impetus to hack on the map viewer further is pretty much nil. A quick glance at the screenshots below will show that the blocks are rendered as simple squares rather than with all their borders, that platforms don't link up with each other, and that objects aren't currently rendered in their correct orientations (or even variations, in most cases). It doesn't yet attempt to do correct color tinting or the like, either. What you see is what you get!

I would, of course, be happy to accept pull requests which address any of the items on my TODO list, below -- or other features not on the TODO list -- but I'm no longer actively developing this, myself.

Installation

Pystarboundmap requires Python 3, and is a PyQt5 app. Python 2 is not supported.

Installation to system / user / virtualenv

The easiest way to install/use the mapper is with pip, via:

$ pip install pystarboundmap

Alternatively, from a git checkout you can install with the usual setup.py syntax:

$ python setup.py install

In either case, then run it from anywhere using the pystarboundmap script:

$ pystarboundmap

Running via local git checkout

If you'd prefer to just run it from the git checkout, you can install its dependencies with:

$ pip install -r requirements.txt

Then launch the GUI with:

$ python -m pystarboundmap.gui

Dependencies

The project makes use of the following:

• Python 3
• python-pillow
• PyQt5
• appdirs
• timeago
• py-starbound (by blixt)

Usage

The game will attempt to autodetect your Starbound installation directory (which is completely untested on Windows, so please let me know if that fails completely). If the install directory can't be found, the app will prompt you to choose it manually (and this can be changed later via the Edit -> Settings menu).

The default "Open" dialog will let you choose a world to open first by player name, and then by the world name. You can get a more standard file-opening dialog with Ctrl-Shift-O, but this dialog should be much friendlier:

The map will start out centered on the level spawn point, though if the level contains a mech beacon, it will be centered there instead (since levels with mech beacons generally don't have anything interesting around the spawn point). Once on the main screen, the functionality is pretty basic:

The information about the currently-hovered tile will be shown on the lefthand side of the screen, which can be resized by dragging on the edge. You can scroll using the scrollbars or by click-and-drag on the map itself. You can zoom in using the slider, or with the keyboard shortcuts + and -.

The various layers can be toggled on/off, so if you wanted to check for holes in the background tiles of your home base, or something, that may be useful. There are also toggles to draw the background tiles much lighter, so they're easier to see, and toggles to show the "anchor" points for both objects and plants. This is seen in the screenshot, where the object anchor points are in blue. Plants will be in green.

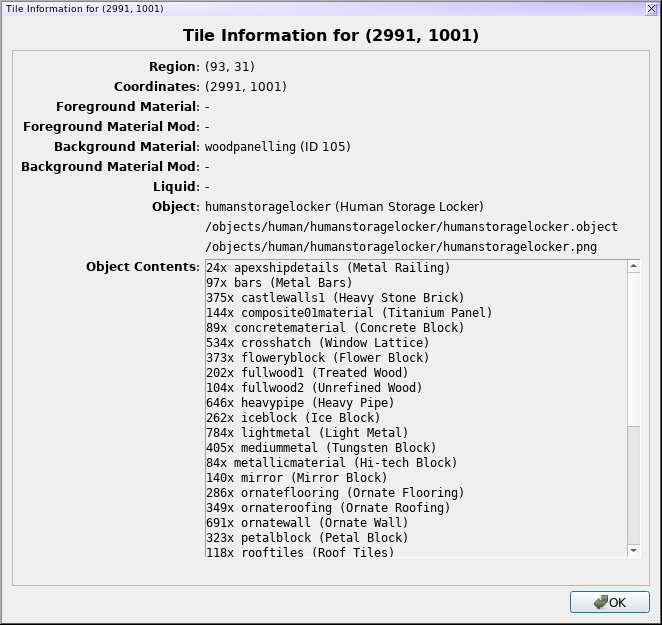

To get more detail about a tile, click on it to bring up a dialog with the extra details:

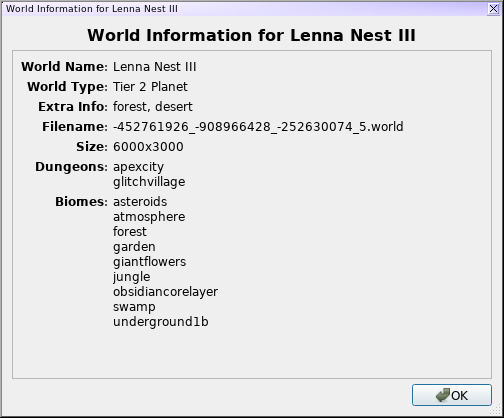

You can also use Ctrl-I or View -> World Info to get information about the world itself:

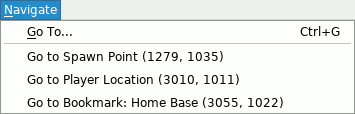

The "Navigate" menu will let you go directly to a specific coordinate, the spawn point, the level mech beacon (if one exists), the "current" player location (if this is the map the player is currently on), or to any bookmarks set by the user. Note that you must load the world using the by-name dialog rather than the by-file open dialog, in order to have bookmarks and/or current location in the Navigate menu -- that information is stored in the Player object.

TODO

• Add NPCs/Enemies/Monsters/Vehicles?
  • (What's a StagehandEntity, I wonder?)
• Minimap
  • I'll have to see how feasible this is - I'd imagined just a simple little thing to show which regions have data and which don't, with a little box showing the currently-displayed area, but it feels like the game populates more regions than you might expect, and I suspect it wouldn't actually be that useful
• Search for item types (ores, quest-related things?)
  • This is something which probably made more sense when the app was attempting to load literally the whole map at once. Might not be worth it with the current more-limited loaded set.
• Visualization of explored areas (as defined by light sources)
• Autodetect game location improvements
  • Theoretically we autodetect Steam install locations now (Steam detection on Mac has at least one success, so it's only Windows Steam dir detection that's untested)
  • Completely untested on Windows
  • Any way to detect GOG installs?
  • Any registry entries or whatever in general for Windows, which aren't Steam/GOG specific?
• Support for mods
• Performance improvements
  • Resource loading:
    • There's probably an unnecessary PNG conversion happening during some of the image loading, though these aren't really problematic and we're only loading 'em on-demand now anyway.
  • Specific tile types
    • Scenes with lots of liquids get bogged down a bit...
  • Map loading/rendering:
    • This is pretty slow, and I'll have to profile it to figure out where the slowness actually is. It's more of an annoyance at the moment, though, since we're now only rendering the visible areas of the map, rather than loading the entire thing at the app startup
    • Render more than just a single extra region on each side?
    • Would like to move map loading into a separate thread so it can happen more in the background, rather than freezing the GUI while it loads. (Using the mouse scrollwheel especially is quite jerky because of this.)
    • Keep a "history" of loaded Regions and only expire them after they haven't been used in N redraws? That way, scrolling back to a previously-visited area would be less likely to have to re-load.
    • One thing which is slower than I'd like is the expiration of Regions. It's noticeable at 1x zoom, but my experiments with going to 0.5x zoom produced some really pronounced pauses. Should see if there's a way to speed that up. (Though the region "history" in the point above would at least delay those slowdowns for a bit.)
• Rendering improvements
  • Parsing and using render templates (or at the very least making our own internal representation of them) would allow materials to have proper "edges", for platforms/pipes/rails to link up properly, etc.
  • Liquid levels
  • on/off items (light sources), open/closed doors, etc
  • coloration of objects/tiles
  • "flip" parameter
  • crop status
    • Unrelated to rendering specifically, but we could probably report on crop progress in the tile info dialog.
  • Randomize tiles w/ multiple options (dirt, etc, seems to be randomly assigned from four or five options. The randomization is fixed-seed inside Starbound itself, and I highly doubt I'd be able to get it the same, but maps would probably still look nicer with them randomized)
  • Layer improvements - right now we're right enough most of the time, but your own space station is one which doesn't render right at all. Should really figure out Starbound's native layer priority and use objects' "renderLayer" property.
• Handle exceptions gracefully
  • An easy crash reproduction is to have a map open, load it in Starbound, then try to browse around. Starbound seems to shuffle the tree around enough that we can no longer read it.
  • Make sure we gracefully handle situations where the Starbound install dir disappears on us between runs; I suspect right now the app will just crash and the only way to get it to run again would be to manually clear out the config file.
• Should we save the layer toggle states (and zoom level) between runs? Also the "show biome/dungeon details" checkbox on the load dialog?
• Read in codex files, to report the real name in container contents. This will require actually lexing the config files in read_config, though, instead of just doing the poor-man's processing we're doing now. The codex files feature multiline strings (without anything but a dangling quote to distinguish them), sometimes feature escaped quotes inside the text, and sometimes feature a double-slash, which gets interpreted as a comment. Not worth it for me, at the moment.
• Would be nice if the zoom kept the map view centered on the mouse pointer, when using the keyboard zoom shortcuts
• Would be nice if the world-info caching progress bar went from 0->100% instead of being a more generic "something is happening" bar.
• Fossil display cabinets render completely wrong

LICENSE

pystarboundmap is licensed under the New/Modified (3-Clause) BSD License. A copy is also found in COPYING.txt.
