python-ldl 0.0.1

Label distribution learning (LDL) and label enhancement (LE) toolkit implemented in python.

PyLDL

Label distribution learning (LDL) and label enhancement (LE) toolkit implemented in python, including:

• LDL algorithms:

  • (Geng, Yin, and Zhou 2013)[TPAMI]: CPNN$^1$.
  • (Geng and Hou 2015)[IJCAI]: LDSVR.
  • ⭐(Geng 2016)[TKDE]: SA_BFGS, SA_IIS, AA_KNN, AA_BP, PT_Bayes, and PT_SVM.
  • (Yang, Sun, and Sun 2017)[AAAI]: BCPNN and ACPNN.
  • (Xu and Zhou 2017)[IJCAI]: IncomLDL$^2$.
  • (Shen et al. 2017)[NeurIPS]: LDLF.
  • (Wang and Geng 2019)[IJCAI]: LDL4C$^3$.
  • (Shen et al. 2020)[南京理工大学学报 (Chinese)]: AdaBoostLDL.
  • (González et al. 2021a)[Information Sciences]: SSG_LDL$^4$.
  • (González et al. 2021b)[Information Fusion]: DF_LDL.
  • (Wang and Geng 2021a)[IJCAI]: LDL_HR$^3$.
  • (Wang and Geng 2021b)[ICML]: LDLM$^3$.
  • (Jia et al. 2021)[TKDE]: LDL_SCL.
  • (Jia et al. 2023)[TKDE]: LDL_LRR.
  • (Wen et al. 2023)[ICCV]: CAD$^1$, QFD2$^1$, and CJS$^1$.

• LE algorithms:

  • (Xu, Liu, and Geng 2019)[TKDE]: FCM, KM, LP, ML, and GLLE.
  • (Xu et al. 2020)[ICML]: LEVI.
  • (Zheng, Zhu, and Tang 2023)[CVPR]: LIBLE.

• LDL metrics: chebyshev, clark, canberra, kl_divergence, cosine, intersection, etc.

• LDL datasets: Human_Gene, Movie, Natural_Scene, s-BU_3DFE, s-JAFFE, Yeast, etc.

$^1$ Technically, these methods are only suitable for totally ordered labels.

$^2$ These are algorithms for incomplete LDL, so you should use utils.random_missing to generate the missing label distribution matrix and the corresponding mask matrix in the experiments.

$^3$ These are LDL classifiers, so you should use predict_proba to get label distributions and predict to get predicted labels.

$^4$ These are oversampling algorithms for LDL, therefore you should use fit_transform to generate synthetic samples.

Usage

Here is an example of using PyLDL.

from pyldl.utils import load_dataset
from pyldl.algorithms import SA_BFGS
from pyldl.metrics import score

from sklearn.model_selection import train_test_split

dataset_name = 'SJAFFE'
X, y = load_dataset(dataset_name)
X_train, X_test, y_train, y_test = train_test_split(X, y)

model = SA_BFGS()
model.fit(X_train, y_train)

y_pred = model.predict(X_test)
print(score(y_test, y_pred))

For those who would like to use the original implementation:

1. Install MATLAB.
2. Install MATLAB engine for python.
3. Download LDL Package from here.
4. Get the package directory of PyLDL (...\Lib\site-packages\pyldl).
5. Place the LDLPackage_v1.2 folder into the matlab_algorithms folder.

Now, you can load the original implementation of the method, e.g.:

from pyldl.matlab_algorithms import SA_IIS

You can visualize the performance of any model on the artificial dataset (Geng 2016) with the pyldl.utils.plot_artificial function, e.g.:

from pyldl.algorithms import LDSVR, SA_BFGS, SA_IIS, AA_KNN, PT_Bayes, GLLE, LIBLE
from pyldl.utils import plot_artificial

methods = ['LDSVR', 'SA_BFGS', 'SA_IIS', 'AA_KNN', 'PT_Bayes', 'GLLE', 'LIBLE']

plot_artificial(model=None, figname='GT')
for i in methods:
    plot_artificial(model=eval(f'{i}()'), figname=i)

The output images are as follows.

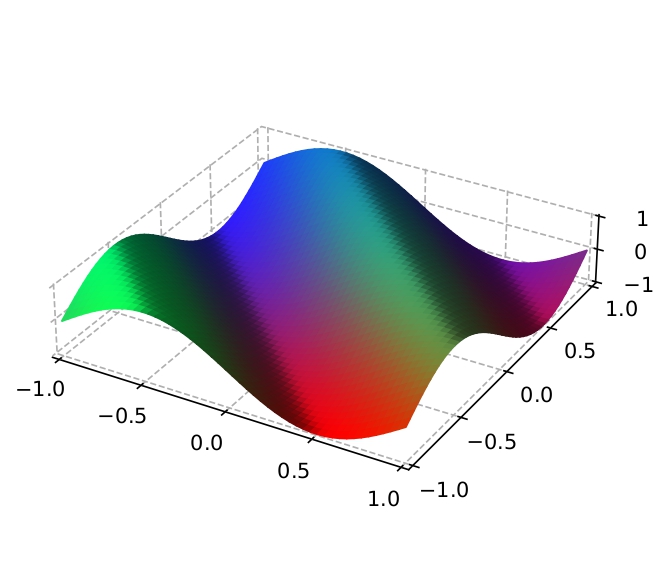

(Ground Truth)	LDSVR

SA_BFGS	SA_IIS

AA_KNN	PT_Bayes

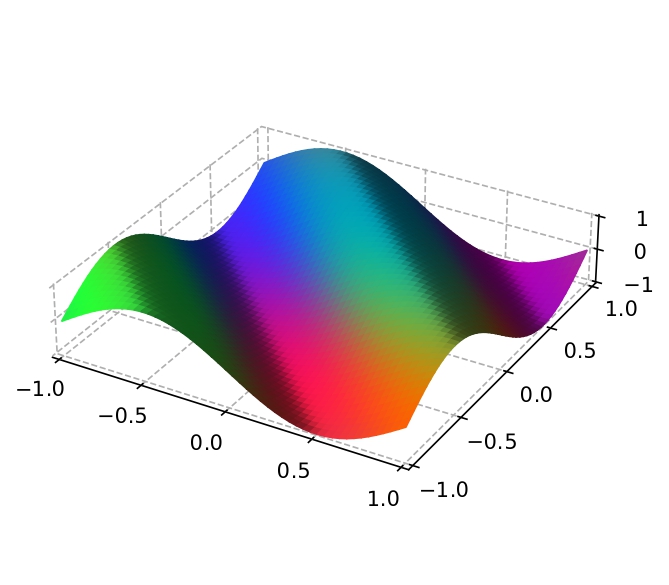

GLLE	LIBLE

Enjoy! :)

Experiments

For each algorithm, a ten-fold cross validation is performed, repeated 10 times with s-JAFFE dataset and the average metrics are recorded. Therefore, the results do not fully describe the performance of the model.

Results of ours are as follows.

Algorithm	Cheby.(↓)	Clark(↓)	Can.(↓)	K-L(↓)	Cos.(↑)	Int.(↑)
SA-BFGS	.092 ± .010	.361 ± .029	.735 ± .060	.051 ± .009	.954 ± .009	.878 ± .011
SA-IIS	.100 ± .009	.361 ± .023	.746 ± .050	.051 ± .008	.952 ± .007	.873 ± .009
AA-kNN	.098 ± .011	.349 ± .029	.716 ± .062	.053 ± .010	.950 ± .009	.877 ± .011
AA-BP	.120 ± .012	.426 ± .025	.889 ± .057	.073 ± .010	.931 ± .010	.848 ± .011
PT-Bayes	.116 ± .011	.425 ± .031	.874 ± .064	.073 ± .012	.932 ± .011	.850 ± .012
PT-SVM	.117 ± .012	.422 ± .027	.875 ± .057	.072 ± .011	.932 ± .011	.850 ± .011

Results of the original MATLAB implementation (Geng 2016) are as follows.

Algorithm	Cheby.(↓)	Clark(↓)	Can.(↓)	K-L(↓)	Cos.(↑)	Int.(↑)
SA-BFGS	.107 ± .015	.399 ± .044	.820 ± .103	.064 ± .016	.940 ± .015	.860 ± .019
SA-IIS	.117 ± .015	.419 ± .034	.875 ± .086	.070 ± .012	.934 ± .012	.851 ± .016
AA-kNN	.114 ± .017	.410 ± .050	.843 ± .113	.071 ± .023	.934 ± .018	.855 ± .021
AA-BP	.130 ± .017	.510 ± .054	1.05 ± .124	.113 ± .030	.908 ± .019	.824 ± .022
PT-Bayes	.121 ± .016	.430 ± .035	.904 ± .086	.074 ± .014	.930 ± .016	.846 ± .016
PT-SVM	.127 ± .017	.457 ± .039	.935 ± .074	.086 ± .016	.920 ± .014	.839 ± .015

Requirements

matplotlib>=3.6.1
numpy>=1.22.3
qpsolvers>=4.0.0
quadprog>=0.1.11
scikit-fuzzy>=0.4.2
scikit-learn>=1.0.2
scipy>=1.8.0
tensorflow>=2.8.0
tensorflow-addons>=0.22.0
tensorflow-probability>=0.16.0
