pyUML 0.1.0a0

Create simple GraphViz DOT UML graphs with a python script

pyUML

Create simple Graphviz dot UML graphs with a python script.

For example, as you can see step by step in the usage notebook,

from pyUML import Graph, UMLClass

graph = Graph('pyUML')

graph_dot = UMLClass(
    "pydot.Dot"
)
graph.add_class(graph_dot)

graph_class = UMLClass(
    "GraphClass",
    caption="Graph",
    methods=["add_aggregation()", "add_class()", "add_classes()",
             "add_composition()", "add_edge()", "add_implementation()"]
)
graph.add_class(graph_class)
graph.add_implementation(graph_class, graph_dot)

node = UMLClass(
    "pydot.Node"
)
graph.add_classes(node)

uml_class = UMLClass(
    "UMLClass",
    attributes={
        "public": {
            "name": "string",
            "caption": "string"},
        "private": {
            "_attributes": "dict[dict]",
            "_methods": "dict[list]"
        }
    },
    methods={
        "public": ["add_attribute()", "add_attributes()", "add_method()",
             "add_methods()", "update_content()"],
        "private": ["_render_attributes()", "_render_methods()", "_get_source_sep()"]
    })
graph.add_class(uml_class)
graph.add_implementation(uml_class, node)

uml_class_with_id = UMLClass(
    "UMLClassWithPublicIntID")
graph.add_class(uml_class_with_id)
graph.add_implementation(uml_class_with_id, uml_class)

edge = UMLClass(
    "pydot.Edge")

association = UMLClass(
    "Association",
    methods=["set_multiplicity()"])

implementation = UMLClass(
    "Implementation")

aggregation = UMLClass(
    "Aggregation")

composition = UMLClass(
    "Composition")

graph.add_classes(edge, association, implementation, aggregation, composition)
graph.add_implementation(association, edge)
graph.add_implementation(implementation, association)
graph.add_implementation(aggregation, association)
graph.add_implementation(composition, aggregation)

graph.add_composition(node, graph_dot, multiplicity_parent=1, multiplicity_child="1..*")
graph.add_composition(edge, graph_dot, multiplicity_parent=1, multiplicity_child="0..*")
graph.add_composition(association, graph_class, multiplicity_parent=1, multiplicity_child="0..*")

will be compiled into

digraph pyUML {
"pydot.Dot" [label="{pydot.Dot||}", shape=record];
GraphClass [label="{Graph||+ add_aggregation()\l+ add_class()\l+ add_classes()\l+ add_composition()\l+ add_edge()\l+ add_implementation()\l}", shape=record];
"pydot.Dot" -> GraphClass  [arrowtail=onormal, dir=back];
"pydot.Node" [label="{pydot.Node||}", shape=record];
UMLClass [label="{UMLClass|+ name : string\l+ caption : string\l- _attributes : dict[dict]\l- _methods : dict[list]\l|+ add_attribute()\l+ add_attributes()\l+ add_method()\l+ add_methods()\l+ update_content()\l- _render_attributes()\l- _render_methods()\l- _get_source_sep()\l}", shape=record];
"pydot.Node" -> UMLClass  [arrowtail=onormal, dir=back];
UMLClassWithPublicIntID [label="{UMLClassWithPublicIntID||}", shape=record];
UMLClass -> UMLClassWithPublicIntID  [arrowtail=onormal, dir=back];
"pydot.Edge" [label="{pydot.Edge||}", shape=record];
Association [label="{Association||+ set_multiplicity()\l}", shape=record];
Implementation [label="{Implementation||}", shape=record];
Aggregation [label="{Aggregation||}", shape=record];
Composition [label="{Composition||}", shape=record];
"pydot.Edge" -> Association  [arrowtail=onormal, dir=back];
Association -> Implementation  [arrowtail=onormal, dir=back];
Association -> Aggregation  [arrowtail=onormal, dir=back];
Aggregation -> Composition  [arrowtail=onormal, dir=back];
"pydot.Dot" -> "pydot.Node"  [arrowtail=diamond, dir=back, headlabel="\n1..*", taillabel="\n1"];
"pydot.Dot" -> "pydot.Edge"  [arrowtail=diamond, dir=back, headlabel="\n0..*", taillabel="\n1"];
GraphClass -> Association  [arrowtail=diamond, dir=back, headlabel="\n0..*", taillabel="\n1"];
}

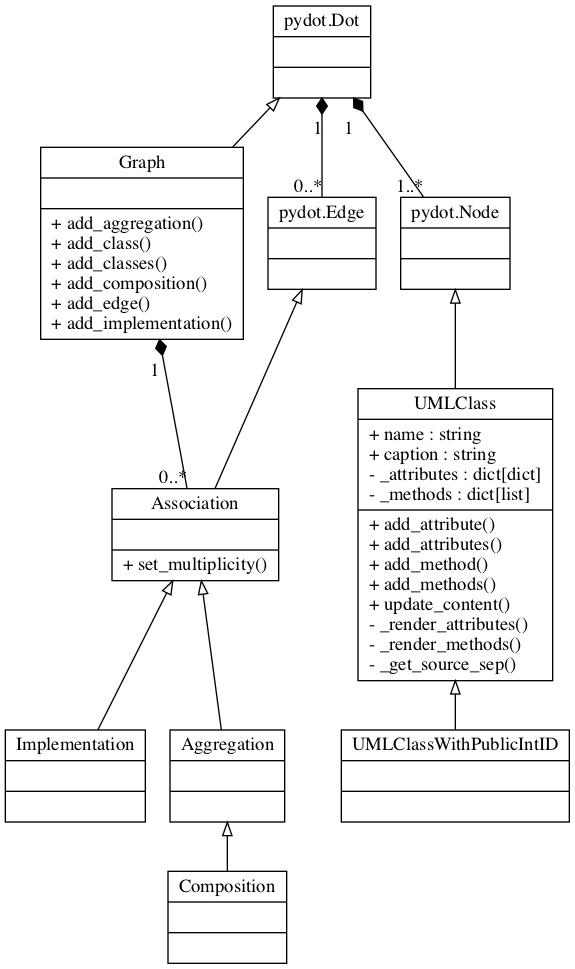

and give

Dependencies

• pydot
• GraphViz, to render the graph (must be installed separately).
