QB styles for common plotting libraries

Project description

QB Styles

License Python Version PyPI version Code Style: Black

QB Styles is a python package with a light and a dark matplotlib style.

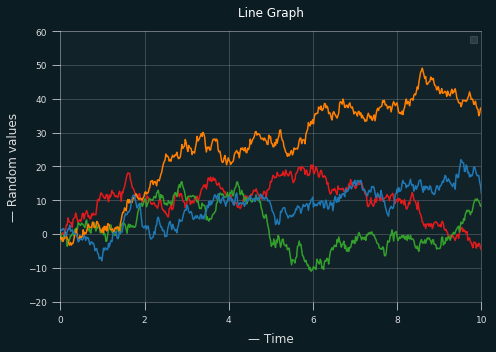

Dark style Light style
Line plot Distribution plot

How do I install QB Styles?

qbstyles is a Python package. To install it, simply run:

pip install qbstyles

How do I use QB Styles?

You can use the dark Matplotlib style theme in the following way:

from qbstyles import mpl_style

mpl_style(dark=True)

And to use the light Matplotlib style theme, you can do the following:

from qbstyles import mpl_style

mpl_style(dark=False)

How do I use QB Styles in Jupyter Notebooks?

⚠️ Please make sure you run from qbstyles import mpl_style and mpl_style() in different cells as shown below. See this issue for more details.

# first cell
from qbstyles import mpl_style
# second cell
mpl_style()

What chart types can use QB Styles?

  • Line plots
  • Scatter plots
  • Bubble plots
  • Bar charts
  • Pie charts
  • Histograms and distribution plots
  • 3D surface plots
  • Stream plots
  • Polar plots

Can you show me a few examples?

To run the examples in example.ipynb, install the required packages using pip install -r requirements_notebook.txt in a Python virtual environment of your choice.

import matplotlib.pyplot as plt
from qbstyles import mpl_style

def plot(dark):
    mpl_style(dark)
    fig, axes = plt.subplots(2, 2, figsize=(15, 10))

    # the following functions are defined in example.ipynb
    line_plot(axes[0, 0])
    scatter_plot(axes[0, 1])
    distribution_plot(axes[1, 0])
    ax = plt.subplot(2, 2, 4, projection='polar')
    polar_plot(ax)

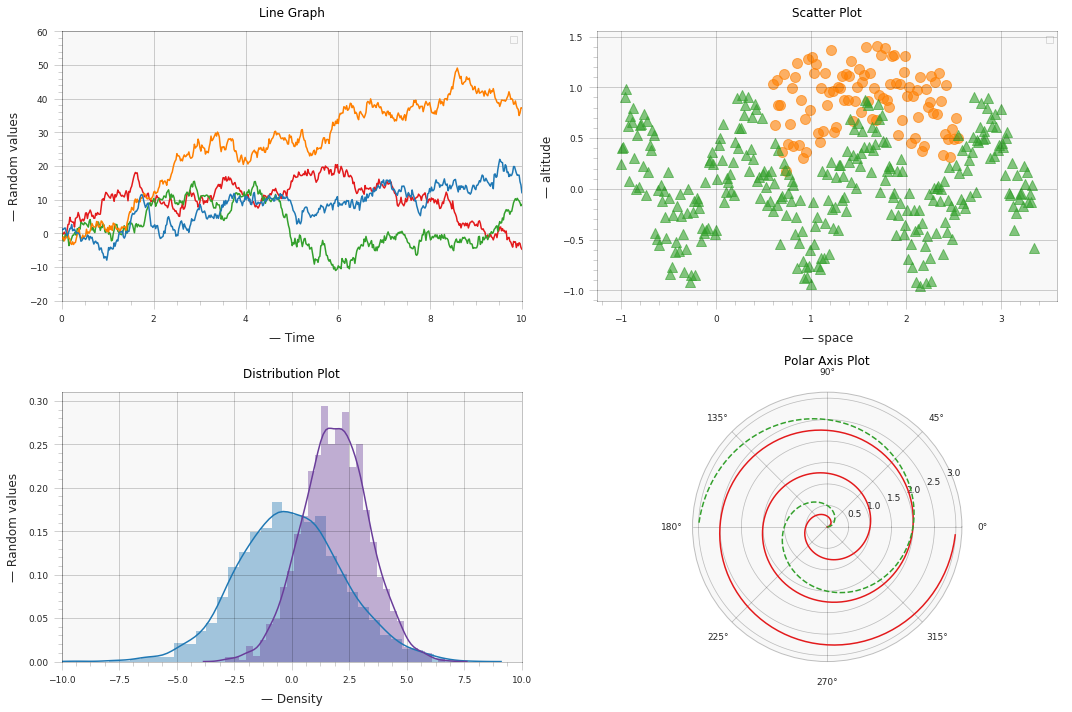

plot(dark=True)

png

plot(dark=False)

png

How do I create my own styles?

Have a look at the files qb-common.mplstyle, qb-dark.mplstyle and qb-common.mplstyle. They contain many elements that you may want to customise.

To do so, create a file similar to the above files at the root of you project, and apply it after the qbstyle as follows:

import matplotlib.pyplot as plt
from qbstyles import mpl_style

mpl_style()
plt.style.use('./your-style.mplstyle')

All of matplotlibrc's options can be found here.

What licence do you use?

QB Styles is licensed under the Apache 2.0 License.
