qiskit-trebugger 1.0.1

A timeline debugger for the qiskit transpiler

Qiskit Trebugger

A new take on debuggers for quantum transpilers. This repository presents a debugger for the qiskit transpiler in the form of a light weight jupyter widget. Built as a project for the Qiskit Advocate Mentorship Program, Fall 2021.

Installation

1. To install the debugger using pip (a python package manager), use -

pip install qiskit-trebugger

• PIP will handle the dependencies required for the package automatically and would install the latest version.
• Currently the project is hosted as a test package and would be hosted on the real index when tests are added.

2. To directly install via github follow the steps below after using git clone:

git clone https://github.com/TheGupta2012/qiskit-timeline-debugger.git

• Make sure python3 and pip are installed in your system
• Use pip install -r requirements to install the debugger dependencies
• Note : with this method, you can only use the debugger in the installed directory

Usage Instructions

• After installing the package, import the Debugger instance from qiskit_trebugger package.
• To run the debugger, simply replace the call to transpile() method of the qiskit module with debug() method of your debugger instance. For an example -

from qiskit.test.mock import FakeCasablanca
from qiskit.circuit.random import random_circuit
from qiskit_trebugger import Debugger
import warnings

warnings.simplefilter('ignore')
debugger = Debugger()
backend = FakeCasablanca()
circuit = random_circuit(num_qubits = 4, depth = 5 , seed = 44)
# replace transpile call
debugger.debug(circuit, optimization_level = 2, backend = backend, initial_layout = list(range(4)))

• On calling the debug method, a new jupyter widget is displayed providing a complete summary and details of the transpilation process for circuits of < 2000 depth

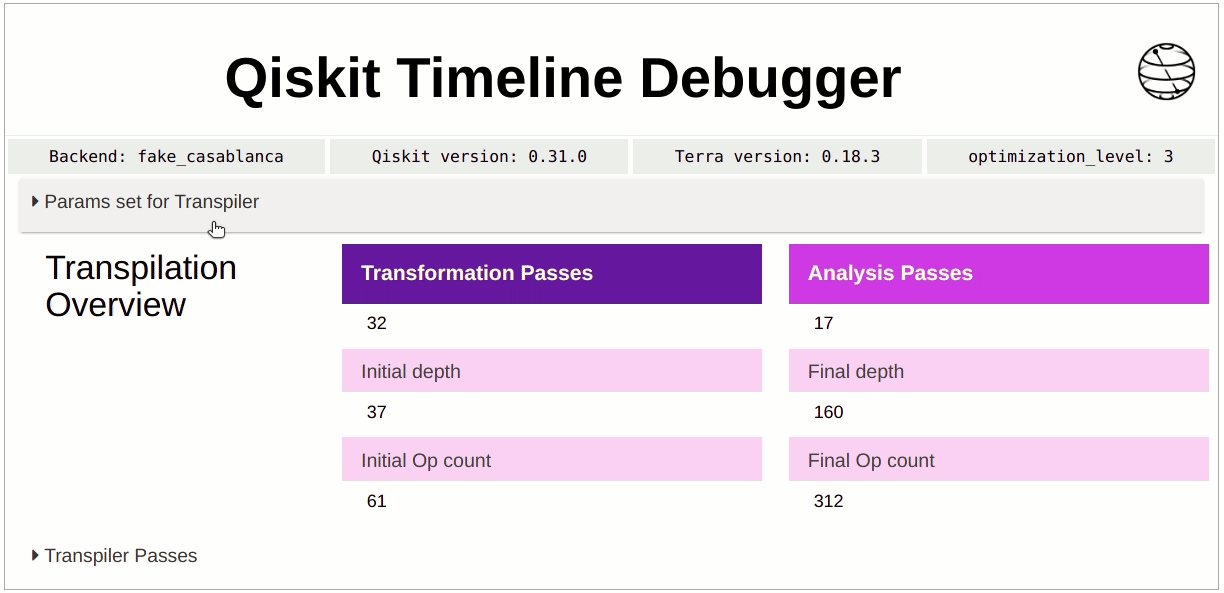

• With an easy to use and responsive interface, users can quickly see which transpiler passes ran when, how they changed the quantum circuit and what exactly changed.

Feature Highlights

1. Circuit Evolution

• See your circuit changing while going through the transpilation process for a target quantum processor.
• A new custom feature enabling visual diffs for quantum circuits, allows you to see what exactly changed in your circuit using the matplotlib drawer of the qiskit module.

Example

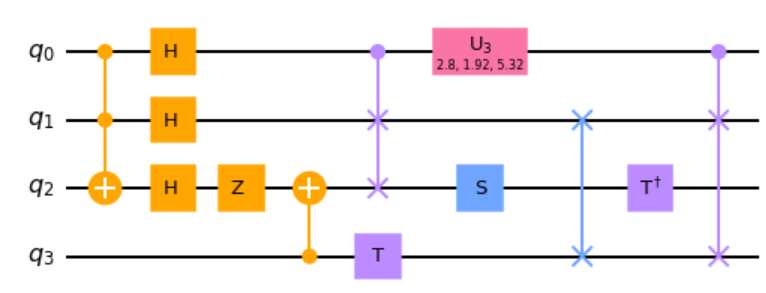

• Circuit 1

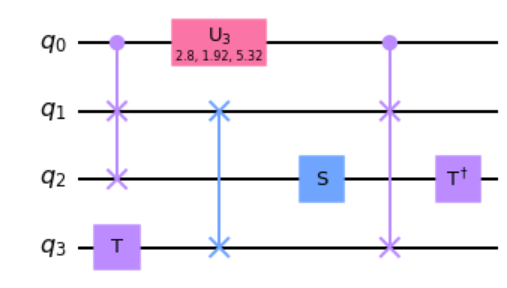

• Circuit 2

2. Circuit statistics

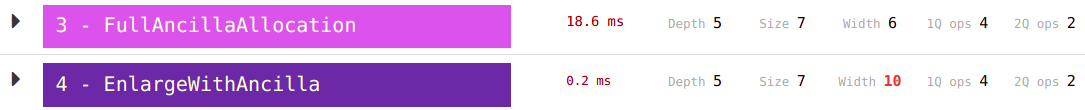

• Allows users to quickly scan through how the major properties of a circuit transform during each transpilation pass.
• Helps to quickly isolate the passes which were responsible for the major changes in the resultant circuit.

3. Transpiler Logs and Property sets

• Easily parse actions of the transpiler with logs emitted by each of its constituent passes and changes to the property set during transpilation

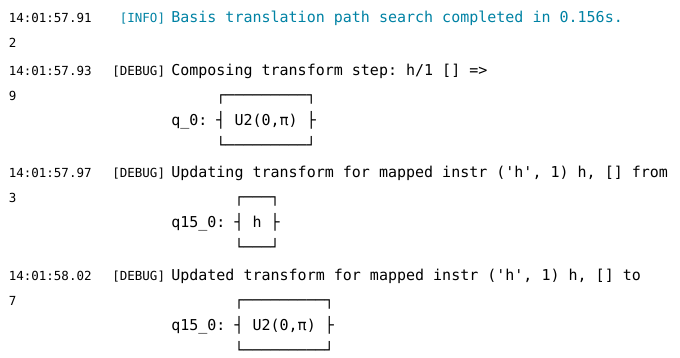

• Every log record is color coded according to the level of severity i.e. DEBUG, INFO, WARNING and CRITICAL.

Demonstration and Blog

• Here is a demonstration of TreBugger as a part of the final showcase for the Qiskit Advocate Mentorship Program, Fall 2021.
• You can also read about some more details of our project in the Qiskit medium blog

Contributors

• Aboulkhair Foda
• Harshit Gupta
