quadricslam 1.0.2

QuadricSLAM: SLAM systems with quadric landmarks

QuadricSLAM

QuadricSLAM is a system for using quadrics to represent objects in a scene, leveraging common optimisation tools for simultaneous localisation and mapping (SLAM) problems to converge on stable object maps and camera trajectories. This library uses Georgia Tech's Smoothing and Mapping (GTSAM) library for factor graph optimisation, and adds support through our custom GTSAM quadrics extension.

TODO update with a more holistic reflection of the repository in its current state

The key features of this repository are:

• modular abstractions that allow building QuadricSLAM solutions with custom tools:

  q = QuadricSLAM(data_source=MyDataSource(), detector=MyDetector(), associator=MyDataAssociator())
  q.spin()


• basic Matplotlib visualisation routines
• a rich set of plug-n-play examples of the QuadricSLAM system:
  • simple "hello_world" examples with dummy data
  • running on the TUM RGB-D dataset, as done in our paper TODO
  • plug-n-play on a Intel RealSense D435i with Python TODO
  • plug-n-play on a Intel RealSense D435i in a ROS ecosystem TODO
  • using data from photorealistic 3D simulation through an add-on for the BenchBot ecosystem TODO

We expect this repository to be active and continually improved upon. If you have any feature requests or experience any bugs, don't hesitate to let us know. Our code is free to use, and licensed under BSD-3. We simply ask that you cite our work if you use QuadricSLAM in your own research.

Installation and using the library

Pre-build wheels of this library are available on PyPI for most Linux systems, as well as source distributions. Install the library with:

pip install quadricslam

From here basic custom QuadricSLAM systems can be setup by implementing and integrating the following abstract classes:

from quadricslam import DataSource, Detector, Associator, visualise

class MyDataSource(DataSource):
  ...

class MyDetector(Detector):
  ...

class MyAssociator(Associator):
  ...

q = QuadricSlam(data_source=MyDataSource(),
                detector=MyDetector(),
                associator=MyAssociator(),
                on_new_estimate=lambda vals, labels, done: visualise(vals, labels, done)))
                )
q.spin()

The examples described below also provide code showing how to create customisations for a range of different scenarios.

Running the examples from this repository

Note: in the spirit of keeping this package light, some dependencies may not be installed; please install those manually

This repository contains a number of examples to demonstrate how QuadricSLAM systems can be set up in different contexts.

Each example is a file in the quadricslam_examples module, with a standalone run() function. There are two possible ways to run each example:

1. Directly through the command line:

   python -m quadricslam_examples.EXAMPLE_NAME ARGS ...


   e.g for the hello_quadricslam examples:

   python -m quadricslam_examples.hello_quadricslam


2. Or from within Python:

   from quadricslam_examples.EXAMPLE_NAME import run
   run()

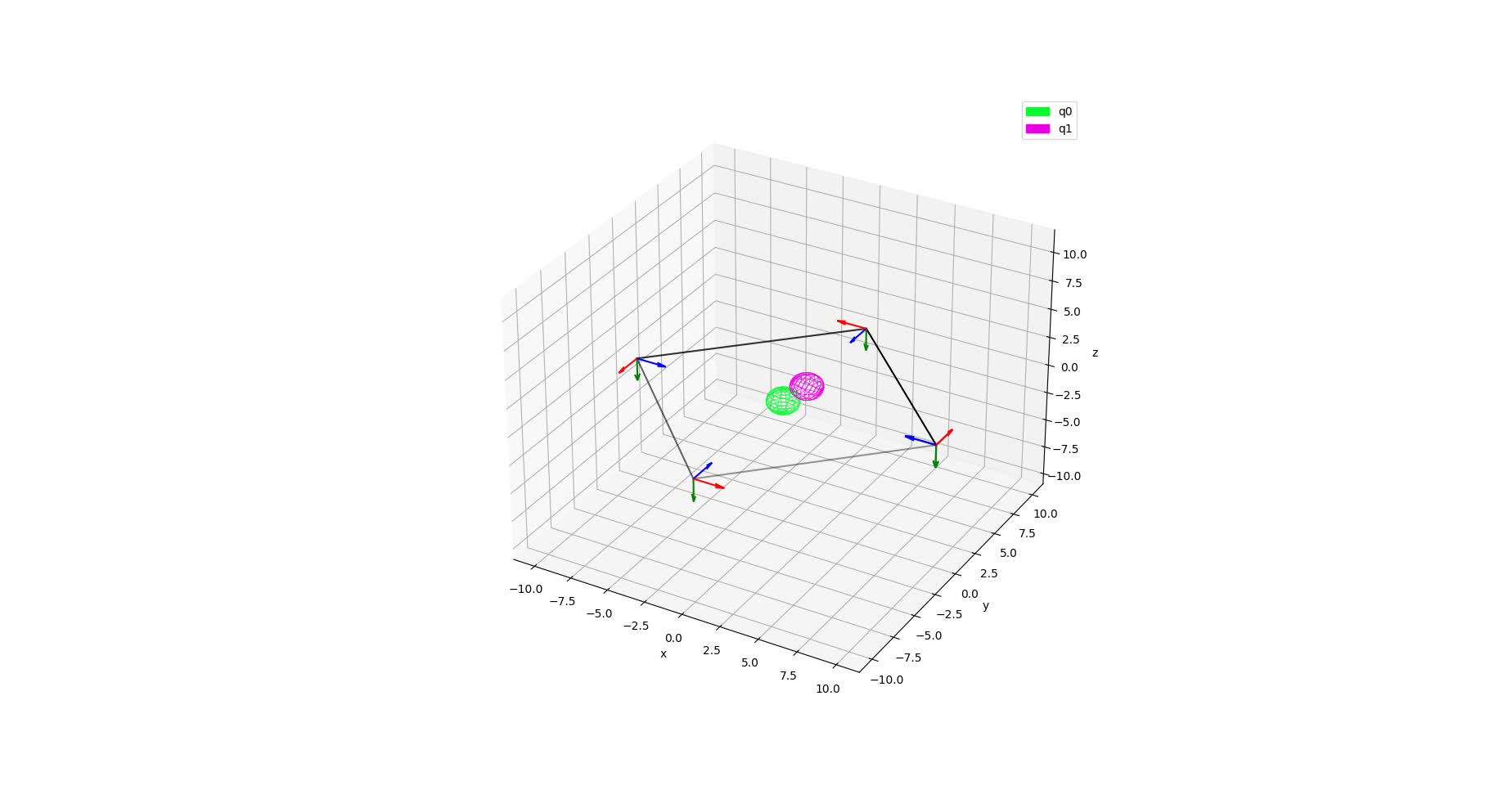

hello_manual_quadricslam

Shows how to create a QuadricSLAM system from scratch using the primitives exposed by our GTSAM Quadrics library. The scenario is 4 viewpoints in a square around 2 quadrics in the middle of the square:

hello_quadricslam

Same scenario as the hello_manual_quadricslam example, but uses the abstractions provided by this library. Shows how an entire QuadricSLAM system can be created with only a few lines of code when the appropriate components are available:

tum_rgbd_dataset

Re-creation of the TUM RGBD dataset experiments used in our initial publication. There is a script included for downloading the dataset.

Note: the paper used hand-annotated data to avoid the data association problem; as a result the example here requires a custom data associator to be created before it will run

realsense_python

Demonstrates how a system can be run using an RGBD RealSense, the pyrealsense2 library, and a barebones OpenCV visual odometry algorithm.

The example is a simple plug-n-play system, with weak localisation and data association:

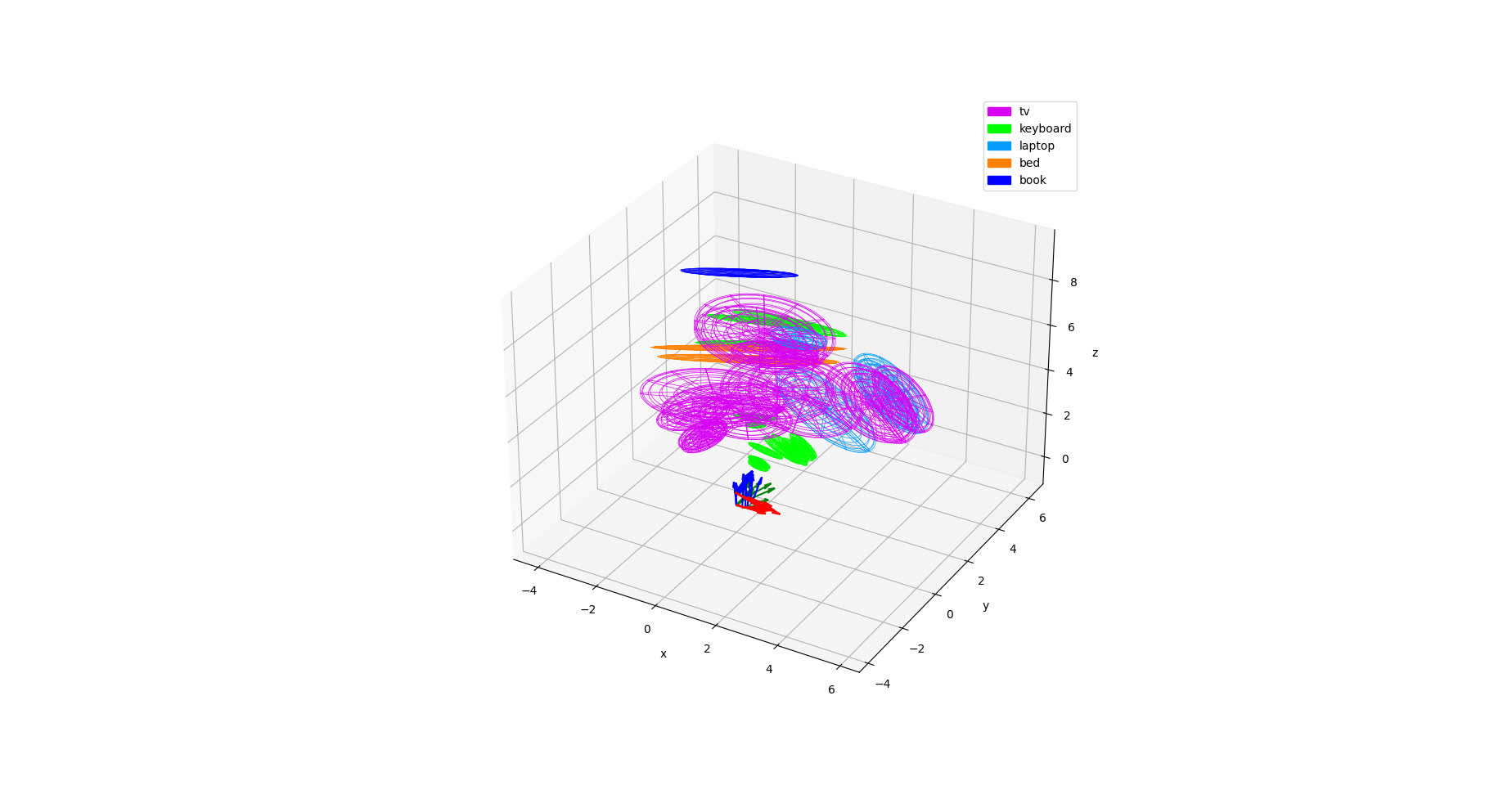

realsense_ros

Demonstrates how a ROS QuadricSLAM system can be put together with an RGBD RealSense, the ROS RealSense library, and Kimera VIO's visual odometry system.

This example includes a script for creating an entire ROS workspace containing all the required packages built from source. Once installed, it runs the same as the realsense_python example but with significantly better localisation:

Citing our work

If you are using this library in academic work, please cite the publication:

L. Nicholson, M. Milford and N. Sünderhauf, "QuadricSLAM: Dual Quadrics From Object Detections as Landmarks in Object-Oriented SLAM," in IEEE Robotics and Automation Letters, vol. 4, no. 1, pp. 1-8, Jan. 2019, doi: 10.1109/LRA.2018.2866205. PDF.

@article{nicholson2019,
  title={QuadricSLAM: Dual Quadrics From Object Detections as Landmarks in Object-Oriented SLAM},
  author={Nicholson, Lachlan and Milford, Michael and Sünderhauf, Niko},
  journal={IEEE Robotics and Automation Letters},
  year={2019},
}
