quantumcat 0.1.8

A cross-platform, open-source, high-level quantum computing library

Introduction

quantumcat is a platform-independent, open-source, high-level quantum computing library, which allows the quantum community to focus on developing platform-independent quantum applications without much effort.

It is based on two principles:

1. Write once and execute on any supported quantum provider using one syntax

2. quantumcat should enable researchers and developers to create quantum applications using high-level programming in the future so that they can focus on developing quantum applications instead of learning low-level concepts such as gates and circuits

Write once

from quantumcat.utils import providers
num_of_qubits = 2
qc = QCircuit(num_of_qubits)
qc.h_gate(0)
qc.cx_gate(0, 1)

# To execute on Google Cirq
result = qc.execute(provider=providers.GOOGLE_PROVIDER, repetitions=1024)

# To execute on IBM Qiskit
result = qc.execute(provider=providers.IBM_PROVIDER, repetitions=1024)

# To execute on Amazon Braket
result = qc.execute(provider=providers.AMAZON_PROVIDER, repetitions=1024)

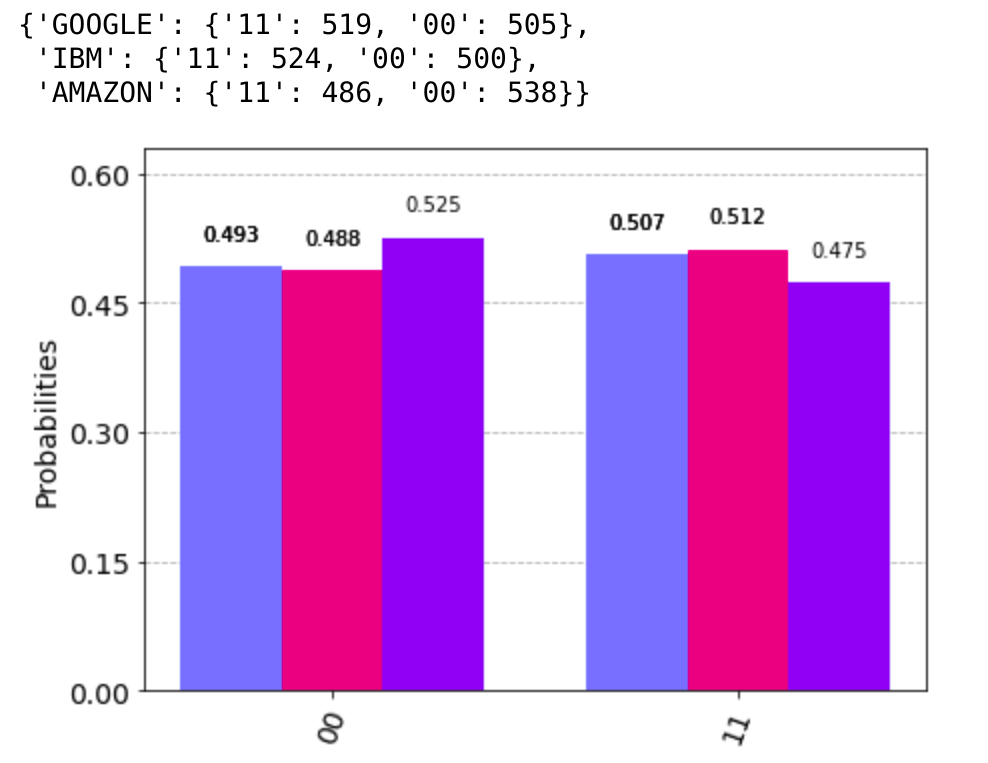

Compare the results of all the supported providers with a single line of code

# Execute on All providers in one go
circuit.compare_results(plot=True)

Execute on real IBM quantum hardware with quantumcat

from quantumcat.utils import providers

result = qc.execute(provider=providers.IBM_PROVIDER,
api='API KEY from IBM Quantum dashboard',
device='IBM DEVICE NAME such as ibmq_manila or ibmq_quito')
# Copy API and Device name from https://quantum-computing.ibm.com/

Installation

pip install quantumcat

Platforms Supported

• Google Cirq
• IBM Qiskit
• Amazon Braket
• IonQ (Via Braket)
• Rigetti (Via Braket)

Gates Supported

Click here to view gates supported

Examples

Circuit Creation

from quantumcat.circuit import QCircuit

num_of_qubits = 3
qc = QCircuit(num_of_qubits)

Single-Qubit Gate

qc.x_gate(0) # applies X gate on qubit 0

Two-Qubit Gate

qc.cx_gate(0, 1) # control qubit, target qubit

Multi-Qubit Gate

qc.mct_gate([0, 1], 2) # control qubits array, target qubit

Draw Circuit

from quantumcat.utils import providers

qc.draw_circuit(provider=providers.GOOGLE_PROVIDER)

High-Level Functions

Superposition

qc.superposition(0)
# puts qubit 0 in superposition

Entanglement

qc.entangle(0, 1)
# entangles qubit 0 with qubit 1

Phase Kickback

qc.phase_kickback(0)
# applies |-> to qubit 0

High-Level Applications

Random Number Generator

from quantumcat.utils import providers, constants
from quantumcat.applications.generator import RandomNumber

random_number = RandomNumber(length=2, output_type=constants.DECIMAL).execute(provider=providers.GOOGLE_PROVIDER)
print(random_number)

# To generate random number on actual IBM device
random_number = RandomNumber(length=2, output_type=constants.DECIMAL)
	.execute(provider=providers.IBM_PROVIDER, repetitions=1024, api='API KEY from IBM Quantum dashboard'
		 device='IBM DEVICE NAME such as ibmq_manila or ibmq_quito')
print(random_number)

Password Generator

from quantumcat.applications.generator import Password

password = Password(8).generate()
print(password)
# Length should be between 5 - 20
# Password is generated in hexadecimal format using QRNG@ANU JSON API

OTP Generator

from quantumcat.applications.generator import OTP

otp = OTP().generate()
print(otp)
# 5 digits OTP is generated using QRNG@ANU JSON API

Visualization

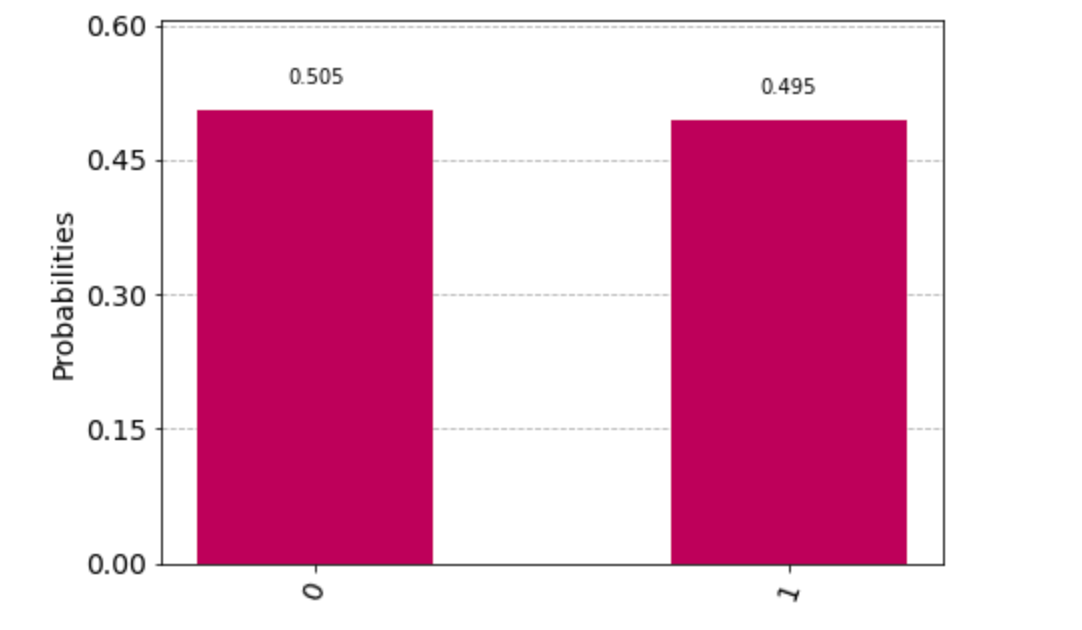

Histogram

circuit = QCircuit(1)
circuit.superposition(0)
counts = circuit.execute(provider=providers.GOOGLE_PROVIDER, repetitions=1024)
circuit.histogram(counts)

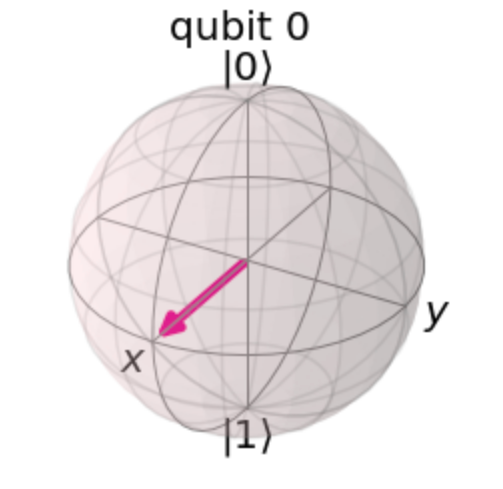

Bloch Multivector

circuit = QCircuit(1)
circuit.superposition(0)
state = circuit.execute(provider=providers.GOOGLE_PROVIDER,
			simulator_name=constants.STATEVECTOR_SIMULATOR)
circuit.bloch_multivector(state)

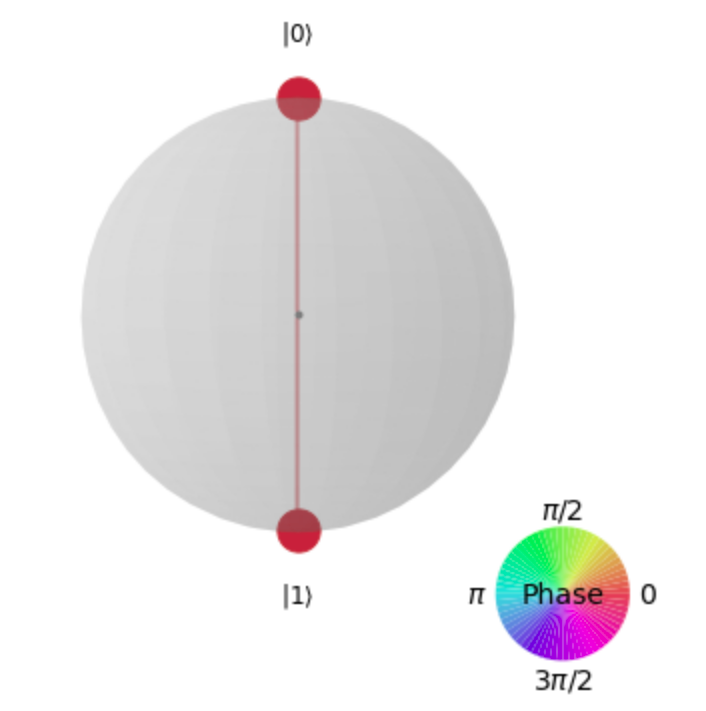

QSphere

circuit = QCircuit(1)
circuit.superposition(0)
state = circuit.execute(provider=providers.GOOGLE_PROVIDER,
			simulator_name=constants.STATEVECTOR_SIMULATOR)
circuit.state_qsphere(state)

License

Apache License 2.0
