An OpenRefine Reconciliation Framework for Python

Reconciliation

Reconciliation is a python flask framework that works with OpenRefine Reconcile Data capabilities. Reconcile is the ability to match and enhance data from multiple sources over the web.

This framework provides the ability to create one of those sources without having to reimplement the underlying protocol. Reconciliation will provide

• Request parsing
• Handler for Reconciliation JSON Protocol
• Function decorators for
  • Search
    • Required
    • Used to map incoming data to an entity id in your data
  • Search in batch mode
    • Required
    • Same as search but used for batches for performance
  • Extend
    • Optional - but kind of useless without it
    • Used to add additional columns / fields to end users data
  • Preview
    • Optional - really handy for users
    • Used as a hover preview method, by creating an iframe in openrefine
  • View
    • Optional - really useful
    • Used to show the entity in a browser

Why use Open Refines reconciliation

OpenRefine provides a desktop/browser tool for data management and curation. This tool provides an excel like interface for cleaning, scripting abilities to augment data, enhancing data with the ability to fetch data over the internet and supliment the data you already have. Details on how to use OpenRefine's Reconciliation interface are available https://docs.openrefine.org/manual/reconciling A list of known publically available services is available https://reconciliation-api.github.io/testbench/

With OpenRefine you have an out of the box you have a UI and tool that will allow individuals or teams to work without having to build a tool from scratch.

Installation

Install using pip

pip install reconciliation

Usage

This is a flask based app that allows you to control how you route, authenticate, log etc.. A full example exists in the app.py file

from reconcililiation import EntityType, InvalidUsage, Property, ReconcileRequest, ReconcileService

# Create a flask app
app = Flask(__name__)

# initialize a ReconcileService
rs = ReconcileService("Movie Reconciliation", "0.1a")

# Create an entity you want to serve
et = EntityType("Movie", "/movie")
et.properties.append(Property("imdb", "IMDB URL"))
et.properties.append(Property("poster", "Poster URL"))
# Add the entity to the service
rs.add_entity(et)

# Set the entrypoint for your application
# This lets you control the URLs and if you wish to put a URL key for authentication you can do so here
@app.route("/reconcile/", methods=['GET', 'POST'])
@app.route("/reconcile/<path:path>", methods=['GET', 'POST'])
@app.route("/reconcile/<path:path>/<path:id>", methods=['GET', 'POST'])
def handle(path=None, id=None) :
    return rs.serve(path, id)

The following decorators are used to handle incoming requests

@rs.search
def my_search(reconcile: ReconcileRequest)
    '''
    Will be called with a single search query
    reconcile.query will contain a string for the entity being searched for
    expects a return of :
        { "result" : [
                        {
                        "id": <unique id of entity>,
                        "name": <name of entity>,
                        "score": <int of a score>,
                        "match": <True or False>, # Return True for exact match.
                        "type":     [
                                        { # EntityType, ideally as added to the rs above
                                            "id": et.id,
                                            "name": et.name
                                        }
                                    ]
                        }
                    ]
        }
    '''

@rs.search_batch
def my_search_batch(reconcile: ReconcileRequest):
    '''
    By Default OpenRefine will attempt to batch up queries
    These will be available in reconcile.queries as a dictionary queries key off a query id
    e.g.
        {
            <query_id_1> : {"query" : "text to search for"} ,
            <query_id_2> : {"query" : "something else to search for"}
            ......
        }

    The expected return is
    {"results" : {
                    <query_id_1> : { "result" : .... } # same as single search result
                    <query_id_2> : { "result" : .....}
                    ......
                }
    }
    '''

@rs.extend
'''
def extend(reconcile: ReconcileRequest):

This is the request that handles performing "Add column based on reconciled data"
A list of properties and a list of entity ids are passed in
The entity and the value of the propery are expected as results.

reconcile.extend.ids contains the list of entity ids
reconcile.extend.properties contains the list of properties expected

Return expected

{
    "rows" : {
                <entity_id> : {
                    "<property_id>" : [ { "<str>" : "<property value>"}],
                    "<property_id2>" : [ { "<str>" : "<property value>"},{ "<str>" : "<property other value>"}]
                    .....


                },
                 <entity_id2> : {
                    "<property_id>" : [ { "<str>" : "<property value>"}],
                    "<property_id2>" : [ { "<str>" : "<property value>"},{ "<str>" : "<property other value>"}]
                    .....


                },
                .......

    }
}

'''
@rs.preview_wh(width, height) # in pixels
'''
def preview_item(id):

This funtion is called when a matched results are hovered over in OpenRefine
Openrefine creates an iframe of size width x height where you can display summary data for the entity
Arg:
    id - the entity id

Return :
    HTML

'''



@rs.view
'''
def view_item(id):

This function is called in openrefine when a user clicks a matched entity
You can return html, redirect, a file download, anything that is browser compatible

Arg:
    id = the entity id

Return:
    Browser compatible content

'''

Reconciliation Example

Start by checking out openrefine at https://openrefine.org/ and downloading the latest version of the OpenRefine software The example provided solves a simple problem, you have a spreadsheet of The Guardian's 2010 Greatest Movies of all time, however it's mising the movies posters. This sample app will load a spreadsheet call movie_posters.xlsx which contains some of the movie posters.

Below I bring you through the steps of reconciling data in OpenRefine, this is not meant to be a tutorial on OpenRefine, there are way to many capabilities available in it and resources online that cover that. This is a very quick walk though on how to use this example with OpenRefine.

First start this app, assume you've cloned the reconciliation github repo, setup your virtualenv or conda for python

Step 1

pip install -r requirements.txt
python app.py

This should start the reconciliation service at http://127.0.0.1:5000/reconcile/

Step 2

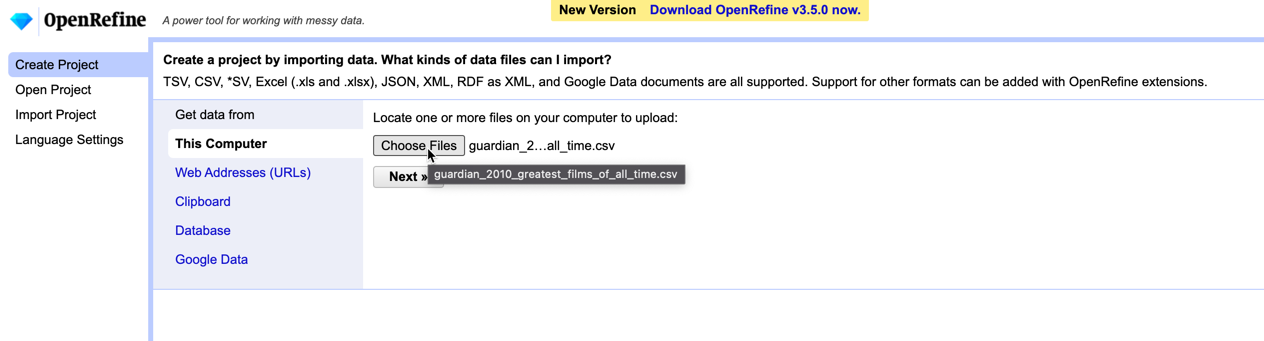

Next launch OpenRefine and create a new project with the guardian_2010_greatest_films_of_all_time.csv

Select next > Create Project (defaults on this page are fine) You should have a spreadsheet page with the list of movies

Step 3 Matching

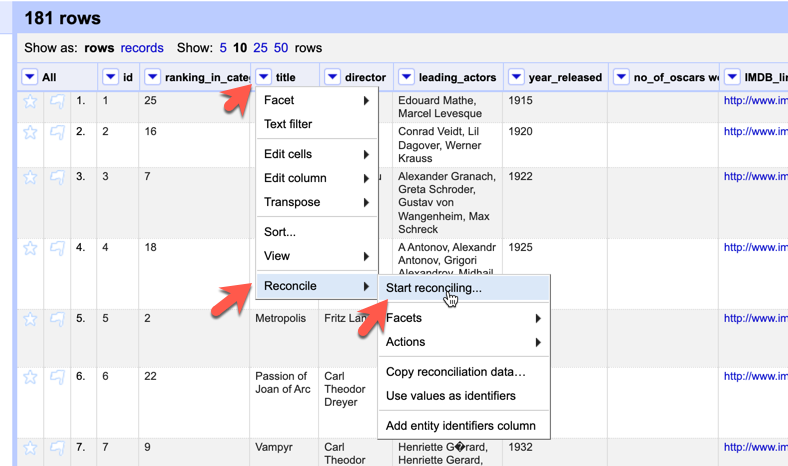

Next step lets reconcile the movie titles against our reconciliation service. Click the dropdown menu next to "title" > Reconcile > Start Reconciling

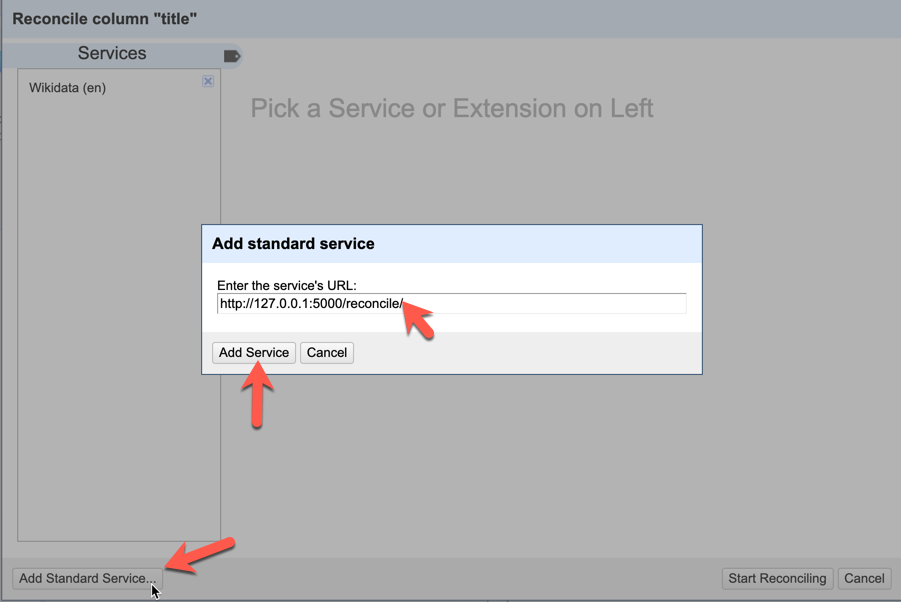

Next Add the reconcilation service, you will see an >Add Standard Service button on the bottom left Type in http://127.0.0.1:5000/reconcile/ Ensure you include the trailing slash

Add Service

Again the defaults should be fine here. Under the covers this calls http://127.0.0.1:5000/reconcile/ and receives back a list of services you have enabled This services are linked to the EntityType you added to ReconcileService and @rs.* decorators in your code.

et = EntityType("Movie", "/movie")
et.properties.append(Property("imdb", "IMDB URL"))
et.properties.append(Property("poster", "Poster URL"))

@rs.view
.....

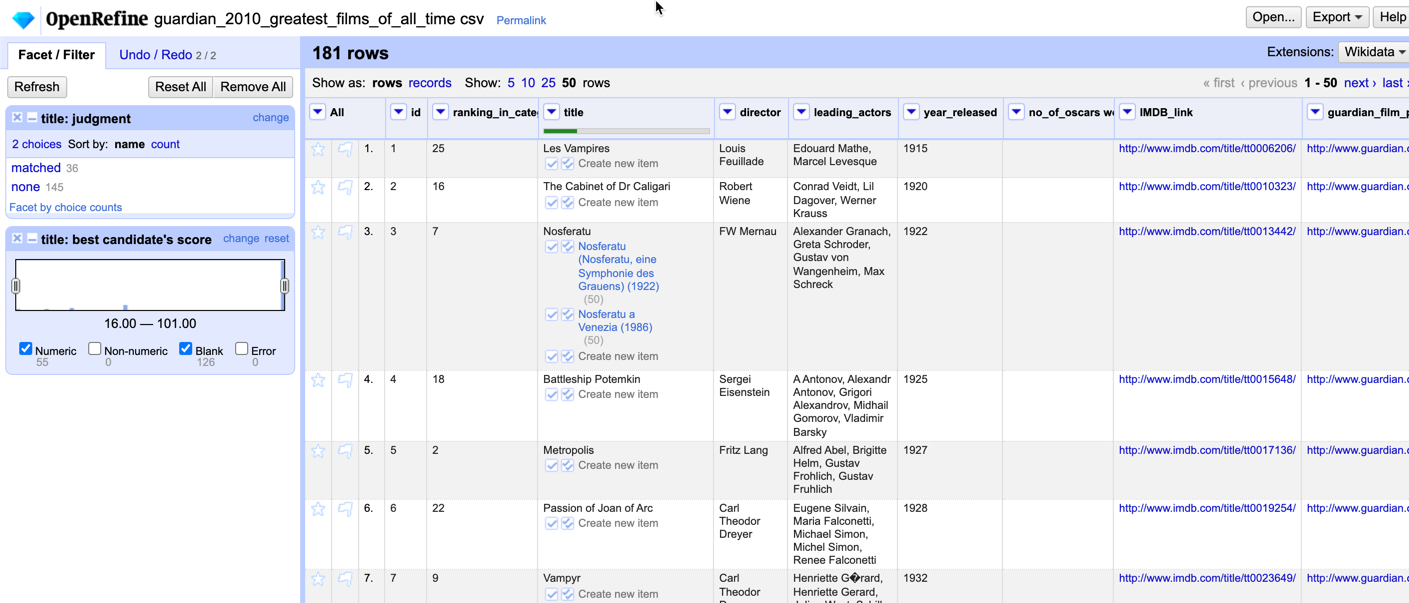

At this stage you will see your spreadsheet and a status toast showing you how much matching has occurred. Once Complete you will see a set of Facet / Filters appear on the left handside and some additional data in the title column.

As you can see from the Facet / Filter we matched 36 movies this is the field "match" from our @rs.search/@rs.search_batch method. In this example if we had single result from the data and name matched we declared it a match.

You can select either matched if you just want to work with fully matched data, or none if you want to work on data that isn't fully matched.

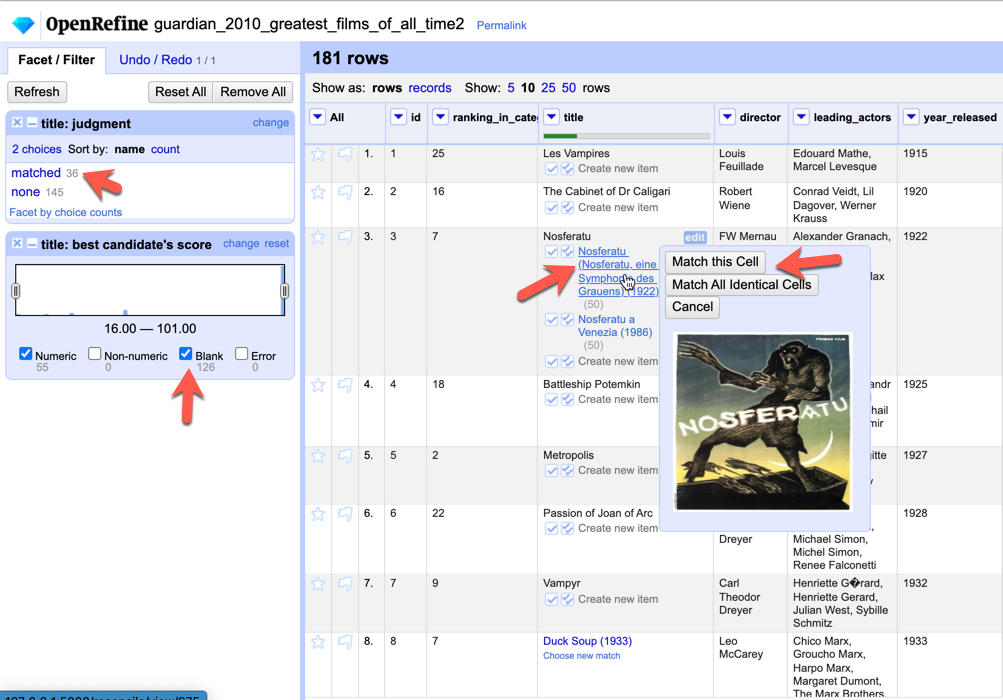

Let's take look at "Nosferatu" on row 3 There are 2 possible movies in the results the 1922 original or a remake in 1986. Hovering over them calls the @rs.preview method. In out example we return html with the movie poster as an image. A reviewer can now select which movie is the correct one, if there are duplicates in the data, then it can be applied to all other cells with the same title.

The judgement score is a sliding filter based on the field "score" from @rs.search / @rs.search_batch In our case we divided 100 / No. Matches so a score of 100 = 1 match, 50 = 2 matches, 3 = 33.3 and so on...

By default blanks; 0 matches are included, you can uncheck this box to exclude them, and use the slider to work through matching data and prioritizing it.

Step 4 Extend Data

At this stage we have data in OpenRefine reconciled / matched to the data in our service as best as we can, we have had humna judgement clean it up and now we want to add fields to the matched data.

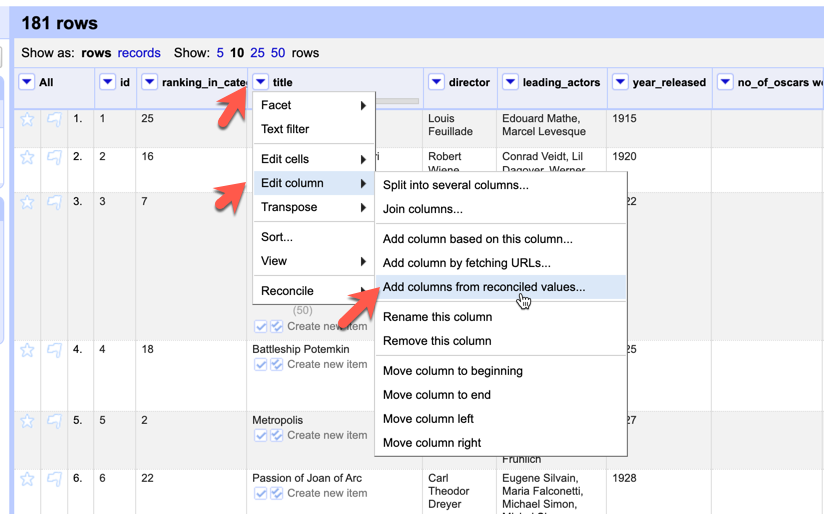

Click the dropdown menu next to title > Edit Column > Add Columns from Reconciled Values

The next screen that pops up, will display the available properties that you have configured from the EntityType properties. If haven't filtered the rows from the Facet/Filter panel, you may have 'non-reconciled' rows showing up here. If you don't want that hit escape and in judgement scores simply uncheck the "blanks" checkbox, and repeat this step.

You can now select 1 or more properties to add to your data, and click ok. This will now call the @rs.extend method of your code. OpenRefine will now fetch the properties you've requested and proceed to add them as columns to the entities that have been matched.
