rectangle-packer 2.0.2

Pack a set of rectangles into a bounding box with minimum area

Pack a set of rectangles into a bounding box with minimum area

Welcome to rectangle-packer

Primary use: Given a set of rectangles with fixed orientations, find a bounding box of minimum area that contains them all with no overlap.

This project is inspired by Matt Perdeck’s blog post Fast Optimizing Rectangle Packing Algorithm for Building CSS Sprites.

• The latest documentation is available on Read the Docs.

• The source code is available on GitHub.

Installation

Install latest version from PyPI:

$ python3 -m pip install rectangle-packer

Or clone the repository and install with:

$ python3 setup.py install

Basic usage

# Import the module
>>> import rpack

# Create a bunch of rectangles (width, height)
>>> sizes = [(58, 206), (231, 176), (35, 113), (46, 109)]

# Pack
>>> positions = rpack.pack(sizes)

# The result will be a list of (x, y) positions:
>>> positions
[(0, 0), (58, 0), (289, 0), (289, 113)]

The output positions are the lower left corner coordinates of each rectangle in the input.

These positions will yield a packing with no overlaps and enclosing area as small as possible (best effort).

Note

• You must use positive integers as rectangle width and height.

• The module name is rpack which is an abbreviation of the package name at PyPI (rectangle-packer).

• The computational time required by rpack.pack() increases by the number and size of input rectangles. If this becomes a problem, you might need to implement your own divide-and-conquer algorithm.

Examples

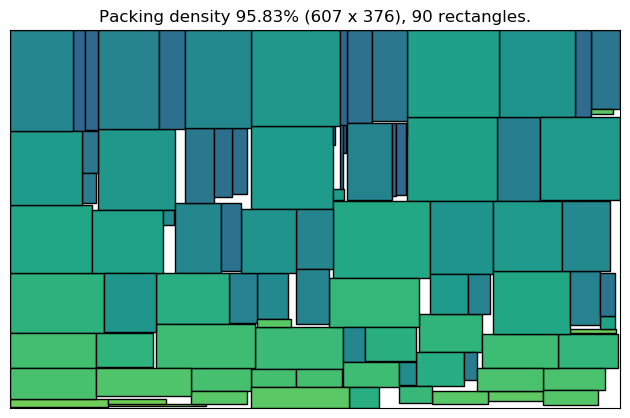

Example A:

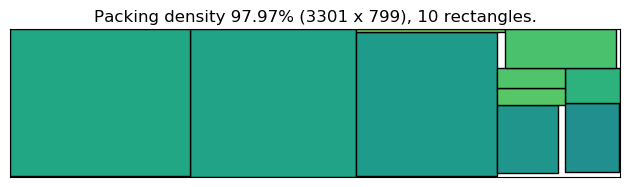

Example B:

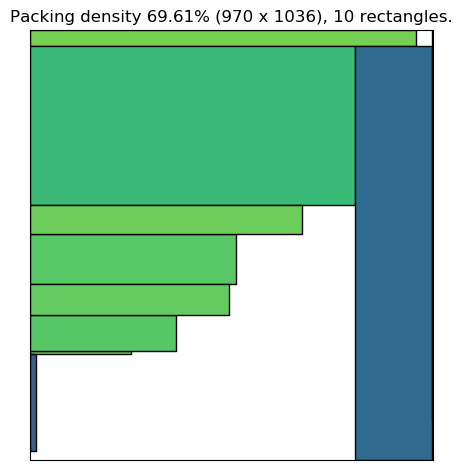

Example C: Sometimes the input rectangles simply cannot be packed in a good way. Here is an example of low packing density:

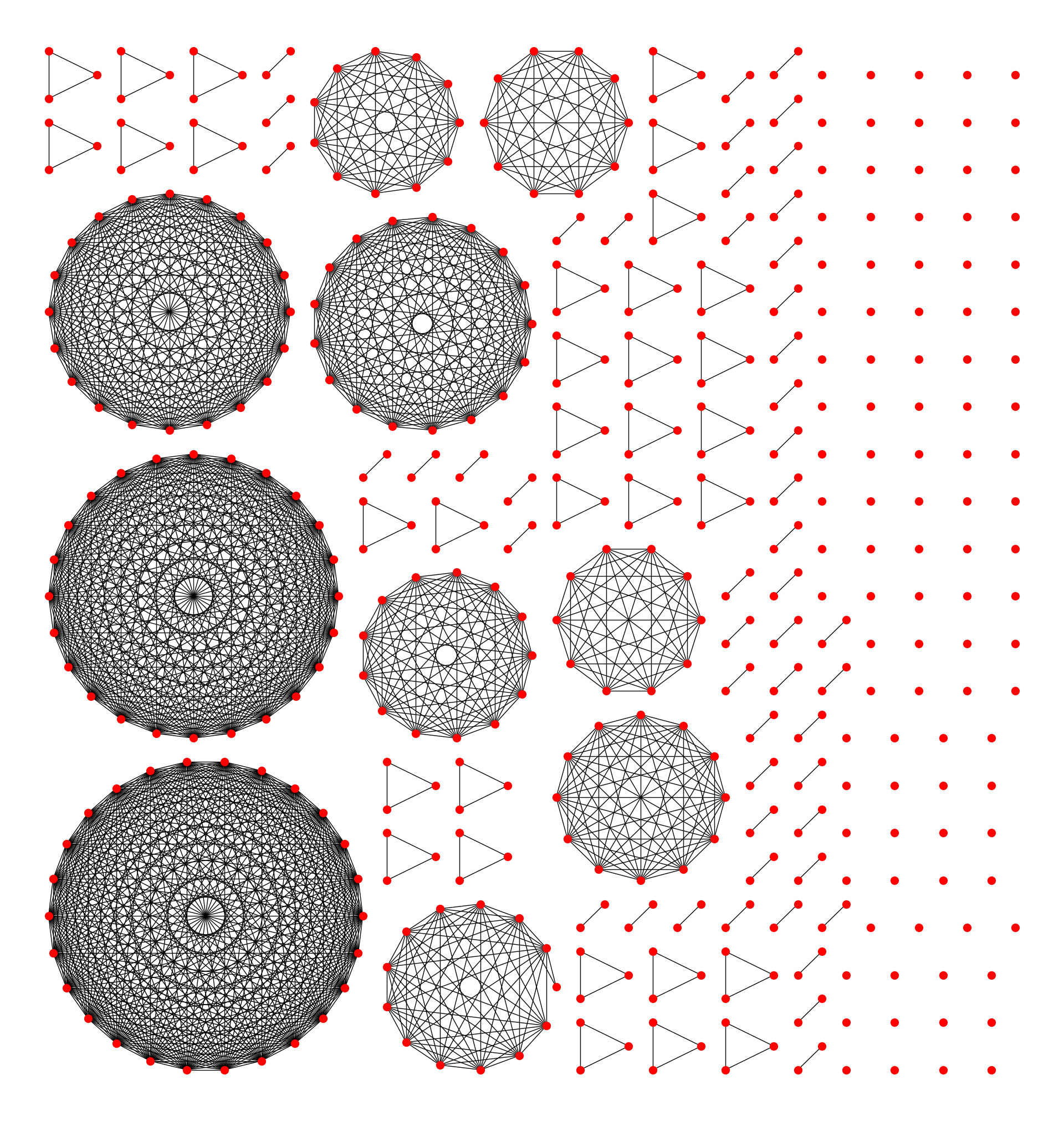

Example D: The image below is contributed by Paul Brodersen, and illustrates a solution to a problem discussed at stackoverflow.
