s-tui 0.6.6

Stress Terminal UI stress test and monitoring tool

s-tui is a terminal UI for monitoring your computer. s-tui allows to monitor CPU temperature, frequency, power and utilization in a graphical way from the terminal.

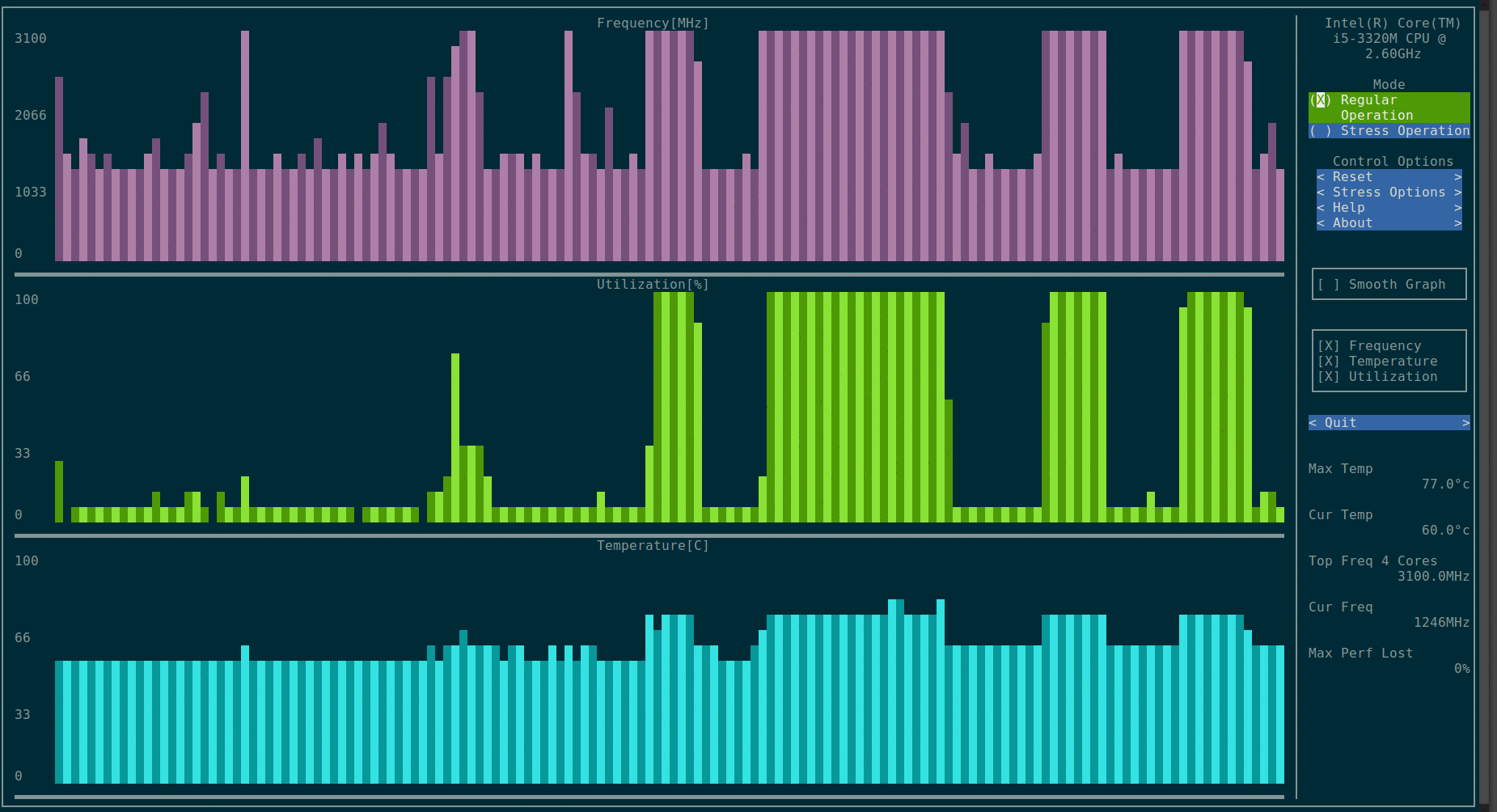

Screenshot

• The Stress Terminal UI: s-tui

• Screenshot

• What it does

• Usage

• Simple installation

  • pip (x86 ARM)

  • Run local executable (x86 only):

• Options

• Dependencies

• Other installation methods

  • Ubuntu

  • Arch-Linux

• Build

• Compatibility

• FAQ

What it does

• Monitoring your CPU temperature/utilization/frequency/power

• Shows performance dips caused by thermal throttling

• Requires minimal resources

• Requires no X-server

• Built in options for stressing the CPU (stress/stress-ng)

Usage

s-tui

or

sudo s-tui

Simple installation

pip (x86 + ARM)

sudo pip install s-tui

Or if you cannot use sudo:

pip install s-tui --user

If you are installing s-tui on a Raspberry-Pi you might need to install python-dev first

Run local executable (x86 only):

• Download the latest release version from https://github.com/amanusk/s-tui/releases

• Change s-tui to executable chmod +x s-tui

• Run (sudo) ./s-tui

Options

********s-tui manual********
usage: s_tui.py [-h] [-d] [-c] [-t] [-j] [-nm] [-v] [-ct CUSTOM_TEMP]

TUI interface:

The side bar houses the controls for the displayed grahps.
At the bottom of the side bar, more information is presented in text form.

* Use the arrow keys or 'hjkl' to navigate the side bar
* Toggle between stressed and regular operation using the radio buttons in 'Modes'.
* If you wish to alternate stress defaults, you can do it in 'Stress options'
* Select a different temperature sensors from the 'Temp Sensors' menu
* Change time between updates using the 'Refresh' field
* Use the 'Reset' button to reset graphs and statistics
* Toggle displayed graphs by selecting the [X] check box
* If a sensor is not available on your system, N/A is presented
* If your system supports it, you can use the utf8 button to get a smoother graph
* Press 'q' or the 'Quit' button to quit

* Run `s-tui --help` to get this message and additional cli options

optional arguments:
  -h, --help            show this help message and exit
  -d, --debug           Output debug log to _s-tui.log
  -c, --csv             Save stats to csv file
  -t, --terminal        Display a single line of stats without tui
  -j, --json            Display a single line of stats in JSON format
  -nm, --no-mouse       Disable Mouse for TTY systems
  -v, --version         Display version
  -ct CUSTOM_TEMP, --custom_temp CUSTOM_TEMP

                        Custom temperature sensors.
                        The format is: <sensors>,<number>
                        As it appears in 'sensors'
                        e.g
                        > sensors
                        it8792-isa-0a60,
                        temp1: +47.0C
                        temp2: +35.0C
                        temp3: +37.0C

                        use: -ct it8792,0 for temp 1

Dependencies

s-tui is a great tool for monitoring. If you would like to stress your computer, install stress. Stress options will then show up in s-tui (optional)

sudo apt-get install stress

Other installation methods

Ubuntu

Installation is available from ppa. Apt does not hold the latest versions of psutil and urwid. Some features will not work.

sudo add-apt-repository ppa:amanusk/python-s-tui
sudo apt-get update
sudo apt-get install python-s-tui

Arch-Linux

An AUR package is available called ‘s-tui’

Thanks to @DonOregano

Build

Running s-tui from source

Clone

git clone https://github.com/amanusk/s-tui.git

Install libraries

These need to be installed to run s-tui.py

(sudo) pip install urwid
(sudo) pip install psutil

Install stress (optional)

sudo apt-get install stress

Run the .py file

(sudo) python -m s_tui.s_tui

OPTIONAL integration of FIRESTARTER (via submodule, does not work on all systems)

FIRESTARTER is a great tool to stress your system to the extreme. If you would like, you can integrate FIRESTARTER submodule into s-tui. To build FIRESTARTER

git submodule init
git submodule update
cd ./FIRESTARTER
./code-generator.py
make

Once you have completed these steps, you can either: * Install FIRESTARTER to make it accessible to s-tui, e.g make a soft-link to FIRESTARTER in /usr/local/bin. * Run s-tui from the main project directory with python -m s_tui.s_tui

An option to run FIRESTARTER will then be available in s-tui

Compatibility

s-tui uses psutil to probe some of your hardware information. If your hardware is not supported, you might not see all the information.

• On Intel machines:

  Running s-tui as root gives access to the maximum Turbo Boost frequency available to your CPU when stressing all cores. Running without root will display the Turbo Boost available on a single core.

• Power read is supported on Intel Core CPUs of the second generation and newer (Sandy Bridge)

• s-tui tested to run on Raspberry-Pi 3,2,1

Q&A

Q: How is this different from htop?

A: s-tui is not a processes monitor like htop. The purpose is to monitor your CPU statistics and have an option to test the system under heavy load. (Think AIDA64 stress test, not task manager).

Q: What features require sudo permissions?

A: Top Turbo frequency varies depending on how many cores are utilized. Sudo permissions are required in order to accurately read the top frequency when all the cores are utilized.

Q: I don’t have a temperature graph

A: Systems have different sensors to read CPU temperature. If you do not see a temperature read, your system might not be supported (yet). You can try manually setting the sensor with the cli interface (see –help), or selecting a sensor from the ‘Temp Sensors’ menu

Q: I have a temperature graph, but it is wrong.

A: A default sensor is selected for temperature reads. On some systems this sensor might indicate the wrong temperature. You can manually select a sensor from the ‘Temp Sensors’ menu or using the cli interface (see –help)

Q: I am using the TTY with no X server and s-tui crashes on start

A: By default, s-tui is handles mouse inputs. This causes some systems to crash. Try running s-tui --no-mouse
