SAP GUI SCRIPTING

This project offers an abstraction over the SAP GUI Scripting API, facilitating interaction with the SAP GUI system. It allows navigation among different SAP transactions and downloading and transforming information exported from these transactions.

Key Features:

• Automated Logging: Performs records in SAP quickly and easily, minimizing the risk of manual errors.
• Simplified Navigation: Enables agile movement between different SAP transactions, optimizing workflow.
• Data Download and Transformation: Exports information from SAP and transforms it for use in other applications or analysis, facilitating data-driven decision-making.

Tabla de Contenidos

1. Installation
2. Basic Usage
3. Recomendations
4. Contribution
5. License
6. Contact

Installation

Remember create your 'venv'

python -m venv venv

venv/Scripts/Activate

pip list

python.exe -m pip install --upgrade pip

pip install sapgui

The second step is to use the following command if you see the library all is ok

pip list

>> ...
>> sapgui   version
>> ...

You are ready to use sap library, in your proyects

Use

The following example demonstrates the most basic and simple usage of this project. For more detailed documentation, please visit this link.

from sapgui import SapGui,Transaction,DataProcess

• How open sap?

  sap_instance=SapGui(
      conection="our conection",
      user="user",
      password="password"
  )
  session=sap_instance.get_session()


• Basic proccess in transaccion

  COOISPI=Transaction(
      session=session, # or sap_instance.get_session()
      code="COOISPI")
  COOISPI.start_transaction()
  COOISPI.select_variant(
      variant_author="USER",
      variant_name="VARIANT"
  )
  ...
  #COOISPI.session.FindById("id").text=""# example
  #COOISPI.session.FindById("id").press()# example2
  COOISPI.run_transaction()
  COLUMNS_NAMES=COOISPI.get_column_names()
  COOISPI.export_in_shell_or_grid()
  COOISPI.select_export_and_download(
      address=address,
      name="name_file"
  )


• Data transformation

  DATA=DataProcess(
      address_file=os.path.join(address,"name_file.csv")
      ...
  )
  DATA.edit_file(
      generic_name_columns=COLUMNS_NAMES,
      ...
  )
  df=DATA.get_df()


Recomendations

The following recommendations are for interacting with SAP in Python development:

• SAPGUI version

  A version of SAPGUI 770 or higher is required.

• Scripting Tracker

  This tool helps identify all the elements (objects) we can interact with in each SAP session. You can download it from the official page using this link: Scripting Tracker. If you want more information about the tool, you can find it on the official SAP forum.

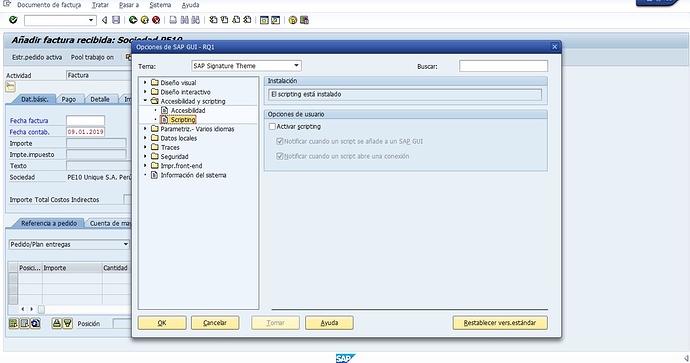

• SAPGUI Accessibility - Scripting

  To interact with SAP in a more fluid and simple way, there are several settings that should be adjusted beforehand:

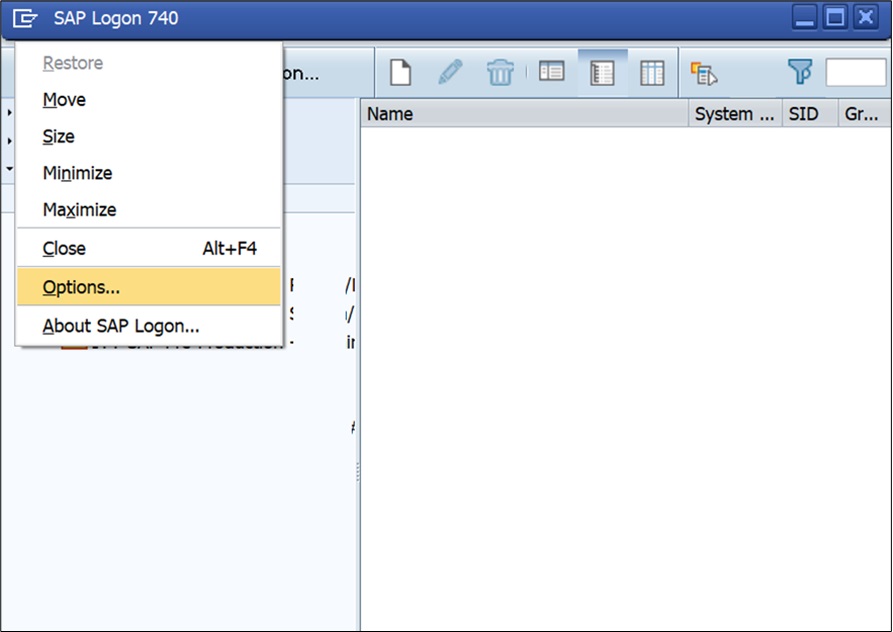

  • In the options tab:



  • Under Accessibility and Scripting --> Scripting --> enable the "Enable scripting" option and disable the other three options so that you don't get notified every time a script runs.



  Before going to the Accessibility tab and enabling the "Use accessibility mode" option, we need to change the SAP theme or visual style to "SAP Signature Theme." Once this is done, you can go back to Accessibility and Scripting --> Accessibility --> and enable the "Use accessibility mode" option.

• SAPGUI Web API

  If you want to dive deeper into the attributes and methods available for each object in SAPGUI, you can check the documentation, which comes from the official SAP site.

Contribution

Thank you for your interest in contributing to this project! Here's how you can do it:

• 1. Fork the Repository

  First, fork the repository by clicking the "Fork" button at the top of the repository page.

• 2. Create a Branch

  Clone your fork to your local machine and then create a new branch for your work. Name your branch according to the feature or bug you're working on:

  git checkout -b your-branch-name


• 3. Make Your Changes

  Make the changes you believe are necessary.

• 4. Commit Your Changes

  Once you've made your changes, commit them with a clear description of what you've done:

   git add .
   git commit -m "Clear description of the changes"


• 5. Push Your Branch

  Push your changes to the remote repository:

  git push origin your-branch-name


• 6. Create a Pull Request

  Go to the original repository on GitHub and click the "New Pull Request" button. Clearly explain the changes you've made and why they should be merged.

License

• MIT License

Contact

If you have any questions, suggestions, or feedback, feel free to contact us:

• Email: Send email
• LinkedIn: Felipe Lopez
• GitHub Issues: Please report issues or feature requests here
