scrawl-engine 0.9.12

Write game like Scratch

Scrawl - A Scratch-like Python Game Engine

中文 | English

For Chinese documentation, click 中文. Scrawl QQ 交流群: 1001578435

Scrawl is a Scratch-like game engine based on Pygame, designed to provide developers with an intuitive programming experience similar to Scratch, while leveraging Python's powerful capabilities.

Best Demo

Witch Game: https://github.com/streetartist/scrawl_demo_witch

Core Features

• 🧩 Scratch-like Development Paradigm: Use decorators to mark main coroutines, clone coroutines, and event handler coroutines
• 🎮 Built-in Game Object System: Ready-to-use sprites, scenes, particle systems, and more
• ⚙️ Physics Engine Integration: Supports physical properties like velocity, gravity, elasticity, etc.
• 📻 Broadcast Messaging System: Component communication mechanism
• 🔧 Debugging Tools: Real-time display of FPS, sprite count, and other debug information
• 🎨 Drawing Tools: Supports pen drawing
• 🚀 Coroutine Task System: Coroutine mechanism supports intuitive while True loops

Quick Start

The following code demonstrates the basic usage of Scrawl:

Example 1:

from scrawl import *
import pygame

# svg files from https://scratch.mit.edu/projects/239626199/editor/

# Create game instance
game = Game()

class Bat(Sprite):
    def __init__(self):
        super().__init__()
        self.name = "Bat"
        self.add_costume("costume1", pygame.image.load("bat2-b.svg").convert_alpha())
        self.add_costume("costume2", pygame.image.load("bat2-a.svg").convert_alpha())
        self.visible = False
        self.set_size(0.5)

    @as_clones
    def clones1(self):
        self.pos = pygame.Vector2(400, 300)
        self.face_random_direction()
        self.move(400)
        self.face_towards("Witch")
        self.visible = True
        while True:
            self.next_costume()
            yield 300

    @as_clones
    def clones2(self):
        while True:
            self.move(5)
            yield 200

    @as_main
    def main1(self):
        while True:
            yield 3000
            # Add bat
            self.clone()

    @handle_edge_collision()
    def finish(self):
        self.delete_self()

    @handle_sprite_collision("FireBall")
    def hit_fireball(self, other):
        self.delete_self()

    @handle_sprite_collision("Witch")
    def hit_witch(self, other):
        self.delete_self()

class FireBall(Sprite):
    def __init__(self):
        super().__init__()
        self.name = "FireBall"
        self.add_costume("costume1", pygame.image.load("ball-a.svg").convert_alpha())
        self.visible = False
        self.set_size(0.2)

    @as_clones
    def clones1(self):
        self.visible = True
        while True:
            self.move(10)
            yield 100

    @handle_edge_collision()
    def finish(self):
        self.delete_self()

class Witch(Sprite):
    def __init__(self):
        super().__init__()
        self.name = "Witch"
        self.add_costume("costume1", pygame.image.load("witch.svg").convert_alpha())
        self.fireball = FireBall()

    @on_key(pygame.K_s, "held")
    def right_held(self):
        self.turn_right(2)

    @on_key(pygame.K_d, "held")
    def left_held(self):
        self.turn_left(2)

    @on_key(pygame.K_SPACE, "held")
    def space_pressed(self):
        self.fireball.direction = self.direction
        self.clone(self.fireball)

# Define scene
class MyScene(Scene):
    def __init__(self):
        super().__init__()
        bat = Bat()
        self.add_sprite(bat)
        witch = Witch()
        self.add_sprite(witch)

# Run game
game.set_scene(MyScene())
game.run(fps=60)

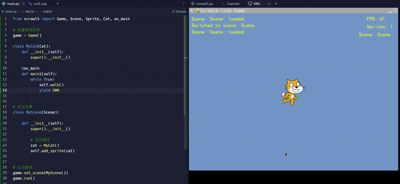

The video appears slow due to VNC recording. Runs quite smoothly when sprite count is below 200.

https://github.com/user-attachments/assets/7398ac8f-689e-4088-9d78-414272c99438

Example 2:

from scrawl import Game, Scene, Sprite, Cat, as_main

# Create game instance
game = Game()

class MyCat(Cat):
    def __init__(self):
        super().__init__()

    @as_main
    def main1(self):
        while True:
            self.walk()
            yield 500

# Define scene
class MyScene(Scene):
    def __init__(self):
        super().__init__()
        # Add sprite
        cat = MyCat()
        self.add_sprite(cat)

# Run game
game.set_scene(MyScene())
game.run()

Example 3:

from scrawl import *
import time

# Create game instance
game = Game()

class Ball(Sprite):
    def __init__(self):
        super().__init__()

    @as_main
    def main1(self):
        while True:
            self.turn_left(10)
            self.move(10)
            yield 100
            self.clone()

    @as_clones
    def clones1(self):
        while True:
            self.turn_right(10)
            self.move(100)
            self.change_color_random()
            yield 1000

    @handle_broadcast("event")
    def event1(self):
        self.say("hello")

# Define scene
class MyScene(Scene):
    def __init__(self):
        super().__init__()
        # Add sprite
        ball = Ball()
        self.add_sprite(ball)

    @as_main
    def main1(self):
        while True:
            # Add particle system
            explosion = ParticleSystem(400, 300)
            self.add_particles(explosion)  # Add particle system to scene
            self.broadcast("event")
            yield 3000

# Run game
game.set_scene(MyScene())
game.run()

https://github.com/user-attachments/assets/ef1a03d8-28b6-4bff-acf7-5f96be02f35a

Core Concepts

1. Game Main Loop (Game Class)

• Handles event loop
• Manages scene switching
• Controls frame rate and debug information

2. Scene (Scene Class)

• Serves as game container
• Manages sprites and particle systems
• Handles global events and broadcast messages

3. Sprite (Sprite and PhysicsSprite Classes)

• Basic game entities
• Support properties like position, direction, size
• Physics sprites support velocity, gravity, and other physical properties

Common Methods:

• move(), goto(), turn_left(), turn_right()
• say(), clone(), delete_self()
• apply_impulse(), set_gravity() (for physics sprites)

4. Event System

• Broadcast Mechanism: Component communication
• Key Binding: Global and scene-level bindings
• Sprite Events: Supports collision detection

Documentation Index

1. Core Class Reference
   • Game - Game Controller
   • Scene - Game Scene
   • Sprite - Base Sprite Class
   • PhysicsSprite - Physics Sprite Class
2. Decorator System
   • @as_main - Marks main behavior coroutine
   • @as_clones - Marks clone behavior
   • @handle_broadcast - Broadcast handler
3. Advanced Features
   • Particle Systems
   • Drawing Tools
   • Collision Detection
   • Physics System

Installation

pip install scrawl-engine

Upgrade

pip install --upgrade scrawl-engine

Development Documentation (Tentative Version)

Scrawl Library Usage Documentation

Table of Contents

• Core Concepts
  • Game Class
  • Scene Class
  • Sprite Class
• Event Handling
  • Key Events
  • Collision Detection
  • Broadcast Events
• Sprite Cloning
  • Creating Clones
  • Clone Behavior
• Resource Management
  • Adding Images
  • Using Fonts
• Advanced Features
  • Physics Sprites
  • Particle Systems
  • Pen Effects
• Debugging Tools
  • Debug Mode
  • Performance Monitoring

---

Core Concepts

Game Class

Main game controller responsible for initialization and running game loop:

game = Game(
    width=800,
    height=600,
    title="Game Title",
    font_path="font.ttf",
    font_size=20,
    fullscreen=False
)
game.set_scene(MyScene()) # Set scene
game.run(fps=60, debug=True)

Scene Class

Game scene container for managing sprites and particle systems:

class MyScene(Scene):
    def __init__(self):
        super().__init__()
        # Add sprite
        self.add_sprite(MySprite())

    @as_main
    def main1():
        pass # Scene main function
# Set scene
game.set_scene(MyScene())

Sprite Class

Basic elements in the game with properties like position, direction, size:

class MySprite(Sprite):
    def __init__(self):
        super().__init__()
        self.name = "Sprite Name"
        self.pos = pygame.Vector2(100, 100)
        self.direction = 90  # 0=right, 90=up
        self.size = 1.0
        self.visible = True

    @as_main
    def main1(self):
        while True:
            # Sprite main function
            self.move(5)
            yield 2000 # Delay 2000ms

---

Event Handling

Key Events

Handle key events using decorators:

@on_key(pygame.K_SPACE, "pressed")  # Triggered on press
def space_pressed(self):
    print("Space pressed")
@on_key(pygame.K_LEFT, "held")  # Continuously triggered while held
def left_held(self):
    self.turn_left(2)

Collision Detection

Handle collisions between sprites and with boundaries:

# Edge collision detection
@handle_edge_collision("left")  # Collide with left edge
def hit_left(self):
    self.say("Hit left wall")
# Sprite collision detection
@handle_sprite_collision("Enemy")  # Collide with sprite named "Enemy"
def hit_enemy(self, other):
    self.delete_self()

Broadcast Events

Communication mechanism between sprites and scenes:

# Broadcast event
self.broadcast("gameover")
# Handle broadcast event
@handle_broadcast("gameover")
def on_gameover(self):
    self.visible = True

---

Sprite Cloning

Creating Clones

Clone existing sprites:

# Clone self
self.clone()
# Clone other sprite
self.clone(other_sprite)

Clone Behavior

Define logic specific to clones:

class Bat(Sprite):
    @as_clones  # Mark as clone task
    def clones_behavior(self):
        self.visible = True
        while True:
            self.move(5)
            yield 200  # Move every 200ms

---

Resource Management

Adding Images

Add multiple costumes for sprites:

self.add_costume("costume1", pygame.image.load("cat1.svg"))
self.add_costume("costume2", pygame.image.load("cat2.svg"))
self.switch_costume("costume1")  # Switch costume
self.next_costume()  # Switch to next costume

Using Fonts

Game font settings:

game = Game(
    font_path="Simhei.ttf",  # Supports Chinese fonts
    font_size=20
)

---

Advanced Features

Physics Sprites

Sprites with physical properties (velocity, gravity, friction):

class PhysicsBall(PhysicsSprite):
    def __init__(self):
        super().__init__()
        self.velocity = pygame.Vector2(0, 5)
        self.gravity = pygame.Vector2(0, 0.2)
        self.elasticity = 0.8  # Elasticity coefficient

Particle Systems

Create particle effects:

# Create particle system at specified position
self.scene.add_particles(
    ParticleSystem(
        x=100,
        y=100,
        count=50,
        life_range=(500, 1500)
    )
)

Pen Effects

Implement drawing functionality:

# Enable pen
self.pen_down = True
self.pen_color = (255, 0, 0)
self.pen_size = 3
# Automatically record path when moving
self.move(100)
# Clear pen trails
self.clear_pen()

---

Debugging Tools

Debug Mode

Enable debug information display:

game.run(debug=True)  # Enable debug mode
# Log debug information
game.log_debug("Sprite created")

Performance Monitoring

Key performance metrics displayed on screen:

1. Real-time FPS
2. Number of sprites in scene
3. Current scene name
4. Custom debug information

Contribution Guidelines

Welcome to submit issues and pull requests via GitHub: https://github.com/streetartist/scrawl

---
