sdrterm 0.4.1

Terminal-based tools for (mostly SDR-originated) signal analysis

Installation

pip install sdrterm

*NOTE: Unless you intend use code on the bleeding-edge, or to modify the source, skip ahead to here.

Requirements

After cloning this repo perform the following:

cd <path/to/clone>
python -m venv .venv

(if using windows)
.\.venv\Scripts\activate

(otherwise)
source .venv/bin/activate

(either)
pip install .
(or to include optional graphing dependencies)
pip install .[gui]

...<do stuff here>...

deactivate

Alternatively--if you do not wish to use a virtual environment--the dependencies may be installed via the system's package manager; or, with caution, using pip directly.

Plotting support is optional, and dependencies can be installed by specifying by the [gui] option during install, or if they happen to already be installed in the environment.

Notes

Input data

• For raw files, input is system-default endianness,
• For wave files, the endianness defined by the RIFF/X header
• For tcp connections, data is expected to be big-endian
• Endianness can be inverted using the -X flag
• When necessary to specify the input datatype (-e flag), the selections map exactly to the "integer" and "float" types listed here

Ouput data

• Standard mode outputs doubles (float64) with system-default endianness and alignment
• Multiple VFO mode (--simo flag) output is always big-endian doubles

Misc

• Be aware that piping binary (i.e. non-text) data between processes in Powershell is only natively-supported in Powershell v7.4+ (https://stackoverflow.com/a/68696757/8372013), which you may have to install separately from the default version included with your copy of Windows. N.B. this does not affect modes that use sockets for IO.

Examples

sdrterm.py

Read input from wave file

python -m sdrterm -i file.wav --omega-out=5k --decimation=64 --center-frequency="15k" --plot=spec --correct-iq -o out.bin

General explanation of options

• Input source: wave file
• Input data type: determined by RIFF/X header metadata
• Sample rate: determined by RIFF/X header metadata ($fs$ $S \over s$)
• Output lp: 5 kHz
• Decimation factor: $64 \implies$ $fs \over 64$ $S \over s$
• Offset from tuned frequency: +15 kHz
• Plot(s): Spectrum Analyzer
• IQ correction: enabled
• Output destination: out.bin

Read input from socket, and pipe output to stdout

python -m sdrterm -i <host>:<port> -eh -r1024k -w5k -d64 -c"-30k" --plot=water | ...

General explanation of options

N.B. sampling rate and datatype must be specified for raw input

• Input source: TCP socket at <host> on <port>
• Input data type: 16-bit, signed integer
• Sample rate: $1024k$ $S \over s$
• Output lp: 5 kHz
• Decimation factor: $64 \implies$ $1024k \over 64$ $= 16k$ $S \over s$
• Offset from tuned frequency: -30 kHz
• Plot(s): Waterfall
• Output destination: stdout

Select multiple frequencies to process from data input via a socket and output them via separate sockets

See exmaple_simo.sh for a complete example

More examples can be found in the shell scripts in the root of this repo.

 Usage: sdrterm.py [OPTIONS]

╭─ Options ─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────╮
│ --fs                     -r                          NUMBER                Sampling frequency in k/M/Samples per sec                                                                                                  │
│ --center-frequency       -c                          NUMBER                Offset from tuned frequency in k/M/Hz [default: 0]                                                                                         │
│ --input                  -i                          TEXT                  Input device [default: (stdin)]                                                                                                            │
│ --output                 -o                          TEXT                  Output device [default: (stdout)]                                                                                                          │
│ --plot                                               TEXT                  1D-Comma-separated value of plot type(s) [default: None]                                                                                   │
│ --demodulation           -m                          [fm|am|re|im]         Demodulation type [default: fm]                                                                                                            │
│ --tuned-frequency        -t                          NUMBER                Tuned frequency in k/M/Hz [default: 0]                                                                                                     │
│ --vfos                                               TEXT                  1D-Comma-separated value of offsets from tuned frequency to process in addition to tuned frequency in k/M/Hz [default: None]               │
│ --decimation             -d                          INTEGER RANGE [x>=2]  Decimation factor [default: 2]                                                                                                             │
│ --encoding               -e                          [b|B|h|H|i|I|f|d]     Binary encoding (ignored if wav file) [default: None]                                                                                      │
│ --omega-out              -w                          NUMBER                Output cutoff frequency in k/M/Hz [default: 12500]                                                                                         │
│ --correct-iq                 --no-correct-iq                               Toggle iq correction [default: no-correct-iq]                                                                                              │
│ --simo                       --no-simo                                     Enable using sockets to output data processed from multiple channels specified by the vfos option. N.B. unlike normal mode, which uses the │
│                                                                            system-default endianness for output, the sockets output network-default, big-endian doubles. [Implies: --vfos <csv>]                      │
│                                                                            [default: no-simo]                                                                                                                         │
│ --verbose                -v                          INTEGER               Toggle verbose output. Repetition increases verbosity (e.g. -vv, or -v -v) [default: 0]                                                    │
│ --smooth-output                                      INTEGER               Provide length of polynomial for smoothing output with Savitzky–Golay filter. A larger polynomial implies more aggressive filtering.       │
│                                                                            [default: (0 => no filtering)]                                                                                                             │
│ --vfo-host                                           TEXT                  Address on which to listen for vfo client connections [default: localhost]                                                                 │
│ --swap-input-endianness  -X                                                Swap input endianness [default: (False => system-default, or as defined in RIFF header)]                                                   │
│ --normalize-input            --no-normalize-input                          Normalize input data. [default: no-normalize-input]                                                                                        │
│ --help                                                                     Show this message and exit.                                                                                                                │
╰───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────╯

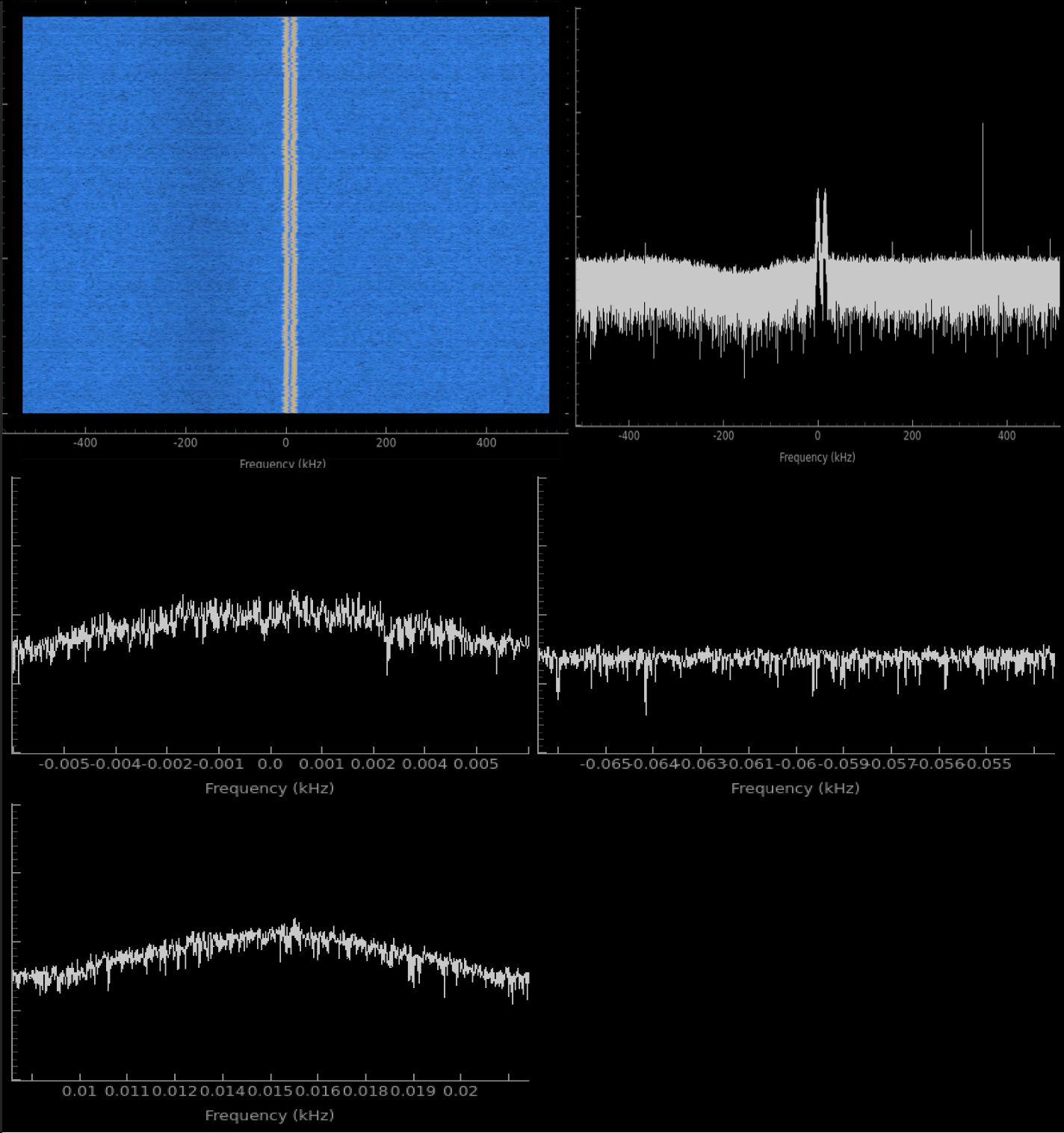

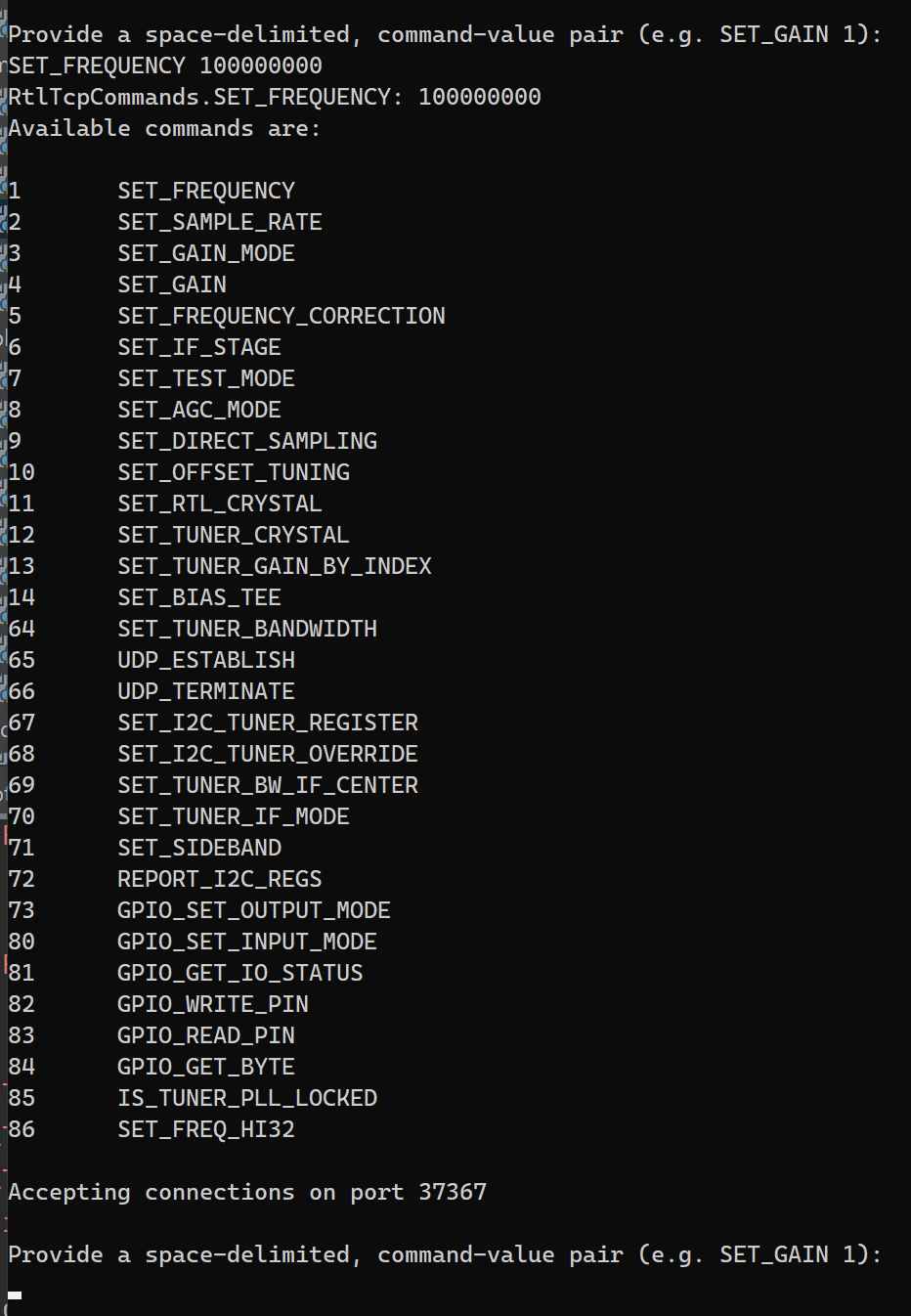

rtltcp.py

rtl_tcp running on server <ip | addr> on <port>

python -m rtltcp <host> <port>

 Usage: rtltcp.py [OPTIONS] HOST PORT

╭─ Arguments ───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────╮
│ *    host      TEXT     Address of remote rtl_tcp server [default: None] [required]                                               │
│ *    port      INTEGER  Port of remote rtl_tcp server [default: None] [required]                                                  │
╰───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────╯
╭─ Options ─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────╮
│ --server-host          TEXT     Port of local distribution server [default: localhost]                                            │
│ --verbose      -v      INTEGER  Toggle verbose output. Repetition increases verbosity (e.g. -vv, or -v -v) [default: 0]           │
│ --help                          Show this message and exit.                                                                       │
╰───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────╯

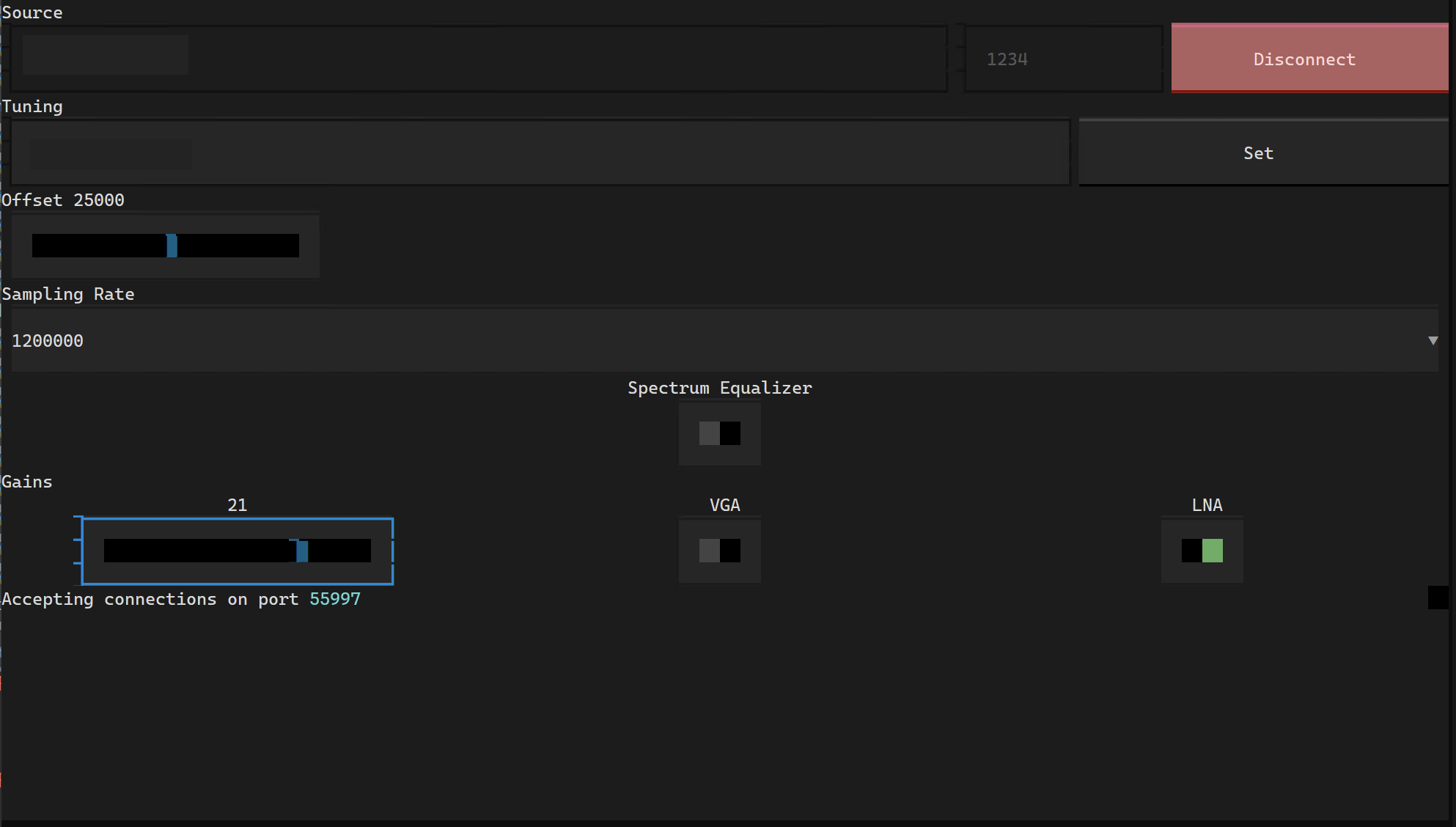

sdrcontrol.py [EXPERIMENTAL]

Due to the experimental nature of this interface, do not hesitate to report suspected bugs.

N.B. if you'd like to be sure of your wave file's sampling rate beforehand, you can use a tool like mediainfo available via most POSIX-like systems' package managers. Also, basic information about the input file, and other settings are output in JSON format at beginning of sdrterm's operation. e.g.,

{
  "bandwidth": 12500,
  "centerFreq": -25000,
  "tunedFreq": 0,
  "omegaOut": 5000,
  "smooth": 0,
  "vfos": "15000,-15000",
  "host": "localhost",
  "encoding": "uint8",
  "fs": 1024000,
  "decimatedFs": 16000
}
