sensirion-i2c-sgp43 0.2.0

I2C driver for the Sensirion SGP43 sensor family

Python I2C Driver for Sensirion SGP43

This repository contains the Python driver to communicate with a Sensirion SGP43 sensor over I2C.

Click here to learn more about the Sensirion SGP43 sensor.

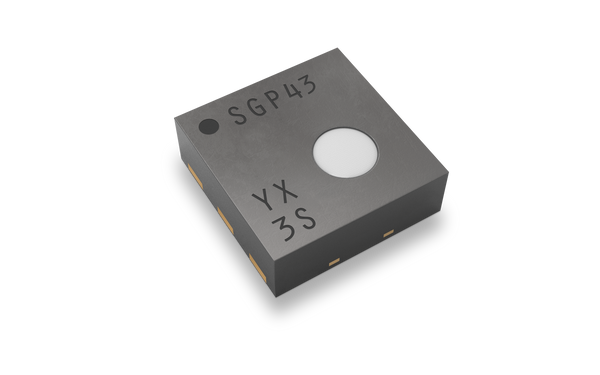

Air Quality Sensor for VOC and NOx Measurements.

The default I²C address of SGP43 is 0x59.

Connect the sensor

You can connect your sensor over a SEK-SensorBridge. For special setups you find the sensor pinout in the section below.

Sensor pinout

Pin	Cable Color	Name	Description	Comments
1	red	VDD	Supply Voltage	1.7V to 3.6V
2	black	GND	Ground
3	green	SDA	I2C: Serial data input / output
4	blue	NC	Do not connect
5		VDDH		Supply voltage hotplate; see data sheet on how to connect.
6	yellow	SCL	I2C: Serial clock input

Documentation & Quickstart

See the documentation page for an API description and a quickstart example.

Contributing

We develop and test this driver using our company internal tools (version control, continuous integration, code review etc.) and automatically synchronize the master branch with GitHub. But this doesn't mean that we don't respond to issues or don't accept pull requests on GitHub. In fact, you're very welcome to open issues or create pull requests :-)

Check coding style

The coding style can be checked with flake8:

pip install -e .[test]  # Install requirements
flake8                  # Run style check

In addition, we check the formatting of files with editorconfig-checker:

pip install editorconfig-checker==2.0.3   # Install requirements
editorconfig-checker                      # Run check

License

See LICENSE.
