PyRCA: A Python library for Root Cause Analysis

PyRCA: A Python library for Root Cause Analysis

Table of Contents

1. Introduction
2. Installation
3. Getting Started
4. Documentation
5. Tutorial
6. Example
7. Benchmarks
8. How to Contribute

Introduction

The adoption of microservices architectures is growing at a rapid pace, making multi-service applications the standard paradigm in real-world IT applications. Typically, a multi-service application consists of hundreds of interacting services, making it increasingly challenging to detect service failures and identify their root causes. Root cause analysis (RCA) methods typically rely on KPI metrics, traces, or logs monitored on these services to determine the root causes when a system failure is detected. Such methods can aid engineers and SREs in the troubleshooting process.

PyRCA is a Python machine-learning library designed to facilitate root cause analysis by offering various state-of-the-art RCA algorithms and an end-to-end pipeline for building RCA solutions. At present, PyRCA primarily focuses on metric-based RCA, including two types of algorithms: (1) identifying anomalous metrics in parallel with the observed anomaly through metric data analysis, such as ε-diagnosis, and (2) identifying root causes based on a topology/causal graph representing the causal relationships between the observed metrics, such as Bayesian inference and Random Walk. PyRCA also provides a convenient tool for building causal graphs from the observed time series data and domain knowledge, enabling users to develop graph-based solutions quickly. Furthermore, PyRCA offers a benchmark for evaluating various RCA methods, which is valuable for industry and academic research.

The following list shows the supported RCA methods in our library:

1. ε-Diagnosis
2. Bayesian Inference-based RCA (BI)
3. Random Walk-based RCA (RW)
4. Root Casue Discovery method (RCD)
5. Hypothesis Testing-based RCA (HT)

We will continue improving this library to make it more comprehensive in the future. In the future, PyRCA will support trace and log-based RCA methods as well.

Installation

You can install pyrca from PyPI by calling pip install sfr-pyrca. You may install from source by cloning the PyRCA repo, navigating to the root directory, and calling pip install ., or pip install -e . to install in editable mode. You may install additional dependencies:

• For plotting & visualization: Calling pip install sfr-pyrca[plot], or pip install .[plot] from the root directory of the repo.
• Install all the dependencies: Calling pip install sfr-pyrca[all], or pip install .[all] from the root directory of the repo.

Getting Started

PyRCA provides a unified interface for training RCA models and finding root causes. To apply a certain RCA method, you only need to specify:

• The selected RCA method: e.g., BayesianNetwork, EpsilonDiagnosis.
• The method configuration: e.g., BayesianNetworkConfig, EpsilonDiagnosisConfig.
• Time series data for initialization/training: e.g., A time series data in a pandas dataframe.
• Abnormal time series data in an incident window: The RCA methods require the anomalous KPI metrics in an incident window.

Let's take BayesianNetwork as an example. Suppose that graph_df is the pandas dataframe of a graph representing the causal relationships between metrics (how to construct such causal graph will be discussed later), and df is the pandas dataframe containing the historical observed time series data (e.g., the index is the timestamp and each column represents one monitored metric). To train a BayesianNetwork, you can simply run the following code:

from pyrca.analyzers.bayesian import BayesianNetwork
model = BayesianNetwork(config=BayesianNetwork.config_class(graph=graph_df))
model.train(df)
model.save("model_folder")

After the model is trained, you can use it to find root causes of an incident given a list of anomalous metrics detected by a certain anomaly detector (you can use the stats-based detector supported in PyRCA or other anomaly detection methods supported by our Merlion library), e.g.,

from pyrca.analyzers.bayesian import BayesianNetwork
model = BayesianNetwork.load("model_folder")
results = model.find_root_causes(["observed_anomalous_metric", ...])
print(results.to_dict())

For other RCA methods, you can write similar code as above for finding root causes. For example, if you want to try EpsilonDiagnosis, you can initalize EpsilonDiagnosis as follows:

from pyrca.analyzers.epsilon_diagnosis import EpsilonDiagnosis
model = EpsilonDiagnosis(config=EpsilonDiagnosis.config_class(alpha=0.01))
model.train(normal_data)

Here normal_data is the historically observed time series data without anomalies. To identify root causes, you can run:

results = model.find_root_causes(abnormal_data)
print(results.to_dict())

where abnormal_data is the time series data collected in an incident window.

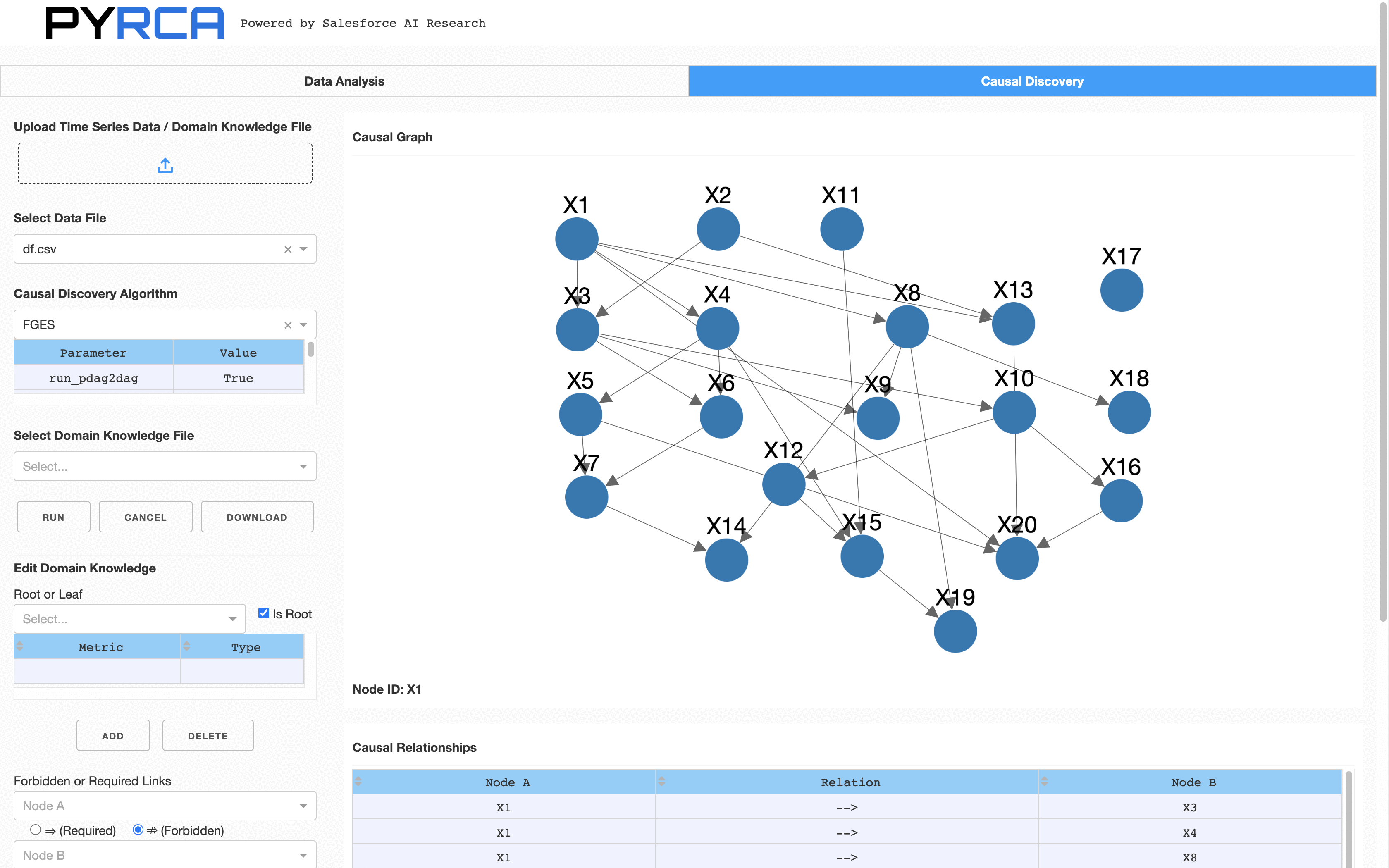

As mentioned above, some RCA methods such as BayesianNetwork require causal graphs as their inputs. To construct such causal graphs from the observed time series data, you can utilize our tool by running python -m pyrca.tools. This command will launch a Dash app for time series data analysis and causal discovery.

The dashboard enables users to experiment with different causal discovery methods, customize causal discovery parameters, add domain knowledge constraints (e.g., root/leaf nodes, forbidden/required links), and visualize the generated causal graphs. This feature simplifies the process of manually revising causal graphs based on domain knowledge. Users can download the graph generated by this tool if they are satisfied with it. The graph can then be used by the RCA methods supported in PyRCA.

Alternatively, users can write code to build such graphs instead of using the dashboard. The package pyrca.graphs.causal includes several popular causal discovery methods that users can leverage. All of these methods support domain knowledge constraints. For instance, if users wish to apply the PC algorithm for building causal graphs on the observed time series data df, the following code can be used:

from pyrca.graphs.causal.pc import PC
model = PC(PC.config_class())
graph_df = model.train(df)

If you have some domain knowledge constraints, you may run:

from pyrca.graphs.causal.pc import PC
model = PC(PC.config_class(domain_knowledge_file="file_path"))
graph_df = model.train(df)

The domain knowledge file has a YAML format, e.g.,

causal-graph:
  root-nodes: ["A", "B"]
  leaf-nodes: ["E", "F"]
  forbids:
    - ["A", "E"]
  requires:
    - ["A", "C"]

This domain knowledge file states that:

1. Metrics A and B must the root nodes,
2. Metrics E and F must be the leaf nodes,
3. There is no connection from A to E, and
4. There is a connection from A to C.

You can write your domain knowledge file based on this template for generating more reliable causal graphs.

Application Example

Here is a real-world example of applying BayesianNetwork to build a solution for RCA, which is adapted from our internal use cases. The "config" folder includes the settings for the stats-based anomaly detector and the domain knowledge. The "models" folder stores the causal graph and the trained Bayesian network. The RCAEngine class in the "rca.py" file implements the methods for building causal graphs, training Bayesian networks and finding root causes by utilizing the modules provided by PyRCA. You can directly use this class if the stats-based anomaly detector and Bayesian inference are suitable for your problems. For example, given a time series dataframe df, you can build and train a Bayesian network via the following code:

from pyrca.applications.example.rca import RCAEngine
engine = RCAEngine()
engine.build_causal_graph(
    df=df,
    run_pdag2dag=True,
    max_num_points=5000000,
    verbose=True
)
bn = engine.train_bayesian_network(dfs=[df])
bn.print_probabilities()

After the Bayesian network is constructed, you can use it directly for finding root causes:

engine = RCAEngine()
result = engine.find_root_causes_bn(anomalies=["conn_pool", "apt"])
pprint.pprint(result)

The inputs of find_root_causes_bn is a list of the anomalous metrics detected by the stats-based anomaly detector. This method will estimate the probability of a node being a root cause and extract the paths from a potential root cause node to the leaf nodes.

Benchmarks

The following table summarizes the RCA performance of different methods on the simulated dataset. How to generate the simulated dataset can be found here, and how to test different RCA methods can be found here.

	Recall@1	Recall@3	Recall@5
ε-Diagnosis	0.06 ± 0.02	0.16 ± 0.04	0.16 ± 0.04
RCD	0.28 ± 0.05	0.29 ± 0.05	0.30 ± 0.05
Local-RCD	0.44 ± 0.05	0.70 ± 0.05	0.70 ± 0.05
Random Walk	0.07 ± 0.03	0.20 ± 0.04	0.24 ± 0.04
Random Walk (PC)	0.06 ± 0.02	0.17 ± 0.04	0.21 ± 0.04
Bayesian Inference	0.15 ± 0.04	0.35 ± 0.05	0.43 ± 0.05
Bayesian Inference (PC)	0.11 ± 0.03	0.30 ± 0.05	0.40 ± 0.05
Hypothesis-testing	1.00 ± 0.00	1.00 ± 0.00	1.00 ± 0.00
Hypothesis-testing (PC)	0.95 ± 0.02	1.00 ± 0.00	1.00 ± 0.00
Hypothesis-testing (ADJ)	0.95 ± 0.02	1.00 ± 0.00	1.00 ± 0.00
Hypothesis-testing (ADJ-PC)	0.77 ± 0.04	0.92 ± 0.03	0.92 ± 0.03

ε-Diagnosis and RCD are one-phase RCA methods, while the rest methods are two-phase RCA methods. Local-RCD denotes the RCD algorithm with localized learning. The Bayesian Inference algorithm computes the root cause scores by estimating each structural causal model. Hypothesis-testing (ADJ) denotes the hypothesis-testing algorithm with descendant adjustment. For the two-phase models, the algorithms without suffix indicate that the root cause localization algorithm use the true causal graph for model training. The algorithms with suffix "PC" indicate the causal graph is estimated via PC algorithm.

How to Contribute

We welcome the contribution from the open-source community to improve the library! Before you get started, clone this repo, run pip install pre-commit, and run pre-commit install from the root directory of the repo. This will ensure all files are formatted correctly and contain the appropriate license headers whenever you make a commit.

To add a new RCA method into the library, you may follow the steps below:

1. Create a new python script file for this RCA method in the pyrca/analyzers folder.
2. Create the configuration class inheriting from pyrca.base.BaseConfig.
3. Create the method class inheriting from pyrca.analyzers.base.BaseRCA. The constructor for the new method takes the new configuration instance as its input.
4. Implement the train function that trains or initializes the new method.
5. Implement the find_root_causes function that returns a pyrca.analyzers.base.RCAResults instance for root cause analysis results.

To add a new causal discovery method, you may follow the following steps:

1. Create a new python script file for this RCA method in the pyrca/graphs/causal folder.
2. Create the configuration class that inherits from pyrca.graphs.causal.base.CausalModelConfig.
3. Create the method class that inherits from pyrca.graphs.causal.base.CausalModel. The constructor for the new method takes the new configuration instance as its input.
4. Implement the _train function that returns the discovered casual graph. The input parameters of _train are the time series dataframe, the lists of forbidden and required links, and other additional parameters.

Contact Us

If you have any questions, comments or suggestions, please do not hesitate to contact us at [e-mail].

License

BSD 3-Clause License
