shiftlab-ocr 0.3.2

SHIFT OCR is a library for handwriting text segmentation and character recognition.

SHIFTLAB OCR

SHIFT OCR is a library for handwriting text segmentation and character recognition.

Get Started

pip install shiftlab_ocr

Doc2Text

Reader from doc2text performs text detection and the following recognition.

import urllib

from shiftlab_ocr.doc2text.reader import Reader


urllib.request.urlretrieve(
  'https://raw.githubusercontent.com/konverner/shiftlab_ocr/main/demo_image.png',
   'test.png')

reader = Reader()
result = reader.doc2text("test.png")

Display recognized text:

print(result[0])

Действительно ли добро сильнее зла?
Именно над этим вопросом аставля заставляет
читателей задуматься В. Тендряков.
Автор рассматривает данную пробле-
му на конкретном примере, рассказывая
историю 00 заблудившемся немце русских
солдатах, которые пожалели врала и
позволи ему остаться землянке.

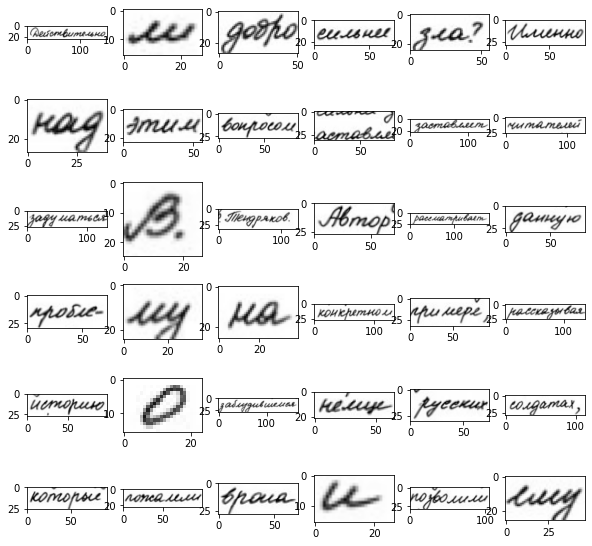

Display segmented crops:

import matplotlib.pyplot as plt

def show_img_grid(images, N):
    n = int(N**(0.5))
    k = 0
    f, axarr = plt.subplots(n,n,figsize=(10,10))
    for i in range(n):
        for j in range(n):
            axarr[i,j].imshow(images[k].img)
            k += 1
    f.show()

show_img_grid(result[1], 48)

Generator of handwriting

It generates handwriting script with random backgrounds and handwriting fonts with a given string or a list of strings saved in source.txt.

Generating a random sample from a string:

from shiftlab_ocr.generator.generator import Generator

g = Generator(lang='ru')
s = g.generate_from_string('Москва',min_length=4,max_length=24) # get from a string
s

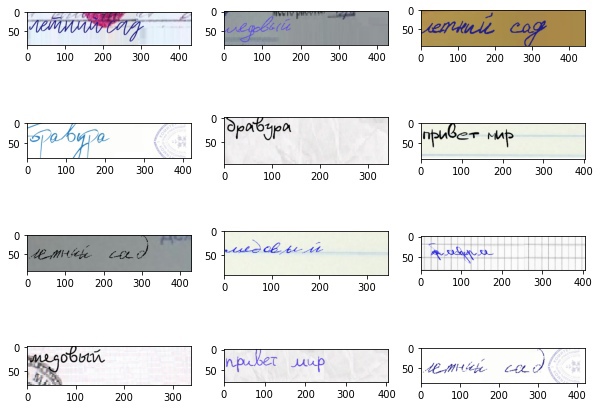

Generating batch of random samples from source.txt:

import numpy as np

# upload source.txt with one word per line
g.upload_source('source.txt')
b = g.generate_batch(12,4,13) # get batch of random samples from source.txt
fig=plt.figure(figsize=(10, 10))
rows = int(len(b)/4) + 2
columns = int(len(b)/8) + 2
for i in range(len(b)):
  fig.add_subplot(rows, columns, i+1)
  plt.imshow(np.asarray(b[i][0]))

Also, see Google Colab Demo
