showman 0.1.1

Eval & show typst code outputs inline with their source

Showman

---

Automagic tools to smooth the package documentation & development process.

• Package your files for local typst installation or PR submission in one command

• Provide your readme in typst format with code block examples, and let showman do the rest! In one command, it will the readme to markdown and render code block outputs as included images.

  • Bonus points – let showman know your repository path and it will ensure images will properly appear in your readme even after your package has been distributed through typst’s registry.

• Execute non-typst code blocks and render their outputs

Installation

Prerequisites: Make sure you have typst and pandoc available from the command line. Then, in a python virtual environment, run:

pip install showman

Converting your readme to markdown

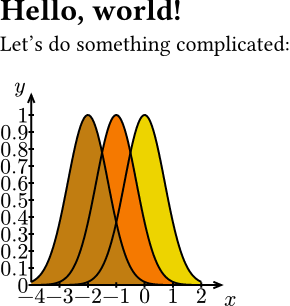

Create a typst file with ```example code blocks that show the output you want to include in your readme. For instance:

#import "@preview/cetz:0.1.2"
// Just to avoid showing this heading in the readme itself
#set heading(outlined: false)

= Hello, world!
Let's do something complicated:

#cetz.canvas({
  import cetz.plot
  import cetz.palette
  cetz.draw.set-style(axes: (tick: (length: -.05)))
  // Plot something
  plot.plot(size: (3,3), x-tick-step: 1, axis-style: "left", {
      for i in range(0, 3) {
      plot.add(domain: (-4, 2),
      x => calc.exp(-(calc.pow(x + i, 2))),
      fill: true, style: palette.tango)
    }
  })
})

Then, run the following command:

showman md <path-to-typst-file>

Congrats, you now have a readme with inline images 🎉

You can optionally specify your workspace root, output file name, image folder, etc. These options are visible under showman md --help.

Note: You can customize the appearance of these images by providing showman the template to use when creating them. In your file to be rendered, create a variable called showman-config at the outermost scope:

// Render images with a black background and red text
#let showman-config = (
  template: it => {
    set text(fill: red)
    rect(fill: black, it)
  }
)

Behind the scenes, showman imports your file as a module and looks for this variable. If it is found, your template and a few other options are injected into the example rendering process.

Note: If every example has the same setup (package imports, etc.), and you don’t want the text to be included in your examples, you can pass eval-kwargs in this config as well to specify a string that gets prefixed to every example. Alternatively, pass variables in a scope directly:

// Setup either through providing scope or import prefixes
#let my-variable = 5
#let showman-config = (
  eval-kwargs: (
    prefix: "#import \"@preview/cetz:0.1.2\"
  ),
  // Now you can use `my-var` in your examples
  scope: (my-var: my-variable)
)

Caveats

• showman uses the beautiful pandoc to do most of the markdown conversion heavy lifting. So, if your document can’t be processed by pandoc, you may need to adjust your syntax until pandoc is happy making a markdown document.

• Typst doesn’t allow page styling inside containers. Since showman must use containers to extract each rendered example, you can’t use #set page(...) or #pagebreak() inside your examples.

Rendering examples in typst

If you don’t care about converting your readme to markdown, it’s even easier to have example rendered alongside their code. Simply add the following preamble to your file:

#import "@preview/showman:0.1.0"
#show: showman.formatter.template

The code below will be rendered side by side with its output:

``` typst
= Hello world!
```
![Example 2](https://www.github.com/ntjess/showman/raw/v0.1.0/assets/example-2.png)

Several keywords can be privded to customize appearance and more. See `showman.formatter.template` for more details.

Publishing your package

You’ve done the hard work of creating a beautiful, well-documented manual. Now it’s time to share it with the world. showman can help you package your files for distribution in one command, after some minimal setup.

1. Make sure you have a typst.toml file that follows typst packaging guidelines

2. Add a new block to your toml file as follows:

[tool.packager]
paths = [...]

Where paths is a list of files and directories you want to include in your package.

3. Run the following command from the root of your repository:

showman package <path-to-toml-file>

4. Without any other arguments, you’ve just installed your package in your system’s local typst packages folder. Now you can import it with typst #import "@local/mypackage:<version>".

   • You can alternatively specify the path to your fork of typst/packages to prep your files for a PR, or specify a --namespace other than local.

Note: You can see the full list of command options with showman package --help.

Executing code

This package also executes non-typst code (currently bash on non-windows, python, and c++). You can use showman execute ./path/to/file.typ to execute code blocks in these languages, and the output will be captured in a .coderunner.json file in the root directory you specified. To enable this feature, you need to add the following preamble to your file:

#import "@preview/showman:0.1.0": runner

#let cache = json("/.coderunner.json").at("path/to/file.typ", default: (:))
#let show-rule = runner.external-code.with(result-cache: cache)

// Now, apply the show rule to languages that have a `showman execute` result:
#show raw.where(lang: "python"): show-rule

You can optionally style <example-input> and <example-output> labels to customize how input and output blocks appear. For even deeper customization, you can specify the container that displays the input and output blocks that accepts a keyword direction and positional input and output.
