skrobot 1.0.6

skrobot is a Python module for designing, running and tracking Machine Learning experiments / tasks. It is built on top of scikit-learn framework.

---

---

skrobot

What is it about?

skrobot is a Python module for designing, running and tracking Machine Learning experiments / tasks. It is built on top of scikit-learn framework.

How do I install it?

PyPI

$ pip install skrobot

Development Version

The skrobot version on PyPI may always be one step behind; you can install the latest development version from the GitHub repository by executing

$ pip install git+git://github.com/medoidai/skrobot.git

Or, you can clone the GitHub repository and install skrobot from your local drive via

$ python setup.py install

Which are the components?

NOTE : Currently, skrobot can be used only for binary classification problems. Multiclass, regression and multitarget extensions are project priorities. Also, a proper module documentation is on the making after the first public release and testing (please check below).

Functionality for the module users

Component	What is this?
Train Task	This task can be used to fit a scikit-learn estimator on some data.
Prediction Task	This task can be used to predict new data using a scikit-learn estimator.
Evaluation Cross Validation Task	This task can be used to evaluate a scikit-learn estimator on some data.
Feature Selection Cross Validation Task	This task can be used to perform feature selection with Recursive Feature Elimination using a scikit-learn estimator on some data.
Hyperparameters Search Cross Validation Task	This task can be used to search the best hyperparameters of a scikit-learn estimator on some data.
Experiment	This is used to build and run experiments. It can run tasks in the context of an experiment and glue everything together to complete a modelling pipeline.
Task Runner	This is like the Experiment component but without the "experiment" stuff. It can be used to run various tasks and glue everything together to complete a modelling pipeline.

Functionality for the module developers extending tasks or notifiers

Component	What is this?
Base Task	All tasks inherit from this component. A task is a configurable and reproducible piece of code built on top of scikit-learn that can be used in machine learning pipelines.
Base Cross Validation Task	All tasks that use cross validation functionality inherit from this component.
Base Notifier	All notifiers inherit from this component. A notifier can be used to send success / failure notifications for tasks execution.

More details on the components functionality?

Evaluation Cross Validation Task

• Cross validation runs by default and can be configured to use either stratified k-folds or custom folds

• The provided estimator is not affected and is used only as a template

• The provided estimator can be either a scikit-learn machine learning model (e.g., LogisticRegression) or a pipeline ending with an estimator

• The provided train / test dataset file paths can be either URLs or disk file paths

• The provided estimator needs to be able to predict probabilities through a predict_proba method

• The following evaluation results can be generated on-demand for hold-out test set as well as train / validation CV folds:

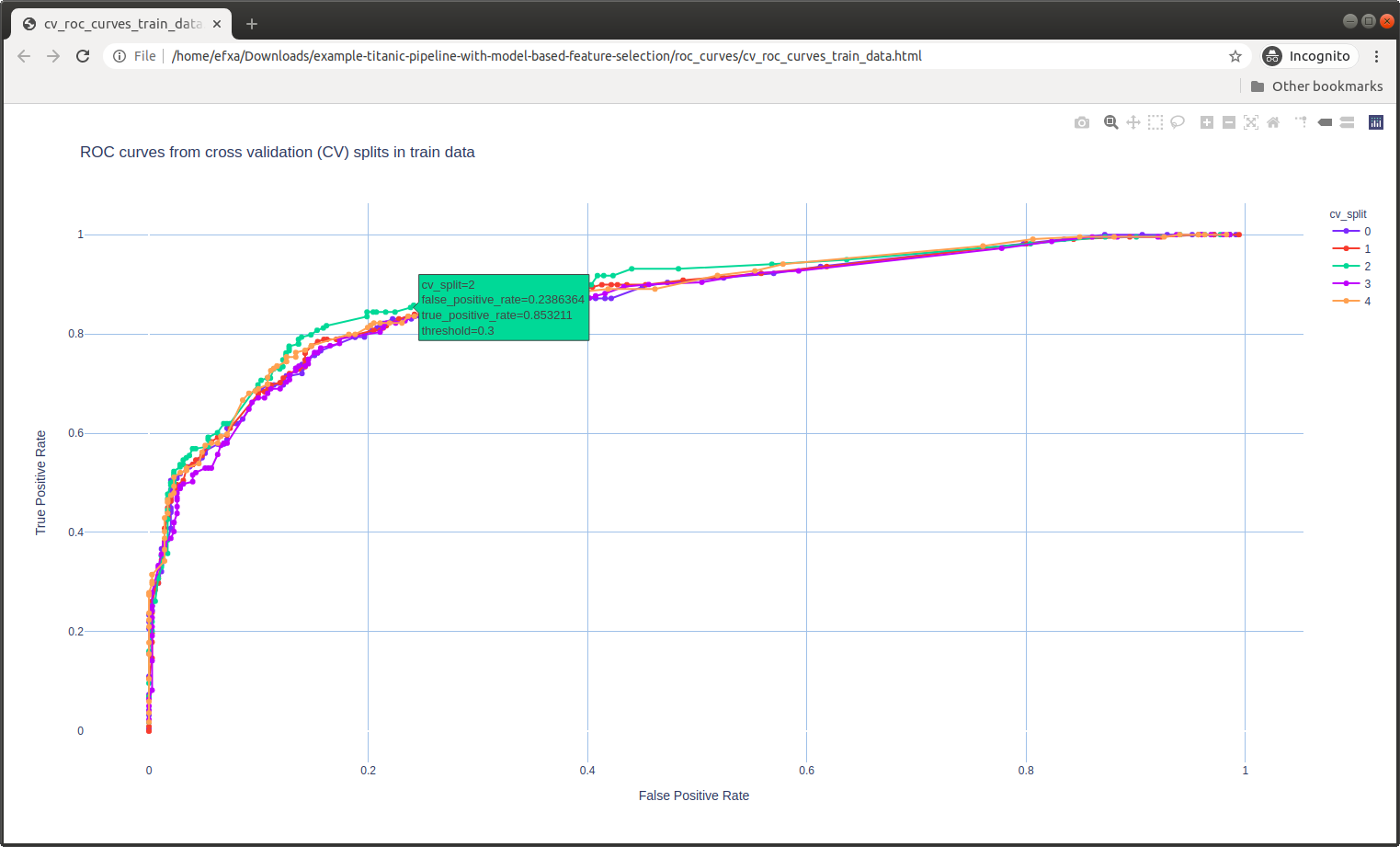

  • PR / ROC Curves
  • Confusion Matrixes

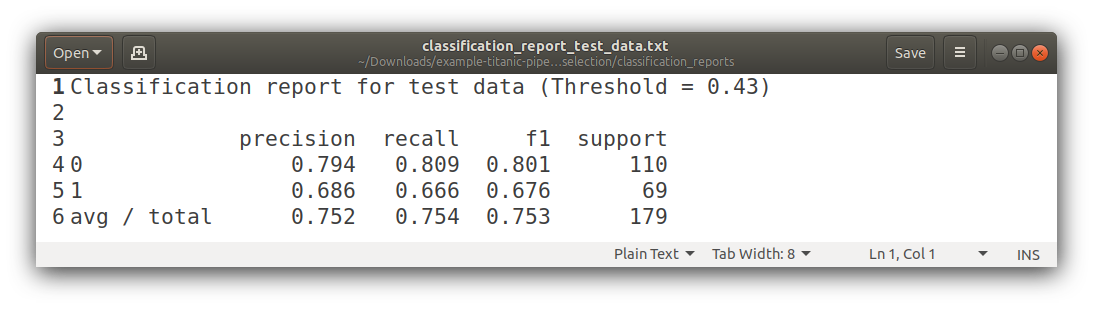

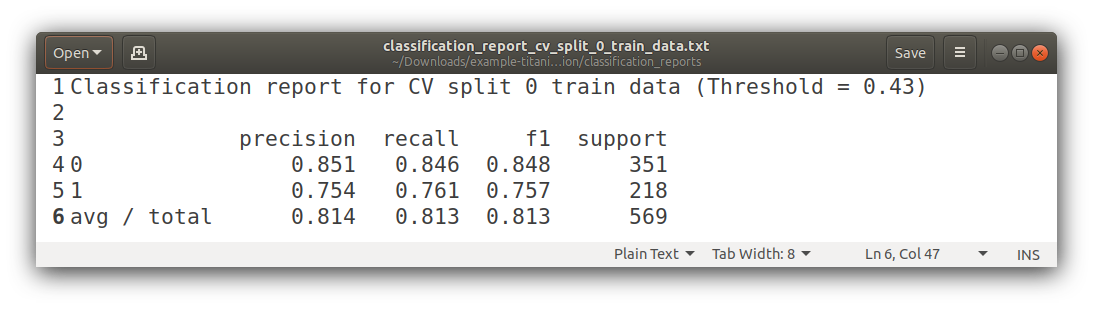

  • Classification Reports
  • Performance Metrics

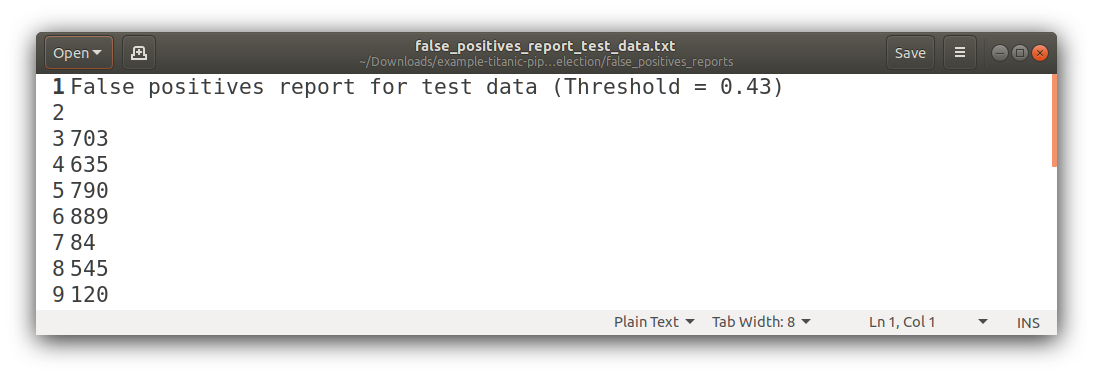

  • False Positives
  • False Negatives

• The evaluation results can be generated either for a specific provided threshold or for the best threshold found from threshold tuning (based on a specific provided metric)

• The threshold used along with its related performance metrics and summary metrics from all CV splits as well as hold-out test set are returned as a result

Feature Selection Cross Validation Task

• Cross validation runs by default and can be configured to use either stratified k-folds or custom folds

• The provided estimator can be either a scikit-learn machine learning model (e.g., LogisticRegression) or a pipeline ending with an estimator

• The provided train dataset file path can be either a URL or a disk file path

• The provided estimator needs to provide feature importances through either a coef_ or a feature_importances_ attribute

• Along with the provided estimator a preprocessor can also be provided to preprocess the data before feature selection runs

• The provided estimator and preprocessor are not affected and are used only as templates

• The selected features can be either column names (from the original data) or column indexes (from the preprocessed data) depending on whether a preprocessor was used or not

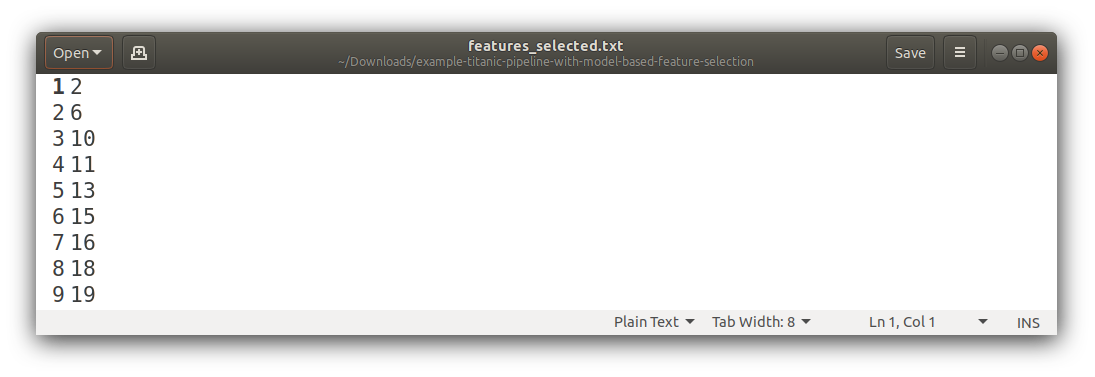

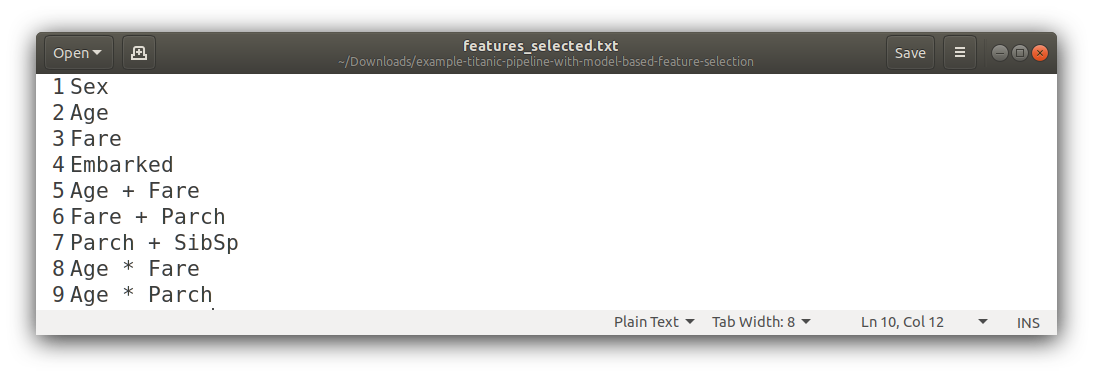

• The selected features are stored in a text file and also returned as a result

Train Task

• The provided estimator is not affected and is used only as a template

• The provided estimator can be either a scikit-learn machine learning model (e.g., LogisticRegression) or a pipeline ending with an estimator

• The provided train dataset file path can be either a URL or a disk file path

• The fitted estimator is stored as a pickle file and also returned as a result

Prediction Task

• The provided estimator can be either a scikit-learn machine learning model (e.g., LogisticRegression) or a pipeline ending with an estimator

• The provided dataset file path can be either a URL or a disk file path

• The predictions are stored in a CSV file and also returned as a result

• The provided estimator needs to be able to predict probabilities through a predict_proba method

• The predictions can be generated either for a specific provided threshold or for the 0.5 default one

Hyperparameters Search Cross Validation Task

• Cross validation runs by default and can be configured to use either stratified k-folds or custom folds

• The provided estimator is not affected and is used only as a template

• The provided estimator can be either a scikit-learn machine learning model (e.g., LogisticRegression) or a pipeline ending with an estimator

• The provided train dataset file path can be either a URL or a disk file path

• The search can be either randomized or grid-based

• The search results as well as the best estimator found with its related hyperparameters and score are returned as a result

• The search results are stored in a file as a static HTML table

Experiment

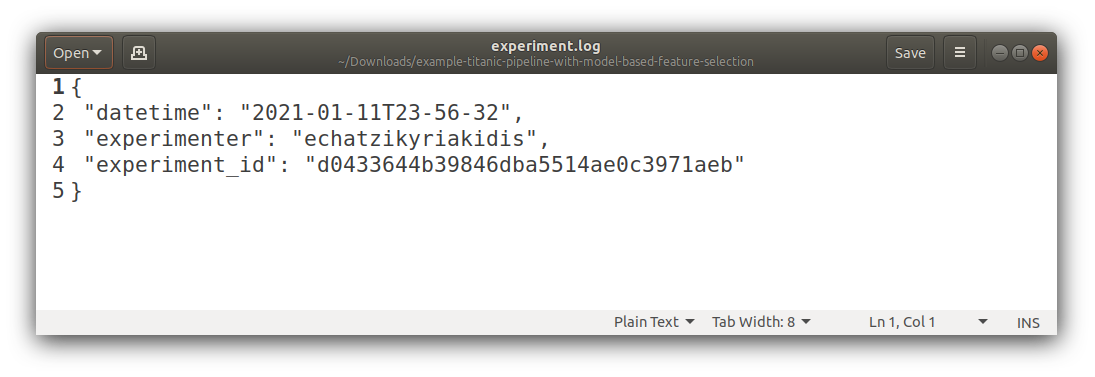

• Each experiment when it runs it leaves in a unique directory a footprint of metadata files (experiment source code, experiment ID, experiment date/time, experimenter name, experiment default / overwritten parameters in JSON format)

• Notifications can be send after running a task, through an easy to implement API (it can be useful for teams who need to get notified for the progress of the experiment)

• In case of error when running a task, a text file will be generated with the related error

Task Runner

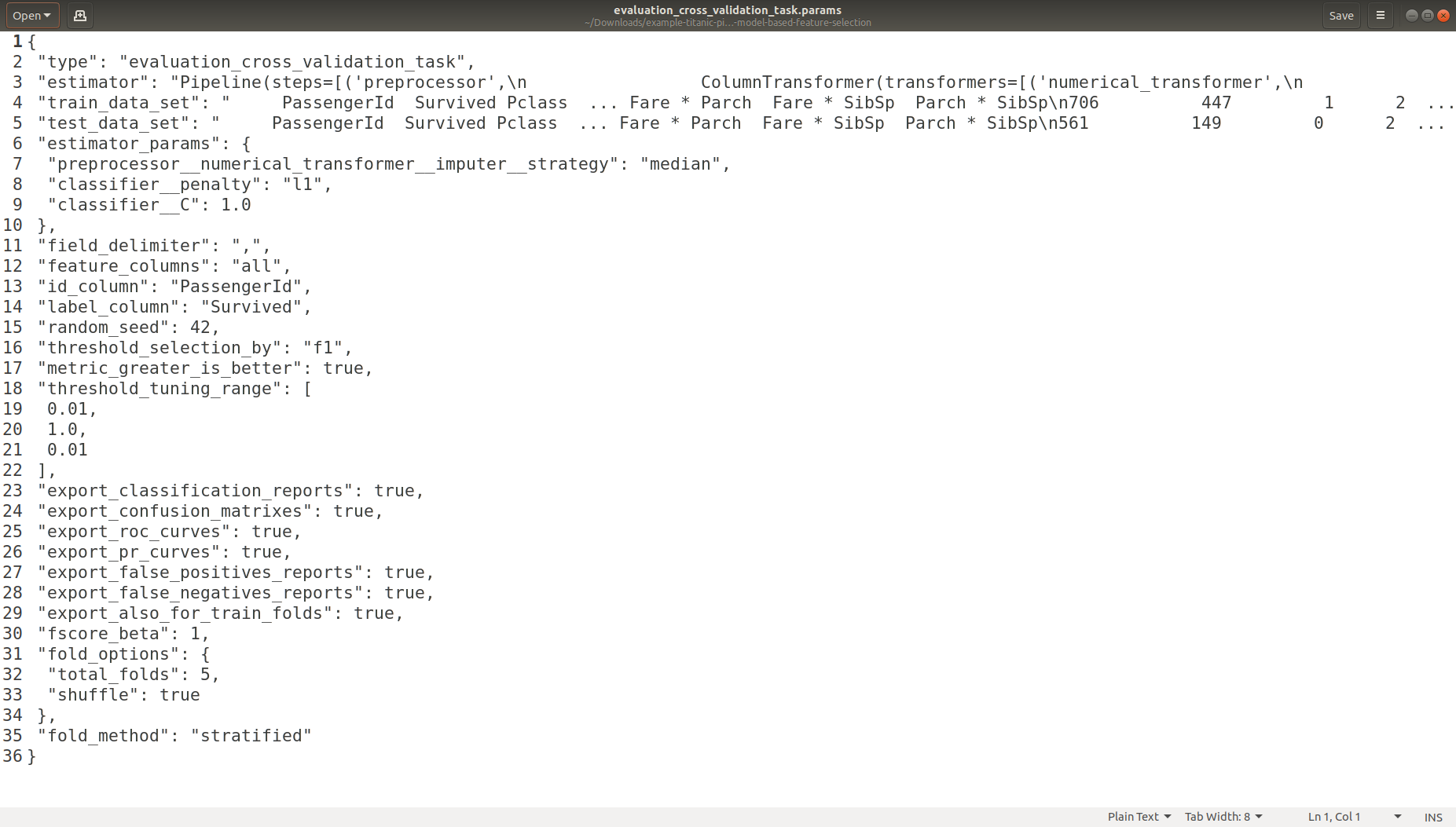

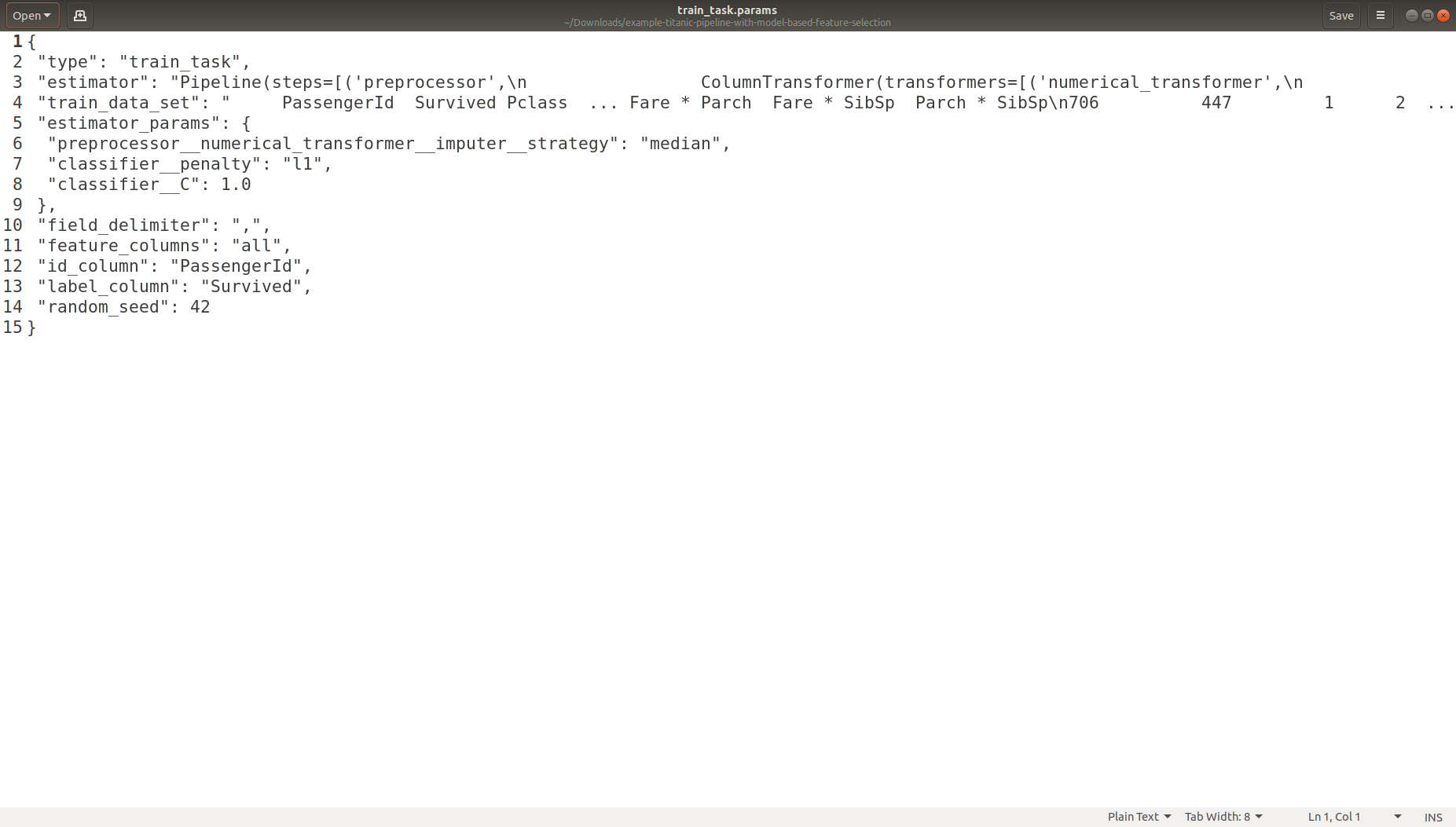

• It runs the provided tasks and saves in a file the default / overwritten parameters in JSON format

• In case of error when running a task, a text file will be generated with the related error

Why does it exists?

It can help Data Scientists and Machine Learning Engineers:

• to keep track of modelling experiments / tasks

• to automate the repetitive (and boring) stuff when designing modelling pipelines

• to spend more time on the things that truly matter when solving a problem

The people behind it

Development:

• Efstathios Chatzikyriakidis

Support, testing and features recommendation:

• Lefteris Kouloubris
• Antonis Markou
• Christina Chrysouli

Next Priorities?

• Write documentation (e.g., Read the Docs) for the module!

• Add support in the module for multiclass, regression and multitarget problems

• Build some notifiers (e.g., Slack, Trello and Discord)

• Add Bayesian hyperparameter tuning support

Can I contribute?

Of course, the project is Free Software and you can contribute to it!

What license do you use?

See our license (LICENSE.txt) for more details.

How do I use it?

Many examples can be found in the examples directory.

Below, are some examples that use many of skrobot's components to built a machine learning modelling pipeline. Please try them and we would love to have your feedback!

Example on Titanic Dataset (auto-generated results)

from sklearn.compose import ColumnTransformer
from sklearn.pipeline import Pipeline
from sklearn.impute import SimpleImputer
from sklearn.preprocessing import StandardScaler, OneHotEncoder
from sklearn.linear_model import LogisticRegression

from skrobot.core import Experiment
from skrobot.tasks import TrainTask
from skrobot.tasks import PredictionTask
from skrobot.tasks import FeatureSelectionCrossValidationTask
from skrobot.tasks import EvaluationCrossValidationTask
from skrobot.tasks import HyperParametersSearchCrossValidationTask
from skrobot.feature_selection import ColumnSelector
from skrobot.notification import BaseNotifier

######### Initialization Code

train_data_set_file_path = 'https://bit.ly/titanic-data-train'

test_data_set_file_path = 'https://bit.ly/titanic-data-test'

new_data_set_file_path = 'https://bit.ly/titanic-data-new'

random_seed = 42

id_column = 'PassengerId'

label_column = 'Survived'

numerical_features = ['Age', 'Fare', 'SibSp', 'Parch']

categorical_features = ['Embarked', 'Sex', 'Pclass']

numeric_transformer = Pipeline(steps=[
    ('imputer', SimpleImputer()),
    ('scaler', StandardScaler())])

categorical_transformer = Pipeline(steps=[
    ('imputer', SimpleImputer(strategy='most_frequent')),
    ('encoder', OneHotEncoder(handle_unknown='ignore'))])

preprocessor = ColumnTransformer(transformers=[
    ('numerical_transformer', numeric_transformer, numerical_features),
    ('categorical_transformer', categorical_transformer, categorical_features)])

classifier = LogisticRegression(solver='liblinear', random_state=random_seed)

search_params = {
    "classifier__C" : [ 1.e-01, 1.e+00, 1.e+01 ],
    "classifier__penalty" : [ "l1", "l2" ],
    "preprocessor__numerical_transformer__imputer__strategy" : [ "mean", "median" ]
}

######### skrobot Code

# Define a Notifier (This is optional and you can implement any notifier you want, e.g. for Slack / Trello / Discord)
class ConsoleNotifier(BaseNotifier):
    def notify (self, message):
        print(message)

# Build an Experiment
experiment = Experiment('experiments-output').set_source_code_file_path(__file__).set_experimenter('echatzikyriakidis').set_notifier(ConsoleNotifier()).build()

# Run Feature Selection Task
features_columns = experiment.run(FeatureSelectionCrossValidationTask (estimator=classifier,
                                                                       train_data_set_file_path=train_data_set_file_path,
                                                                       preprocessor=preprocessor,
                                                                       min_features_to_select=4,
                                                                       id_column=id_column,
                                                                       label_column=label_column,
                                                                       random_seed=random_seed).stratified_folds(total_folds=5, shuffle=True))

pipe = Pipeline(steps=[('preprocessor', preprocessor),
                       ('selector', ColumnSelector(cols=features_columns)),
                       ('classifier', classifier)])

# Run Hyperparameters Search Task
hyperparameters_search_results = experiment.run(HyperParametersSearchCrossValidationTask (estimator=pipe,
                                                                                          search_params=search_params,
                                                                                          train_data_set_file_path=train_data_set_file_path,
                                                                                          id_column=id_column,
                                                                                          label_column=label_column,
                                                                                          random_seed=random_seed).random_search(n_iters=100).stratified_folds(total_folds=5, shuffle=True))

# Run Evaluation Task
evaluation_results = experiment.run(EvaluationCrossValidationTask(estimator=pipe,
                                                                  estimator_params=hyperparameters_search_results['best_params'],
                                                                  train_data_set_file_path=train_data_set_file_path,
                                                                  test_data_set_file_path=test_data_set_file_path,
                                                                  id_column=id_column,
                                                                  label_column=label_column,
                                                                  random_seed=random_seed,
                                                                  export_classification_reports=True,
                                                                  export_confusion_matrixes=True,
                                                                  export_pr_curves=True,
                                                                  export_roc_curves=True,
                                                                  export_false_positives_reports=True,
                                                                  export_false_negatives_reports=True,
                                                                  export_also_for_train_folds=True).stratified_folds(total_folds=5, shuffle=True))

# Run Train Task
train_results = experiment.run(TrainTask(estimator=pipe,
                                         estimator_params=hyperparameters_search_results['best_params'],
                                         train_data_set_file_path=train_data_set_file_path,
                                         id_column=id_column,
                                         label_column=label_column,
                                         random_seed=random_seed))

# Run Prediction Task
predictions = experiment.run(PredictionTask(estimator=train_results['estimator'],
                                            data_set_file_path=new_data_set_file_path,
                                            id_column=id_column,
                                            prediction_column=label_column,
                                            threshold=evaluation_results['threshold']))

# Print in-memory results
print(features_columns)

print(hyperparameters_search_results['best_params'])
print(hyperparameters_search_results['best_index'])
print(hyperparameters_search_results['best_estimator'])
print(hyperparameters_search_results['best_score'])
print(hyperparameters_search_results['search_results'])

print(evaluation_results['threshold'])
print(evaluation_results['cv_threshold_metrics'])

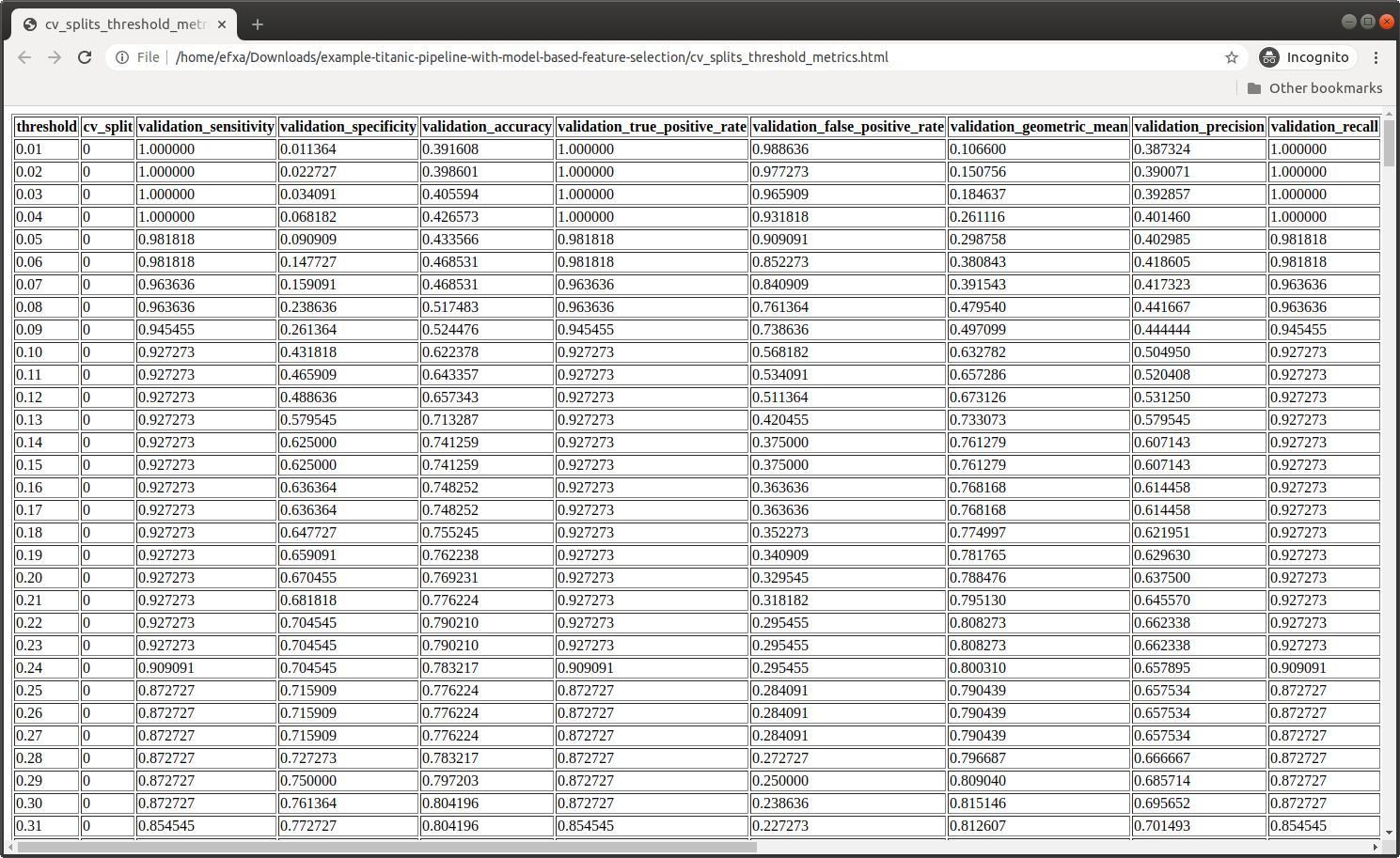

print(evaluation_results['cv_splits_threshold_metrics'])
print(evaluation_results['cv_splits_threshold_metrics_summary'])

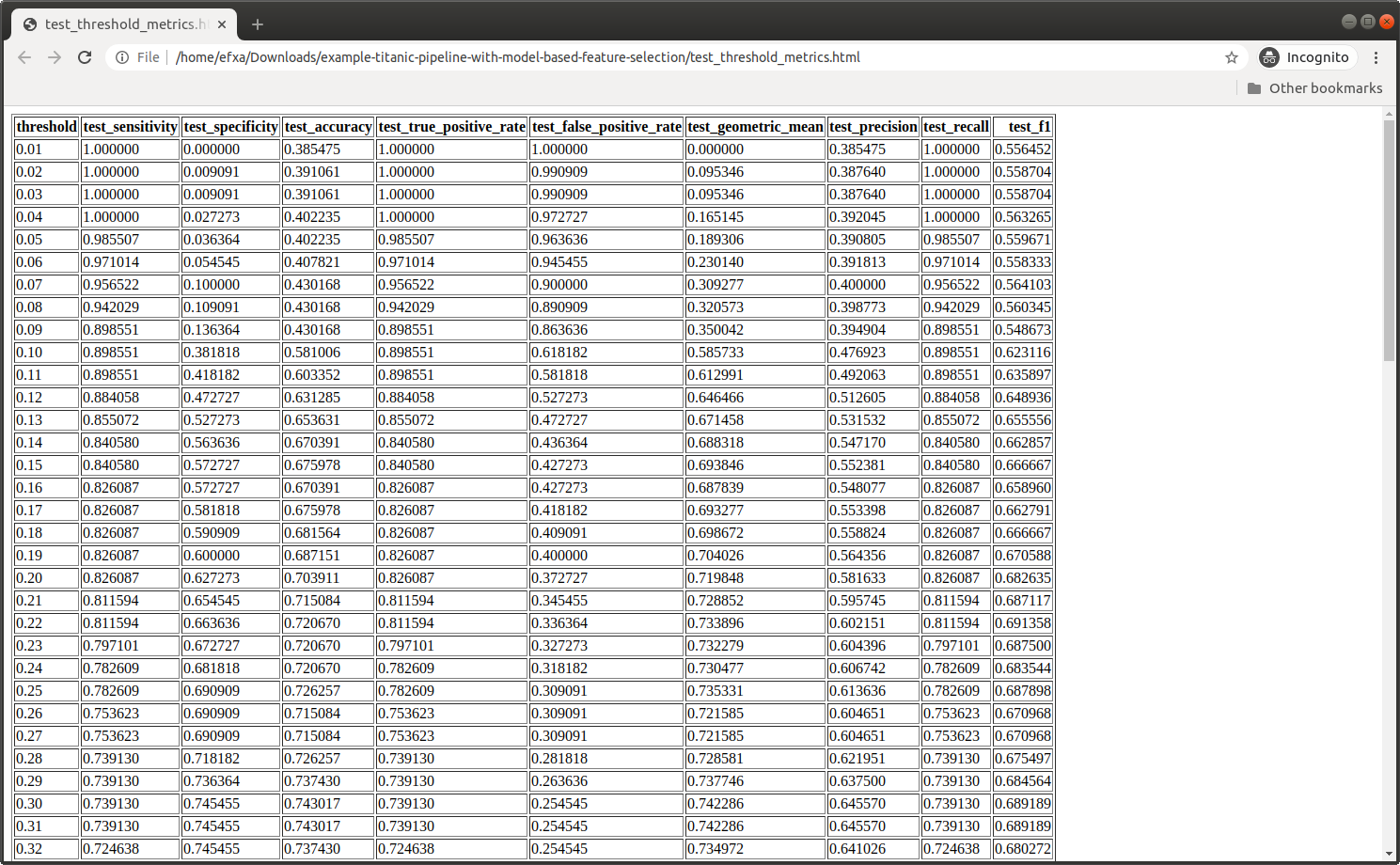

print(evaluation_results['test_threshold_metrics'])

print(train_results['estimator'])

print(predictions)

Example on SMS Spam Collection Dataset (auto-generated results)

from sklearn.pipeline import Pipeline
from sklearn.feature_extraction.text import CountVectorizer, TfidfTransformer
from sklearn.feature_selection import SelectPercentile, chi2
from sklearn.linear_model import SGDClassifier

from skrobot.core import Experiment
from skrobot.tasks import TrainTask
from skrobot.tasks import PredictionTask
from skrobot.tasks import EvaluationCrossValidationTask
from skrobot.tasks import HyperParametersSearchCrossValidationTask
from skrobot.feature_selection import ColumnSelector

######### Initialization Code

train_data_set_file_path = 'https://bit.ly/sms-spam-ham-data-train'

test_data_set_file_path = 'https://bit.ly/sms-spam-ham-data-test'

new_data_set_file_path = 'https://bit.ly/sms-spam-ham-data-new'

field_delimiter = '\t'

random_seed = 42

pipe = Pipeline(steps=[
    ('column_selection', ColumnSelector(cols=['message'], drop_axis=True)),
    ('vectorizer', CountVectorizer()),
    ('tfidf', TfidfTransformer()),
    ('feature_selection', SelectPercentile(chi2)),
    ('classifier', SGDClassifier(loss='log'))])

search_params = {
    'classifier__max_iter': [ 20, 50, 80 ],
    'classifier__alpha': [ 0.00001, 0.000001 ],
    'classifier__penalty': [ 'l2', 'elasticnet' ],
    "vectorizer__stop_words" : [ "english", None ],
    "vectorizer__ngram_range" : [ (1, 1), (1, 2) ],
    "vectorizer__max_df": [ 0.5, 0.75, 1.0 ],
    "tfidf__use_idf" : [ True, False ],
    "tfidf__norm" : [ 'l1', 'l2' ],
    "feature_selection__percentile" : [ 70, 60, 50 ]
}

######### skrobot Code

# Build an Experiment
experiment = Experiment('experiments-output').set_source_code_file_path(__file__).set_experimenter('echatzikyriakidis').build()

# Run Hyperparameters Search Task
hyperparameters_search_results = experiment.run(HyperParametersSearchCrossValidationTask (estimator=pipe,
                                                                                          search_params=search_params,
                                                                                          train_data_set_file_path=train_data_set_file_path,
                                                                                          field_delimiter=field_delimiter,
                                                                                          random_seed=random_seed).random_search().stratified_folds(total_folds=5, shuffle=True))

# Run Evaluation Task
evaluation_results = experiment.run(EvaluationCrossValidationTask(estimator=pipe,
                                                                  estimator_params=hyperparameters_search_results['best_params'],
                                                                  train_data_set_file_path=train_data_set_file_path,
                                                                  test_data_set_file_path=test_data_set_file_path,
                                                                  field_delimiter=field_delimiter,
                                                                  random_seed=random_seed,
                                                                  export_classification_reports=True,
                                                                  export_confusion_matrixes=True,
                                                                  export_pr_curves=True,
                                                                  export_roc_curves=True,
                                                                  export_false_positives_reports=True,
                                                                  export_false_negatives_reports=True,
                                                                  export_also_for_train_folds=True).stratified_folds(total_folds=5, shuffle=True))

# Run Train Task
train_results = experiment.run(TrainTask(estimator=pipe,
                                         estimator_params=hyperparameters_search_results['best_params'],
                                         train_data_set_file_path=train_data_set_file_path,
                                         field_delimiter=field_delimiter,
                                         random_seed=random_seed))

# Run Prediction Task
predictions = experiment.run(PredictionTask(estimator=train_results['estimator'],
                                            data_set_file_path=new_data_set_file_path,
                                            field_delimiter=field_delimiter,
                                            threshold=evaluation_results['threshold']))

# Print in-memory results
print(hyperparameters_search_results['best_params'])
print(hyperparameters_search_results['best_index'])
print(hyperparameters_search_results['best_estimator'])
print(hyperparameters_search_results['best_score'])
print(hyperparameters_search_results['search_results'])

print(evaluation_results['threshold'])
print(evaluation_results['cv_threshold_metrics'])
print(evaluation_results['cv_splits_threshold_metrics'])
print(evaluation_results['cv_splits_threshold_metrics_summary'])
print(evaluation_results['test_threshold_metrics'])

print(train_results['estimator'])

print(predictions)

Sample of auto-generated results

Classification Reports

Confusion Matrixes

False Negatives

False Positives

PR Curves

ROC Curves

Performance Metrics

On train / validation CV folds:

On hold-out test set:

Hyperparameters Search Results

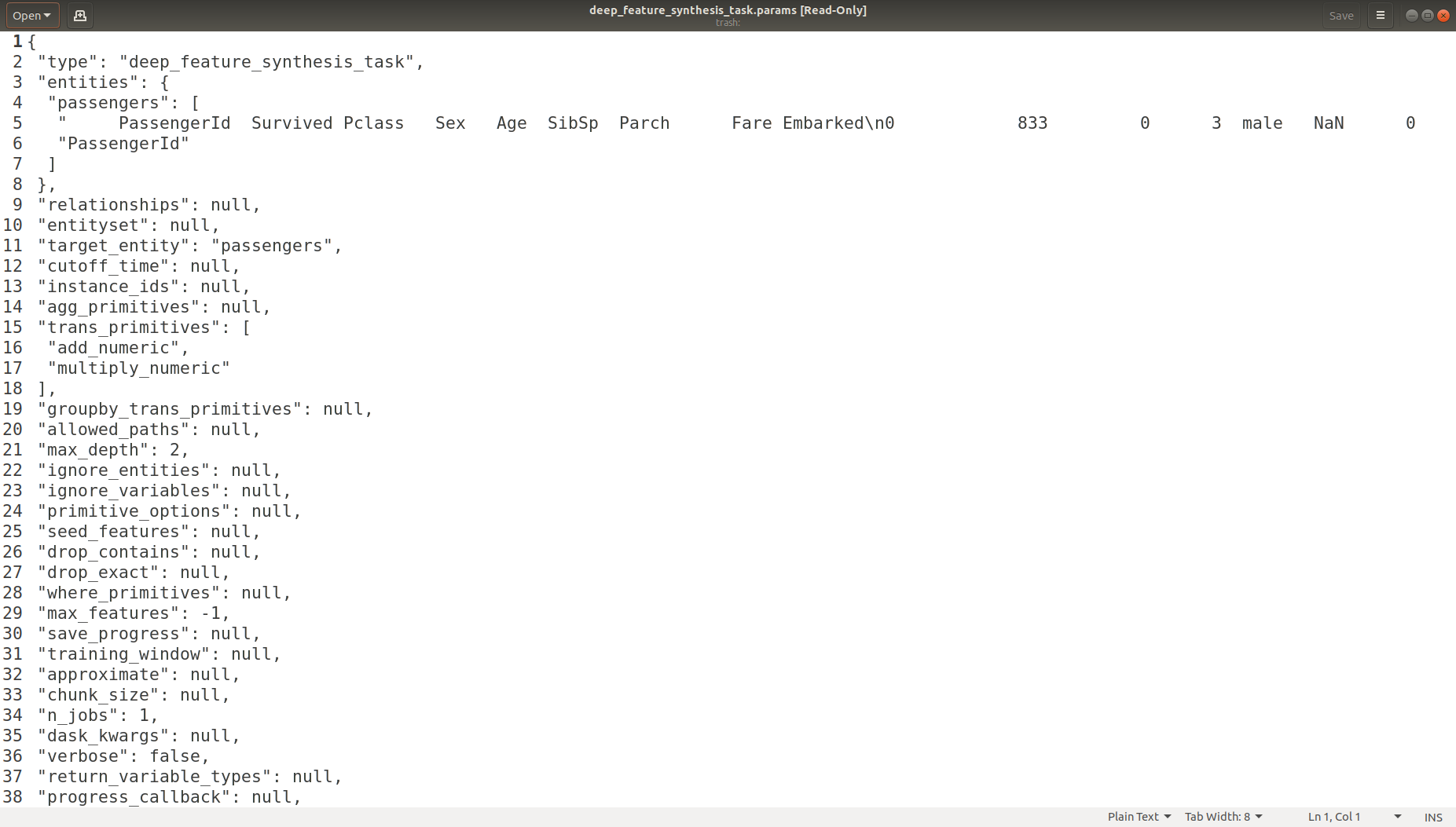

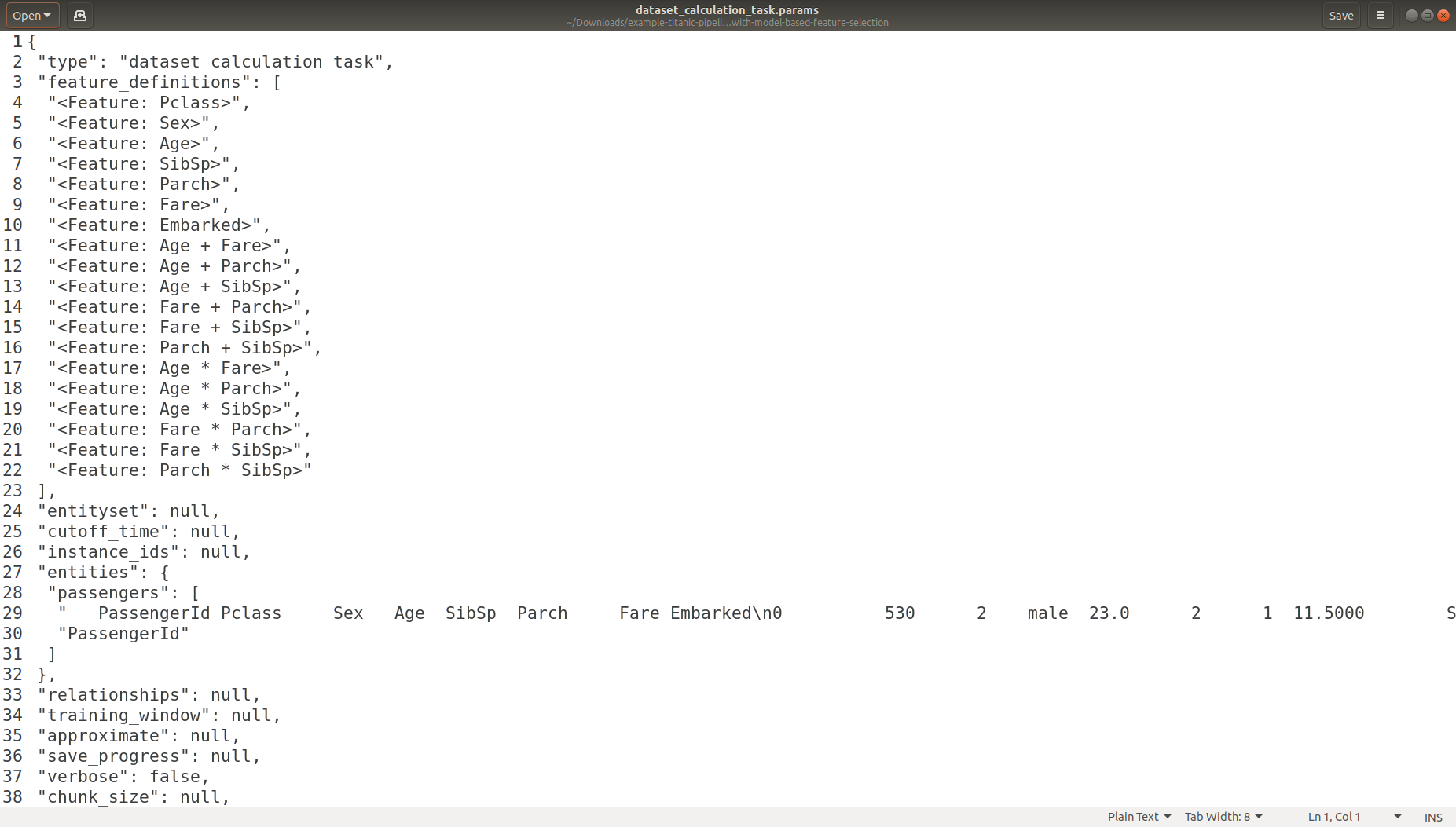

Task Parameters Logging

Experiment Logging

Features Selected

The selected column indexes from the transformed features (this is generated when a preprocessor is used):

The selected column names from the original features (this is generated when no preprocessor is used):

Expreriment Source Code

Predictions

Thank you!
