skyciv 2.3.1

A simplified way to use the SkyCiv API with Python.

The SkyCiv Pip Package

This package provides helpful tools to create objects and interact with the SkyCiv API. These components can be used to quickly construct models by providing code completion, parameter information and examples.

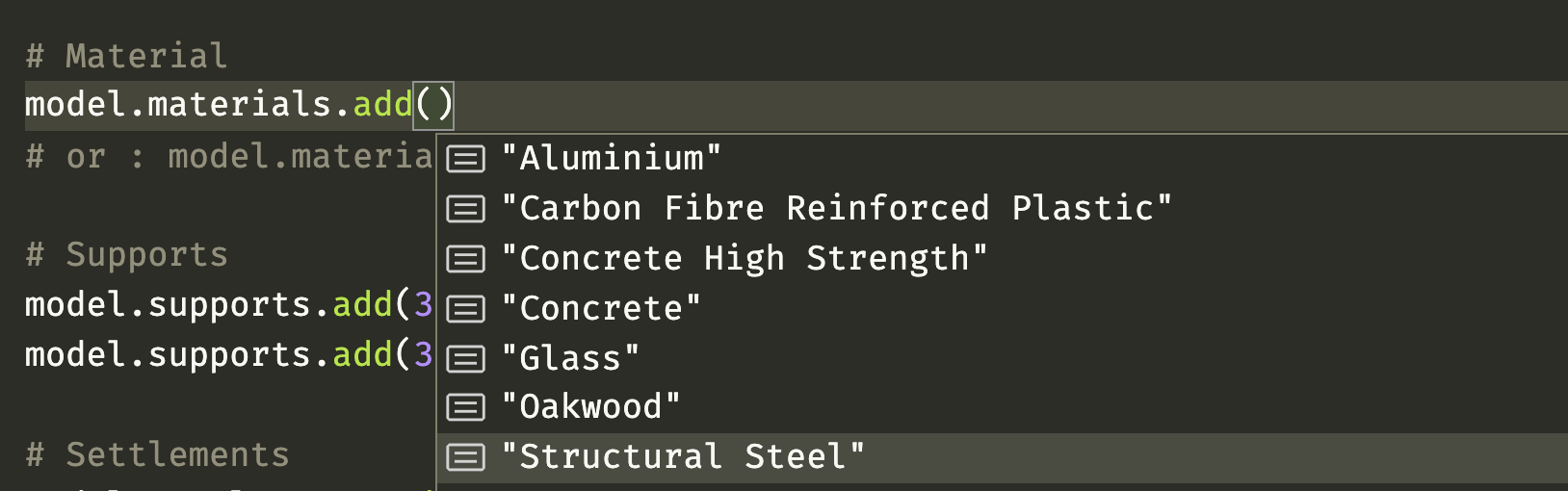

Note: We strongly recommend using VSCode and the Pylance plugin for VSCode. Pylance is still in preview mode and requires some polishing however, it will help provide intellisense options as seen in the image below.

---

Documentation

The SkyCiv API documentation can be found here: https://skyciv.com/api/v3/

The Python Pip package documentation is a work in progress but for now, you can refer to the JavaScript package docs which are not exactly the same but very similar. The main difference being that methods use snake_case in python rather than camelCase in JavaScript.

For example, sections.loadCustomFromLibrary() in the NPM package would translate to sections.load_custom_from_library() for the Pip package.

---

Install

pip3 install skyciv

---

Example

The recommended use of this package is by using the Model() and ApiObject() classes.

import skyciv

# Create an instance of the Model class
model = skyciv.Model("metric")

# Nodes
model.nodes.add(0, 0, 0)
model.nodes.add(0, 0.5, 0)
model.nodes.add(0, 1, 0)
model.nodes.add(0.5, 1, 0)
model.nodes.add(0.5, 0.5, 0)
model.nodes.add(1, 0.6, 0)
model.nodes.add(1, 0.1, 0)
model.nodes.add(1.5, 0.1, 0)
model.nodes.add(1.5, 0.6, 0)
model.nodes.add(1.5, 0, 0)
model.nodes.add(1.5, -0.4, 0)
model.nodes.add(1, -0.6, 0)
model.nodes.add(2, 0, 0)
model.nodes.add(2, 0.7, 0)
model.nodes.add(2, 1, 0)
model.nodes.add(1.7, 0.7, 0)
model.nodes.add(2.3, 0.7, 0)
model.nodes.add(2.5, 1, 0)
model.nodes.add(2.5, 0.5, 0)
model.nodes.add(2.5, 0, 0)
model.nodes.add(3, 0.5, 0)
model.nodes.add(3, 0, 0)
model.nodes.add(3.3, 0.5, 0)
model.nodes.add(3.3, 0.14, 0)
model.nodes.add(3.7, 0.14, 0)
model.nodes.add(3.7, 0.5, 0)
model.nodes.add(4, 0.5, 0)
model.nodes.add(4, 0.4, 0)
model.nodes.add(4, 0, 0)
model.nodes.add(4.5, 0.5, 0)
model.nodes.add(4.5, 0, 0)
model.nodes.add(-0.5, 0, 0)
model.nodes.add(3.3, 0, 0)
model.nodes.add(3.7, 0, 0)
model.nodes.add(4.9, 0, 0)

# Members
model.members.add(1, 2, 1)
model.members.add(2, 3, 1)
model.members.add(3, 4, 1)
model.members.add(4, 5, 1)
model.members.add(5, 2, 1)
model.members.add(6, 7, 1)
model.members.add(7, 8, 1)
model.members.add(8, 9, 1)
model.members.add(8, 10, 1)
model.members.add(10, 11, 1)
model.members.add(11, 12, 1)
model.members.add(15, 14, 1)
model.members.add(14, 13, 1)
model.members.add(16, 14, 1)
model.members.add(14, 17, 1)
model.members.add(18, 19, 1)
model.members.add(19, 20, 1)
model.members.add(19, 21, 1)
model.members.add(21, 22, 1)
model.members.add(24, 25, 1)
model.members.add(25, 26, 1)
model.members.add(26, 23, 1)
model.members.add(23, 24, 1)
model.members.add(27, 28, 1)
model.members.add(28, 29, 1)
model.members.add(28, 30, 1)
model.members.add(30, 31, 1)
model.members.add(32, 1, 2)
model.members.add(1, 10, 2)
model.members.add(10, 13, 2)
model.members.add(13, 20, 2)
model.members.add(20, 22, 2)
model.members.add(22, 33, 2)
model.members.add(33, 34, 2)
model.members.add(34, 29, 2)
model.members.add(29, 31, 2)
model.members.add(31, 35, 2)
model.members.add(24, 33, None, "FFFfff", "FFFfff", "rigid")
model.members.add(25, 34, None, "FFFfff", "FFFfff", "rigid")

# Plates
model.plates.add([5, 4, 3, 2], 12, 1, is_meshed=True)

# Meshed plate
model.meshed_plates.add(1, 5, 4, 3, 2)

# Sections
model.sections.add_library_section(
    skyciv.sections.Australian_Steel_300_Grade_CHS_Grade_350_101_6x3_2_CHS, 1)
model.sections.add_library_section(
    skyciv.sections.Australian_Steel_300_Grade_Universal_beams_150_UB_14_0, 1)

# Material
model.materials.add("Structural Steel")  # For metric
# model.materials.add("Structural Steel", "imperial") # For imperial
# model.materials.add("Structural Steel", model.settings.units.get_unit_system())  # For the model's current units
# model.materials.addCustom("Custom Steel", 7850, 210000, 0.29, 300, 440, "steel") # For custom material

# Supports
model.supports.add(32, "FFFFRR")
model.supports.add(35, "FFFFRR")

# Settlements
model.settlements.add(35, ty=-10)

# Add point load
model.point_loads.add("m", member=3, position=30.4, y_mag=-5, load_group="LG1")
model.point_loads.add("n", node=13, y_mag=1.6, load_group="LG1")
model.point_loads.add("n", node=12, y_mag=-3.7, load_group="LG1")

# Add moment
model.moments.add("n", node=12, y_mag=0.3, load_group="LG1")
model.moments.add("m", member=16, position=0, x_mag=-0.1, load_group="LG1")

# Add distributed load
model.distributed_loads.add(32, y_mag_A=-10, y_mag_B=-2, position_B=100, load_group="LG1")

# Pressure
model.pressures.add(1, "global", 0, 0, 0.1, "LG1")

# Area load
model.area_loads.add("one_way", [23, 24, 25, 26], 1.3, "Z", column_direction=[23, 26], LG="LG1")

# Selfweight
model.self_weight.add(y=-1, LG="SW1")

# Make a load combination
model.load_combinations.add("SW1 + LG1", {"SW1": 1, "LG1": 1})

# Create an API Object
ao = skyciv.ApiObject()

# Set auth
ao.auth.username = "YOUR_SKYCIV_USERNAME"
ao.auth.key = "YOUR_SKYCIV_API_KEY"

# Set functions
ao.functions.add("S3D.session.start", {"keep_open": True})
ao.functions.add("S3D.model.set", {"s3d_model": model})
# Uncomment the next line to run a solve as well.
# ao.functions.add("S3D.model.solve", {"analysis_type": "linear"})
ao.functions.add("S3D.file.save", {"name": "package-debut", "path": "api/PIP/"})

res = ao.request()

print(res["response"])

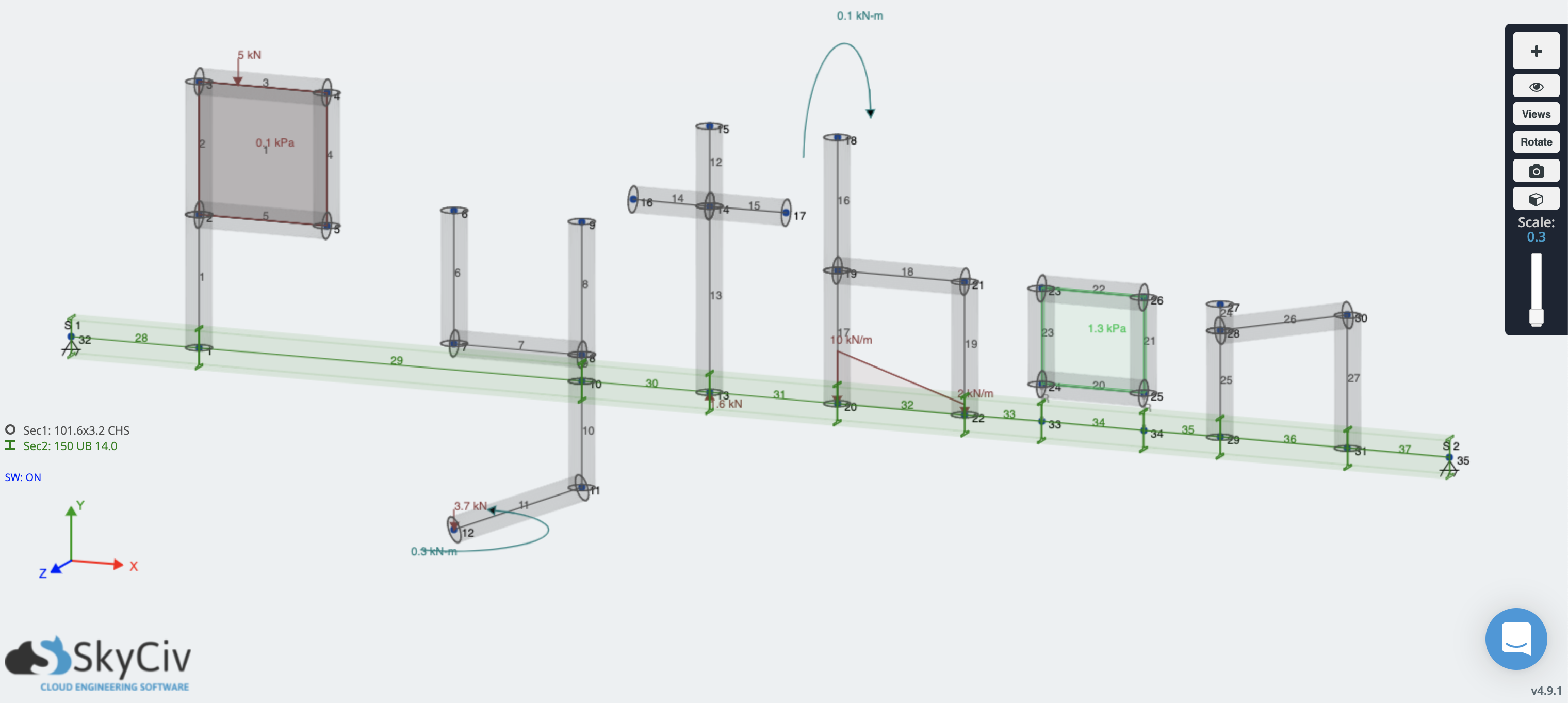

Now, we can even view the model in S3D.

---

Sections Database

Section library paths for all sections can be found in the skyciv.sections object.

For example:

By typing something like this: skyciv.sections.aus300150ub.

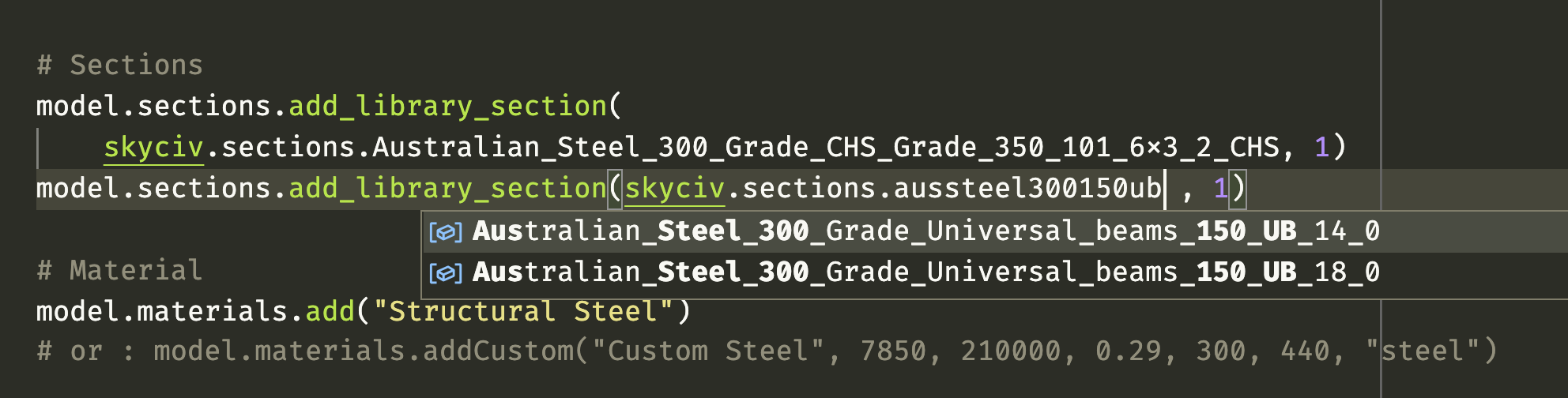

Intellisense will offer the closest sections which you can select with autocompletion. Resulting in the path shown below.

path = skyciv.sections.Australian_Steel_300_Grade_Universal_beams_150_UB_14_0

# path is now equal to:
["Australian", "Steel (300 Grade)", "Universal beams", "150 UB 14.0"]

Although it does not look great, this way, auto completion will ensure the string arrays are correct.

---

Global Methods

skyciv.request(api_object, options?)

Make a request to the SkyCiv API.

skyciv_response = skyciv.request(api_object, options)
# Do something with the response

Options (optional dictionary)

• version - 2 | 3 (Defaults to 3)
• http_or_https - http | https (Defaults to https)

options = {
    "http_or_https": "http",
    "version": 3,
}

---

Manually building the API Object

Visit the API docs for instructions on how to create an instance of the SkyCiv API object.

---

Changelog

Version	Breaking	Description
2.3.1	false	Added s3d_name to add_custom_section.
2.2.0	false	Added member rotation angle to members.add().
2.1.0	false	Fixed usage of hasAttr() in model collection component.
2.0.4	false	Fixed dependency issue affecting Python 3.7 It should fix the error TypeError: 'type' object is not subscriptable and the error cannot import name 'Literal' from 'typing'.
2.0.3	false	Fixed packaging bug.
2.0.0	Breaks model.plates.	• Plates can now have additional attributes: diaphragm, membrane_thickness, bending_thickness, shear_thickness, holes. This may misalign inputs of existing plates. • plate.type now defaults to "auto".
1.2.0	false	• Materials.add() method now takes a second parameter for units. See sample above.
1.1.3	Breaks model.self_weight.	• Model().set method now can now accept a downloaded JSON model from platform.skyciv.com/structural. • Fixed self_weight data structure. • Functions and Function class now defaults args to an empty object.
1.1.2	false	• Typos. • Improved in-code docs. • Fixed Canadian bridging channel lookup in skyciv.sections. • The request() method of the ApiObject() will now automatically store the last_session_id to the auth.session_id property of the ApiObject instance.
1.1.1	false	• README.md patch.
1.1.0	false	• Added 37 new classes including the ApiObject() and Model() classes.
1.0.4	false	• Package will now only use dumps on input if api_object is not a string.
1.0.3	false	• Fixed options dictionary to be optional.
1.0.2	false	• Updated readme.
1.0.1	false	• Changed skyciv.request(). to print msg if SkyCiv returns error rather than throw an exception.
1.0.0	-	Initial release.
