solox 2.8.9

SoloX - Real-time collection tool for Android/iOS performance data.

English | 中文 | FAQ | 使用文档

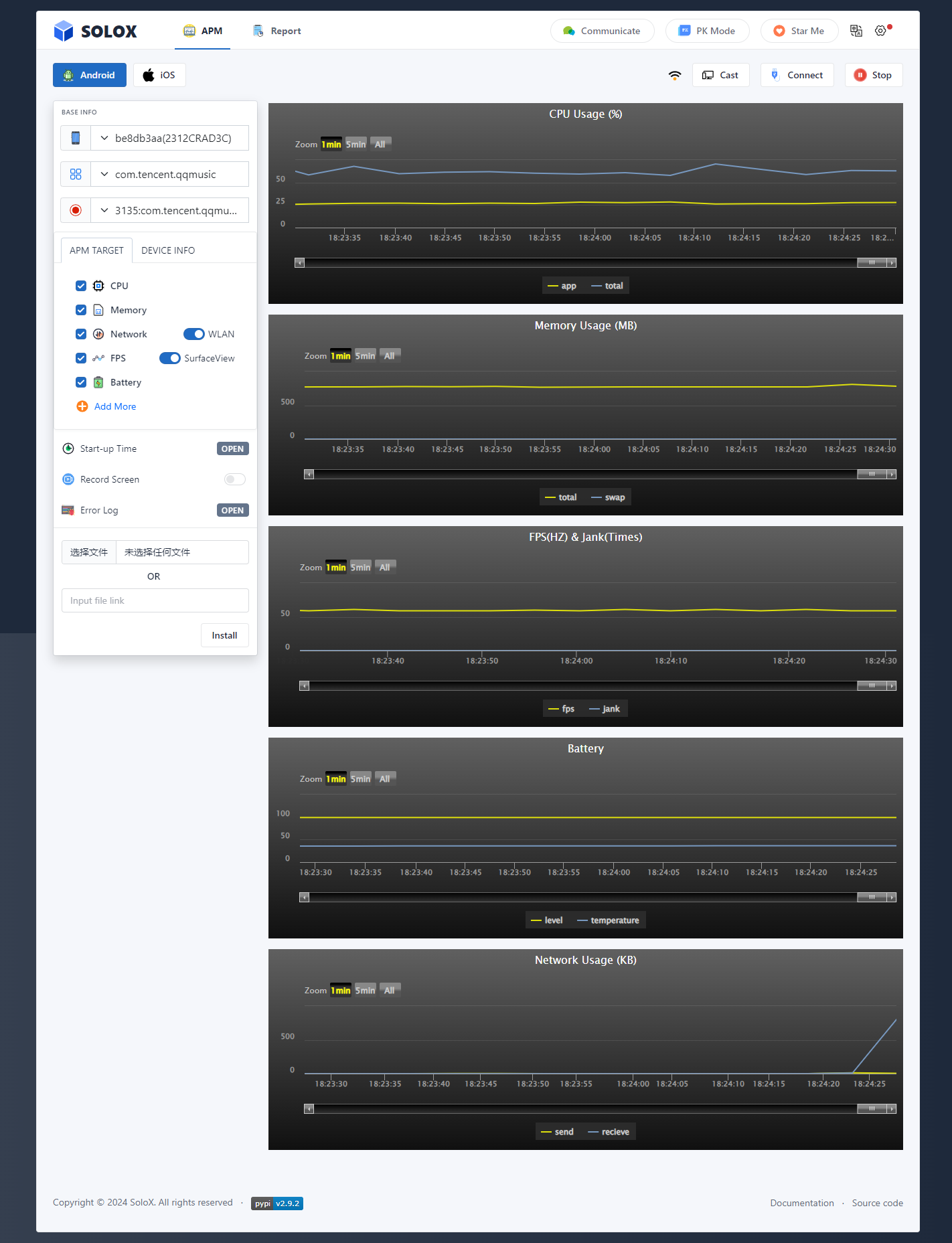

🔎Preview

SoloX - Real-time collection tool for Android/iOS performance data.

Quickly locate and analyze performance issues to improve application performance and quality. No need for ROOT/jailbreak, plug and play.

📦Requirements

• Install Python 3.10 + Download
• Install adb and configure environment variables (SoloX's adb may not necessarily fit your computer) Download

💡 Python 3.6 ~ 3.9 , please download a version of solox lower than 2.5.4.

💡 If Windows users need to test ios, install and start Itunes. Documentation

📥Installation

default

pip install -U solox    (pip install solox=={version})

mirrors

pip install -i  https://mirrors.ustc.edu.cn/pypi/web/simple -U solox

💡 If your network is unable to download through [pip install -U solox], please try using mirrors to download, but the download of SoloX may not be the latest version.

🚀Quickstart

default

python -m solox

customize

python -m solox --host={ip} --port={port}

🏴󠁣󠁩󠁣󠁭󠁿Collect in python

# solox version : >= 2.8.5
from solox.public.apm import AppPerformanceMonitor
from solox.public.common import Devices

d = Devices()
processList = d.getPid(deviceId='ca6bd5a5', pkgName='com.bilibili.app.in') # for android
print(processList) # ['{pid}:{packagename}',...]

apm = AppPerformanceMonitor(pkgName='com.bilibili.app.in',platform='Android', deviceId='ca6bd5a5', surfaceview=True,
                            noLog=False, pid=None, record=False, collect_all=False, duration=0)
# apm = AppPerformanceMonitor(pkgName='com.bilibili.app.in', platform='iOS') only supports one device
# surfaceview： False = gfxinfo (Developer - GPU rendering mode - adb shell dumpsys gfxinfo)
# noLog : False (Save test data to log file)

# ************* Collect a performance parameter ************* #
cpu = apm.collectCpu() # %
memory = apm.collectMemory() # MB
memory_detail = apm.collectMemoryDetail() # MB
network = apm.collectNetwork(wifi=True) # KB
fps = apm.collectFps() # HZ
battery = apm.collectBattery() # level:% temperature:°C current:mA voltage:mV power:w
gpu = apm.collectGpu() # % only supports ios

# ************* Collect all performance parameter ************* #

if __name__ == '__main__':
  apm = AppPerformanceMonitor(pkgName='com.bilibili.app.in',platform='Android', deviceId='ca6bd5a5', surfaceview=True,
                              noLog=False, pid=None, record=False, collect_all=True, duration=0)
  # apm = AppPerformanceMonitor(pkgName='com.bilibili.app.in', platform='iOS',  deviceId='xxxx', noLog=False, record=False, collect_all=True, duration=0)
  #duration: running time (second)
  #record: record android screen
  apm.collectAll() # will generate HTML report

# in other python file
from solox.public.apm import initPerformanceService

initPerformanceService.stop() # stop solox

🏴󠁣󠁩󠁣󠁭󠁿Collect in API

Start the service in the background

# solox version >= 2.1.5

macOS/Linux: nohup python3 -m solox &
Windows: start /min python3 -m solox &

Request apm data from api

Android: http://{ip}:{port}/apm/collect?platform=Android&deviceid=ca6bd5a5&pkgname=com.bilibili.app.in&target=cpu
iOS: http://{ip}:{port}/apm/collect?platform=iOS&pkgname=com.bilibili.app.in&target=cpu

target in ['cpu','memory','memory_detail','network','fps','battery','gpu']

🔥Features

• No ROOT/Jailbreak: No need of Root for Android devices, Jailbreak for iOS devices. Efficiently solving the test and analysis challenges in Android & iOS performance.

• Data Integrality: We provide the data about CPU, GPU, Memory, Battery, Network,FPS, Jank, etc., which you may easy to get.

• Beautiful Report: A beautiful and detailed report analysis, where to store, visualize, edit, manage, and download all the test cases collected with SoloX no matter where you are or when is it.

• Useful Monitoring Settings: Support setting alarm values, collecting duration, and accessing mobile devices on other PC machines during the monitoring process.

• PK Model: Supports simultaneous comparative testing of two mobile devices.

  • 🌱2-devices: test the same app on two different phones.
  • 🌱2-apps: test two different apps on two phones with the same configuration.

• Collect In Python/API: Support Python and API to collect performance data, helping users easily integrate into automated testing processes.

Develop

• https://github.com/pallets/flask
• https://github.com/tabler/tabler

debug

• remove [solox] moudel in all python file

example
from solox.view.apis import api
change to
from view.apis import api

• run [python ./solox/debug.py]

cd solox
python debug.py

Browser

Terminal

• windows: PowerShell
• macOS：iTerm2 (https://iterm2.com/)

💕Thanks

• https://github.com/alibaba/taobao-iphone-device
• https://github.com/Genymobile/scrcpy
