SomaticSeq: An ensemble approach to accurately detect somatic mutations using SomaticSeq
Project description
SomaticSeq

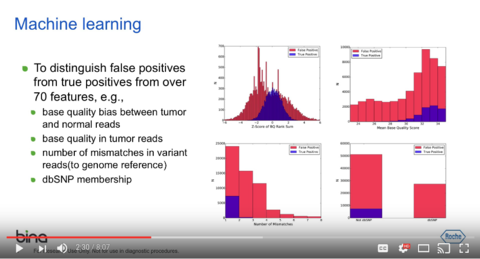

SomaticSeq is an ensemble somatic SNV/indel caller that has the ability to use machine learning to filter out false positives from other callers. The detailed documentation is located in docs/Manual.pdf.
- It was published in Fang, L.T., Afshar, P.T., Chhibber, A. et al. An ensemble approach to accurately detect somatic mutations using SomaticSeq. Genome Biol 16, 197 (2015).
- Feel free to report issues and/or ask questions at the Issues page.
Training data for benchmarking and/or model building

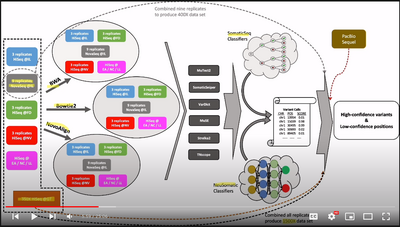

In 2021, the FDA-led MAQC-IV/SEQC2 Consortium has produced multi-center multi-platform whole-genome and whole-exome sequencing data sets for a pair of tumor-normal reference samples (HCC1395 and HCC1395BL), along with the high-confidence somatic mutation call set. This work was published in Fang, L.T., Zhu, B., Zhao, Y. et al. Establishing community reference samples, data and call sets for benchmarking cancer mutation detection using whole-genome sequencing. Nat Biotechnol 39, 1151-1160 (2021) / PMID:34504347 / Free Read-Only Link. The following are some of the use cases for these resources:
- Use high-confidence call set as the "ground truth" to investigate how different sample preparations, sequencing library kits, and bioinformatic algorithms affect the accuracy of the somatic mutation pipelines, and develop best practices, e.g., Xiao W. et al. Nat Biotechnol 2021.
- Use high-confidence call set as the "ground truth" to build accurate and robust machine learning models for somatic mutation detections, e.g., Sahraeian S.M.E. et al. Genome Biol 2022
Click for more details of the SEQC2's somatic mutation project.
Recommendation of how to use SEQC2 data to create SomaticSeq classifiers.

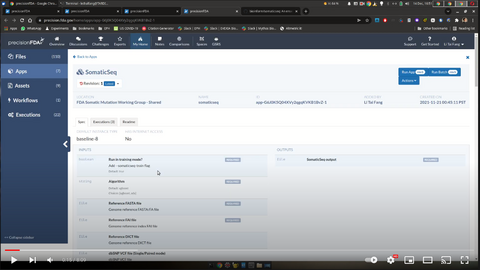

Briefly explaining SomaticSeq v1.0 | SEQC2 somatic mutation reference data and call sets | How to run SomaticSeq v3.6.3 on precisionFDA |
Run in train or prediction mode |
Installation
Dependencies
This dockerfile reveals the dependencies
- Python 3, plus pysam, numpy, scipy, pandas, and xgboost libraries.
- BEDTools: required when parallel processing is invoked, and/or when any bed files are used as input files.
- Optional: dbSNP VCF file (if you want to use dbSNP membership as a feature).
- Optional: R and ada are required for AdaBoost, whereas XGBoost is implemented in python.
- To install SomaticSeq, clone this repo,
cd somaticseq
, and then runpip install .
or./setup.py install
.
To install using pip
Make sure to install bedtools
separately.
pip install somaticseq
To install the bioconda version
SomaticSeq can also be found on . To , which also automatically installs a bunch of 3rd-party somatic mutation callers:
conda install -c bioconda somaticseq
To install from github source with conda
conda create --name my_env -c bioconda python bedtools
conda activate my_env
git clone git@github.com:bioinform/somaticseq.git
cd somaticseq
pip install -e .
Test your installation
There are some toy data sets and test scripts in example that should finish in <1 minute if installed properly.
Run SomaticSeq with an example command
-
At minimum, given the results of the individual mutation caller(s), SomaticSeq will extract sequencing features for the combined call set. Required inputs are
--output-directory
and--genome-reference
, then- Either
paired
orsingle
to invoke paired or single sample mode,- if
paired
:--tumor-bam-file
, and--normal-bam-file
are both required. - if
single
:--bam-file
is required.
- if
Everything else is optional (though without a single VCF file from at least one caller, SomaticSeq does nothing).
-
The following four files will be created into the output directory:
Consensus.sSNV.vcf
,Consensus.sINDEL.vcf
,Ensemble.sSNV.tsv
, andEnsemble.sINDEL.tsv
.
-
If you're searching for pipelines to run those individual somatic mutation callers, feel free to take advantage of our Dockerized Somatic Mutation Workflow as a start.
- Important note: multi-argument options (e.g.,
--extra-hyperparameters
or--features-excluded
) cannot be placed immediately beforepaired
orsingle
, because those options would try to "grab"paired
orsingle
as an additional argument.
- Important note: multi-argument options (e.g.,
# Merge caller results and extract SomaticSeq features
somaticseq_parallel.py \
--output-directory $OUTPUT_DIR \
--genome-reference GRCh38.fa \
--inclusion-region genome.bed \
--exclusion-region blacklist.bed \
--threads 24 \
paired \
--tumor-bam-file tumor.bam \
--normal-bam-file matched_normal.bam \
--mutect2-vcf MuTect2/variants.vcf \
--varscan-snv VarScan2/variants.snp.vcf \
--varscan-indel VarScan2/variants.indel.vcf \
--jsm-vcf JointSNVMix2/variants.snp.vcf \
--somaticsniper-vcf SomaticSniper/variants.snp.vcf \
--vardict-vcf VarDict/variants.vcf \
--muse-vcf MuSE/variants.snp.vcf \
--lofreq-snv LoFreq/variants.snp.vcf \
--lofreq-indel LoFreq/variants.indel.vcf \
--scalpel-vcf Scalpel/variants.indel.vcf \
--strelka-snv Strelka/variants.snv.vcf \
--strelka-indel Strelka/variants.indel.vcf \
--arbitrary-snvs additional_snv_calls_1.vcf.gz additional_snv_calls_2.vcf.gz ... \
--arbitrary-indels additional_indel_calls_1.vcf.gz additional_indel_calls_2.vcf.gz ...
-
For all of those input VCF files, both
.vcf
and.vcf.gz
are acceptable. SomaticSeq also accepts.cram
, but some callers may only take.bam
. -
--arbitrary-snvs
and--arbitrary-indels
are added since v3.7.0. It allows users to input any arbitrary VCF file(s) from caller(s) that we did not explicitly incorporate. SNVs and indels have to be separated.- If your caller puts SNVs and indels in the same output VCF file, you may
split it using a SomaticSeq utility script, e.g.,
splitVcf.py -infile small_variants.vcf -snv snvs.vcf -indel indels.vcf
. As usual, input can be either.vcf
or.vcf.gz
, but output will be.vcf
. - For those VCF file(s), any calls not labeled REJECT or LowQual will
be considered a bona fide somatic mutation call. REJECT calls will be
skipped. LowQual calls will be considered, but will not have a value of
1
inif_Caller
machine learning feature.
- If your caller puts SNVs and indels in the same output VCF file, you may
split it using a SomaticSeq utility script, e.g.,
-
--inclusion-region
or--exclusion-region
will requirebedtools
in your path. -
--algorithm
defaults toxgboost
as v3.6.0, but can also beada
(AdaBoost in R). XGBoost supports multi-threading and can be orders of magnitude faster than AdaBoost, and seems to be about the same in terms of accuracy, so we changed the default fromada
toxgboost
as v3.6.0 and that's what we recommend now. -
To split the job into multiple threads, place
--threads X
before thepaired
option to indicate X threads. It simply creates multiple BED file (each consisting of 1/X of total base pairs) for SomaticSeq to run on each of those sub-BED files in parallel. It then merges the results. This requiresbedtools
in your path.
Additional parameters to be specified before paired
option to invoke
training mode. In addition to the four files specified above, two classifiers
(SNV and indel) will be created..
--somaticseq-train
: FLAG to invoke training mode with no argument, which also requires ground truth VCF files.--extra-hyperparameters
: add hyperparameters for xgboost, e.g.,--extra-hyperparameters scale_pos_weight:0.1 grow_policy:lossguide max_leaves:12
.
--truth-snv
: if you have a ground truth VCF file for SNV--truth-indel
: if you have a ground truth VCF file for INDEL
Additional input files to be specified before paired
option invoke
prediction mode (to use classifiers to score variants). Four additional files
will be created, i.e., SSeq.Classified.sSNV.vcf
, SSeq.Classified.sSNV.tsv
,
SSeq.Classified.sINDEL.vcf
, and SSeq.Classified.sINDEL.tsv
.
--classifier-snv
: classifier previously built for SNV--classifier-indel
: classifier previously built for INDEL
Without those paramters above to invoking training or prediction mode, SomaticSeq will default to majority-vote consensus mode.
Do not worry if Python throws the following warning. This occurs when SciPy
attempts a statistical test with empty data, e.g., z-scores between reference-
and variant-supporting reads will be nan
if there is no reference read at a
position.
RuntimeWarning: invalid value encountered in double_scalars
z = (s - expected) / np.sqrt(n1*n2*(n1+n2+1)/12.0)
To train for SomaticSeq classifiers with multiple data sets
Run somatic_xgboost.py train --help
to see the options, e.g.,
somatic_xgboost.py train \
-tsvs SAMPLE_1/Ensemble.sSNV.tsv SAMPLE_2/Ensemble.sSNV.tsv ... SAMPLE_N/Ensemble.sSNV.tsv \
-out multiSample.SNV.classifier \
-threads 8 -depth 12 -seed 42 -method hist -iter 250 \
--extra-params scale_pos_weight:0.1 grow_policy:lossguide max_leaves:12
Run SomaticSeq modules seperately
Most SomaticSeq modules can be run on their own. They may be useful in debugging context, or be run for your own purposes. See this page for your options.
Dockerized workflows and pipelines
To run somatic mutation callers and then SomaticSeq
We have created a module (i.e., makeSomaticScripts.py
) that can run all the
dockerized somatic mutation callers and then SomaticSeq, described at
somaticseq/utilities/dockered_pipelines.
There is also an alignment workflow described there. You need
docker to run these workflows. Singularity is also
supported, but is not optimized. Let me know if you find bugs.
To create training data to create SomaticSeq classifiers
-
I recommend SEQC2 Somatic Mutation Working Group's reference sequencing data and high-confidence somatic mutation call sets.
-
Before well characterized real data was available, we have dockerized pipelines for in silico mutation spike in at somaticseq/utilities/dockered_pipelines/bamSimulator. These pipelines are based on BAMSurgeon. We have used it to create training set to build SomaticSeq classifiers, though it has not been updated for a while.
-
Combine both BAMSurgeon in silico spike in and the real SEQC2 training data may give you better model than using either, which was shown in Sahraeian S.M.E. et al. 2022. The reason may be that the real data's high-confidence call sets do not have the most challenging genomic regions, whereas in silico data do not have the most realistic data characteristics. Combining both allows them to cover each other's shortcomings.
Dockerized alignment pipeline based on GATK's best practices
Described at
somaticseq/utilities/dockered_pipelines.
The module is makeAlignmentScripts.py
.
Utilities
We have some generally useful scripts in utilities. Some of the more useful tools, e.g.,
lociCounterWithLabels.py
finds overlapping regions among multiple bed files.paired_end_bam2fastq.py
converts paired-end bam files into 1.fastq and 2.fastq files. It will not require an enormous amount of memory, nor will the resulting files crap out on downstream GATK tools.run_workflows.py
is a rudimentary workflow manager that executes multiple scripts at once.split_bed_into_equal_regions.py
splits one bed file into a number of output bed files, where each output bed file will have the same total length.
