sor4onnx 1.0.3

Simple OP Renamer for ONNX.

sor4onnx

Simple OP Renamer for ONNX.

https://github.com/PINTO0309/simple-onnx-processing-tools

Key concept

• Performs a partial match search on the specified string and replaces all input and output names with the specified string.

1. Setup

1-1. HostPC

### option
$ echo export PATH="~/.local/bin:$PATH" >> ~/.bashrc \
&& source ~/.bashrc

### run
$ pip install -U onnx \
&& python3 -m pip install -U onnx_graphsurgeon --index-url https://pypi.ngc.nvidia.com \
&& pip install -U sor4onnx

1-2. Docker

https://github.com/PINTO0309/simple-onnx-processing-tools#docker

2. CLI Usage

$ sor4onnx -h

usage:
  sor4onnx [-h]
  --input_onnx_file_path INPUT_ONNX_FILE_PATH
  --old_new OLD_NEW OLD_NEW
  --output_onnx_file_path OUTPUT_ONNX_FILE_PATH
  [--mode {full,inputs,outputs}]
  [--non_verbose]

optional arguments:
  -h, --help
      show this help message and exit.

  --input_onnx_file_path INPUT_ONNX_FILE_PATH
      Input onnx file path.

  --old_new OLD_NEW OLD_NEW
      All occurrences of substring old replaced by new.
      e.g. --old_new "onnx::" ""

  --output_onnx_file_path OUTPUT_ONNX_FILE_PATH
      Output onnx file path.

  --mode {full,inputs,outputs}
      Specifies the type of node to be replaced.
      full or inputs or outputs.
      full: Rename all nodes.
      inputs: Rename only the input node.
      outputs: Rename only the output node.
      Default: full

  --non_verbose
      Do not show all information logs. Only error logs are displayed.

3. In-script Usage

>>> from sor4onnx import rename
>>> help(rename)

Help on function rename in module sor4onnx.onnx_opname_renamer:

rename(
    old_new: List[str],
    input_onnx_file_path: Union[str, NoneType] = '',
    onnx_graph: Union[onnx.onnx_ml_pb2.ModelProto, NoneType] = None,
    output_onnx_file_path: Union[str, NoneType] = '',
    mode: Union[str, NoneType] = 'full',
    non_verbose: Union[bool, NoneType] = False
) -> onnx.onnx_ml_pb2.ModelProto

    Parameters
    ----------
    old_new: List[str]
        All occurrences of substring old replaced by new.
        e.g.
        old_new = ["onnx::", ""]

    input_onnx_file_path: Optional[str]
        Input onnx file path.
        Either input_onnx_file_path or onnx_graph must be specified.
        Default: ''

    onnx_graph: Optional[onnx.ModelProto]
        onnx.ModelProto.
        Either input_onnx_file_path or onnx_graph must be specified.
        onnx_graph If specified, ignore input_onnx_file_path and process onnx_graph.

    output_onnx_file_path: Optional[str]
        Output onnx file path. If not specified, no ONNX file is output.
        Default: ''

    mode: Optional[str]
        Specifies the type of node to be replaced.
        full or inputs or outputs.
        full: Rename all nodes.
        inputs: Rename only the input node.
        outputs: Rename only the output node.
        Default: full

    non_verbose: Optional[bool]
        Do not show all information logs. Only error logs are displayed.
        Default: False

    Returns
    -------
    renamed_graph: onnx.ModelProto
        Renamed onnx ModelProto.

4. CLI Execution

$ sor4onnx \
--input_onnx_file_path fusionnet_180x320.onnx \
--old_new "onnx::" "" \
--output_onnx_file_path fusionnet_180x320_renamed.onnx

5. In-script Execution

from sor4onnx import rename

onnx_graph = rename(
  old_new=["onnx::", ""],
  input_onnx_file_path="fusionnet_180x320.onnx",
  output_onnx_file_path="fusionnet_180x320_renamed.onnx",
)

# or

onnx_graph = rename(
  old_new=["onnx::", ""],
  onnx_graph=graph,
)

6. Sample

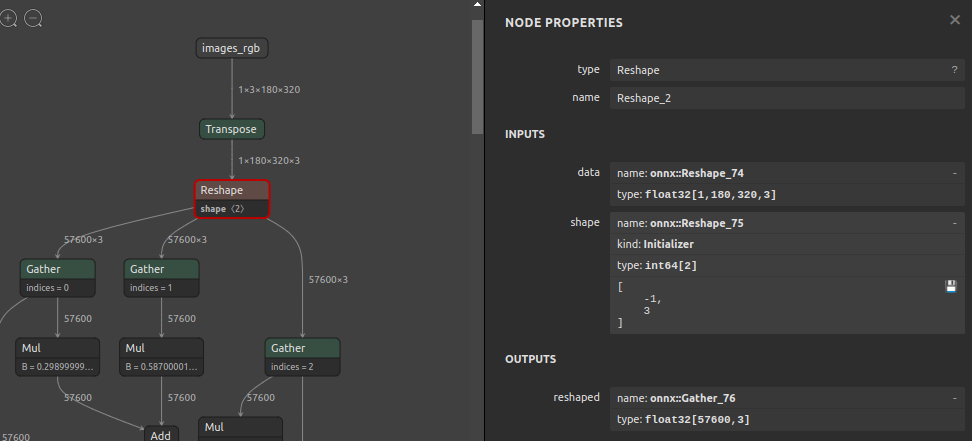

Before

After

7. Reference

1. https://github.com/onnx/onnx/blob/main/docs/Operators.md
2. https://docs.nvidia.com/deeplearning/tensorrt/onnx-graphsurgeon/docs/index.html
3. https://github.com/NVIDIA/TensorRT/tree/main/tools/onnx-graphsurgeon
4. https://github.com/PINTO0309/simple-onnx-processing-tools
5. https://github.com/PINTO0309/PINTO_model_zoo

8. Issues

https://github.com/PINTO0309/simple-onnx-processing-tools/issues
