sphere-snap 1.0.3

A quick and easy to use library for reprojecting various image types

SphereSnap

A quick and easy to use library for reprojecting various image types. (inspired by http://paulbourke.net/panorama/sphere2persp/ ).
The module will use CuPy if detected for accelerating computation. The library can be use simply for reprojecting from one format to another but also for more sophisticated usecases of manipulating parts of the image or polygons.

Examples and usecases

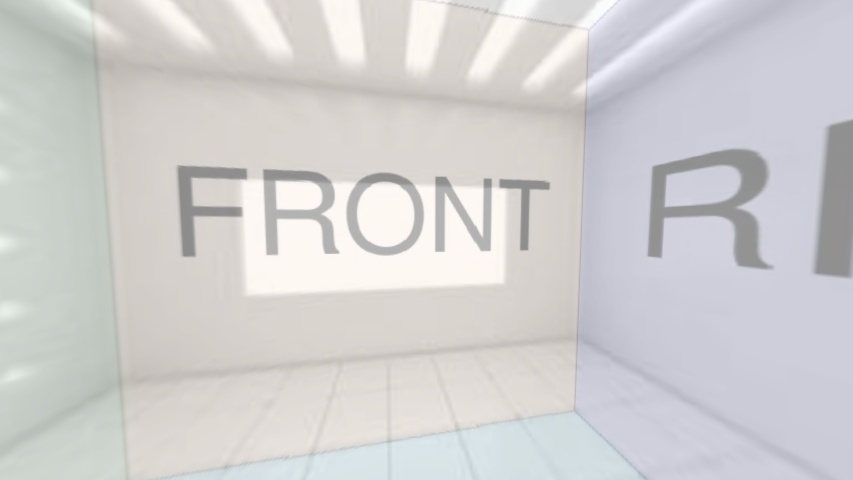

Reprojecting equirectangular image into pinhole-camera images with customizable FoV and resolution

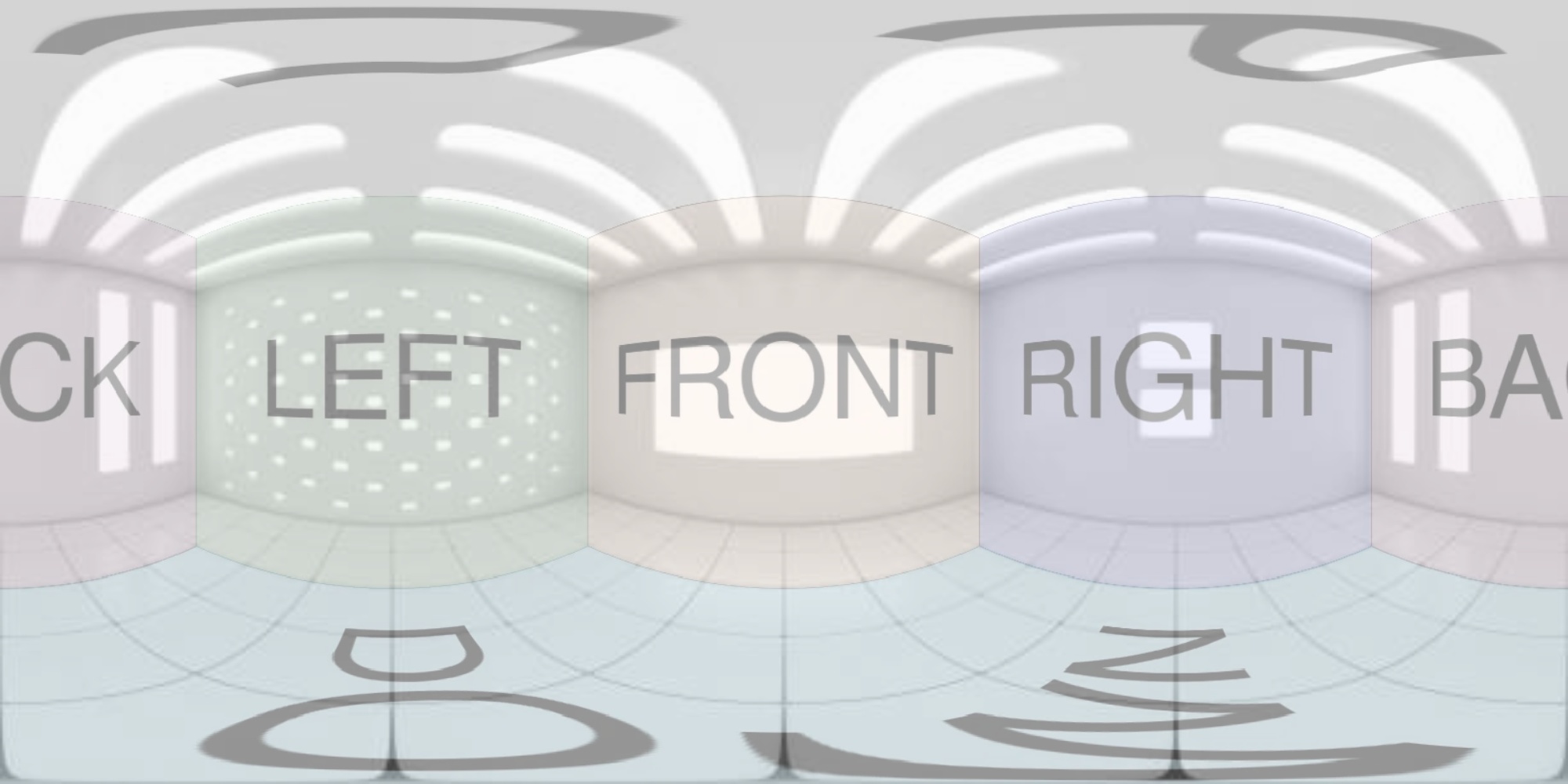

Create equirectangular image using cubemap faces

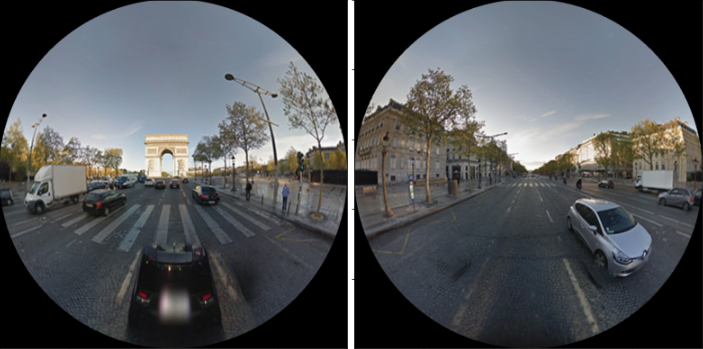

Create fisheye images from equirectangular or cubemap images

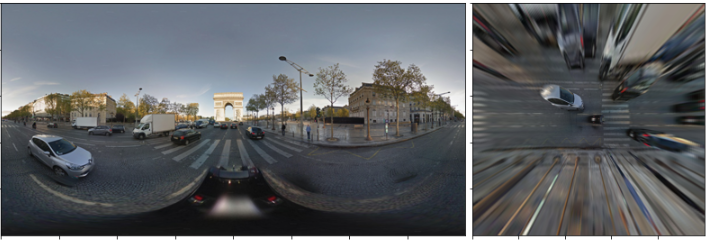

Create top view images from equirectangular/fisheye/planar images

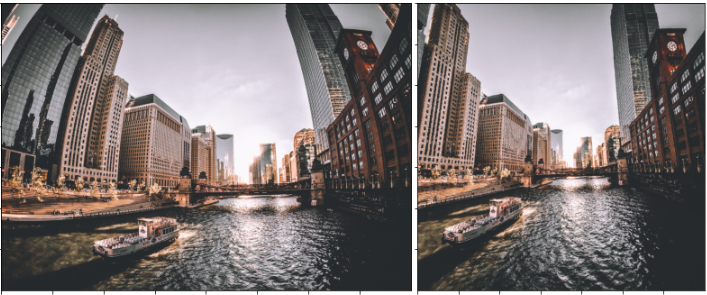

Correct radially distorted images

How to use it

Module sphere_snap.reprojections contains easy to use functions for simple situations:

• equi2cubemap
• cubemap2equi
• cubemap2fisheye
• equi2fisheye
• fisheye2equi
• equi2tv

For more complex situtation SphereSnaper can be used which is more flexible

import sphere_snap.utils as snap_utils
import sphere_snap.sphere_coor_projections as sphere_proj
from sphere_snap.snap_config import SnapConfig, ImageProjectionType
from sphere_snap.sphere_snap import SphereSnap
import sphere_snap.reprojections as rpr

Snap to perspective from equirectangular

snap_config = SnapConfig( [0,0,0,1], (1400,1400),(120,120), equi_photo.shape[:2], source_img_type=ImageProjectionType.EQUI)
snap_test = SphereSnap(snap_config)
persp_img = snap_test.snap_to_perspective(equi_photo)

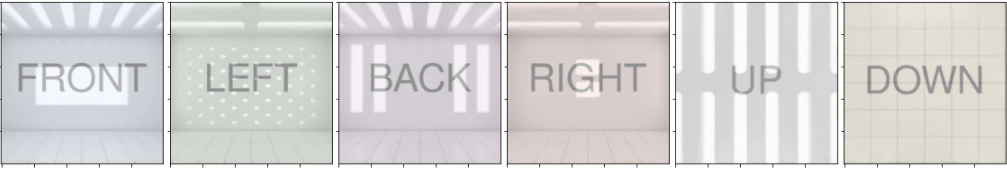

Reproject equirectangular into 6 planar images of 90 degrees FoV (Cubemap)

def get_cube_map_faces(face_size=1440, source_img_hw=(2000,4000), source_img_type=ImageProjectionType.EQUI):

    snap_configs = [SnapConfig( rot(90*i,0), (face_size,face_size),(90,90), source_img_hw, source_img_type=source_img_type)
                        for i in range(4)]
    # top
    snap_configs.append(SnapConfig( rot(0,90), (face_size,face_size),(90,90), source_img_hw, source_img_type=source_img_type))
    # bottom
    snap_configs.append(SnapConfig( rot(0,-90), (face_size,face_size),(90,90), source_img_hw, source_img_type=source_img_type))
    return snap_configs

cube_configs = get_cube_map_faces(face_size=1440, source_img_hw=equi_img.shape[:2])
cube_faces_snaps = [SphereSnap(c) for c in cube_configs]
cumbe_faces_imgs = [snap.snap_to_perspective(equi_img) for snap in cube_faces_snaps]

or

cube_faces_imgs = rpr.equi2cubemap(equi_img)

Reproject a planar image into equirectangular

reconstructed_equi = SphereSnap.merge_multiple_snaps((1000,2000),
                                                     cube_faces_snaps, # snap object specifies destination position
                                                     cumbe_faces_imgs[::-1], # snap image contains planar image pixels
                                                     target_type=ImageProjectionType.EQUI, # destination image type
                                                     merge_method="max")

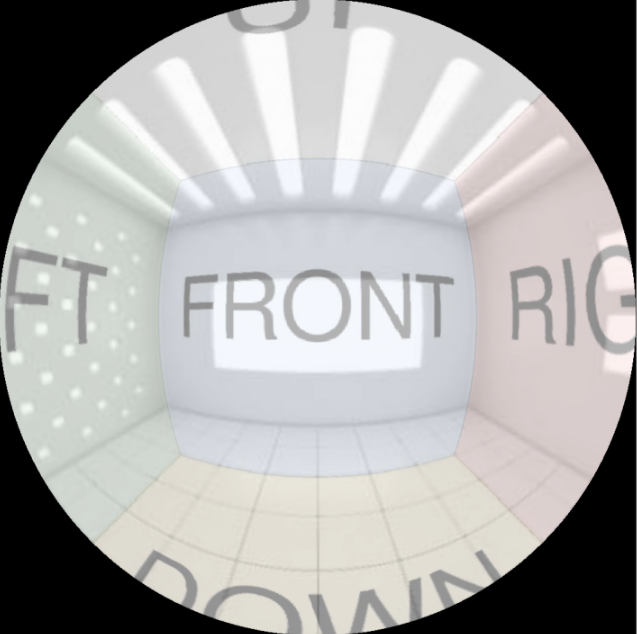

Reproject a planar image into fisheye 180

reconstructed_fisheye = SphereSnap.merge_multiple_snaps((1000,1000),
                                                    cube_faces_snaps, # snap object specifies destination position
                                                    cumbe_faces_imgs, # snap image contains planar image pixels
                                                    target_type=ImageProjectionType.FISHEYE_180, # destination image type
                                                    merge_method="max")

Snap to perspective from fisheye 180

snap_config = SnapConfig( rot(45,1), (1400,1400),(100,100), reconstructed_fisheye.shape[:2], source_img_type=ImageProjectionType.FISHEYE_180)
snap_test = SphereSnap(snap_config)
persp_img = snap_test.snap_to_perspective(reconstructed_fisheye)

Reproject fisheye 180 to equirectangular

snap_configs = [SnapConfig( rot(yaw,pitch), (800,800),(90,90), fisheye180_img.shape[:2], source_img_type=ImageProjectionType.FISHEYE_180)
                    for yaw,pitch in [[-45,-45],[45,-45],[-45,45],[45,45],[0,0]]]
snaps = [SphereSnap(c) for c in snap_configs]
snap_imgs = [snap.snap_to_perspective(fisheye180_img) for snap in snaps]

reconstructed_equi = SphereSnap.merge_multiple_snaps((1000,2000),
                                                     snaps, # snap object specifies destination position
                                                     snap_imgs, # snap image contains planar image pixels
                                                     target_type=ImageProjectionType.EQUI, # destination image type
                                                     merge_method="max")
