splat-viewer 0.10.0

A viewer for gaussian-splatting reconstructions

Overview

A viewer and some tools to work with guassian splatting reconstructions. Currently will open .ply files and gaussian splatting workspaces from the original guassian-splatting implementation. Intended primarily for testing taichi-splatting

Example data

Some example scenes can be found from the official gaussian-splatting page. Under Pre-trained models.

splat-viewer

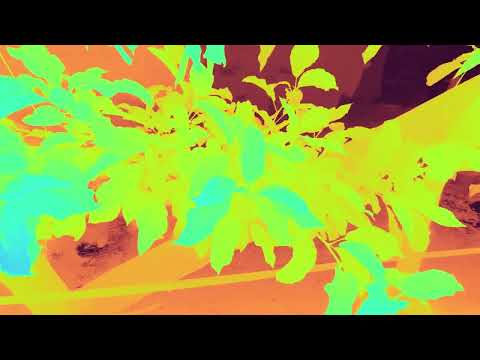

A gaussian splatting viewer. An example of some visualizations produced by this viewer can be seen:

Arguments

usage: splat-viewer [-h] [--model MODEL] [--device DEVICE] [--debug] model_path

positional arguments:
  model_path       workspace folder containing cameras.json, input.ply and point_cloud folder with .ply models

options:
  -h, --help       show this help message and exit
  --model MODEL    load model from point_clouds folder, default is latest iteration
  --device DEVICE  torch device to use
  --debug          enable taichi kernels in debug mode

Keyboard Controls

Switch View mode

• 1: normal rendering
• 2: render gaussian centers as points
• 3: render depth map

Show/hide

• 0 : cropped foreground
• 9 : initial points
• 8 : camera markers

Misc

• prntsc: save high-res snapshot into workspace directory
• shift return: toggle fullscreen

Camera

• '[' : Prev camera

• ']' : Next camera

• '=' : zoom in

• '-' : zoom out

• w/s a/d q/e : forward/backward left/right up/down

• keypad plus/minus: navigate faster/slower

Animation

• space: add current viewpoint to animaiton sequence
• control-space: save current animation sequence to workspace folder
• return: animate current sequence
• shift plus/minus: animation speed faster/slower

splat-benchmark

A benchmark to test forward and backward passes of differentiable renderers. Example splat-benchmark models/garden --sh_degree 1 --image_size 1920

Arguments

usage: splat-benchmark [-h] [--device DEVICE] [--model MODEL] [--profile] [--debug] [-n N] [--tile_size TILE_SIZE] [--backward] [--sh_degree SH_DEGREE] [--no_sort] [--depth]
                       [--image_size RESIZE_IMAGE] [--taichi]
                       model_path

positional arguments:
  model_path            workspace folder containing cameras.json, input.ply and point_cloud folder with .ply models

options:
  -h, --help            show this help message and exit
  --device DEVICE       torch device to use
  --model MODEL         model iteration to load from point_clouds folder
  --profile             enable profiling
  --debug               enable taichi kernels in debug mode
  -n N                  number of iterations to render
  --tile_size TILE_SIZE
                        tile size for rasterizer
  --backward            benchmark backward pass
  --sh_degree SH_DEGREE
                        modify spherical harmonics degree
  --no_sort             disable sorting by scale (sorting makes tilemapping faster)
  --depth               render depth maps
  --image_size RESIZE_IMAGE
                        resize longest edge of camera image sizes
  --taichi              use taichi renderer
