spplot 0.0.2

command-line serial plotter

spplot

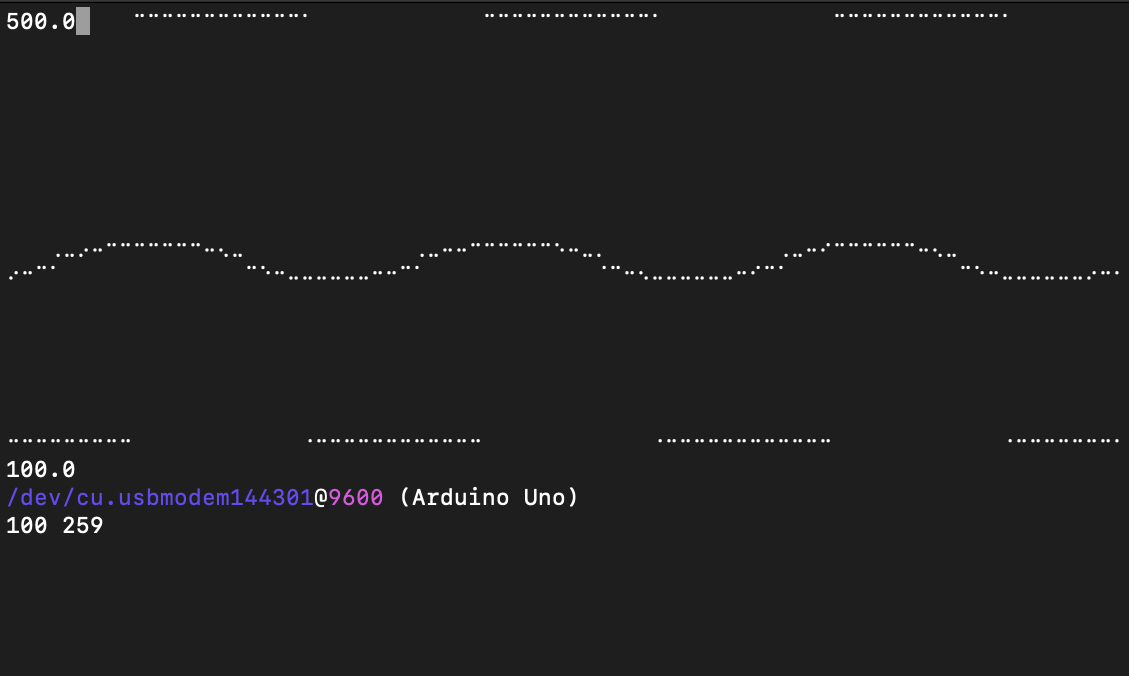

This utility is a text mode implementation of what can be done in Arduino IDE when choosing Serial Plotter option, i.e. it plots the numbers received on the serial port in real time.

spemu

There's also a helper utility included, called spemu which is a serial port emulator. It's useful for testing when no real device is nearby.

Usage

Run spemu. The program will print file descriptor and PTY device path. You can write directly to the spemu stdin or open file descriptor with some script and write to it. The things you write will be outputted by the virtual COM port.

Installation

spplot

Install from PyPI:

python3 -m pip install spplot

Install locally:

python3 -m pip install . --upgrade

spemu

To compile it, just run make.

Requirements

spplot

• Python 3 with f-strings
• POSIX-compliant, color-supporting terminal
• Font with Braille characters
• Modules from requirements.txt

spemu

• C compiler
• UNIX-like system

Disclaimer: Work in Progress

This is a dirty draft of what I want it to be. I'll try to optimize it in my free time and add some colors to differentiate the plots. As for now, it is what it is.

The initial menu is made in TUI style but if you provide port and baudrate as CLI args, you won't see it.

Roadmap

• colored lines for different subplots
• total average / current buffer average and other stats
• better error handling
• buffer, display and calculation optimizations
• proper handling of negative values
• set y axis range option
• plot on n-th readout option
• command line args
• dynamic resizing
• human menu keymapping
• make a python package
• make a PyPI release
