A Streamlit package for flexible, customizable status elements
Project description
st-flexible-callout-elements
About
A package for flexible, customizable callout status elements in Streamlit.
Installation
pip install st-flexible-callout-elements
Usage
flexible_callout()
is the main function of the package and can handle several arguments responsible for customization.
from st_flexible_callout_elements import flexible_callout
flexible_callout(message, container=st, background_color="#D9D9D9", font_color="#000000", font_size=16, alignment="left", line_height=1.5, border_radius=8, padding=15, margin_bottom=20)
Arguments:
- message (str): The message to display.
- container: The Streamlit container to render the message in (default is st).
- background_color (str): The background color of the message box.
- font_color (str): The font color of the message text.
- font_size (int): The font size of the message text in pixels.
- alignment (str): The text alignment inside the message box ("left", "center", "right", "justify").
- line_height (float): The line height of the message text.
- border_radius (int): The border radius of the message box.
- padding (int): The padding inside the message box in pixels.
- margin_bottom (int): The margin below the message box in pixels.
Calling the function with just a message and no other arguments, e.g.:
flexible_callout("This is the standard flexible callout.")
Will result in:
The package contains four other functions `flexible_error()`, `flexible_success()`, `flexible_warning()`, and `flexible_info()` emulating the style of `st.error`, `st.success`, `st.warning`, and `st.info`, respectively. They have most of the same arguments as `flexible_callout()` with the exception of `background_color` and `font_color` which are fixed to match their counterparts.
from st_flexible_callout_elements import flexible_error, flexible_success, flexible_warning, flexible_info
flexible_error("This is a slightly larger error message.", font_size=20)
flexible_success("This is a centered success message", alignment="center")
flexible_warning("This is right aligned a warning message <b><u>with html elements</b></u>", alignment="right")
flexible_info("This is a slightly smaller info message", font_size=10)
Customization
Container
The container
argument will define the where your callout element will be displayed. The default is the main container (by using st
). It can be altered to move the element to the sidebar:
from st_flexible_callout_elements import flexible_info
flexible_info("Can be used in the sidebar.", container=st.sidebar)
You can also specify other containers such as specific columns:
from st_flexible_callout_elements import flexible_info
col1, col2 = st.columns(2)
flexible_info("Can be used in a column of choice.", container=col2)
Note: These arguments are not text elements, it should directly reference the container!
Background and font color.
The box background and font colors can be customized with background_color
and font_color
respectively. Accepted values include HEX color codes and HTML color names.
from st_flexible_callout_elements import flexible_callout
flexible_callout("You can use custom colors!", background_color="#E0B0FF", font_color="#301934")
Font size and alignment
As seen previously, font size (in px) can be changed with the argument font_size
. Text alignment inside the box can be changed with alignment
, its options are left
(default), center
, right
, and justify
.
Line height
Line spacing can be changed with the line_height
argument.
from st_flexible_callout_elements import flexible_callout
flexible_callout("Line height can also be customized within the element", container=st.sidebar, background_color="#FFD1C1", font_color="#CC5733", line_height=2)
Border radius, padding, margin-bottom
The borders of the box can be made rounder or less round by adjusting border_radius
(default is 8).
from st_flexible_callout_elements import flexible_callout
flexible_callout("Can have rounded boxes.", container=st.sidebar, background_color="#FFCCF2", font_color="#CC3385", border_radius=25)
The distinction between padding and margin can be see in the box element model below:
The distance between the content and the border can be changed using the padding
parameter (default is 15):
from st_flexible_callout_elements import flexible_callout
flexible_callout("The boxes can be slimmer", padding=5)

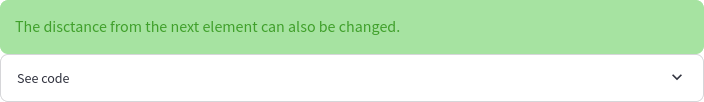

The distance between the box and the next element can be customized using the margin_bottom
argument (default value is 20):
from st_flexible_callout_elements import flexible_callout
flexible_callout("The boxes can be slimmer", margin_bottom=30)
Integration with other streamlit elements
The flexible callout elements can be integrated with other streamlit functions:
from st_flexible_callout_elements import flexible_callout
@st.fragment
def display_rainbow_text():
colors = [
{"text": "You", "bg_color": "#D8A0D8", "font_color": "#6A0D91"},
{"text": "can", "bg_color": "#C2C2F0", "font_color": "#4B0082"},
{"text": "also", "bg_color": "#99CCFF", "font_color": "#0033CC"},
{"text": "do", "bg_color": "#B3FFB3", "font_color": "#009900"},
{"text": "some", "bg_color": "#FFFF99", "font_color": "#CCCC00"},
{"text": "fun", "bg_color": "#FFCC99", "font_color": "#CC6600"},
{"text": "stuff", "bg_color": "#FFB3B3", "font_color": "#B30000"}
]
with st.container():
cols = st.columns(len(colors))
for col, color in zip(cols, colors):
with col:
flexible_callout(
color["text"],
background_color=color["bg_color"],
font_color=color["font_color"],
font_size=18,
alignment="center",
padding=5
)
sleep(0.5)
display_rainbow_text()
