A Python package to generate circular astronomy star charts (past, present, and future) with spherical projection to correct for distortions with more than a hundred named stars accurate over 400,000 years with proper motion and precession of the equinoxes

Project description

Star-Chart-Spherical-Projection

PyPi license repo-status pytests

A Python package to generate circular astronomy star charts (past, present, and future) with spherical projection to correct for distortions with all IAU named stars accurate over 400,000 years with proper motion and precession of the equinoxes

  • Plot Stars on a Polar Chart
    • plotStereographicProjection()
  • Return Final Position of Stars
    • finalPositionOfStars()
    • starPositionOverTime()
    • predictPoleStar()
  • Add a New Star to Plot
    • newStar()

Quickstart: Star-Chart-Spherical-Projection

Plot stars in the Southern Hemisphere for the year 2024 (without stars labels)

import star_chart_spherical_projection as scsp

scsp.plotStereographicProjection(northOrSouth="South",
				displayStarNamesLabels=False,
				yearSince2000=24)

quickstart_star_chart+png

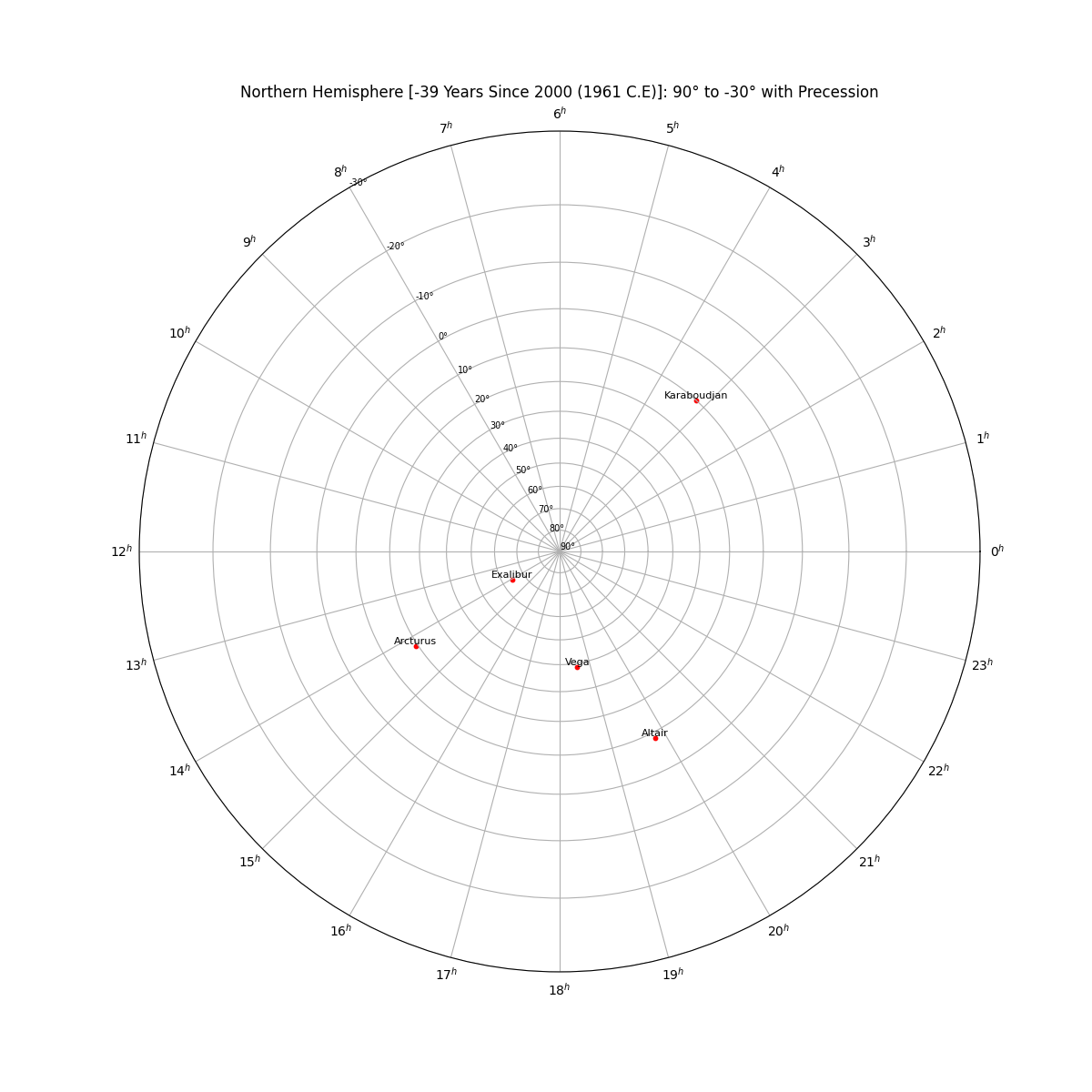

Plot a few built-in stars as well as two new user defined stars in the Northern Hemisphere for the year 1961 (2000-39) (with stars labels and in red). This uses both methods to define the proper motion for new stars: with a given proper motion and angle and with the proper motion speed in the declination and right ascension

import star_chart_spherical_projection as scsp

exalibur_star = scsp.newStar(starName="Exalibur",
				ra="14.04.23",
				dec=64.22,
				properMotionSpeed=12.3,
				properMotionAngle=83,
				magnitudeVisual=1.2)
karaboudjan_star = scsp.newStar(starName="Karaboudjan",
				ra="3.14.15",
				dec=10.13,
				properMotionSpeedRA=57.6,
				properMotionSpeedDec=60.1,
				magnitudeVisual=0.3)
scsp.plotStereographicProjection(northOrSouth="North",
				builtInStars=["Vega", "Arcturus", "Altair"],
				userDefinedStars=[exalibur_star, karaboudjan_star],
				displayStarNamesLabels=True,
				fig_plot_color="red",
				yearSince2000=-39)

quickstart_star_chart+png

Return the final position of a Vega (can be a single star or a list of stars) after 11,500 years when Vega is the new North Pole Star (star closest to +90°)

import star_chart_spherical_projection as scsp

star_final_pos_dict = scsp.finalPositionOfStars(builtInStars=["Vega"],
						yearSince2000=11500,
						save_to_csv="final_star_positions.csv")

Returns a dictionary with a star and its declination and right ascension: {'Vega': {'Declination': 83.6899118156341, 'RA': '05.38.21'}}

The final position of the stars are saved in final_star_positions.csv with the headers ["Star Name", "Right Ascension (HH.MM.SS)", "Declination (DD.SS)"]

Install

PyPi pip install at pypi.org/project/star-chart-spherical-projection/

pip install star-chart-spherical-projection

Overview

The first step to plot the celestial sphere onto a 2D plot is to map the star's right ascension as hours along the plot (matplotlib polar plot's theta value) and declination as the distance from the center of the circle (matplotlib polar plot's radius value). However, attempting to map the right ascension and declination directly will cause distortion since the angles between the stars along the declination are no longer conserved. On the left, the constellation of the Big Dipper is stretched into an unfamiliar shape due to this distortion. By accounting for the spherical transformation, the star chart can be corrected as seen on the right.

Without Correction With Correction
without_correction with_correction

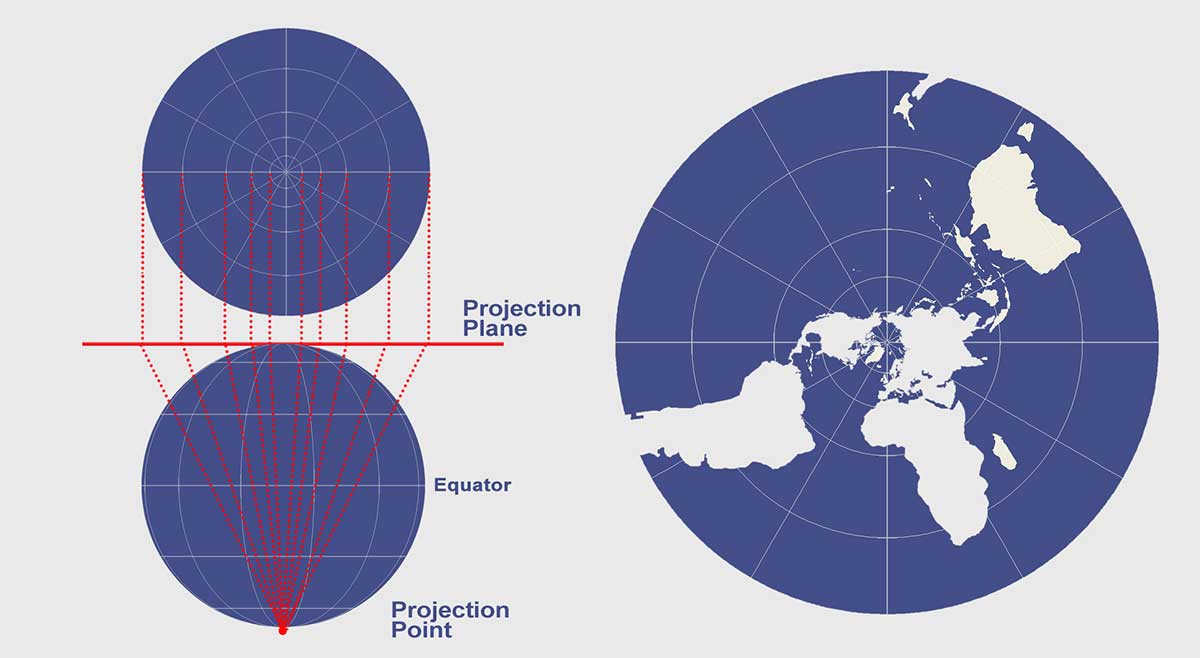

The sphere is projected from the South Pole (via Stereographic projection):

From the perspective of an observer on the Earth's surface, the stars appear to sit along the surface of the celestial sphere--an imaginary sphere of arbitrary radius with the Earth at its center. All objects in the sky will appear projected on the celestial sphere regardless of their true distance from Earth. Each star's position is given by two values. Declination is the angular distance from the celestial equator and right ascension is the distance from the position of the vernal equinox. During the course of a full 24-hour day, stars will appear to rotate across the sky as a result of the Earth's rotation, but their position is fixed. A star’s actual position does change over time as the combined result of the star’s small movement (proper motion) as well as the changing rotational axis of the Earth (precession).

Spherical projection can overcome angular distortion by converting the position of the declination to:

# Projected from South Pole (Northern Hemisphere)
north_hemisphere_declination = tan(45° + (original_declination / 2))

# Projected from North Pole (Southern Hemisphere)
south_hemisphere_declination = tan(45° - (original_declination / 2))

Where in the Northern Hemisphere, projections are formed from the South Pole: morrisons_astrolabe

Add a New Star

newStar Object

The star chart package comes with over a hundred of brightest stars as part of a built-in library. However, a new star can be easily added for plotting or calculations by creating a newStar object. The newStar object will require a few important features that plotStereographicProjection() and finalPositionOfStars() can now accept as an additional argument.

This allows for the creation of a new star in two ways:

1. With a Proper Motion Speed and a Proper Motion Angle

As seen in in-the-sky.org for Pollux

star_chart_spherical_projection.newStar(starName=None,
					ra=None,
					dec=None,
					properMotionSpeed=None,
					properMotionAngle=None,
					magnitudeVisual=None)
  • [REQUIRED] starName: (string) A star name to be displayed as a label
  • [REQUIRED] ra: (string) Right Ascension of star as a string with three parts 'HH.MM.SS' (Hours, Minutes, Seconds)
  • [REQUIRED] dec: (int/float) Declination of star (a positive or negative value)
  • [REQUIRED] properMotionSpeed: (int/float) Proper motion speed as a single value (in mas/year)
  • [REQUIRED] properMotionAngle: (int/float) Proper motion positive angle (between 0° and 360°)
  • [REQUIRED] magnitudeVisual: (int/float) Absolute Visual Magnitude

With the Proper Motion speed along the Right Ascension and Declination

As seen in wikipeida.og for Pollux

star_chart_spherical_projection.newStar(starName=None,
					ra=None,
					dec=None,
					properMotionSpeedRA=None,
					properMotionSpeedDec=None,
					magnitudeVisual=None)
  • [REQUIRED] starName: (string) A star name to be displayed as a label
  • [REQUIRED] ra: (string) Right Ascension of star as a string with three parts 'HH.MM.SS' (Hours, Minutes, Seconds)
  • [REQUIRED] dec: (int/float) Declination of star (a positive or negative value)
  • [REQUIRED] properMotionSpeedRA: (int/float) Speed of Proper Motion along the Right Ascension
  • [REQUIRED] properMotionSpeedDec: (int/float) Speed of Proper Motion along the Declination
  • [REQUIRED] magnitudeVisual: (int/float) Absolute Visual Magnitude

Important Note: RA/Dec proper motion will be converted from speed along the right ascension and declination to a proper motion speed (properMotionSpeed) and an angle (properMotionAngle) for further calculations

Stars Built-in (Click to view all)
['Acamar', 'Achernar', 'Acrab', 'Acrux', 'Adhara', 'Aldebaran', 'Alderamin', 'Algieba', 'Algol', 'Alhena', 'Alioth', 'Alkaid', 'Almach', 'Alnair', 'Alnilam', 'Alnitak', 'Alphard', 'Alphecca', 'Alpheratz', 'Altair', 'Aludra', 'Ankaa', 'Antares', 'Arcturus', 'Arneb', 'Ascella', 'Aspidiske', 'Atria', 'Avior', 'Bellatrix', 'Beta Hydri', 'Beta Phoenicis', 'Betelgeuse', 'Canopus', 'Capella', 'Caph', 'Castor', 'Cebalrai', 'Celaeno', 'Chara', 'Cor-Caroli', 'Cursa', 'Delta Crucis', 'Delta Velorum', 'Deneb', 'Denebola', 'Diphda', 'Dschubba', 'Dubhe', 'Elnath', 'Eltanin', 'Enif', 'Formalhaut', 'Gacrux', 'Gamma Phoenicis', 'Gienah', 'Hadar', 'Hamal', 'Kaus Australis', 'Kochab', 'Kornephoros', 'Lesath', 'Markab', 'Megrez', 'Meissa', 'Menkalinan', 'Menkar', 'Menkent', 'Merak', 'Miaplacidus', 'Mimosa', 'Mintaka', 'Mirach', 'Mirfak', 'Mirzam', 'Mizar', 'Muphrid', 'Naos', 'Navi', 'Nunki', 'Peacock', 'Phact', 'Phecda', 'Polaris', 'Pollux', 'Procyon', 'Rasalhague', 'Rastaban', 'Regulus', 'Rigel', 'Ruchbah', 'Sabik', 'Sadr', 'Saiph', 'Sargas', 'Scheat', 'Schedar', 'Segin', 'Seginus', 'Shaula', 'Sheratan', 'Sirius', 'Spica', 'Suhail', 'Tarazed', 'Thuban', 'Tureis', 'Unukalhai', 'Vega', 'Wezen', 'Zosma', 'Zubeneschamali']

Plot Stars on a Polar Chart

plotStereographicProjection()

Plot stars on a Stereographic Polar Plot

plotStereographicProjection(northOrSouth=None,
			builtInStars=[],
			declination_min=None,
			yearSince2000=0,
			displayStarNamesLabels=True,
			displayDeclinationNumbers=True,
			incrementBy=10,
			isPrecessionIncluded=True,
			maxMagnitudeFilter=None,
			userDefinedStars=[],
			onlyDisplayUserStars=False,
			showPlot=True,
			fig_plot_title=None,
			fig_plot_color="C0",
			figsize_n=12,
			figsize_dpi=100,
			save_plot_name=None)
  • [REQUIRED] northOrSouth: (string) map for either the "North" or "South" hemisphere
  • [OPTIONAL] builtInStars: (list) a list of star names to include from built-in list, by default = [] includes all stars (in star_data.csv). Example: ["Vega", "Merak", "Dubhe"]
  • [OPTIONAL] declination_min: (int/float) outer declination value, defaults to -30° in Northern hemisphere and 30° in Southern hemisphere
  • [OPTIONAL] yearSince2000: (int/float) years since 2000 (-50 = 1950 and +50 = 2050) to calculate proper motion and precession, defaults = 0 years
  • [OPTIONAL] displayStarNamesLabels: (boolean) display the star name labels, defaults to True
  • [OPTIONAL] displayDeclinationNumbers: (boolean) display declination values, defaults to True
  • [OPTIONAL] incrementBy: (int) increment values for declination (either 1, 5, 10), defaults to 10
  • [OPTIONAL] isPrecessionIncluded: (boolean) when calculating star positions include predictions for precession, defaults to True
  • [OPTIONAL] maxMagnitudeFilter: (int/float) filter existing stars by magnitude by setting the max magnitude for the chart to include, defaults to None (shows all stars)
  • [OPTIONAL] userDefinedStars: (list) List of newStar objects of stars the user has added
  • [OPTIONAL] onlyDisplayUserStars: (bool) Only display the stars defined by the users (userDefinedStars)
  • [OPTIONAL] showPlot: (boolean) show plot (triggers plt.show()), useful when generating multiple plots at once in the background, defaults to True
  • [OPTIONAL] fig_plot_title: (string) figure title, defaults to "<North/South>ern Hemisphere [ Years Since 2000 (YYYY)]: +/-90° to °"
  • [OPTIONAL] fig_plot_color: (string) scatter plot star color, defaults to C0
  • [OPTIONAL] figsize_n: (int/float) figure size, default to 12
  • [OPTIONAL] figsize_dpi: (int/float) figure DPI, default to 100
  • [OPTIONAL] save_plot_name: (string) save plot with a string name, defaults to not saving
Stars that will be included by default when builtInStars = [] (Click to view all)
['Acamar', 'Achernar', 'Acrab', 'Acrux', 'Adhara', 'Aldebaran', 'Alderamin', 'Algieba', 'Algol', 'Alhena', 'Alioth', 'Alkaid', 'Almach', 'Alnair', 'Alnilam', 'Alnitak', 'Alphard', 'Alphecca', 'Alpheratz', 'Altair', 'Aludra', 'Ankaa', 'Antares', 'Arcturus', 'Arneb', 'Ascella', 'Aspidiske', 'Atria', 'Avior', 'Bellatrix', 'Beta Hydri', 'Beta Phoenicis', 'Betelgeuse', 'Canopus', 'Capella', 'Caph', 'Castor', 'Cebalrai', 'Celaeno', 'Chara', 'Cor-Caroli', 'Cursa', 'Delta Crucis', 'Delta Velorum', 'Deneb', 'Denebola', 'Diphda', 'Dschubba', 'Dubhe', 'Elnath', 'Eltanin', 'Enif', 'Formalhaut', 'Gacrux', 'Gamma Phoenicis', 'Gienah', 'Hadar', 'Hamal', 'Kaus Australis', 'Kochab', 'Kornephoros', 'Lesath', 'Markab', 'Megrez', 'Meissa', 'Menkalinan', 'Menkar', 'Menkent', 'Merak', 'Miaplacidus', 'Mimosa', 'Mintaka', 'Mirach', 'Mirfak', 'Mirzam', 'Mizar', 'Muphrid', 'Naos', 'Navi', 'Nunki', 'Peacock', 'Phact', 'Phecda', 'Polaris', 'Pollux', 'Procyon', 'Rasalhague', 'Rastaban', 'Regulus', 'Rigel', 'Ruchbah', 'Sabik', 'Sadr', 'Saiph', 'Sargas', 'Scheat', 'Schedar', 'Segin', 'Seginus', 'Shaula', 'Sheratan', 'Sirius', 'Spica', 'Suhail', 'Tarazed', 'Thuban', 'Tureis', 'Unukalhai', 'Vega', 'Wezen', 'Zosma', 'Zubeneschamali']

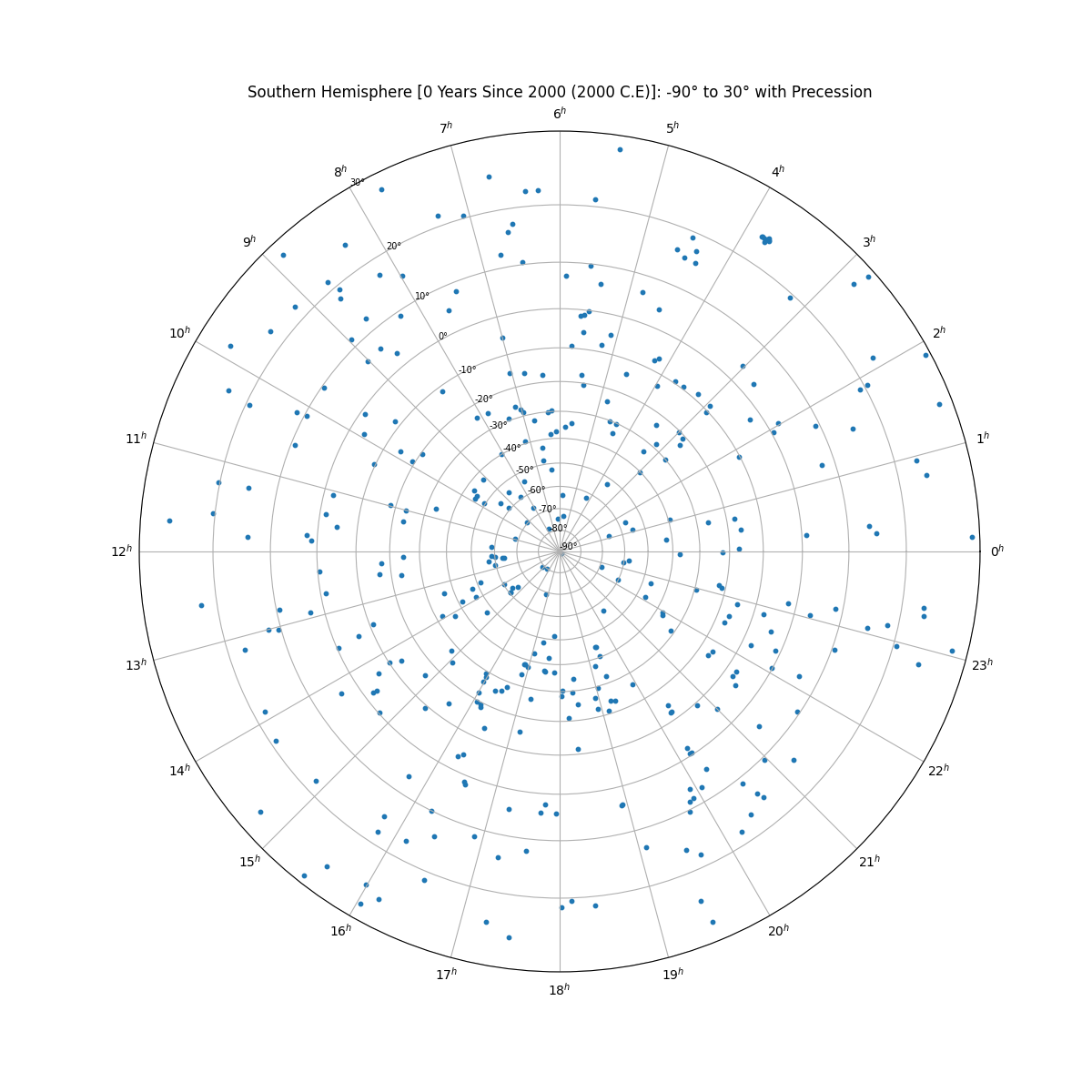

northOrSouth="North" (-30° to 90°) (without star labels) northOrSouth="South" (30° to -90°) (without star labels)
northOrSouth+png northOrSouth+png

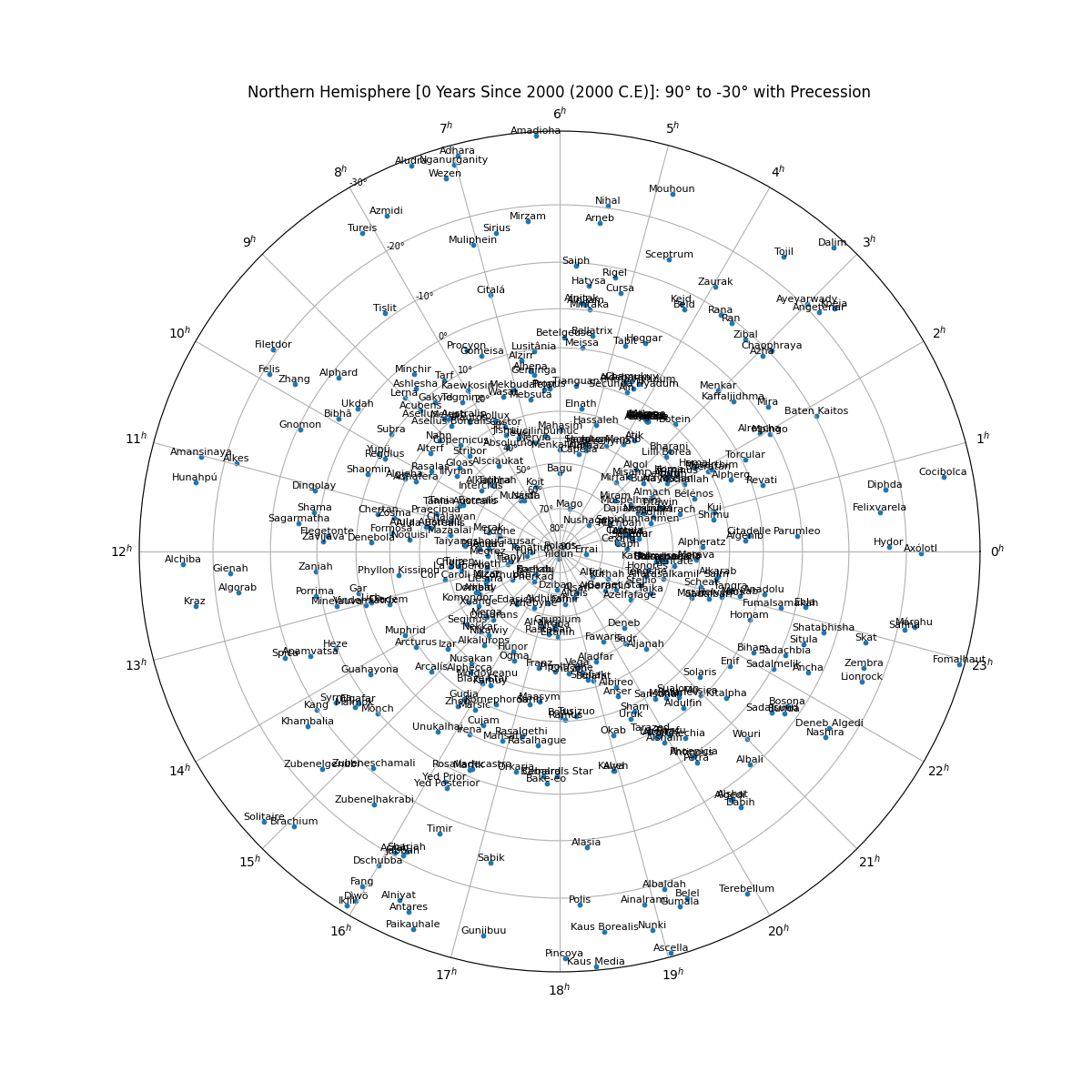

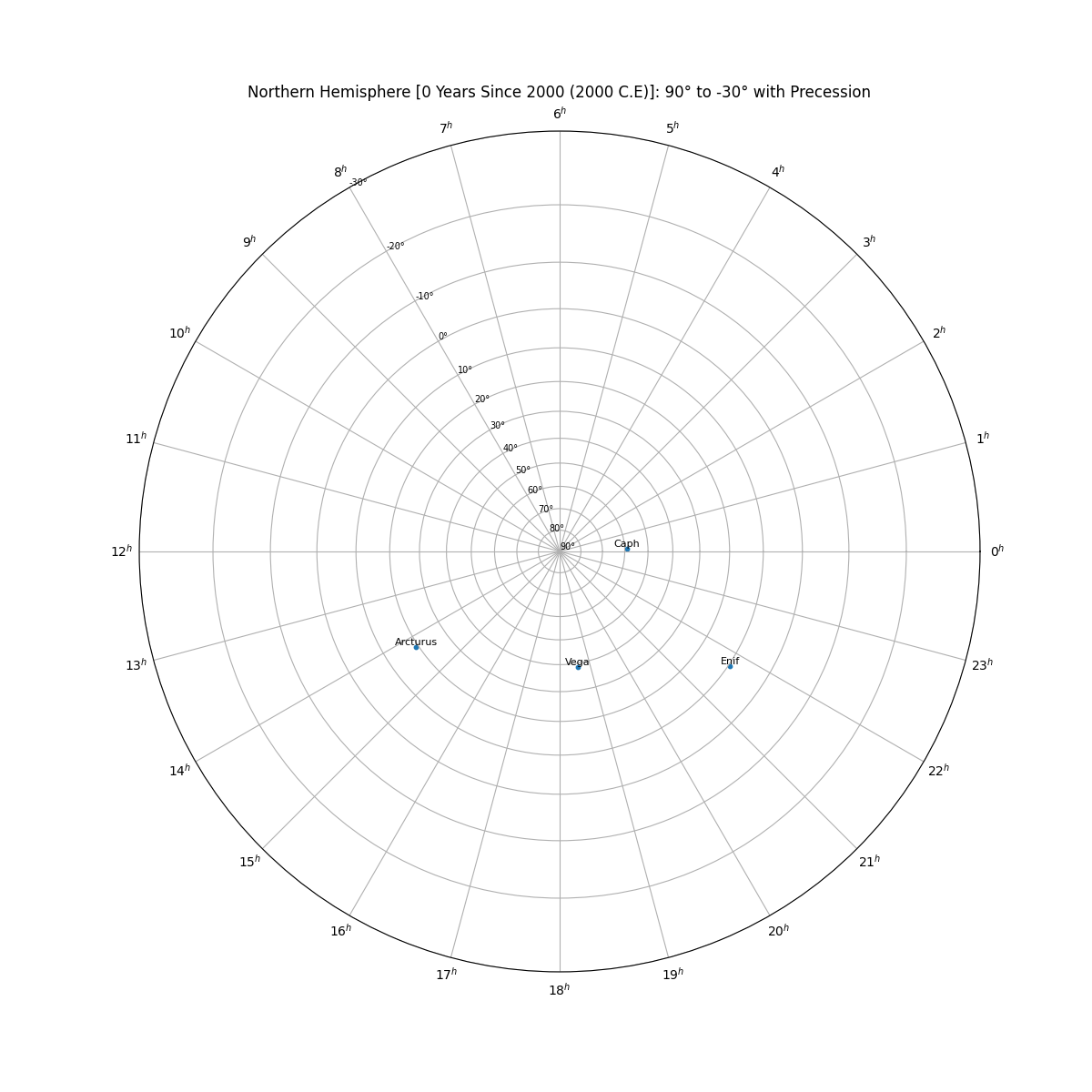

builtInStars=[] (Includes all stars, default) builtInStars=["Vega", "Arcturus", "Enif", "Caph", "Mimosa"]
builtInStars+png builtInStars+png

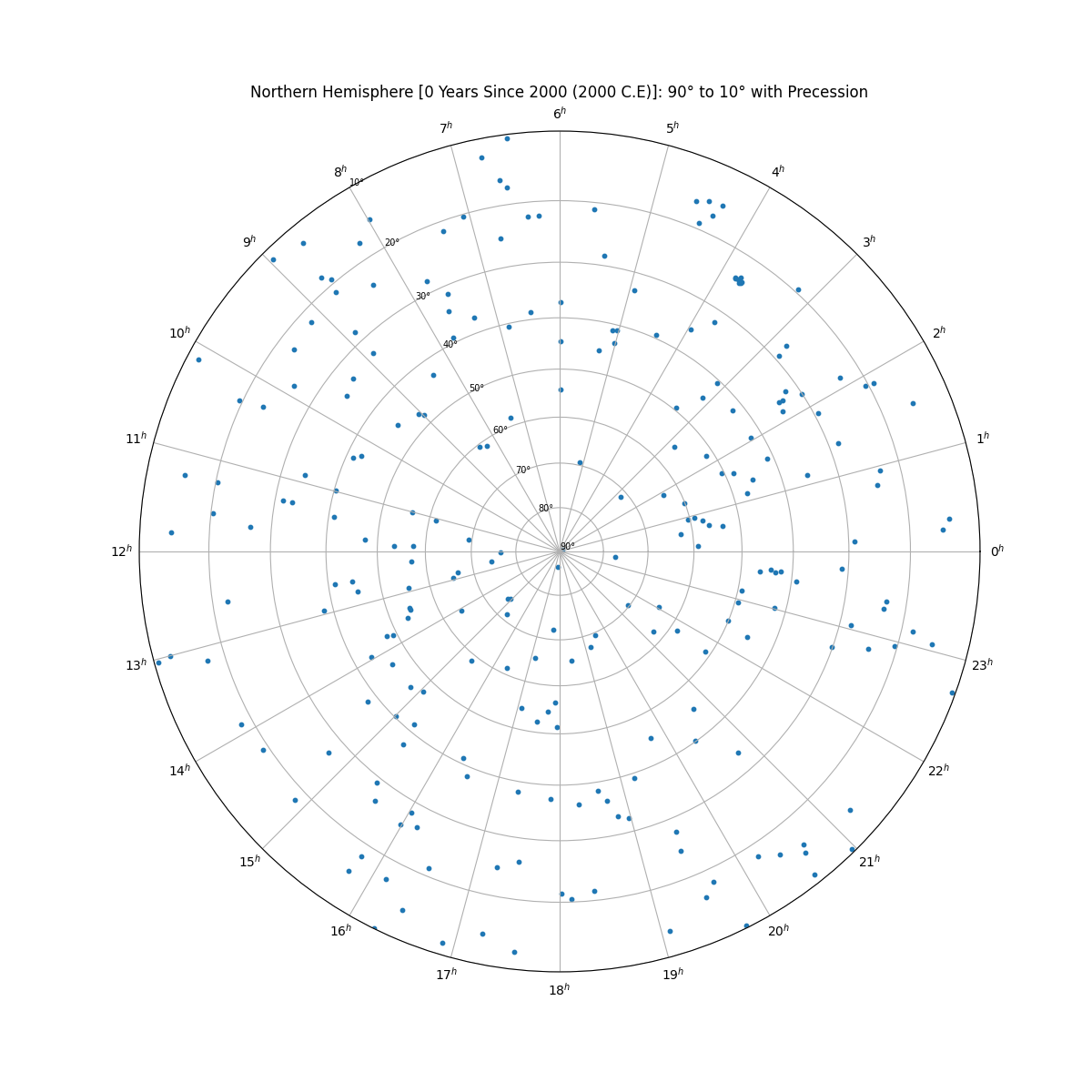

declination_min=-30° (default) declination_min=10°
declination_min+png declination_min+png

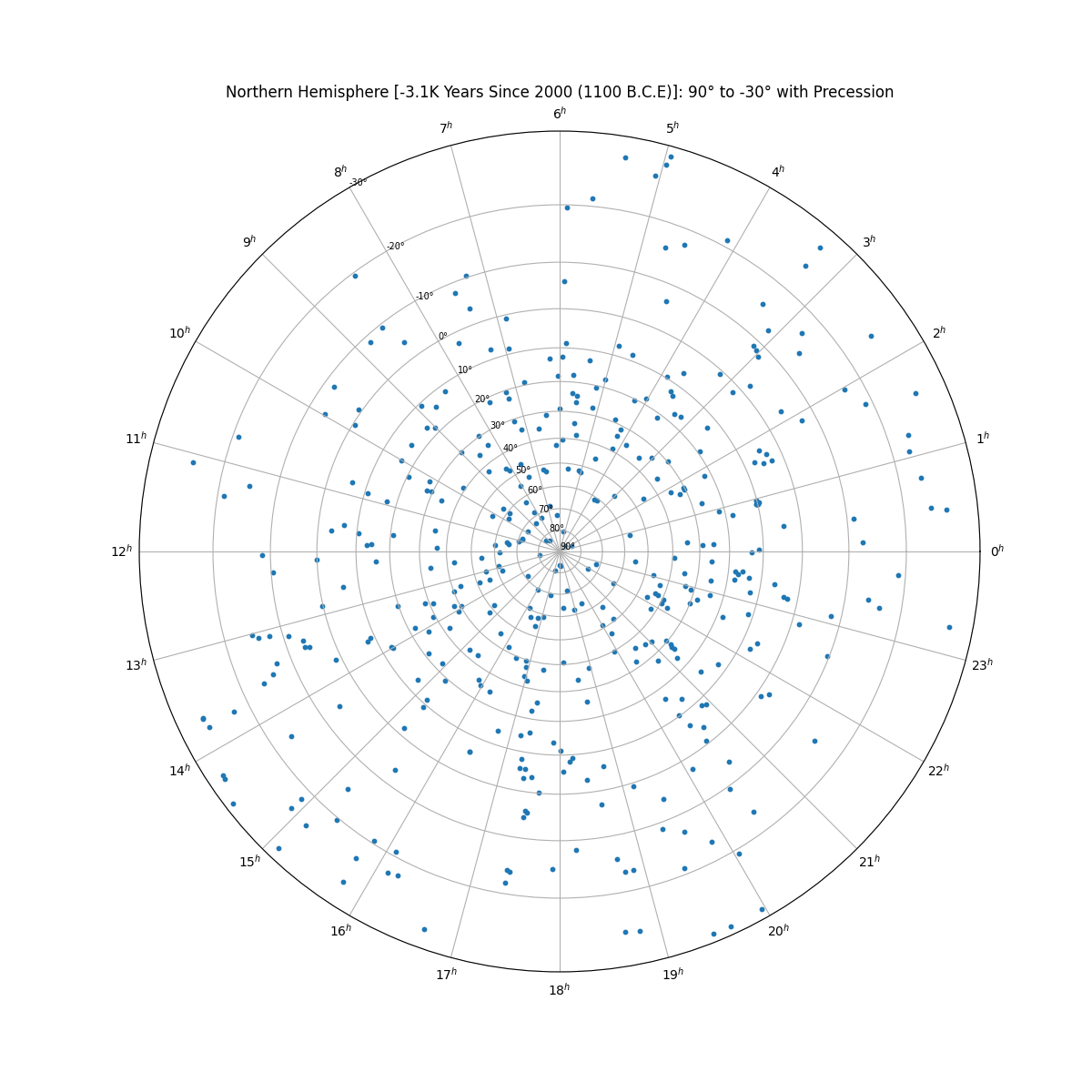

yearSince2000=0 (default) yearSince2000=-3100
declination_min+png declination_min+png

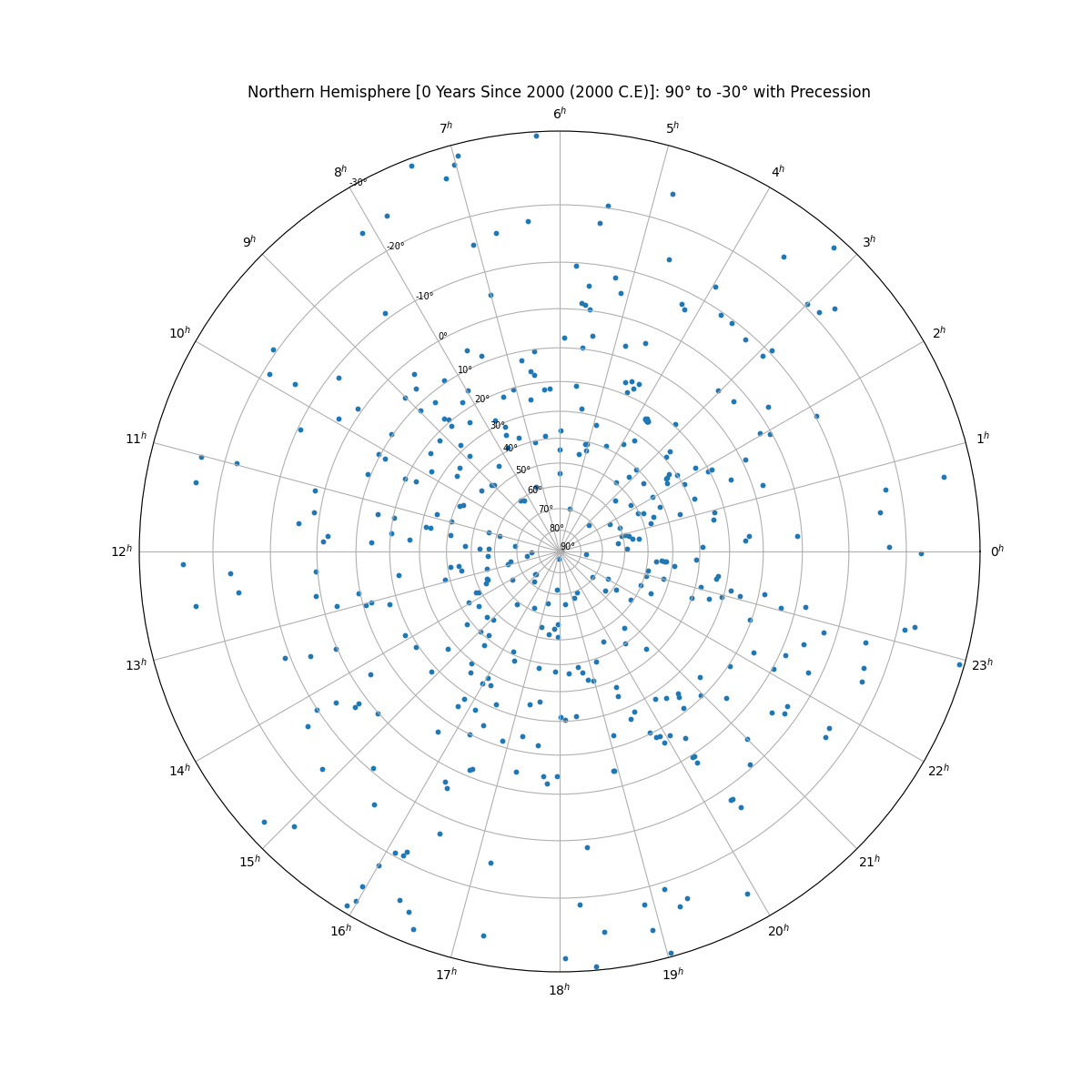

displayStarNamesLabels=True (default) displayStarNamesLabels=False
displayStarNamesLabels+png displayStarNamesLabels+png

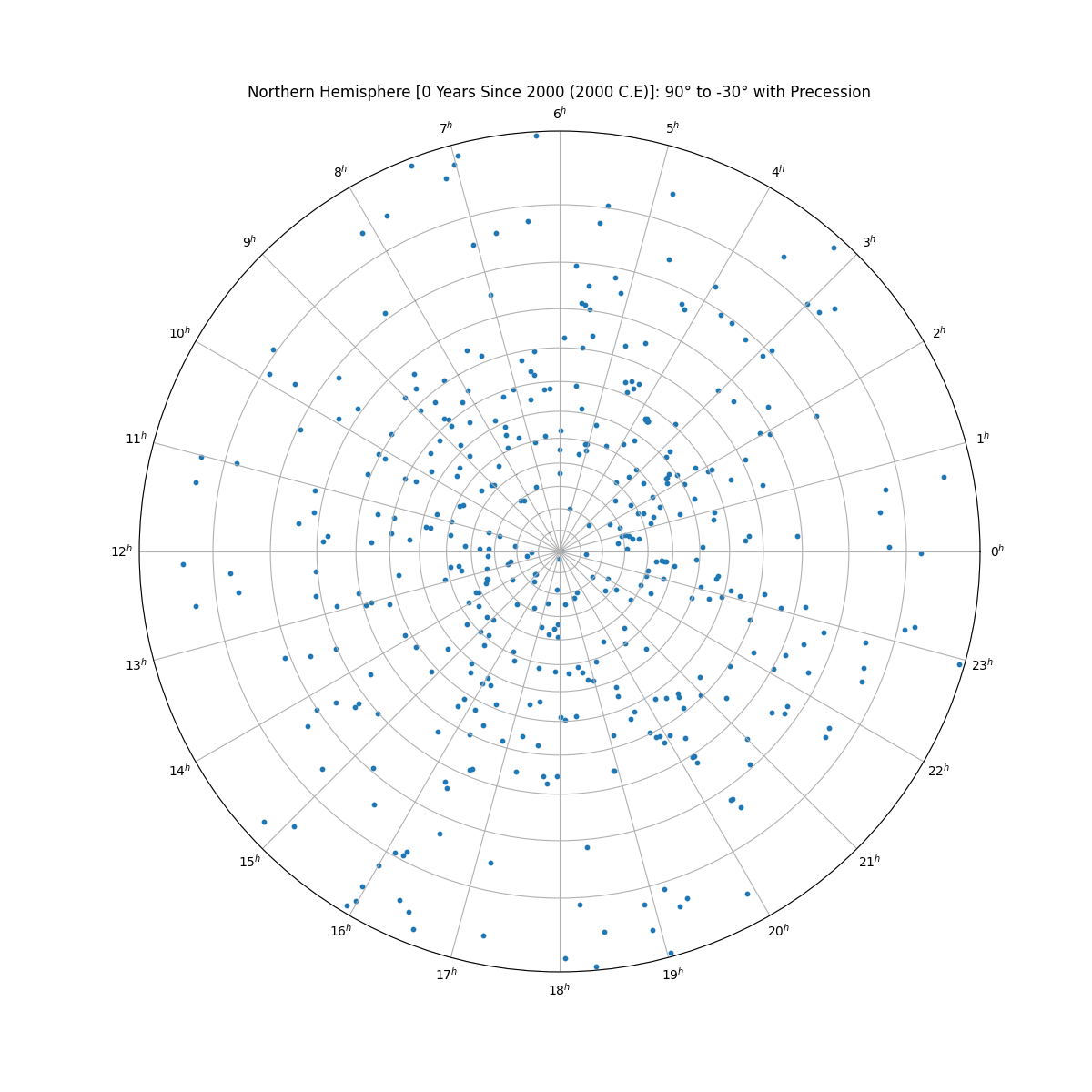

displayDeclinationNumbers=True (default) (without star labels) displayDeclinationNumbers=False (without star labels)
displayDeclinationNumbers+png displayDeclinationNumbers+png

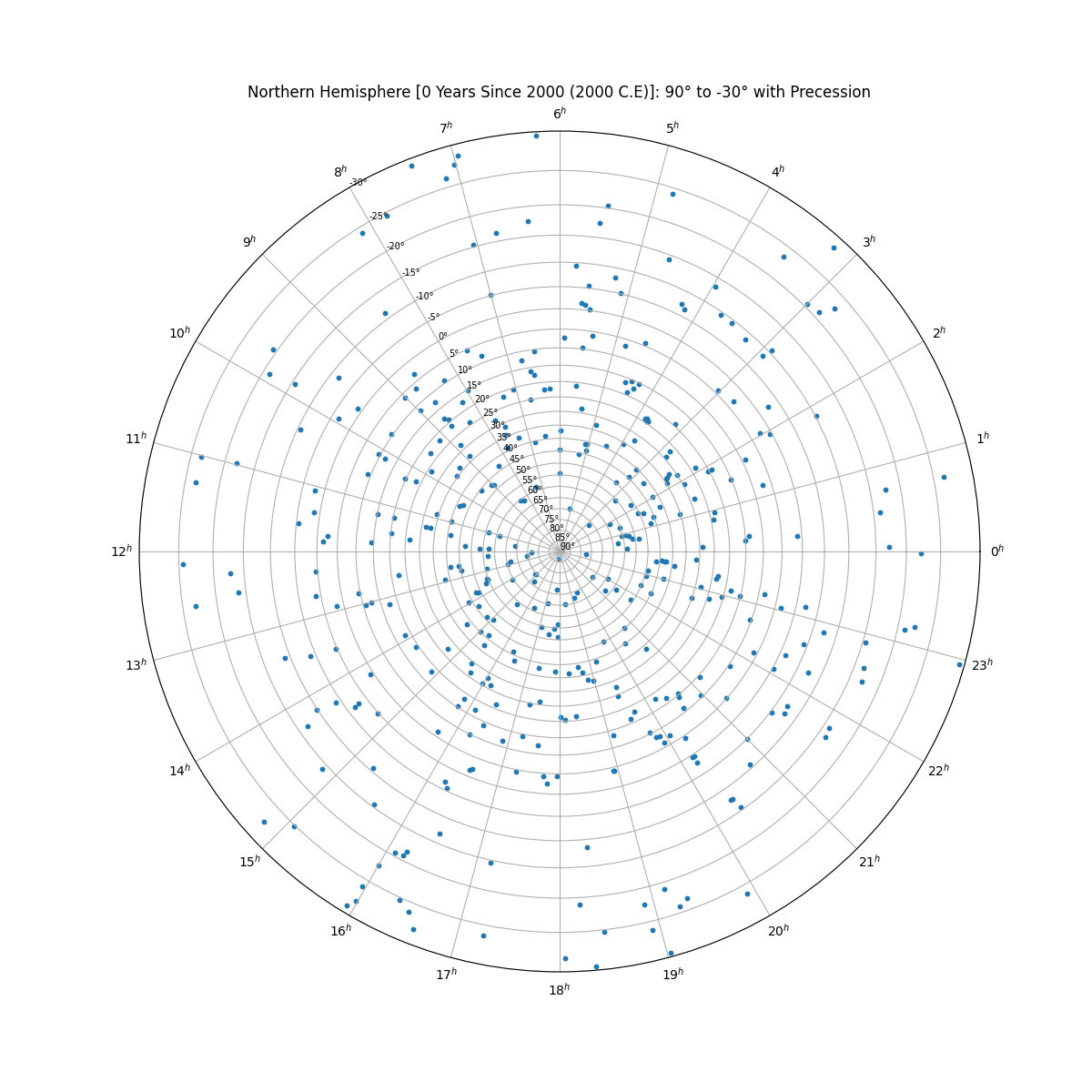

incrementBy=10 (default) (without star labels) incrementBy=5 (without star labels)
incrementBy_default+png incrementBy_5+png

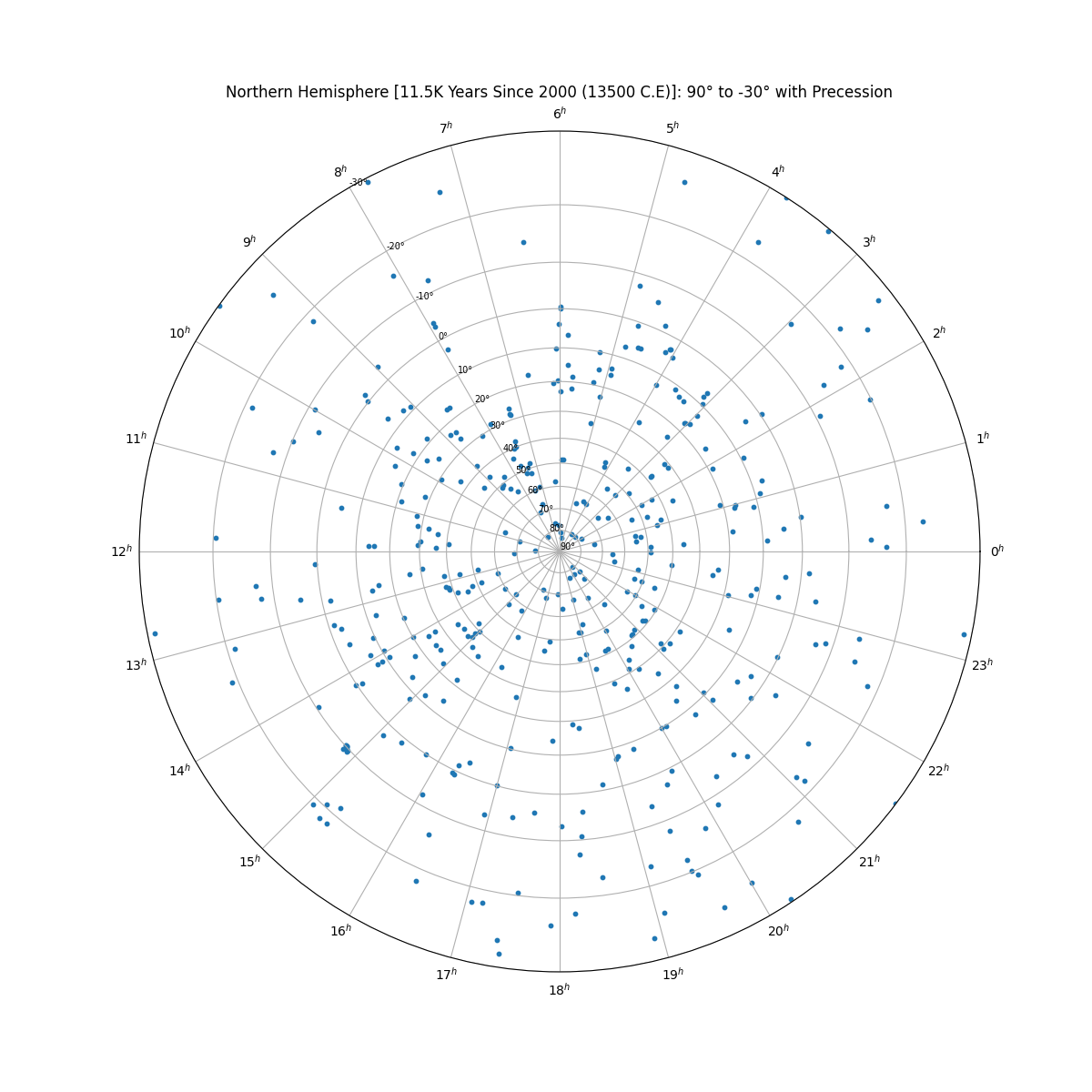

isPrecessionIncluded=True (default) (yearSince2000=11500) isPrecessionIncluded=False (yearSince2000=11500)
isPrecessionIncluded_default+png isPrecessionIncluded_false+png

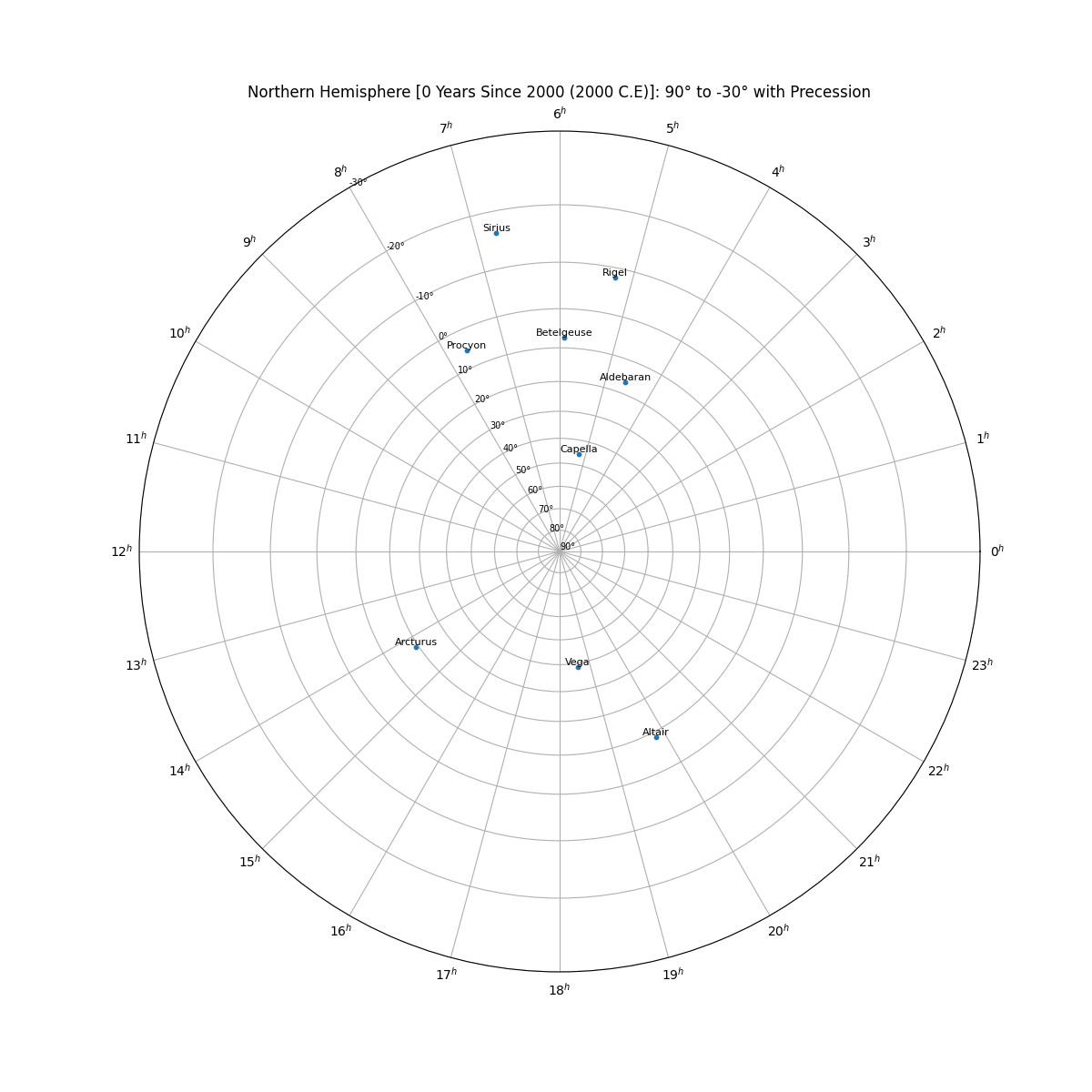

maxMagnitudeFilter=None (default) maxMagnitudeFilter=1
maxMagnitudeFilter_default+png maxMagnitudeFilter+png

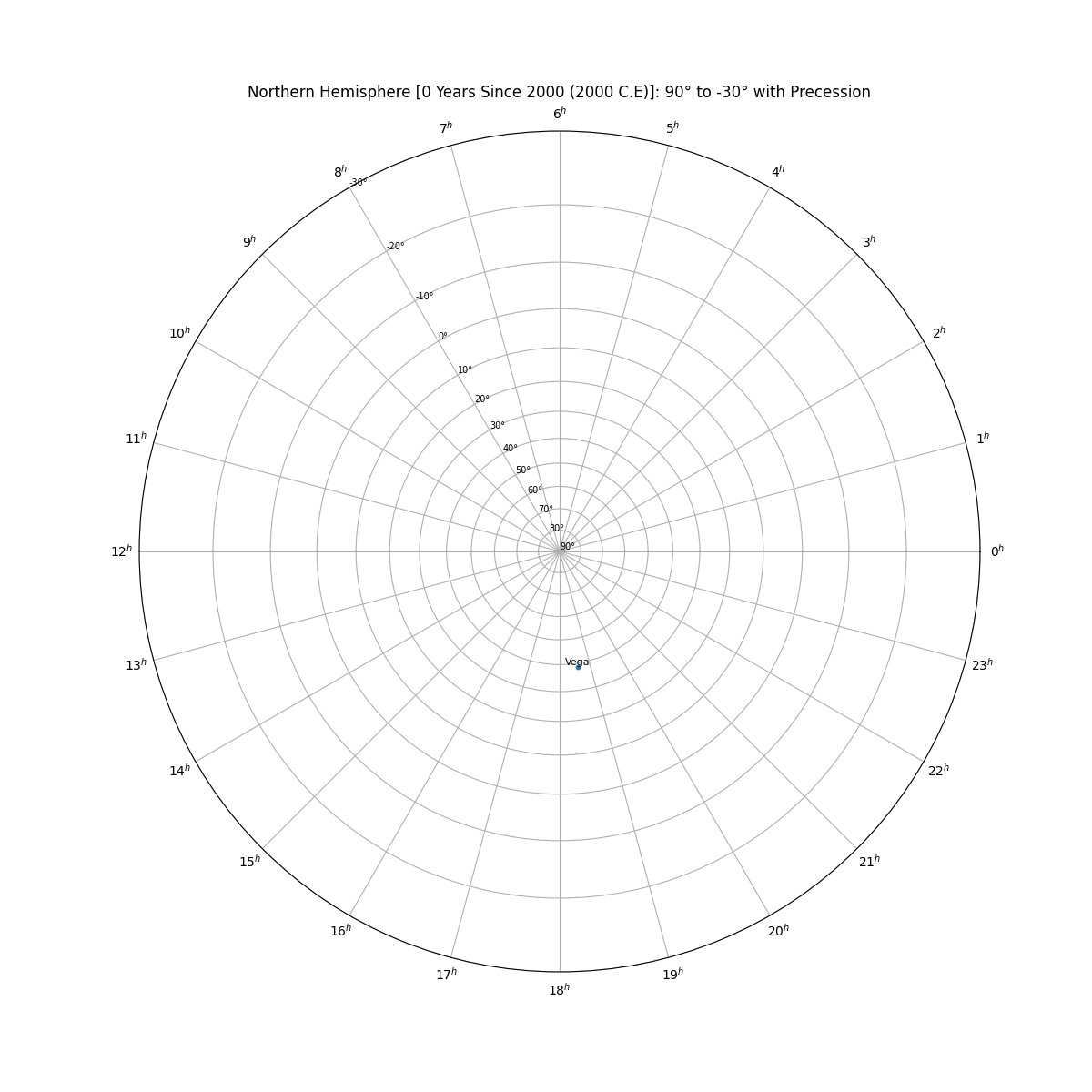

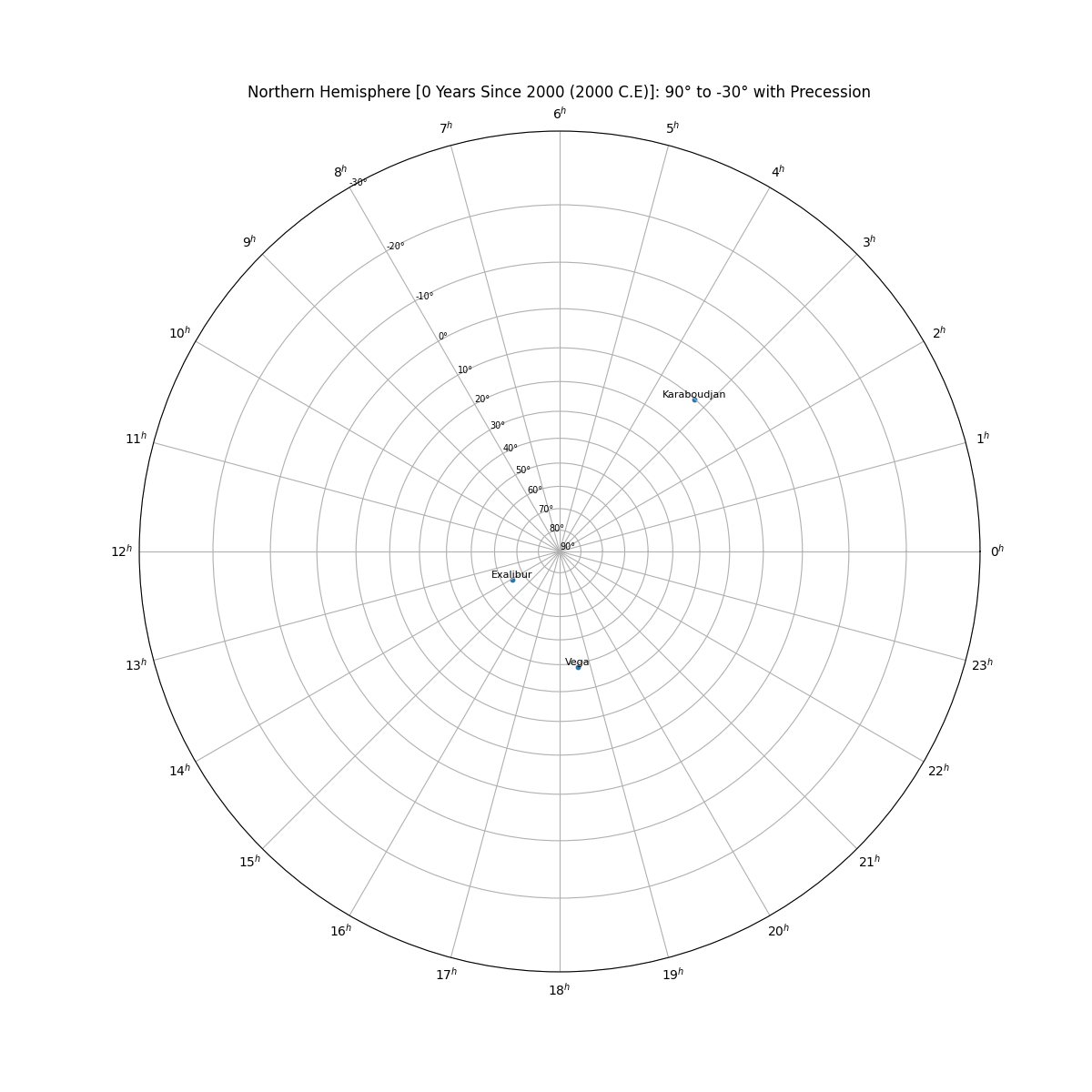

userDefinedStars=[] (default) (with just "Vega") userDefinedStars=[exalibur_star, karaboudjan_star] (from Quickstart with "Vega")
userDefinedStars_default+png userDefinedStars+png

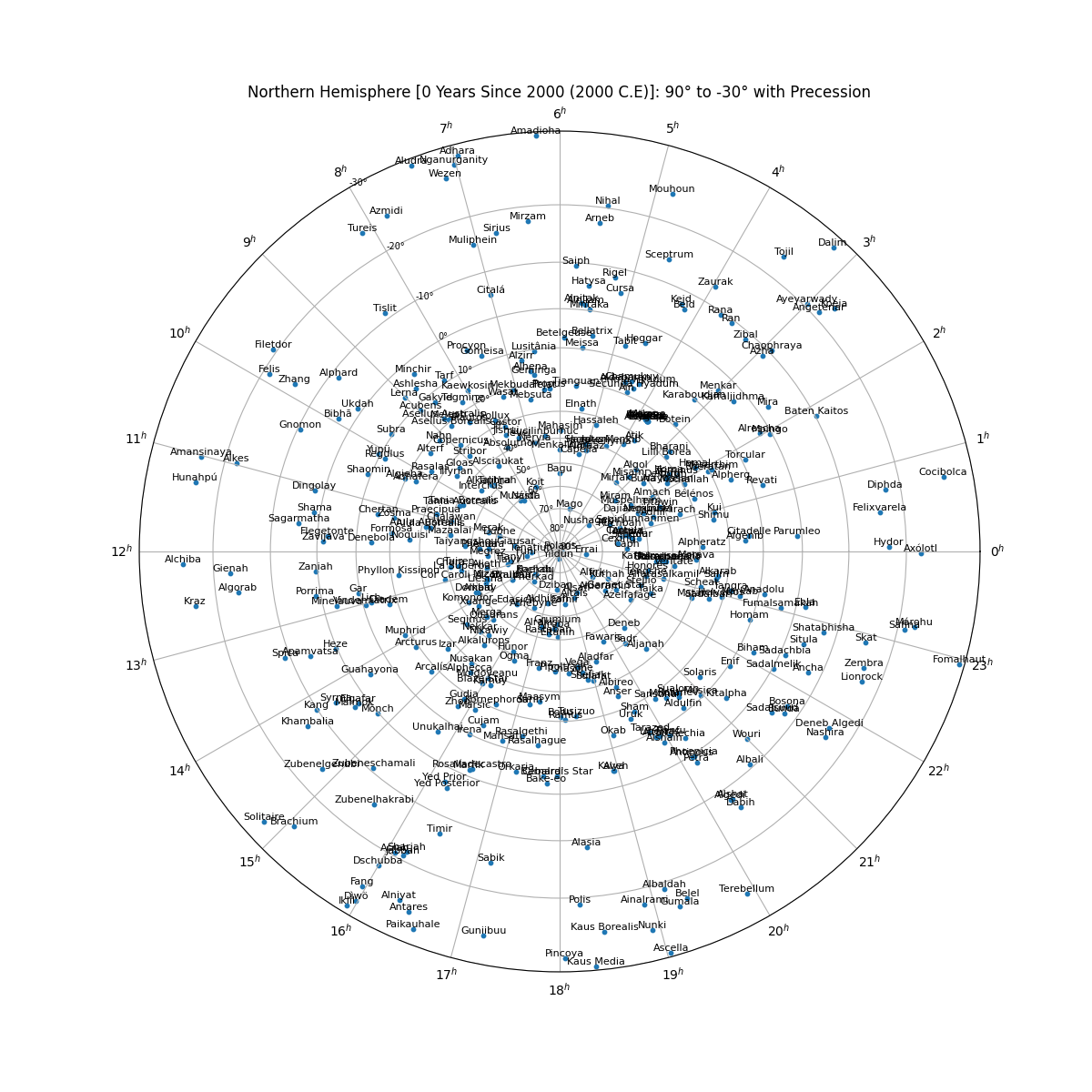

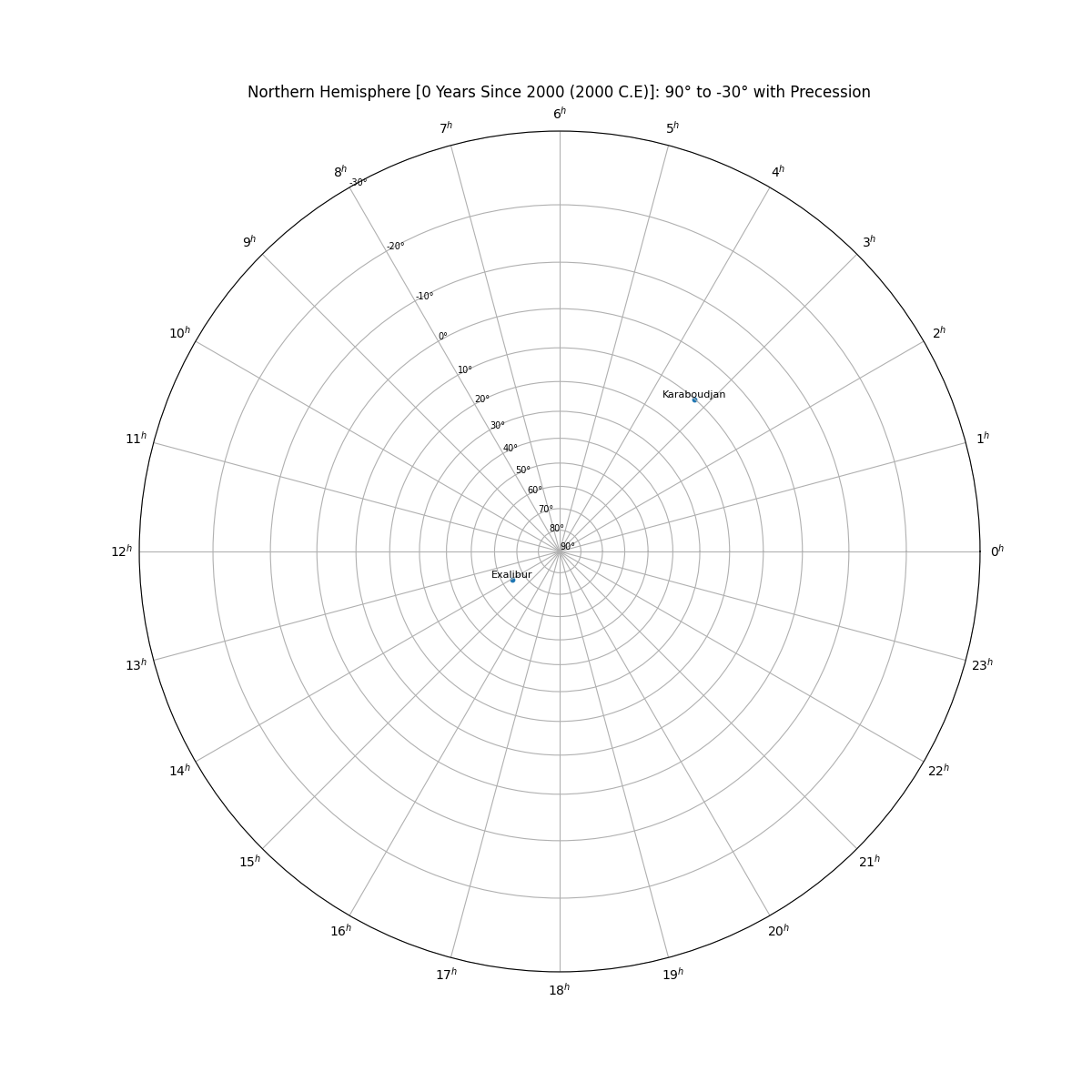

onlyDisplayUserStars=False (default) with userDefinedStars onlyDisplayUserStars=True with userDefinedStars=[exalibur_star, karaboudjan_star] (from Quickstart)
onlyDisplayUserStars_default+png onlyDisplayUserStars+png
fig_plot_title=(default) fig_plot_title="This is a Example Title for a Star Chart"
fig_plot_title_default+png fig_plot_title+png
fig_plot_color="C0" (default) (without star labels) fig_plot_color="darkorchid" (without star labels)
fig_plot_color_default+png fig_plot_color_dark_orchid+png

Return Final Position of Stars

finalPositionOfStars()

Returns a dictionary for the final positions of the stars for a specific year in the format: {'Star Name': {"Declination" : Declination (int), "RA": RA (str)}

finalPositionOfStars(builtInStars=[],
		yearSince2000=0,
		isPrecessionIncluded=True,
		userDefinedStars=[],
		onlyDisplayUserStars=False,
		declination_min=None,
		declination_max=None,
		save_to_csv=None)
  • [OPTIONAL] builtInStars: (list) a list of star names to include from built-in list, by default = [] includes all stars (in star_data.csv). Example: ["Vega", "Merak", "Dubhe"]
  • [OPTIONAL] yearSince2000: (int/float) years since 2000 (-50 = 1950 and +50 = 2050) to calculate proper motion and precession, defaults = 0 years
  • [OPTIONAL] isPrecessionIncluded: (boolean) when calculating star positions include predictions for precession, defaults to True
  • [OPTIONAL] userDefinedStars: (list): List of newStar objects of stars the user has added
  • [OPTIONAL] onlyDisplayUserStars: (bool) Only include the stars defined by the users (userDefinedStars)
  • [OPTIONAL] declination_min: (int/float) set minimum declination value, defaults to -30° in Northern hemisphere and 30° in Southern hemisphere
  • [OPTIONAL] declination_max: (int/float) set maximum declination value, defaults to 90° in Northern hemisphere and -90° in Southern hemisphere
  • [OPTIONAL] save_to_csv: (string) CSV filename and location to save final star positions with headers ["Star Name", "Right Ascension (HH.MM.SS)", "Declination (DD.SS)"]
Stars that will be included by default when builtInStars = [] (Click to view all)
['Acamar', 'Achernar', 'Acrab', 'Acrux', 'Adhara', 'Aldebaran', 'Alderamin', 'Algieba', 'Algol', 'Alhena', 'Alioth', 'Alkaid', 'Almach', 'Alnair', 'Alnilam', 'Alnitak', 'Alphard', 'Alphecca', 'Alpheratz', 'Altair', 'Aludra', 'Ankaa', 'Antares', 'Arcturus', 'Arneb', 'Ascella', 'Aspidiske', 'Atria', 'Avior', 'Bellatrix', 'Beta Hydri', 'Beta Phoenicis', 'Betelgeuse', 'Canopus', 'Capella', 'Caph', 'Castor', 'Cebalrai', 'Celaeno', 'Chara', 'Cor-Caroli', 'Cursa', 'Delta Crucis', 'Delta Velorum', 'Deneb', 'Denebola', 'Diphda', 'Dschubba', 'Dubhe', 'Elnath', 'Eltanin', 'Enif', 'Formalhaut', 'Gacrux', 'Gamma Phoenicis', 'Gienah', 'Hadar', 'Hamal', 'Kaus Australis', 'Kochab', 'Kornephoros', 'Lesath', 'Markab', 'Megrez', 'Meissa', 'Menkalinan', 'Menkar', 'Menkent', 'Merak', 'Miaplacidus', 'Mimosa', 'Mintaka', 'Mirach', 'Mirfak', 'Mirzam', 'Mizar', 'Muphrid', 'Naos', 'Navi', 'Nunki', 'Peacock', 'Phact', 'Phecda', 'Polaris', 'Pollux', 'Procyon', 'Rasalhague', 'Rastaban', 'Regulus', 'Rigel', 'Ruchbah', 'Sabik', 'Sadr', 'Saiph', 'Sargas', 'Scheat', 'Schedar', 'Segin', 'Seginus', 'Shaula', 'Sheratan', 'Sirius', 'Spica', 'Suhail', 'Tarazed', 'Thuban', 'Tureis', 'Unukalhai', 'Vega', 'Wezen', 'Zosma', 'Zubeneschamali']

Return A Star's Position over Time

starPositionOverTime()

Returns a single star's position over time

starPositionOverTime(builtInStarName=None,
			newStar=None,
			startYearSince2000=None,
			endYearSince2000=None,
			incrementYear=5,
			isPrecessionIncluded=True,
			save_to_csv=None)
  • [REQUIRED] builtInStarName: (string) a star name from the built-in list, example: Vega
  • [REQUIRED] newStar: (newStar object) a new star included created from a newStar objct
  • [REQUIRED] startYearSince2000: (float/int) start year since 2000 (-50 = 1950 and +50 = 2050) to calculate proper motion and precession, defaults = 0 years
  • [REQUIRED] endYearSince2000: (float/int) end year since 2000 (-50 = 1950 and +50 = 2050) to calculate proper motion and precession, defaults = 0 years
  • [REQUIRED] incrementYear: (float/int) number of year to increment from start to end by, defaults to 5 years
  • [OPTIONAL] isPrecessionIncluded: (boolean) when calculating star positions include predictions for precession, defaults to True
  • [OPTIONAL] save_to_csv: (string) CSV filename and location to save star's position over time with headers ["Year", "Declination (DD.SS)", "Right Ascension (HH.MM.SS)", "Right Ascension (radians)"]
Stars Built-in (Click to view all)
['Acamar', 'Achernar', 'Acrab', 'Acrux', 'Adhara', 'Aldebaran', 'Alderamin', 'Algieba', 'Algol', 'Alhena', 'Alioth', 'Alkaid', 'Almach', 'Alnair', 'Alnilam', 'Alnitak', 'Alphard', 'Alphecca', 'Alpheratz', 'Altair', 'Aludra', 'Ankaa', 'Antares', 'Arcturus', 'Arneb', 'Ascella', 'Aspidiske', 'Atria', 'Avior', 'Bellatrix', 'Beta Hydri', 'Beta Phoenicis', 'Betelgeuse', 'Canopus', 'Capella', 'Caph', 'Castor', 'Cebalrai', 'Celaeno', 'Chara', 'Cor-Caroli', 'Cursa', 'Delta Crucis', 'Delta Velorum', 'Deneb', 'Denebola', 'Diphda', 'Dschubba', 'Dubhe', 'Elnath', 'Eltanin', 'Enif', 'Formalhaut', 'Gacrux', 'Gamma Phoenicis', 'Gienah', 'Hadar', 'Hamal', 'Kaus Australis', 'Kochab', 'Kornephoros', 'Lesath', 'Markab', 'Megrez', 'Meissa', 'Menkalinan', 'Menkar', 'Menkent', 'Merak', 'Miaplacidus', 'Mimosa', 'Mintaka', 'Mirach', 'Mirfak', 'Mirzam', 'Mizar', 'Muphrid', 'Naos', 'Navi', 'Nunki', 'Peacock', 'Phact', 'Phecda', 'Polaris', 'Pollux', 'Procyon', 'Rasalhague', 'Rastaban', 'Regulus', 'Rigel', 'Ruchbah', 'Sabik', 'Sadr', 'Saiph', 'Sargas', 'Scheat', 'Schedar', 'Segin', 'Seginus', 'Shaula', 'Sheratan', 'Sirius', 'Spica', 'Suhail', 'Tarazed', 'Thuban', 'Tureis', 'Unukalhai', 'Vega', 'Wezen', 'Zosma', 'Zubeneschamali']

Predict Past and Future Pole Stars

predictPoleStar

Return the North/South Pole star for a given year since 2000

predictPoleStar(yearSince2000=0, northOrSouth="North")
  • [REQUIRED] yearSince2000 (int/float): ear since 2000 (-50 = 1950 and +50 = 2050) to calculate proper motion and precession, defaults = 0 years
  • [OPTIONAL] northOrSouth (string): North or South Pole where North = 90° and South = -90°, defaults to North

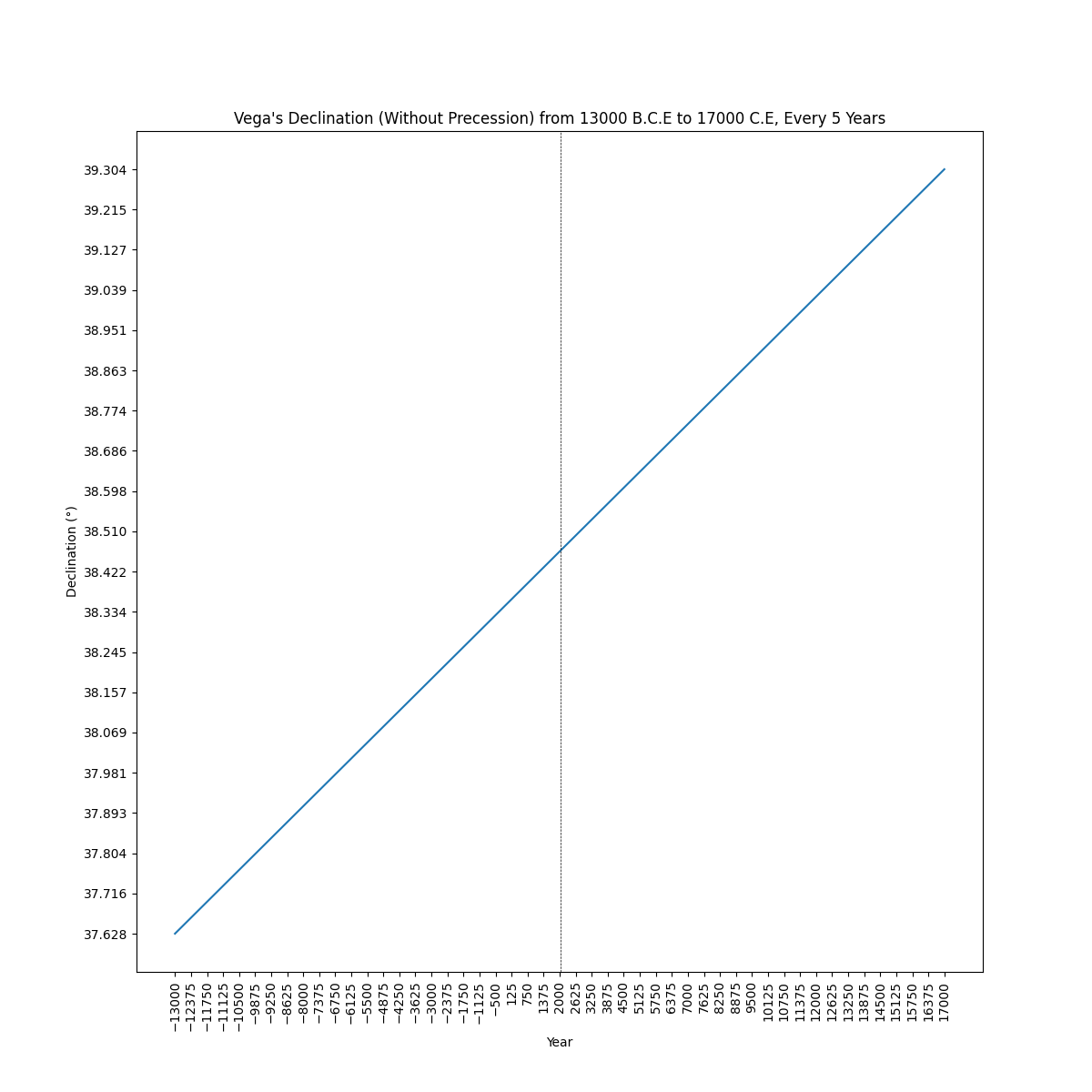

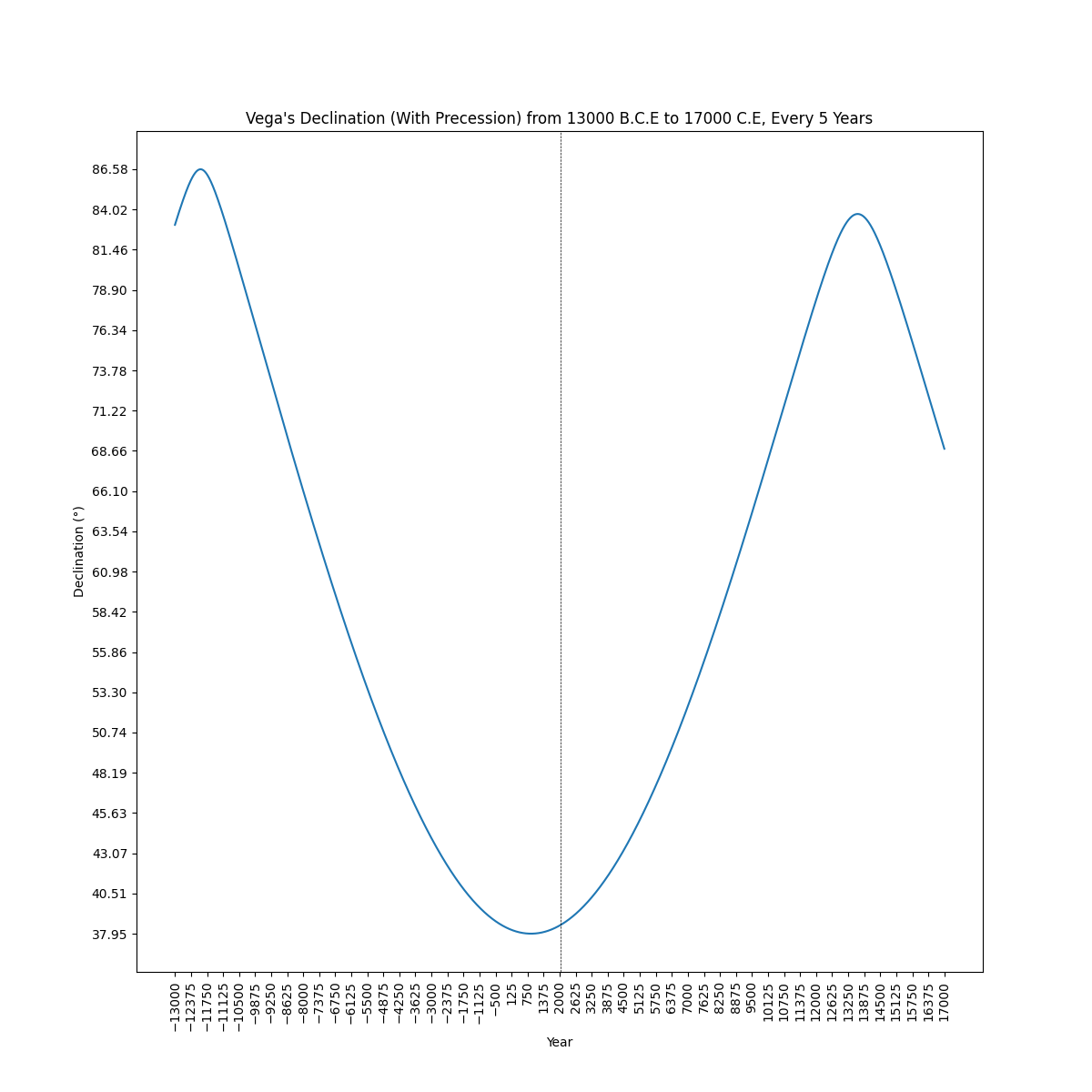

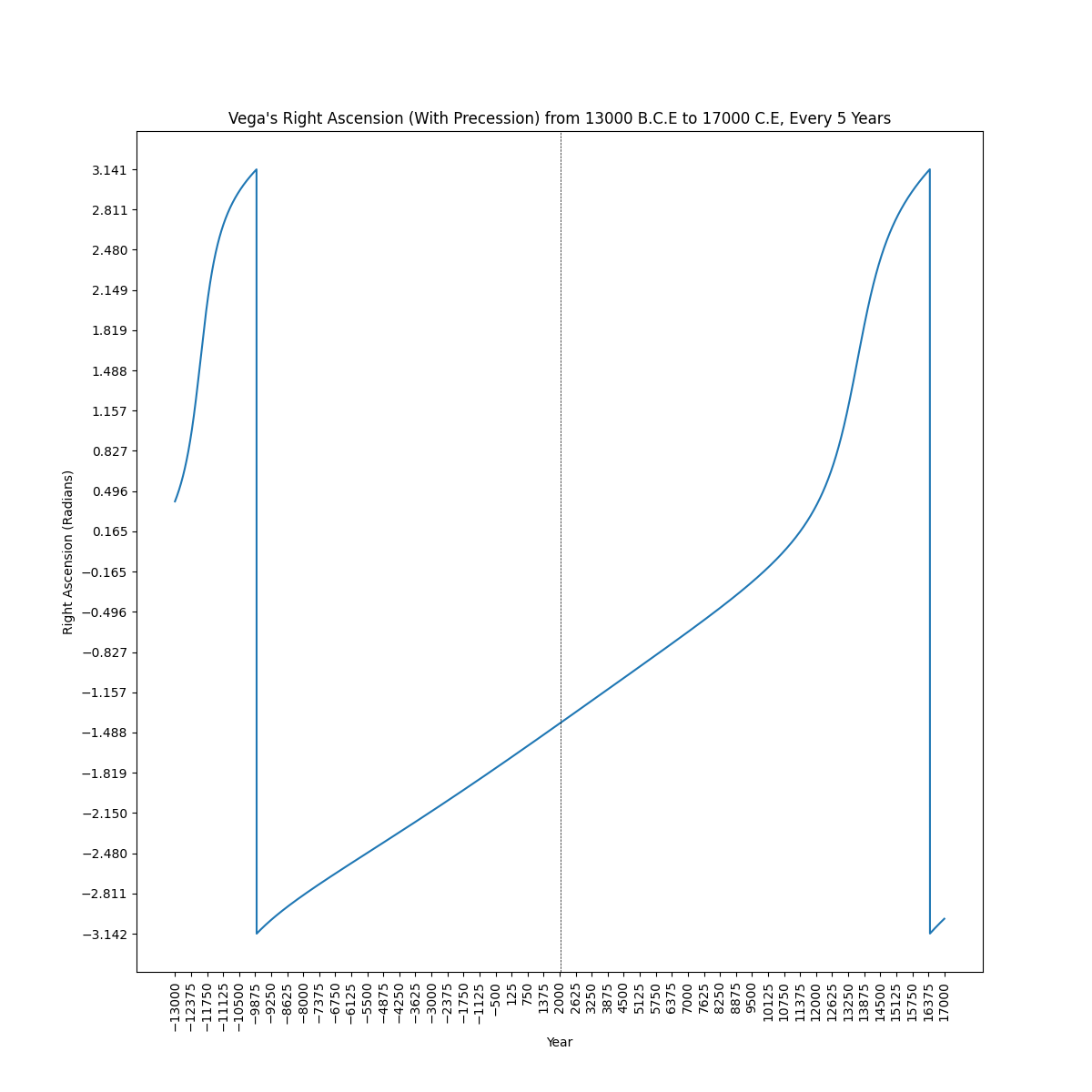

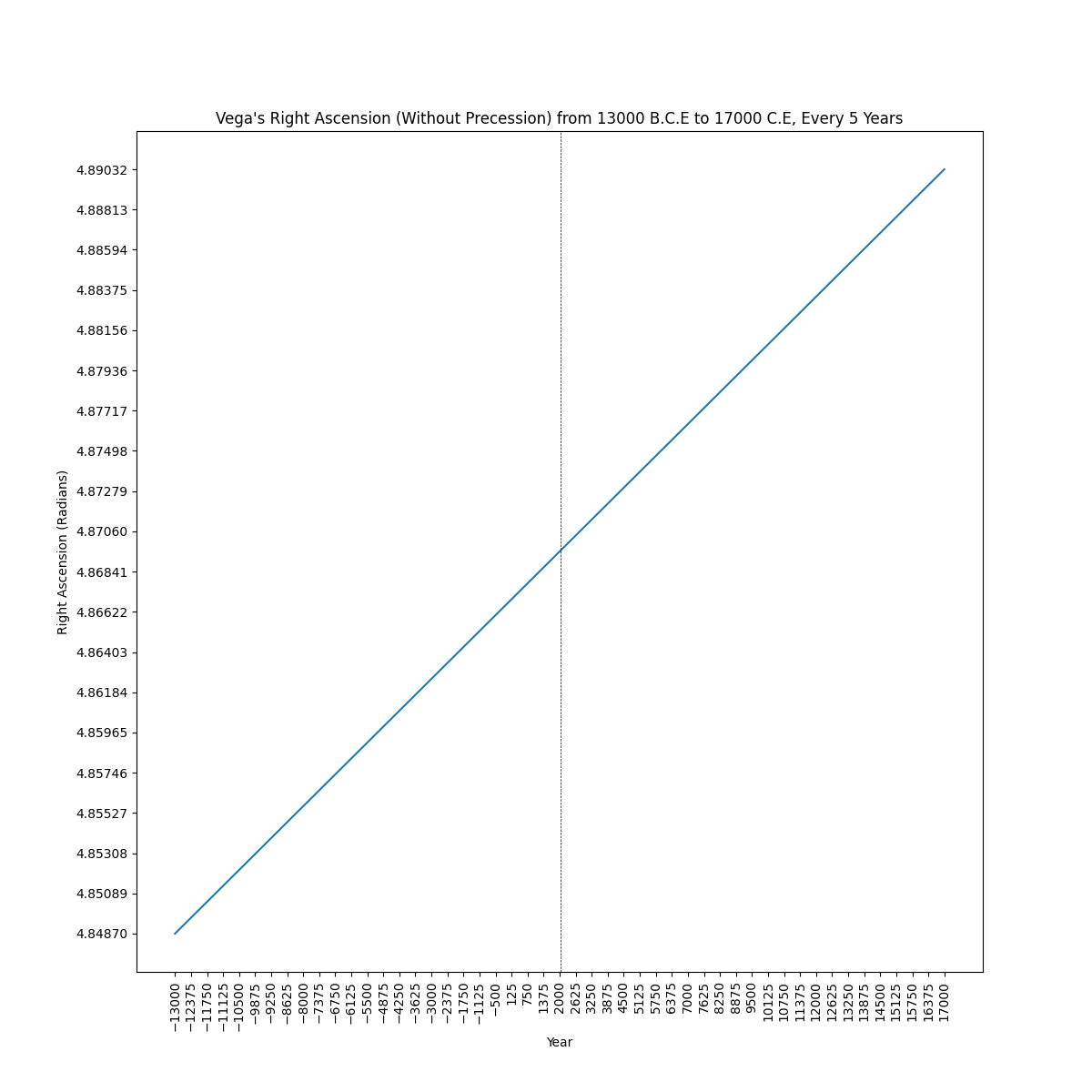

Plot a Star's Position over Time

plotStarPositionOverTime()

Plot a star's declination and right ascension position over time

plotStarPositionOverTime(builtInStarName=None,
			newStar=None,
			startYearSince2000=None,
			endYearSince2000=None,
			incrementYear=10,
			isPrecessionIncluded=True,
			DecOrRA="D",
			showPlot=True,
			showYearMarker=True,
			fig_plot_title=None,
			fig_plot_color="C0",
			figsize_n=12,
			figsize_dpi=100,
			save_plot_name=None)
  • [REQUIRED] builtInStarName: (string) a star name from the built-in list, example: Vega
  • [REQUIRED] newStar: (newStar object) a new star included created from a newStar objct
  • [REQUIRED] startYearSince2000: (float/int) start year since 2000 (-50 = 1950 and +50 = 2050) to calculate proper motion and precession, defaults = 0 years
  • [REQUIRED] endYearSince2000: (float/int) end year since 2000 (-50 = 1950 and +50 = 2050) to calculate proper motion and precession, defaults = 0 years
  • [REQUIRED] DecOrRA: (string) Plot the Declination D or Right Ascension RA, defaults to D
  • [REQUIRED] incrementYear: (float/int) number of year to increment from start to end by, defaults to 10 years
  • [OPTIONAL] isPrecessionIncluded: (boolean) when calculating star positions include predictions for precession, defaults to True
  • [OPTIONAL] showPlot: (boolean) show plot (triggers plt.show()), useful when generating multiple plots at once in the background, defaults to True
  • [OPTIONAL] showYearMarker: (boolean) show dotted line for current year
  • [OPTIONAL] fig_plot_title: (string) figure plot title, defaults to <STAR NAME> <DECLINATION/RA> (<With/Without> Precession) from <START BCE/CE> to <END BCE/CE>, every <YEAR INCREMENT> Years
  • [OPTIONAL] fig_plot_color: (string) figure plot color, defaults to blue C0
  • [OPTIONAL] figsize_n: (float/int) figure plot size NxN, 12
  • [OPTIONAL] figsize_dpi: (float/int) figure dpi, defaults to 100
  • [OPTIONAL] save_plot_name: (string) save plot name and location
Stars Built-in (Click to view all)
['Acamar', 'Achernar', 'Acrab', 'Acrux', 'Adhara', 'Aldebaran', 'Alderamin', 'Algieba', 'Algol', 'Alhena', 'Alioth', 'Alkaid', 'Almach', 'Alnair', 'Alnilam', 'Alnitak', 'Alphard', 'Alphecca', 'Alpheratz', 'Altair', 'Aludra', 'Ankaa', 'Antares', 'Arcturus', 'Arneb', 'Ascella', 'Aspidiske', 'Atria', 'Avior', 'Bellatrix', 'Beta Hydri', 'Beta Phoenicis', 'Betelgeuse', 'Canopus', 'Capella', 'Caph', 'Castor', 'Cebalrai', 'Celaeno', 'Chara', 'Cor-Caroli', 'Cursa', 'Delta Crucis', 'Delta Velorum', 'Deneb', 'Denebola', 'Diphda', 'Dschubba', 'Dubhe', 'Elnath', 'Eltanin', 'Enif', 'Formalhaut', 'Gacrux', 'Gamma Phoenicis', 'Gienah', 'Hadar', 'Hamal', 'Kaus Australis', 'Kochab', 'Kornephoros', 'Lesath', 'Markab', 'Megrez', 'Meissa', 'Menkalinan', 'Menkar', 'Menkent', 'Merak', 'Miaplacidus', 'Mimosa', 'Mintaka', 'Mirach', 'Mirfak', 'Mirzam', 'Mizar', 'Muphrid', 'Naos', 'Navi', 'Nunki', 'Peacock', 'Phact', 'Phecda', 'Polaris', 'Pollux', 'Procyon', 'Rasalhague', 'Rastaban', 'Regulus', 'Rigel', 'Ruchbah', 'Sabik', 'Sadr', 'Saiph', 'Sargas', 'Scheat', 'Schedar', 'Segin', 'Seginus', 'Shaula', 'Sheratan', 'Sirius', 'Spica', 'Suhail', 'Tarazed', 'Thuban', 'Tureis', 'Unukalhai', 'Vega', 'Wezen', 'Zosma', 'Zubeneschamali']

Declination with Precession:

star_chart_spherical_projection.plotStarPositionOverTime(builtInStarName="Vega",
							newStar=None,
							startYearSince2000=-15000,
							endYearSince2000=15000,
							isPrecessionIncluded=True,
							incrementYear=5,
							DecOrRA="D")

plot_star_declination_precession+png Declination without Precession:

star_chart_spherical_projection.plotStarPositionOverTime(builtInStarName="Vega",
							newStar=None,
							startYearSince2000=-15000,
							endYearSince2000=15000,
							isPrecessionIncluded=False,
							incrementYear=5,
							DecOrRA="D")

plot_star_declination_without_prcession+png Right Ascension with Precession:

star_chart_spherical_projection.plotStarPositionOverTime(builtInStarName="Vega",
							newStar=None,
							startYearSince2000=-15000,
							endYearSince2000=15000,
							isPrecessionIncluded=True,
							incrementYear=5,
							DecOrRA="R")

plot_star_RA_with_precession+png Right Ascension without Precession:

star_chart_spherical_projection.plotStarPositionOverTime(builtInStarName="Vega",
							newStar=None,
							startYearSince2000=-15000,
							endYearSince2000=15000,
							isPrecessionIncluded=False,
							incrementYear=5,
							DecOrRA="R")

plot_star_RA_without_precession+png

Star Chart Examples:

Star Chart in the Northern Hemisphere (centered on 90°) without Precession

star_chart_spherical_projection.plotStereographicProjection(northOrSouth="North",
							displayStarNamesLabels=False,
							yearSince2000=11500,
							isPrecessionIncluded=False,
							fig_plot_color="red")

north_star_chart_without_labels_without_precession+png

star_chart_spherical_projection.plotStereographicProjection(northOrSouth="North",
							displayStarNamesLabels=True,
							yearSince2000=11500,
							isPrecessionIncluded=False,
							fig_plot_color="red")

north_star_chart_with_labels_without_precession+png Star Chart in the Northern Hemisphere (centered on 90°) with Precession

star_chart_spherical_projection.plotStereographicProjection(northOrSouth="North",
							displayStarNamesLabels=False,
							yearSince2000=11500,
							isPrecessionIncluded=True,
							fig_plot_color="red")

north_star_chart_without_labels_with_precession+png

star_chart_spherical_projection.plotStereographicProjection(northOrSouth="North",
							displayStarNamesLabels=True,
							yearSince2000=11500,
							isPrecessionIncluded=True,
							fig_plot_color="red")

north_star_chart_with_labels_with_precession+png Star Chart in the Southern Hemisphere (centered on -90°) without Precession

star_chart_spherical_projection.plotStereographicProjection(northOrSouth="South",
							displayStarNamesLabels=False,
							yearSince2000=11500,
							isPrecessionIncluded=False,
							fig_plot_color="cornflowerblue")

south_star_chart_without_labels_without_precession+png

star_chart_spherical_projection.plotStereographicProjection(northOrSouth="South",
							displayStarNamesLabels=True,
							yearSince2000=11500,
							isPrecessionIncluded=False,
							fig_plot_color="cornflowerblue")

south_star_chart_with_labels_without_precession+png Star Chart in the Southern Hemisphere (centered on -90°) with Precession

star_chart_spherical_projection.plotStereographicProjection(northOrSouth="South",
							displayStarNamesLabels=False,
							yearSince2000=11500,
							isPrecessionIncluded=True,
							fig_plot_color="cornflowerblue")

south_star_chart_without_labels_with_precession+png

star_chart_spherical_projection.plotStereographicProjection(northOrSouth="South",
							displayStarNamesLabels=True,
							yearSince2000=11500,
							isPrecessionIncluded=True,
							fig_plot_color="cornflowerblue")

south_star_chart_with_labels_with_precession+png

Development Environment

To run or test against star-chart-spherical-projection github repo/fork, a development environment can be created via conda/miniconda

First, install Miniconda

Then, using the existing environment.yml, a new conda environment can be create to run/test scripts against

conda env create --file environment.yml

Once the environment has been built, activate the environment:

conda activate star_chart

To run existing and new tests from the root directory:

python -m pytest

Bibliography

Named stars specified by "IAU Catalog of Star Names" with the star position (right ascension and declination) as well as the angle and speed of proper motion from in-the-sky.org and Wikipedia where indicated

Precession model: Vondrák, J., et al. “New Precession Expressions, Valid for Long Time Intervals.” Astronomy & Astrophysics, vol. 534, 2011

Precession code adapted to Python 3+ from the Vondrak long term precession model Github repo 'vondrak')

Bug and Feature Request

Submit a bug fix, question, or feature request as a Github Issue or to cyschneck@gmail.com

Project details


Download files

Download the file for your platform. If you're not sure which to choose, learn more about installing packages.

Source Distribution

star-chart-spherical-projection-1.6.0.tar.gz (49.0 kB view details)

Uploaded Source

Built Distribution

File details

Details for the file star-chart-spherical-projection-1.6.0.tar.gz.

File metadata

File hashes

Hashes for star-chart-spherical-projection-1.6.0.tar.gz
Algorithm Hash digest
SHA256 04676f2b1ae9e24e65f1985d070cb184e9d92d7260e627e1b8c02a285b5991d2
MD5 ea96700a7c3492affa21fbf61f5c4fca
BLAKE2b-256 fd474670348ea030eecfede5f6512b4e89cf16b0ea2405bb3ac01427ed09245f

See more details on using hashes here.

File details

Details for the file star_chart_spherical_projection-1.6.0-py3-none-any.whl.

File metadata

File hashes

Hashes for star_chart_spherical_projection-1.6.0-py3-none-any.whl
Algorithm Hash digest
SHA256 52f28513bde2611e142bd05f0fd40b63b150ad50f77338c4e272002a493e1033
MD5 19db58fe73a812bb90394434f63c80cc
BLAKE2b-256 daf7c019f89c8a98c1b997c8fbc388df253a2801512577a746e7f7e4e4ac8949

See more details on using hashes here.

Supported by

AWS AWS Cloud computing and Security Sponsor Datadog Datadog Monitoring Fastly Fastly CDN Google Google Download Analytics Microsoft Microsoft PSF Sponsor Pingdom Pingdom Monitoring Sentry Sentry Error logging StatusPage StatusPage Status page
