stemflow 1.1.3

A package for Adaptive Spatio-Temporal Exploratory Model (AdaSTEM) in python

stemflow :bird:

A Python Package for Adaptive Spatio-Temporal Exploratory Model (AdaSTEM)

---

Documentation :book:

stemflow Documentation

JOSS paper

---

Installation :wrench:

pip install stemflow

To install the latest beta version from github:

pip install stemflow@git+https://github.com/chenyangkang/stemflow.git

Or using conda:

conda install -c conda-forge stemflow

---

Brief introduction :information_source:

stemflow is a toolkit for Adaptive Spatio-Temporal Exploratory Model (AdaSTEM [1, 2]) in Python. Typical usage is daily abundance estimation using eBird citizen science data (survey data).

stemflow adopts "split-apply-combine" philosophy. It

1. Splits input data using Quadtree or Sphere Quadtree.
2. Trains each spatiotemporal split (called stixel) separately.
3. Aggregates the ensemble to make the prediction.

The framework leverages the "adjacency" information of surroundings in space and time to model/predict the values of target spatiotemporal points. This framework ameliorates the long-distance/long-range prediction problem [3], and has a good spatiotemporal smoothing effect.

For more information, please see an introduction to stemflow and learning curve analysis

---

Model and data :slot_machine:

Main functionality of stemflow	Supported indexing	Supported tasks
:white_check_mark: Spatiotemporal modeling & prediction	:white_check_mark: User-defined 2D spatial indexing (CRS)	:white_check_mark: Binary classification task
:white_check_mark: Calculate overall feature importances	:white_check_mark: 3D spherical indexing	:white_check_mark: Regression task
:white_check_mark: Plot spatiotemporal dynamics	:white_check_mark: User-defined temporal indexing	:white_check_mark: Hurdle task (two step regression – classify then regress the non-zero part)
	:white_check_mark: Spatial-only modeling
For details see AdaSTEM Demo	For details and tips see Tips for spatiotemporal indexing	For details and tips see Tips for different tasks

Supported data types	Supported base models
:white_check_mark: Both continuous and categorical features (prefer one-hot encoding)	:white_check_mark: sklearn style BaseEstimator classes (you can make your own base model), for example here
:white_check_mark: Both static (e.g., yearly mean temperature) and dynamic features (e.g., daily temperature)	:white_check_mark: sklearn style Maxent model. Example here.
For details and tips see Tips for data types	For details see Base model choices

Usage :star:

Use Hurdle model as the base model of AdaSTEMRegressor:

from stemflow.model.AdaSTEM import AdaSTEM, AdaSTEMClassifier, AdaSTEMRegressor
from stemflow.model.Hurdle import Hurdle
from xgboost import XGBClassifier, XGBRegressor

## "hurdle in Ada"
model = AdaSTEMRegressor(
    base_model=Hurdle(
        classifier=XGBClassifier(tree_method='hist',random_state=42, verbosity = 0, n_jobs=1),
        regressor=XGBRegressor(tree_method='hist',random_state=42, verbosity = 0, n_jobs=1)
    ),                                      # hurdel model for zero-inflated problem (e.g., count)
    save_gridding_plot = True,
    ensemble_fold=50,                       # data are modeled 50 times, each time with jitter and rotation in Quadtree algo
    min_ensemble_required=30,               # Only points covered by > 30 ensembles will be predicted
    grid_len_upper_threshold=25,            # force splitting if the grid length exceeds 25
    grid_len_lower_threshold=5,             # stop splitting if the grid length fall short 5
    temporal_start=1,                       # The next 4 params define the temporal sliding window
    temporal_end=366,
    temporal_step=20,                       # The window takes steps of 20 DOY (see AdaSTEM demo for details)
    temporal_bin_interval=50,               # Each window will contain data of 50 DOY
    points_lower_threshold=50,              # Only stixels with more than 50 samples are trained and used for prediction
    Spatio1='longitude',                    # The next three params define the name of
    Spatio2='latitude',                     # spatial coordinates shown in the dataframe
    Temporal1='DOY',
    use_temporal_to_train=True,             # In each stixel, whether 'DOY' should be a predictor
    n_jobs=1,
    random_state=42
)

Fitting and prediction methods follow the style of sklearn BaseEstimator class:

## fit
model = model.fit(X_train.reset_index(drop=True), y_train)

## predict
pred = model.predict(X_test)
pred = np.where(pred<0, 0, pred)
eval_metrics = AdaSTEM.eval_STEM_res('hurdle',y_test, pred_mean)
print(eval_metrics)

Where the pred is the mean of the predicted values across ensembles.

See AdaSTEM demo for further functionality.
See Optimizing stixel size for why and how you should tune the important gridding parameters.

---

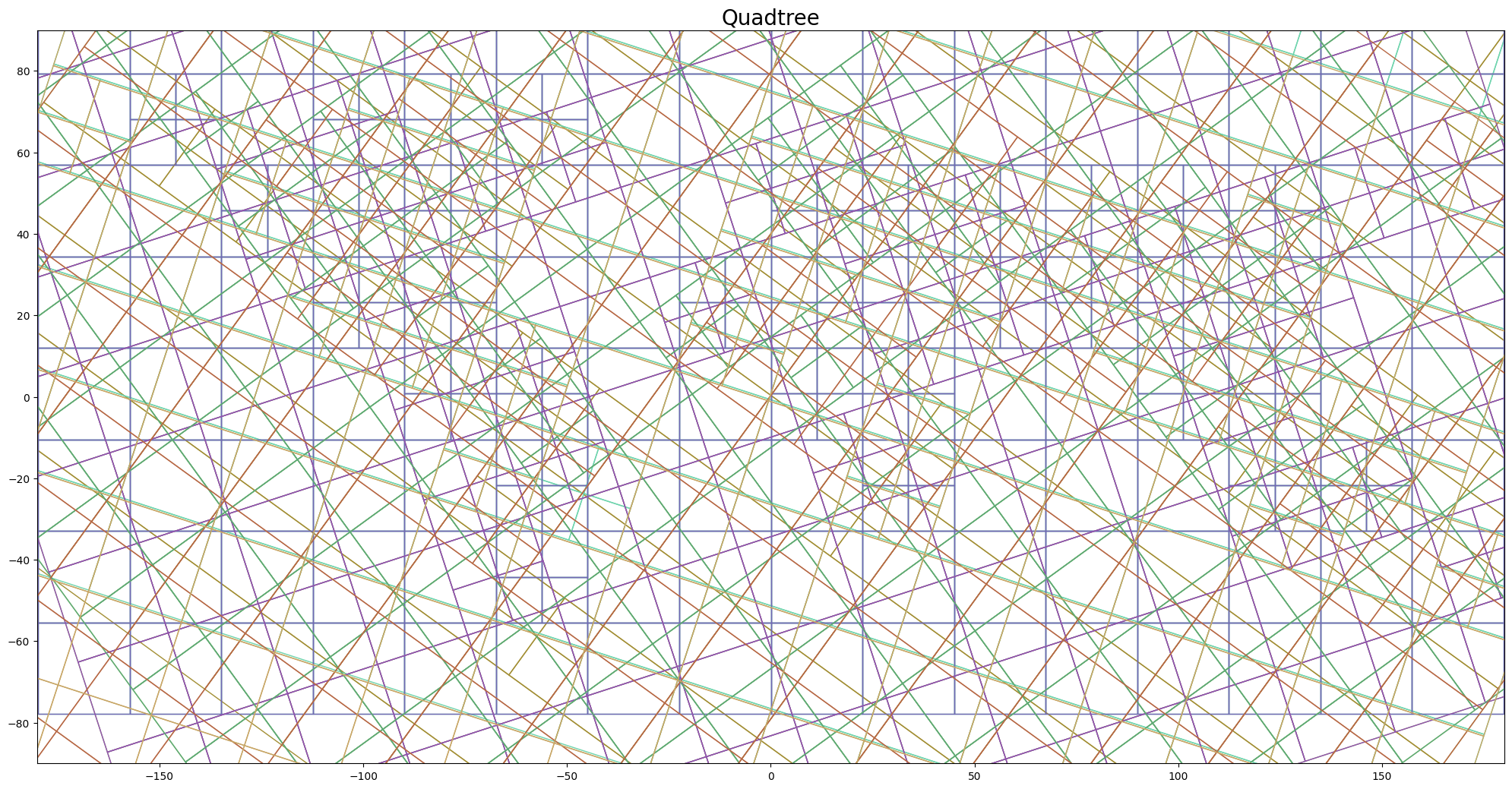

Plot QuadTree ensembles :evergreen_tree:

model.gridding_plot
# Here, the model is a AdaSTEM class, not a hurdle class

Here, each color shows an ensemble generated during model fitting. In each of the 10 ensembles, regions (in terms of space and time) with more training samples were gridded into finer resolution, while the sparse one remained coarse. Prediction results were aggregated across the ensembles (that is, in this example, data were modeled 10 times).

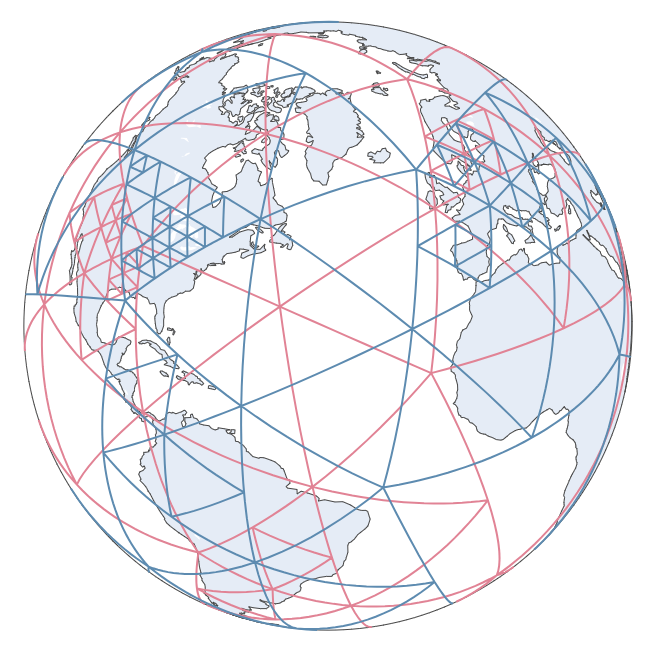

If you use SphereAdaSTEM module, the gridding plot is a plotly generated interactive object by default:

See SphereAdaSTEM demo and Interactive spherical gridding plot.

---

Example of visualization :world_map:

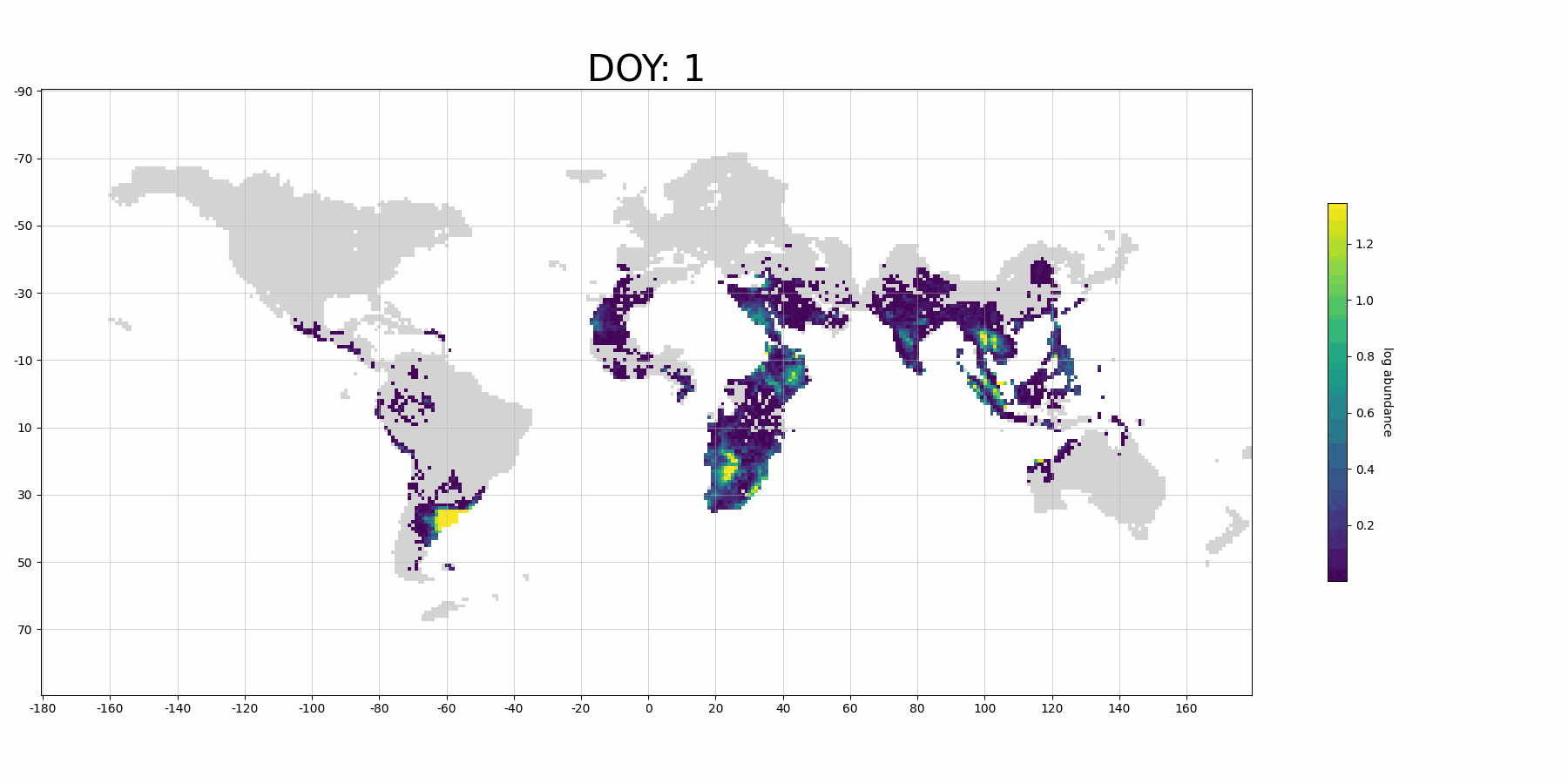

Daily Abundance Map of Barn Swallow

See section AdaSTEM demo for how to generate this GIF.

---

Citation

Chen et al., (2024). stemflow: A Python Package for Adaptive Spatio-Temporal Exploratory Model. Journal of Open Source Software, 9(94), 6158, https://doi.org/10.21105/joss.06158

@article{Chen2024,
  doi = {10.21105/joss.06158},
  url = {https://doi.org/10.21105/joss.06158},
  year = {2024},
  publisher = {The Open Journal},
  volume = {9},
  number = {94},
  pages = {6158},
  author = {Yangkang Chen and Zhongru Gu and Xiangjiang Zhan},
  title = {stemflow: A Python Package for Adaptive Spatio-Temporal Exploratory Model},
  journal = {Journal of Open Source Software}
}

---

Contribute to stemflow :purple_heart:

We welcome pull requests. Contributors should follow contributor guidelines.

Application-level cooperation is also welcomed. We recognized that stemflow may consume large computational resources especially as data volume boosts in the future. We always welcome research collaboration of all kinds.

---

References:

1. Fink, D., Damoulas, T., & Dave, J. (2013, June). Adaptive Spatio-Temporal Exploratory Models: Hemisphere-wide species distributions from massively crowdsourced eBird data. In Proceedings of the AAAI Conference on Artificial Intelligence (Vol. 27, No. 1, pp. 1284-1290).

2. Fink, D., Auer, T., Johnston, A., Ruiz‐Gutierrez, V., Hochachka, W. M., & Kelling, S. (2020). Modeling avian full annual cycle distribution and population trends with citizen science data. Ecological Applications, 30(3), e02056.

3. Fink, D., Hochachka, W. M., Zuckerberg, B., Winkler, D. W., Shaby, B., Munson, M. A., ... & Kelling, S. (2010). Spatiotemporal exploratory models for broad‐scale survey data. Ecological Applications, 20(8), 2131-2147.

4. Johnston, A., Fink, D., Reynolds, M. D., Hochachka, W. M., Sullivan, B. L., Bruns, N. E., ... & Kelling, S. (2015). Abundance models improve spatial and temporal prioritization of conservation resources. Ecological Applications, 25(7), 1749-1756.
