stitch-n-split 0.1.2

Library for stitching and spliting

stitchNsplit

A Python Library To Stitch And Split Images for any dimension, computing grid and windows over the specified dimension

Installation

pip install stitch-n-split

• Installing rasterio dependency using conda

    conda install -c conda-forge rasterio


• Installing rasterio dependency from pip

Split

Split Operation can be performed on two sets of Imagery, Geo Referenced and Non Geo Referenced The Windows formed for the split operation are adjusted based on the split_size and img_size, whenever img_size%split_size != 0 is true, this suggests that there will be overlapping windows. Overlapping windows are generated only when required.

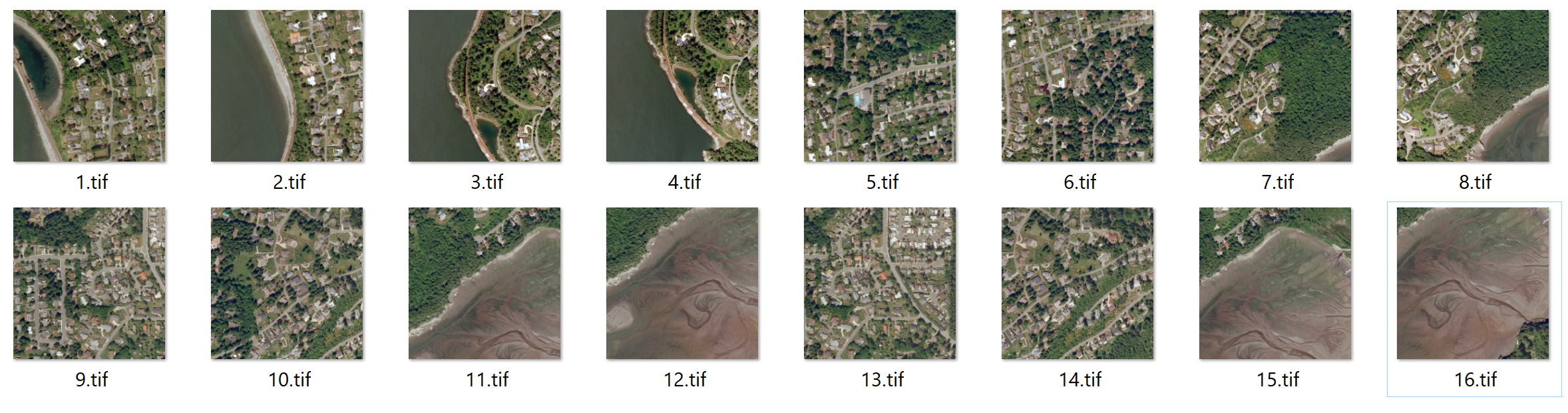

Original Image	Images After Split

• Geo Referenced

  GeoReferenced Imagery have reference coordinate information stored in them. This is taken into account while splitting geo referenced imagery, assigning correct reference information to the cut images, thus preserving the over all reference information

  Geo Reference imagery must be of tiff format.

• Non GeoReferenced

  For Non GeoReferenced the split is straight forward, it gets cropped in to specified dimension

Split Entire Directory:

from stitch_n_split.split.images import SplitGeo
split = SplitGeo(split_size=(124, 267), img_size=(512, 512))
split.perform_directory_split("dir_path")

Performing Split over individual images can be done by accessing split as an iterator.

Split Iterator using window:

from stitch_n_split.split.images import SplitGeo
from stitch_n_split.utility import open_image

split = SplitGeo(split_size=(124, 267), img_size=(512, 512))
image = open_image("img_path", is_geo_reference=True)
for win_number, window in split:
    split_image = split.window_split(image, window)
    # perform operation ....

Stitch

While Performing Stitch if there are any overlapping window, those windows are merged seamlessly, without hampering the pixel information and image dimension

Every Split image can be associated to the original image by the window number or the window itself.

Using stitchNsplit together:

from stitch_n_split.stitch.images import Stitch
from stitch_n_split.utility import save_image
from stitch_n_split.split.images import SplitNonGeo
from stitch_n_split.utility import open_image
import numpy as np

split = SplitNonGeo(split_size=(124, 267), img_size=(512, 512, 3))
image = open_image("img_path")
stitched_image = np.zeros((512, 512, 3))

for win_number, window in split:
    split_image = split.window_split(image, win_number)
    # perform operation ....
    stitched_image = Stitch.stitch_image(split_image, stitched_image, window)
save_image("path_to_save", stitched_image)

Mesh Computing

• OverLapping Grid

  The grid creation process assumes the provided grid size might not be evenly distributed over the mesh size and whenever such situation arises, the grid adjusts its position without compromising the grid size, thus generating overlapping grid in the mesh

• NonOverlapping Grid

  No matter what the provided grid size, the goal is to find a grid size which can be evenly distributed over the provided mesh size, if the provided sizes presents the possibility of a overlap then the size of the grid is adjusted, to provide non overlapping grid

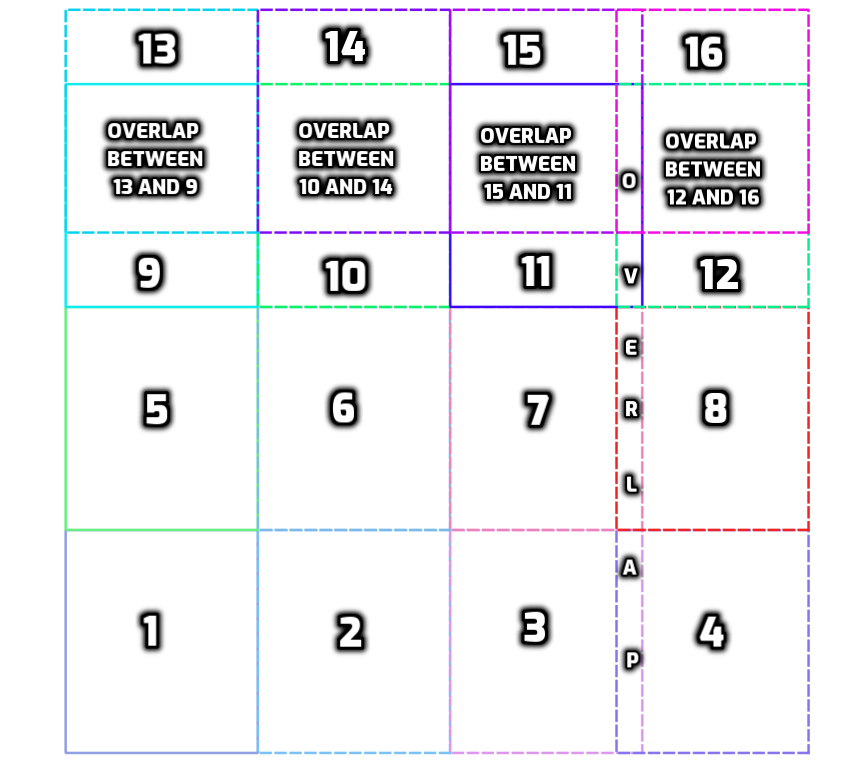

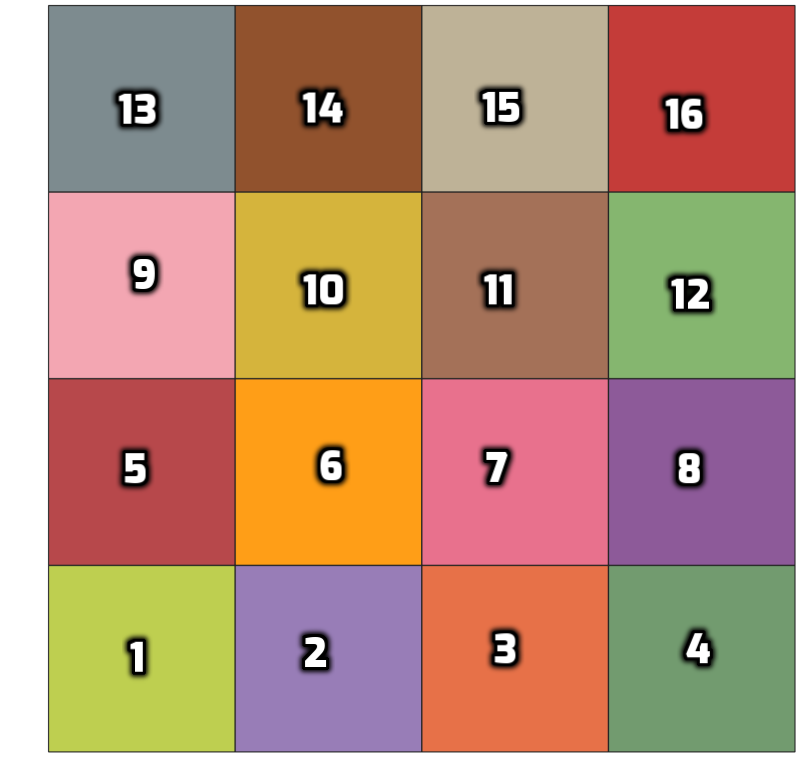

Mesh with Overlapping Grid	Mesh with Non Overlapping Grid

mesh size = (10000, 10000), grid size = (2587, 3000) were used for above example

The number of grid generated in both cases are the same, the only difference is, the image in the left doesn't compromises the grid size when it encounters an overlap, where as the image on the right adjusts its grid size to mesh size // (mesh size / grid size) to avoid any overlap

Mesh Computing From geo-referenced image

The One mandatory Parameter while computing Mesh is the geo referencing transformation matrix.

• When the size of the mesh and the grid are provided in regular dimension, then the position where the mesh is to be drawn is extracted from the affine transform and conversion of the dimension to reference coordinate system is done with the help of pixel resolution present in affine transform

    mesh = mesh_from_geo_transform(
    mesh_size=(w, h),
    transform=transfromation_matrix,
    grid_size=(w, h)
    )


  This will generate a Mesh of dimension (w, h) which will have Grid of dimension (w, h), which will be bounded within the region transform * (mesh_size)

• When the bounds of mesh are passed, The transformation matrix for the mesh have to be constructed explicitly, the width and height are computed internally from the given transformation

    transfromation_matrix = get_affine_transform(
    mesh_bounds[0],
    mesh_bounds[-1],
    *get_pixel_resolution(image.transform)
    )

    mesh = mesh_from_geo_transform(
        grid_size=(w, h),
        transform=transfromation_matrix,
        mesh_bounds=mesh_bounds,
    )


Output

Grid can can accessed by the extent() call which is a Generator for providing individual grid along with the information associated with the grid

mesh_overlap = mesh_from_geo_transform(mesh_size=(10000, 10000, 3), transform=affine_transform,
grid_size=(2587, 3000, 3))

for grid in mesh.extent():
    print(grid)
    .....

If the coordinate system available is different than the ones listed here, then the coordinate must be reprojected before mesh computation

transform=geo_transform_to_26190(w, h, arbitrary_image_coordinate_system.bounds,
     arbitrary_image_coordinate_system.crs),

If width and height of the bounds are not known, to calculate it, use

compute_dimension(arbitrary_image_coordinate_system.bounds, pixel_resolution)

Working Coordinate System

1. EPSG:26910
2. EPSG:26986
