stpredict 0.0.8

Spatio-temporal prediction package

STPredict package

STPredict is designed to apply forecasting methods on spatio-temporal data in order to predict the values of a target variable in the future time points based on the historical values of the features. The main stages of the modeling process are implemented in this package, including:

• Data preprocessing
• Data partitioning
• Feature selection
• Model selection
• Model evaluation
• Prediction

Installation

pip install stpredict

When the package is installed, its functions can be used to process the spatio-temporal data. STPredict provides a flexible data structure to receive spatio-temporal data in functions. Input data of the preprocess module functions can be presented in two following data frames:

1. Temporal data: Temporal data includes the information of the time-varying variables and must include the following columns:

   • Spatial ids: Ids of spatial units.
   • Temporal ids: Ids of temporal units, which may be included in the integrated or non-integrated format. For example, in Figure 1, temporal ids can be the date of the week's last day (integrated) or the year and number of the week (non-integrated).
   • Temporal covariates
   • Target

2. Spatial data: Spatial data includes the information of variables whose values only depend on the spatial aspect of the problem. Spatial data must include the following columns:

   • Spatial ids: The id of the units in the finest spatial scale of input data must be included in the spatial data. As shown in Figure 1, ids of secondary spatial scale can be included in the spatial and temporal data tables or received as a separate input (i.e., spatial scale table).
   • Spatial covariates

Fig.1 Input data tables

The complete list of functions can be found in the documentation. The main functions are as follows:

1. preprocess_data

preprocess.preprocess_data(data, forecast_horizon, history_length = 1,
			   column_identifier = None, spatial_scale_table = None,
			   spatial_scale_level = 1, temporal_scale_level = 1,
			   target_mode = 'normal', imputation = True,
			   aggregation_mode = 'mean', augmentation = False,
			   futuristic_covariates = None, future_data_table = None,
			   save_address = None, verbose = 0)

This function performs all steps of preprocessing, including:

• Imputation: Imputation of missing values is implemented by taking advantage of the same temporal pattern in different spatial units. More precisely, the missing values of a spatial unit at a given temporal unit are imputed using the values of the spatial units with the most similar temporal pattern. As an example, if precipitation of a city is missing for a given year, it is imputed using the average precipitation of cities having the most similar precipitation trend over the years. If some spatial units have only missing values, they will be removed from the data (Figure 2).

Fig.2 Imputation of missing values in temporal data

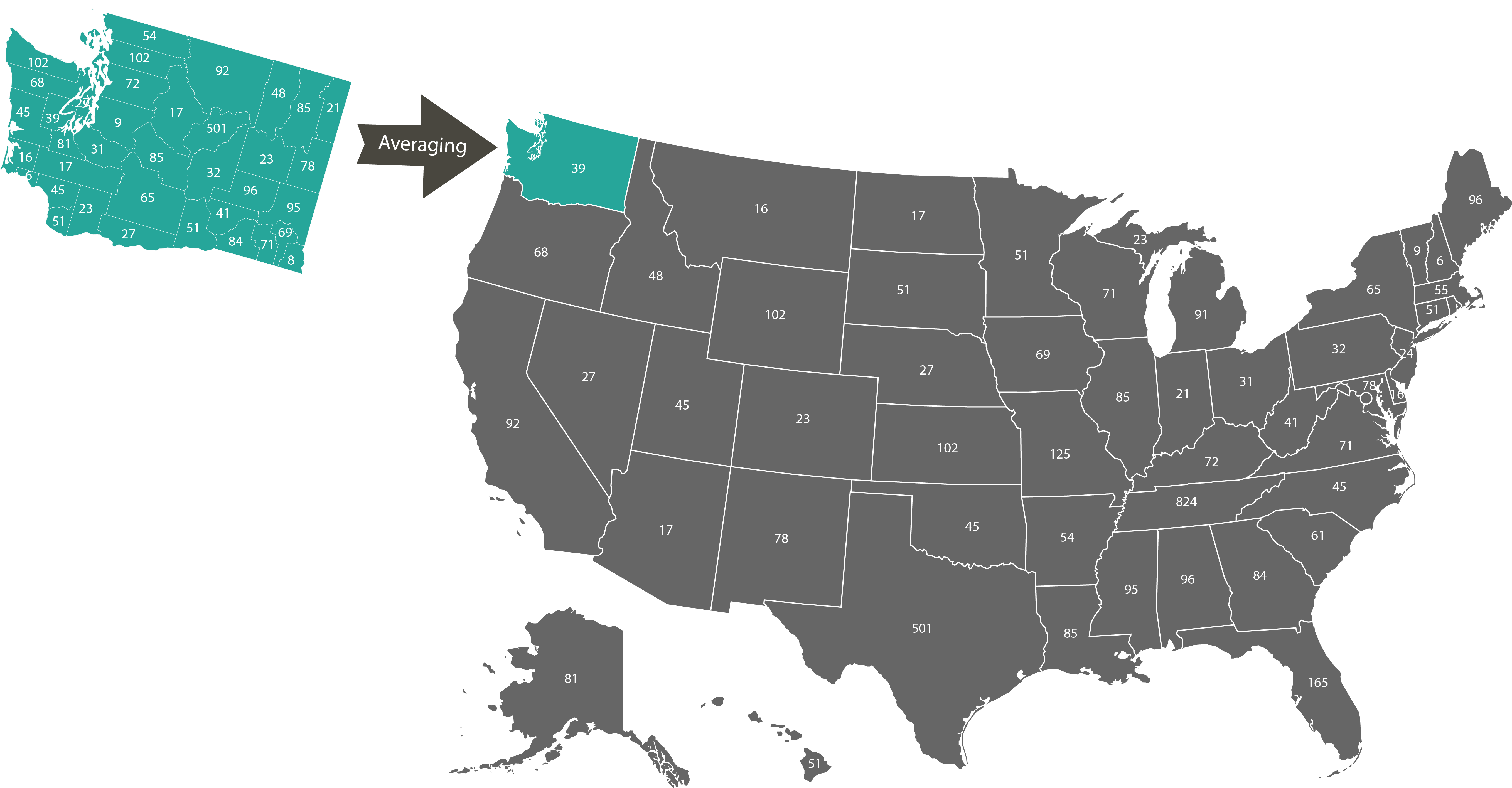

• Scale modification: Changing the temporal (spatial) scale of data by calculation of sum or average values of units on a smaller scale. An example is shown in Figure 3, where the variable values of the US counties are aggregated to obtain a value for each state.

Fig.3 Spatial scale transform

One can also use the augmentation argument to augment data using bigger temporal scales and avoid data volume decrease. For this purpose, in the process of temporal scale transformation, instead of taking the average of smaller scale units’ values to get the bigger scale unit value, the moving average method is used. Figures 4 and 5 represent temporal scale transformation (day->week) with and without augmentation.

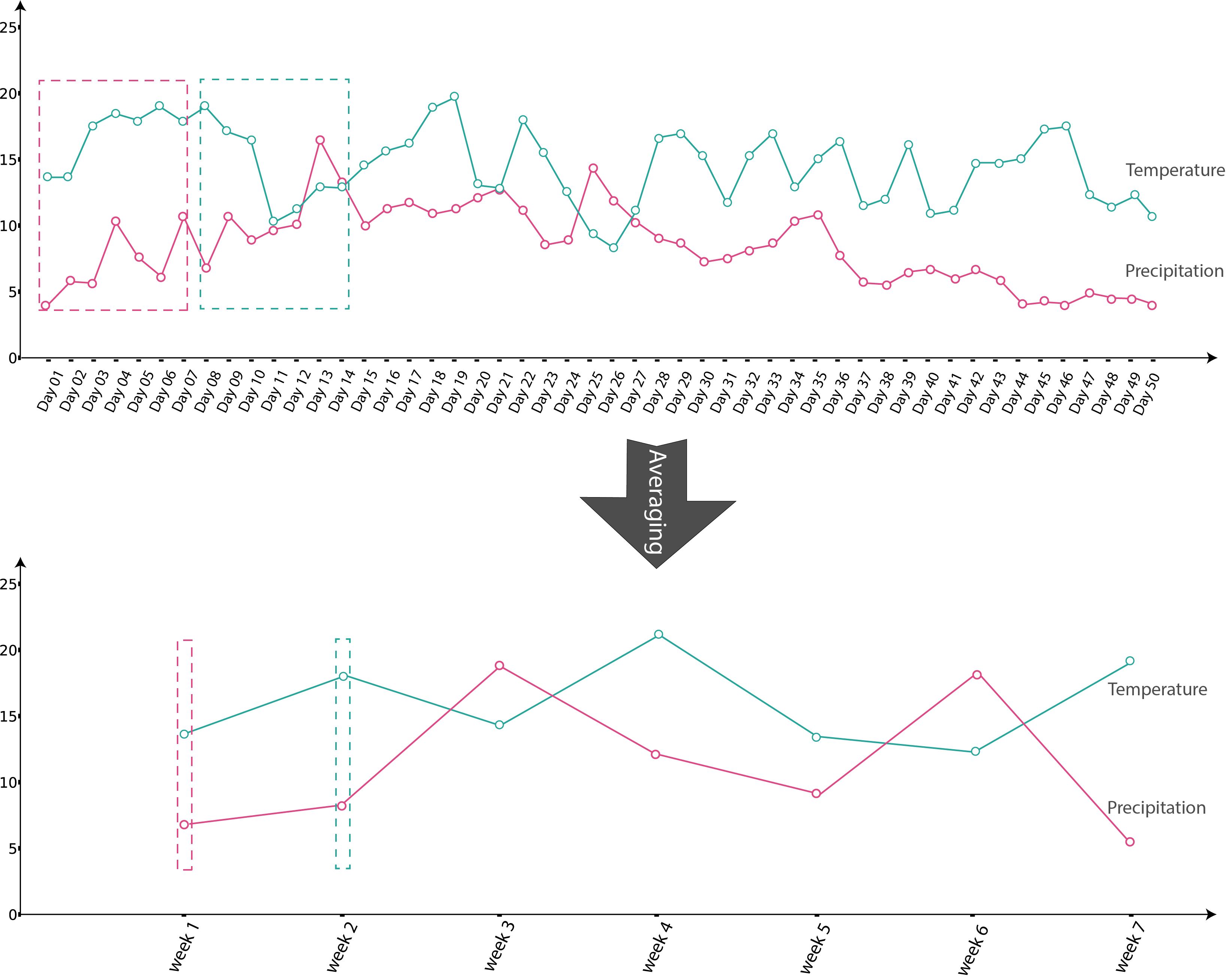

Fig.4 Temporal scale transform without augmentation

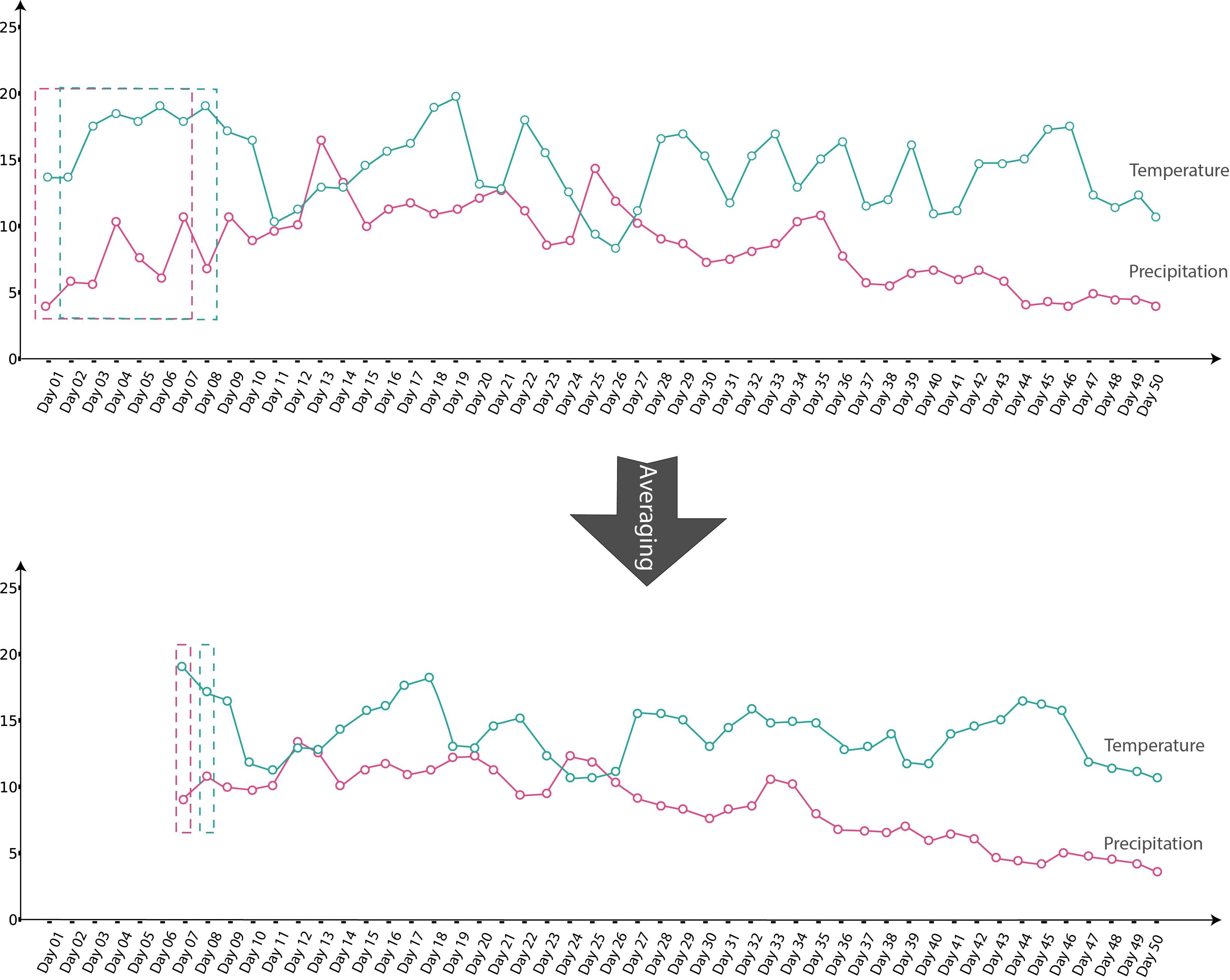

Fig.5 Temporal scale transform with augmentation

• Target modification: Modifying the target variable values to the cumulative or moving average values.

• Historical data making: Historical data making is Transforming input data into the historical format, which can be used to train the models for the prediction of a target variable based on past values of covariates. The final set of features consists of spatial covariates, temporal covariates at the current temporal unit (t), and historical values of these covariates at h-1 previous temporal units (t-1, t-2, …, t-h+1). The target of the output data frame is the values of the target variable at the temporal unit t+r, where h and r denote the user-specified history length and forecast horizon (Figure 6). In addition, if the user prefers to output data frame(s) include the values of some covariates in the future temporal units as features, the name of these covariates could be specified using the futuristic_covariates argument.

Fig.6 Historical data

Each of the mentioned steps is also provided as a separate function:

# Imputation
preprocess.impute(data, column_identifier = None, verbose = 0)

# Change temporal scale
preprocess.temporal_scale_transform(data, column_identifier = None,
				    temporal_scale_level = 2, augmentation = False,
				    verbose = 0)

# Change spatial scale
preprocess.spatial_scale_transform(data, data_type, spatial_scale_table = None,
				   spatial_scale_level = 2, aggregation_mode = 'mean',
				   column_identifier = None, verbose = 0)

# Modify target variable values to cumulative, moving average, or differential values
preprocess.target_modification(data, target_mode, column_identifier = None, verbose = 0)

# Make historical data
preprocess.make_historical_data(data, forecast_horizon, history_length = 1,
				column_identifier = None, futuristic_covariates = None,
				future_data_table = None, step = 1, verbose = 0)

2. predict

predict.predict(data, forecast_horizon,  feature_sets = {'covariate':'mRMR'},
		forced_covariates = [], models = ['knn'],  mixed_models = ['knn'],
		model_type = 'regression', test_type = 'whole-as-one',
		splitting_type = 'training-validation',  instance_testing_size = 0.2,
		instance_validation_size = 0.3, instance_random_partitioning = False,
		fold_total_number = 5, feature_scaler = None, target_scaler = None,
		performance_benchmark = 'MAPE',  performance_measure = ['MAPE'],
		performance_mode = 'normal', scenario = ‘current’,
		validation_performance_report = True, testing_performance_report = True,
		save_predictions = True, save_ranked_features = True,
		plot_predictions = False, verbose = 0)

This function splits data into the training, validation, and testing datasets. The best model, feature set, and history length are obtained through a systematic search based on the validation performance. Finally, the performance of the best model on the testing dataset and future predicted values of the target variable are reported.

The predict function is implemented by calling smaller functions, each of which executes part of the modeling process. These functions are as follows.

# Data splitting
predict.split_data(data, splitting_type = 'instance', instance_testing_size = None,
               instance_validation_size = None, instance_random_partitioning = False,
               fold_total_number = None, fold_number = None, forecast_horizon = 1,
               granularity = 1, verbose = 0)

# Select the best model, history length, and feature set
predict.train_validate(data, feature_sets, forced_covariates=[],
		instance_validation_size=0.3, instance_testing_size=0, fold_total_number=5,
		instance_random_partitioning=False, forecast_horizon=1, models=['knn'],
		mixed_models=None, model_type='regression',
		splitting_type='training-validation', performance_measures=None,
                performance_benchmark=None, performance_mode='normal', feature_scaler=None,
                target_scaler=None, labels=None, performance_report=True,
		save_predictions=True, verbose=0)

# Slice the dataframe and return a dataframe including only the selected features
predict.select_features(data, ordered_covariates_or_features)

# Calculate predictive performance
predict.performance(true_values, predicted_values, performance_measures=['MAPE'],
		trivial_values=[], model_type='regression', num_params=1,
		labels=None)

# Train the best model and report the performance on test set
predict.train_test(data, instance_testing_size, forecast_horizon, feature_or_covariate_set,
               history_length, model='knn', base_models=None, model_type='regression',
               model_parameters=None, feature_scaler='logarithmic',
	       target_scaler='logarithmic', labels=None, performance_measures=['MAPE'],
	       performance_mode='normal', performance_report=True, save_predictions=True,
	       verbose=0)

# Predict future values of the target variable
predict.predict_future(data, future_data, forecast_horizon, feature_or_covariate_set,
		       model = 'knn', base_models = [], model_type = 'regression',
		       model_parameters = None, feature_scaler = None, target_scaler = None,
		       labels = None, scenario  = 'current', save_predictions = True,
		       verbose = 0)

Figures 7 and 8 represent the whole process of prediction, which can be performed in two different ways according to the test_type argument.

• If test_type = whole-as-one, the prediction for all the test samples is made with the best model, feature set, and history length, which are obtained based on the prediction results of an identical training and validation set. The training and validation sets in this mode are obtained by removing all the test instances from the data.
• If test_type = one-by-one, each given test sample has different training and validation sets, which are obtained by removing only this test sample and all of its subsequent test samples from the data. Using this method, more samples are used for training the model.

Fig.7 prediction process with test_type = whole-as-one

Fig.8 prediction process with test_type = one-by-one

As seen in the figures, the first function call is train_validate where the best model, history length, and feature set are selected. The selected model then will be used to measure performance on the testing dataset (train_test) and finally predict the future values of the target variable (predict_future). Figure 9 represents the train_validate function with details.

Fig.9 Details of train_validate function

Data splitting in STPredict is performed with regard to the temporal dimension of the historical data (See split_data). The testing dataset is selected from the last available temporal units. For example, the historical data splitting with the test size 1, history length 3, and forecast horizon 3 is shown in Figure 10. Each block represents an instance, and its arrow indicates the date of the target variable. One sample related to the last available temporal units is selected as the test set. Since the goal is to predict the target variable values of the test set sample that is at the temporal unit ‘27/01/20’ and the forecast horizon is 3, we only can use the data available until the temporal unit ‘24/01/20’, which has three temporal units distance up to ‘26/01/20’. Therefore according to the forecast horizon r, the number of r-1 samples whose target values occur in this time interval are removed from training data which is shown as a gap in the figure.

Fig.10 Temporal data splitting in stpredict

Some of the most important options in the predict function are:

• Feature selection mode: By using the feature_sets argument user can select:

  1. The method of ranking which is used to rank the features (covariates) from the supported methods ‘correlation’, ‘mRMR’, and ‘variance’. If ‘correlation’ is selected, the features (covariates) are ranked based on their correlation with the target variable. If the ‘mRMR’ method is used, a feature (covariate) with a higher correlation with the target variable and a lesser correlation with other features will have a higher rank. Finally, using the ‘variance’ option, the variance-based sensitivity analysis method will be used.
  2. To rank the covariates or all the features (covariates and their historical values).

• Scenario: To determine the effect of futuristic features on the target variable, one can set the scenario argument and examine the predicted values of the target variable. The available options are min, max, mean, and current.

In addition to these options, the predict function provides various arguments for data splitting, data scaling, performance evaluation, and prediction visualization.

3. stpredict

The stpredict function implements all steps of preprocessing and prediction together.

stpredict(data, forecast_horizon, history_length = 1, column_identifier = None,
	  feature_sets = {'covariate': 'mRMR'}, models = ['knn'], model_type = 'regression',
	  test_type = 'whole-as-one', mixed_models = [], performance_benchmark = 'MAPE',
	  performance_measures = ['MAPE'], performance_mode = 'normal',
	  splitting_type = 'training-validation', instance_testing_size = 0.2,
	  instance_validation_size = 0.3, instance_random_partitioning = False,
	  fold_total_number = 5, imputation = True, target_mode = 'normal',
	  feature_scaler = None, target_scaler = None, forced_covariates = [],
	  futuristic_covariates = None, scenario = 'current', future_data_table = None,
	  temporal_scale_level = 1, spatial_scale_level = 1, spatial_scale_table = None,
	  aggregation_mode = 'mean', augmentation = False,
	  validation_performance_report = True, testing_performance_report = True,
	  save_predictions = True, save_ranked_features = True, plot_predictions = False,
	  verbose = 0)

Acknowledgements

We thank Dr. Zeinab Maleki and Dr. Pouria Ramazi for supervising the project. We also like to acknowledge Nasrin Rafiei's assistance in developing the package.
