ICON SCORE Development Suite (T-Bears) Tutorial

This tutorial is intended to give an introduction to using T-Bears. This guide will walk you through the basics of setting up your development environment and the usage of T-Bears CLI commands.

T-Bears is a suite of development tools for SCORE. T-Bears provides a project template for SCORE to help you start right away. You can code and test your smart contract locally in an emulated environment, and when ready, deploy SCORE onto the ICON network from command-line interface.

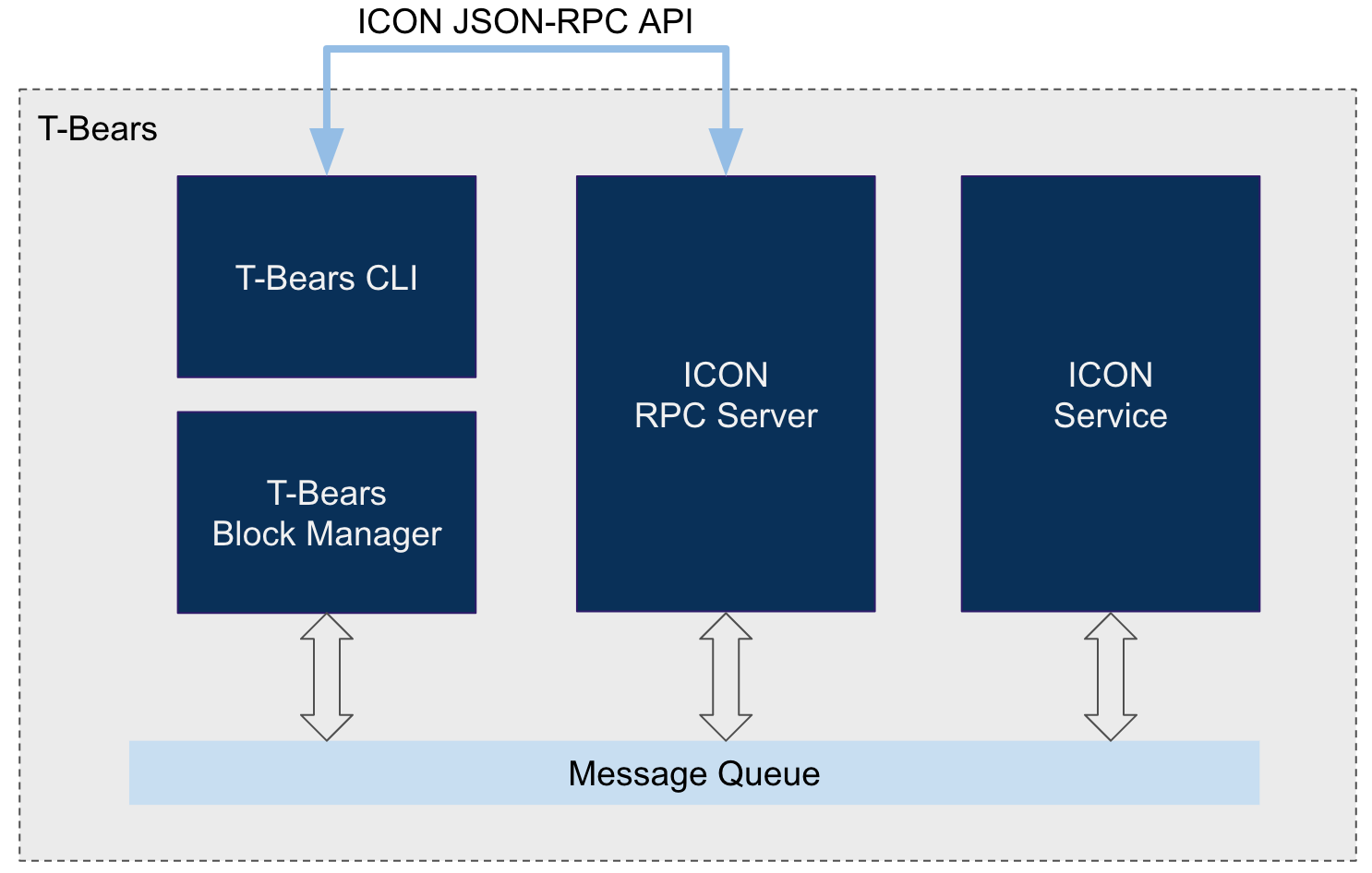

Components

ICON RPC Server

A module that handles ICON JSON-RPC API request and sends response back to the client.

ICON Service

A module that manages the lifecycle of SCORE and its execution. SCORE's state transition is stored in a database.

T-Bears CLI

T-Bears Command Line Interface. Supports following functions:

• Manage T-Bears service
• Deploy SCORE
• Send transaction
• Send query request

For the details, see below 'Command-line Interfaces (CLIs)' chapter.

T-Bears Block Manager

Loopchain emulator for T-Bears Service. It does not have full 'consensus' and 'peer management' functions. This module handles transaction and emulates block generation.

Message queue

Message queue is used for inter-component communication.

Quick start

You can run T-Bears on your machine by using Docker.

The below command will download T-Bears Docker image and run T-Bears Docker container.

docker run -it -p 9000:9000 iconloop/tbears:mainnet

Please check the following links for more information. T-Bears Docker

Building from source

First, clone this project. Then go to the project directory, create a virtualenv environment, and run build script. You can then install T-Bears with the .whl file.

$ virtualenv -p python3 venv  # Create a virtual environment.
$ source venv/bin/activate    # Enter the virtual environment.
(venv)$ ./build.sh            # run build script
(venv)$ ls dist/              # check result wheel file
tbears-x.y.z-py3-none-any.whl

Installation

This chapter will explain how to install T-Bears on your system.

Requirements

ICON SCORE development and execution requires following environments :

• OS: MacOS or Linux

  • Windows is not supported.

• Python

  • Make a virtualenv for Python 3.6.5+ (3.7 is also supported)
  • Check your Python version

    $ python3 -V


  • IDE: Pycharm is recommended.

Softwares

• RabbitMQ: 3.7 and above. homepage

Libraries

name	description	github
LevelDB	ICON SCORE uses levelDB to store its states.	LevelDB GitHub

Setup on MacOS

# install develop tools
$ brew install leveldb
$ brew install autoconf automake libtool pkg-config

# install RabbitMQ and start service
$ brew install rabbitmq
$ brew services start rabbitmq

# Create a working directory
$ mkdir work
$ cd work

# setup the python virtualenv development environment
$ pip3 install virtualenv
$ virtualenv -p python3 .
$ source bin/activate

# Install the ICON SCORE dev tools
(work) $ pip install tbears

Setup on Linux

# Install levelDB
$ sudo apt-get install libleveldb-dev

# install RabbitMQ and start service
$ sudo apt-get install rabbitmq-server
$ sudo service rabbitmq-server start

# Create a working directory
$ mkdir work
$ cd work

# Setup the python virtualenv development environment
$ virtualenv -p python3 .
$ source bin/activate

# Install the ICON SCORE dev tools
(work) $ pip install tbears

How to use T-Bears

Command-line Interfaces (CLIs)

Overview

T-Bears provides over 20 commands. Here is the available commands list.

Usage

usage: tbears [-h] [-v] command ...

tbears v1.2.1 arguments

optional arguments:
  -h, --help     show this help message and exit
  -v, --verbose  Verbose mode

Available commands:
  If you want to see help message of commands, use "tbears command -h"

  command
    start        Start tbears service
    stop         Stop tbears service
    sync_mainnet
                 Synchronize revision and governance SCORE with the mainnet
    deploy       Deploy the SCORE
    clear        Clear all SCOREs deployed on tbears service
    test         Run the unittest in the SCORE
    init         Initialize tbears project
    samples      This command has been deprecated since v1.1.0
    genconf      Generate tbears config files. (tbears_server_config.json,
                 tbears_cli_config.json and keystore_test1)
    console      Get into tbears interactive mode by embedding IPython
    txresult     Get transaction result by transaction hash
    transfer     Transfer ICX coin.
    keystore     Create a keystore file in the specified path
    keyinfo      Show a keystore file information the specified path
    balance      Get balance of given address in loop unit
    totalsupply  Query total supply of ICX in loop unit
    scoreapi     Get score's api using given score address
    txbyhash     Get transaction by transaction hash
    lastblock    Get last block's info
    blockbyhash  Get block info using given block hash
    blockbyheight
                 Get block info using given block height
    sendtx       Request icx_sendTransaction with the specified json file and
                 keystore file. If keystore file is not given, tbears sends
                 request as it is in the json file.
    call         Request icx_call with the specified json file.

Options

shorthand, Name	default	Description
-h, --help		Show this help message and exit
-v, --verbose		Verbose mode. Print debugging messages about its progress.

T-Bears server commands

Commands that manage the T-Bears server. There are three commands tbears start, tbears stop, tbears clear and tbears sync_mainnet.

tbears start

Description

Start T-Bears service. Whenever T-Bears service starts, it loads the configuration from tbears_server_config.json file. If you want to use other configuration file, you can specify the file location with the -c option.

Usage

usage: tbears start [-h] [-a HOSTADDRESS] [-p PORT] [-c CONFIG]

Start tbears service

optional arguments:
  -h, --help            show this help message and exit
  -a HOSTADDRESS, --address HOSTADDRESS
                        Address to host on (default: 127.0.0.1)
  -p PORT, --port PORT  Port to listen on (default: 9000)
  -c CONFIG, --config CONFIG
                        tbears configuration file path (default: ./tbears_server_config.json)

Options

shorthand, Name	default	Description
-h, --help		show this help message and exit
-a, --address	127.0.0.1	IP address that the T-Bears service will host on.
-p, --port	9000	Port number that the T-Bears service will listen on.
-c, --config	./tbears_server_config.json	T-Bears configuration file path

tbears stop

Description

Stop all running SCOREs and T-Bears service.

Usage

usage: tbears stop [-h]

Stop all running SCOREs and tbears service

optional arguments:
  -h, --help  show this help message and exit

Options

shorthand, Name	default	Description
-h, --help		show this help message and exit

tbears clear

Description

Clear all SCOREs deployed on local T-Bears service.

Usage

usage: tbears clear [-h]

Clear all SCOREs deployed on local tbears service

optional arguments:
  -h, --help  show this help message and exit

Options

shorthand, Name	default	Description
-h, --help		show this help message and exit

tbears sync_mainnet

Description

Synchronize revision and governance SCORE with the mainnet

Usage

usage: tbears sync_mainnet [-h]

Synchronize revision and governance SCORE with the mainnet

optional arguments:
  -h, --help  show this help message and exit

Options

shorthand, Name	default	Description
-h, --help		show this help message and exit

T-Bears utility commands

Commands that generate configuration file and keystore file.

tbears keystore

Description

Create a keystore file in the given path. Generate a private and public key pair

Usage

usage: tbears keystore [-h] [-p PASSWORD] path

Create keystore file in the specified path. Generate privatekey, publickey
pair

positional arguments:
  path                  Path of keystore file.

optional arguments:
  -h, --help            show this help message and exit
  -p PASSWORD, --password PASSWORD
                        Keystore file's password

Options

shorthand, Name	default	Description
path		a keystore file path that is to be generated
-h, --help		show this help message and exit
-p, --password		Keystore file's password

Examples

(work) $ tbears keystore keystore_file
Input your keystore password:
Retype your keystore password:
Made keystore file successfully

tbears keyinfo

Description

Show a keystore information(address, privateKey, publicKey) in the specified path.

Usage

usage: tbears keyinfo [-h] [-p PASSWORD] [--private-key] path

Show a keystore information(address, privateKey, publicKey) in the specified
path. If you want to get privateKey, input --private-key option

positional arguments:
  path                  Path of keystore file.

optional arguments:
  -h, --help            show this help message and exit
  -p PASSWORD, --password PASSWORD
                        Keystore file's password
  --private-key         option that whether show privateKey

Options

shorthand, Name	default	Description
path		a keystore file path that is to be shown
-h, --help		show this help message and exit
-p, --password		Keystore file's password
--private-key		option that whether show privateKey

Examples

(work) $ tbears keyinfo keystore
Input your keystore password:
{
    "address": "hxef73db5d0ad02eb1fadb37d0041be96bfa56d4e6",
    "publicKey": "0x040d60ccc4fd29307304a8e84715e6e1a2e643bcff14fbf90d9099dfc84585a6f6f0b6944594efebe433a12a005ba56d215d6e51697a3360b5d741f8db89955c66"
}

(work) $ tbears keyinfo --private-key keystore
Input your keystore password:
{
    "address": "hxef73db5d0ad02eb1fadb37d0041be96bfa56d4e6",
    "publicKey": "0x040d60ccc4fd29307304a8e84715e6e1a2e643bcff14fbf90d9099dfc84585a6f6f0b6944594efebe433a12a005ba56d215d6e51697a3360b5d741f8db89955c66",
    "privateKey": "54483cf6c525f831da699d73d273e48aa88c963ed5ac485b207c7bf4a57ddce1"
}

tbears genconf

Description

Generate T-Bears config files and keystore files.

usage: tbears genconf [-h]

Generate T-Bears config files and keystore files.

optional arguments:
  -h, --help  show this help message and exit

Options

shorthand, Name	default	Description
-h, --help		show this help message and exit

Examples

(work) $ tbears genconf
Made tbears_cli_config.json, tbears_server_config.json, ./keystore/* successfully

T-Bears SCORE commands

These commands are related to SCORE development and execution. tbears init generates SCORE projects. tbears deploy, tbears sendtx and tbears call commands are used to deploy the SCORE, send a transaction, and call a function.

tbears init

Description

Initialize SCORE development environment. Generate <project>.py, package.json and test code in <project> directory. The name of the SCORE class is <scoreClass>. Default configuration files, "tbears_server_config.json" used when starting T-Bears and "tbears_cli_config.json" used when deploying SCORE, are also generated.

Usage

usage: tbears init [-h] project scoreClass

Initialize SCORE development environment. Generate <project>.py, package.json
and test code in <project> directory. The name of the score class is
<scoreClass>.

positional arguments:
  project     Project name
  scoreClass  SCORE class name

optional arguments:
  -h, --help  show this help message and exit

Options

shorthand, Name	default	Description
project		Project name
scoreClass		SCORE class name
-h, --help		show this help message and exit

Examples

(work) $ tbears init hello HelloWorld
Initialized hello successfully
(work) $ ls hello
__init__.py  hello.py  package.json  tests

File description

Item	Description
tbears_server_config.json	T-Bears default configuration file will be created on the working directory.
tbears_cli_config.json	Configuration file for CLI commands will be created on the working directory.
keystore/*	Keystore file for test account and P-Reps.
<project>	SCORE project name. Project directory is created with the same name.
<project>/__init__.py	__init__.py file to make the project directory recognized as a python package.
<project>/package.json	Contains the information needed when SCORE is loaded. "main_module" and "main_class" should be specified.
<project>/.py	SCORE main file, where scoreClass is defined.
<project>/tests	Directory for SCORE test code.
<project>/tests/__init__.py	__init__.py file to make the test directory recognized as a python package.
<project>/tests/test_.py	SCORE test main file.

tbears deploy

Description

Deploy the SCORE. You can deploy it on local T-Bears service or on ICON network.

"tbears_cli_config.json" file contains the deployment configuration properties. (See below 'Configuration Files' chapter). If you want to use other configuration file, you can specify the file location with the '-c' option.

Usage

usage: tbears deploy [-h] [-u URI] [-t {tbears,zip}] [-m {install,update}]
                     [-f FROM] [-o TO] [-k KEYSTORE] [-n NID] [-p PASSWORD]
                     [-s STEPLIMIT] [-c CONFIG]
                     project

Deploy the SCORE

positional arguments:
  project               Project directory path or zip file path

optional arguments:
  -h, --help            show this help message and exit
  -u URI, --node-uri URI
                        URI of node (default: http://127.0.0.1:9000/api/v3)
  -t {tbears,zip}, --type {tbears,zip}
                        This option is deprecated since version 1.0.5. Deploy
                        command supports zip type only
  -m {install,update}, --mode {install,update}
                        Deploy mode (default: install)
  -f FROM, --from FROM  From address. i.e. SCORE owner address
  -o TO, --to TO        To address. i.e. SCORE address
  -k KEYSTORE, --key-store KEYSTORE
                        Keystore file path. Used to generate "from" address
                        and transaction signature
  -n NID, --nid NID     Network ID
  -p PASSWORD, --password PASSWORD
                        keystore file's password
  -s STEPLIMIT, --step-limit STEPLIMIT
                        Step limit
  -c CONFIG, --config CONFIG
                        deploy config path (default: ./tbears_cli_config.json)

Options

shorthand, Name	default	Description
project		Project directory or zip file which contains the SCORE package. If you want to deploy with a zip file, zip the project directory
-h, --help		show this help message and exit
-u, --node-uri	http://127.0.0.1:9000/api/v3	URI of node
-t {tbears,zip}, --type {tbears,zip}		This option is deprecated since version 1.0.5. Deploy command supports zip type only
-m {install,update}, --mode {install,update}	install	Deploy mode ("install" or "update").
-f, --from		From address. i.e. SCORE owner address. It is ignored if keystore is set
-o, --to		To address. i.e. SCORE address This parameter is required when updating SCORE.
-k, --key-store		Keystore file path for SCORE owner
-n, --nid		Network ID of node. Each network has unique ID. If the Network ID does not match, node will reject the SCORE. Network ID will be announced when a network opens to public. 0x3 is reserved for T-Bears service. However, T-Bears service does not verify the Network ID.
-p, --password		Password of keystore file
-s, --step-limit	an estimated Step	Step limit of the transaction
-c, --config	./tbears_cli_config.json	Configuration file path

Examples

# you can deploy a SCORE to the local T-Bears server without verifying signature
(work) $ tbears deploy hello

# when you deploy a SCORE to ICON, you need to specify the keystore file
# config.json should contain valid parameters like node-uri, nid, etc.
(work) $ tbears deploy hello -k keystore -c config.json
Input your keystore password:
Send deploy request successfully.
If you want to check SCORE deployed successfully, execute txresult command
transaction hash: 0x9c294b9608d9575f735ec2e2bf52dc891d7cca6a2fa7e97aee4818325c8a9d41

# when you update the SCORE 'hello', you need to specify the SCORE address with the '-o' option
(work) $ tbears deploy hello -m update -o cx6bd390bd855f086e3e9d525b46bfe24511431532 -k keystore -c config.json
Input your keystore password:
Send deploy request successfully.
If you want to check SCORE deployed successfully, execute txresult command
transaction hash: 0xad292b9608d9575f735ec2ebbf52dc891d7cca6a2fa7e97aee4818325c80934d

T-Bears can supply some required fields on behalf of the sender when those are not specified in the configuration file. T-Bears will generate a valid JSON request using the following rules.

Field name	Description
stepLimit	The estimated Step usage (debug_estimateStep API is used) will be set for the transaction
timestamp	The current time will be set

tbears test

Description

Run the unittest in the project.

Usage

usage: tbears test [-h] project

Run the unittest in the project

positional arguments:
  project     Project directory path

optional arguments:
  -h, --help  show this help message and exit

Options

shorthand, Name	default	Description
project		Project directory which contains the SCORE package and test code.
-h, --help		show this help message and exit

Examples

(work) $ tbears test hello
..
----------------------------------------------------------------------
Ran 2 tests in 0.172s

OK

tbears sendtx

Description

Request icx_sendTransaction with the specified json file.

usage: tbears sendtx [-h] [-u URI] [-k KEYSTORE] [-c CONFIG] [-p PASSWORD]
                     [-s STEPLIMIT]
                     json_file

Request `icx_sendTransaction` with the specified json file and keystore file. If
keystore file is not given, tbears sends request as it is in the json file.

positional arguments:
  json_file             File path containing icx_sendTransaction content

optional arguments:
  -h, --help            show this help message and exit
  -u URI, --node-uri URI
                        URI of node (default: http://127.0.0.1:9000/api/v3)
  -k KEYSTORE, --key-store KEYSTORE
                        Keystore file path. Used to generate "from"address and
                        transaction signature
  -c CONFIG, --config CONFIG
                        Configuration file path. This file defines the default
                        value for the "uri" (default:
                        ./tbears_cli_config.json)
  -p PASSWORD, --password PASSWORD
                        Keystore file's password
  -s STEPLIMIT, --step-limit STEPLIMIT
                        Step limit

Options

shorthand, Name	default	Description
json_file		Path to the json file containing the request object for icx_transaction.
-h, --help		show this help message and exit
-u, --node-uri	http://127.0.0.1:9000/api/v3	URI of node
-k, --key-store		Keystore file path. Used to generate transaction signature.
-p, --password		Password of keystore file
-s, --step-limit	an estimated Step	Step limit of the transaction
-c, --config	./tbears_cli_config.json	Configuration file path. This file defines the default values for the properties "keyStore", "uri" and "from".

Examples

(work) $ cat send.json
{
  "jsonrpc": "2.0",
  "method": "icx_sendTransaction",
  "params": {
    "version": "0x3",
    "from": "hxef73db5d0ad02eb1fadb37d0041be96bfa56d4e6",
    "to": "cx4d5a79f329adcf00a3daa99539f0eeea2d43d239",
    "nid": "0x3",
    "dataType": "call",
    "data": {
      "method": "setValue",
      "params": {
        "value": "0x123"
      }
    }
  }
}

(work) $ tbears sendtx send.json -k keystore
Input your keystore password:
Send transaction request successfully.
transaction hash: 0xc8a3e3f77f21f8f1177d829cbc4c0ded6fd064cc8e42ef309dacff5c0a952289

T-Bears can supply some required fields on behalf of the sender when those are not specified in the json_file. In the example above, stepLimit and timestamp fields are not specified, but T-Bears can make a valid JSON request using the following rules.

Field name	Description
stepLimit	The estimated Step usage (debug_estimateStep API is used) will be set for the transaction
timestamp	The current time will be set

tbears call

Description

Request icx_call with the specified json file.

usage: tbears call [-h] [-u URI] [-c CONFIG] json_file

Request icx_call with the specified json file.

positional arguments:
  json_file             File path containing icx_call content

optional arguments:
  -h, --help            show this help message and exit
  -u URI, --node-uri URI
                        URI of node (default: http://127.0.0.1:9000/api/v3)
  -c CONFIG, --config CONFIG
                        Configuration file path. This file defines the default
                        value for the "uri" (default: ./tbears_cli_config.json)

Options

shorthand, Name	default	Description
json_file		Path to the json file containing the request object for icx_call
-h, --help		Show this help message and exit
-u, --node-uri	http://127.0.0.1:9000/api/v3	URI of node
-c, --config	./tbears_cli_config.json	Configuration file path. This file defines the default values for the properties "keyStore", "uri" and "from".

Examples

(work) $ cat call.json
{
  "jsonrpc": "2.0",
  "method": "icx_call",
  "params": {
    "to": "cx53d5080a7d8a805bb10eb9bc64637809dc910832",
    "dataType": "call",
    "data": {
      "method": "hello"
    }
  },
  "id": 1
}
(work) $ tbears call call.json
response : {
    "jsonrpc": "2.0",
    "result": "Hello",
    "id": 1
}

tbears scoreapi

Description

Get list of APIs that the given SCORE provides. Please refer to icx_getScoreApi of ICON JSON-RPC API v3 for details.

Usage

usage: tbears scoreapi [-h] [-u URI] [-c CONFIG] address

Get SCORE's API using given SCORE address

positional arguments:
  address                  SCORE address to query SCORE API

optional arguments:
  -h, --help            show this help message and exit
  -u URI, --node-uri URI
                        URI of node (default: http://127.0.0.1:9000/api/v3)
  -c CONFIG, --config CONFIG
                        Configuration file path. This file defines the default
                        value for the "uri" (default: ./tbears_cli_config.json)

Options

shorthand, Name	default	Description
address		SCORE address to query APIs
-h, --help		show this help message and exit
-u, --node-uri	http://127.0.0.1:9000/api/v3	URI of node.
-c, --config	./tbears_cli_config.json	Configuration file path. This file defines the default value for the "uri".

Examples

(work) $ tbears scoreapi cx0123456789abcdef0123456789abcdefabcdef12
SCORE API: [
    {
        "type": "function",
        "name": "hello",
        "inputs": [],
        "outputs": [
            {
                "type": "str"
            }
        ],
        "readonly": "0x1"
    },
    {
        "type": "function",
        "name": "setValue",
        "inputs": [
            {
                "name": "value",
                "type": "int"
            }
        ],
        "outputs": []
    }
]

T-Bears other commands

Commands that are related to ICX coin, transaction, and block.

tbears transfer

Description

Transfer designated amount of ICX coins.

Usage

usage: tbears transfer [-h] [-f FROM] [-k KEYSTORE] [-n NID] [-u URI]
                       [-p PASSWORD] [-s STEPLIMIT] [-c CONFIG]
                       to value

Transfer ICX coin.

positional arguments:
  to                    Recipient
  value                 Amount of ICX coin in loop to transfer (1 icx = 1e18
                        loop)

optional arguments:
  -h, --help            show this help message and exit
  -f FROM, --from FROM  From address.
  -k KEYSTORE, --key-store KEYSTORE
                        Keystore file path. Used to generate "from" address
                        and transaction signature
  -n NID, --nid NID     Network ID (default: 0x3)
  -u URI, --node-uri URI
                        URI of node (default: http://127.0.0.1:9000/api/v3)
  -p PASSWORD, --password PASSWORD
                        Keystore file's password
  -s STEPLIMIT, --step-limit STEPLIMIT
                        Step limit
  -c CONFIG, --config CONFIG
                        Configuration file path. This file defines the default
                        values for the properties "keyStore", "uri", "from"
                        and "stepLimit". (default: ./tbears_cli_config.json)

Options

shorthand, Name	default	Description
to		Recipient address.
value		Amount of ICX coin in loop to transfer to "to" address. (1 icx = 1e18 loop)
-h, --help		show this help message and exit
-f, --from		From address. It is ignored if keystore is set
-k, --key-store		Keystore file path. Used to generate "from" address and transaction signature.
-u, --node-uri	http://127.0.0.1:9000/api/v3	URI of node
-n, --nid	0x3	Network ID
-p, --password		Password of keystore file
-s, --step-limit	an estimated Step	Step limit of the transaction
-c, --config	./tbears_cli_config.json	Configuration file path. This file defines the default values for the properties "keyStore", "uri" and "from".

Examples

(work) $ tbears transfer -k test_keystore hxaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaab 1e18
Send transfer request successfully.
transaction hash: 0xc1b92b9a08d8575f735ec2ebbf52dc831d7c2a6a2fa7e97aee4818325cad919e

tbears balance

Description

Get balance of given address.

Usage

usage: tbears balance [-h] [-u URI] [-c CONFIG] address

Get balance of given address in loop unit

positional arguments:
  address               Address to query the ICX balance

optional arguments:
  -h, --help            show this help message and exit
  -u URI, --node-uri URI
                        URI of node (default: http://127.0.0.1:9000/api/v3)
  -c CONFIG, --config CONFIG
                        Configuration file path. This file defines the default
                        value for the "uri" (default: ./tbears_cli_config.json)

Options

shorthand, Name	default	Description
address		Address to query the ICX balance
-h, --help		show this help message and exit
-u, --node-uri	http://127.0.0.1:9000/api/v3	URI of node
-c, --config	./tbears_cli_config.json	Configuration file path. This file defines the default value for the "uri".

Examples

(work) $ tbears balance hx0123456789abcdef0123456789abcdefabcdef12
balance in hex: 0x2961fff8ca4a62327800000
balance in decimal: 800460000000000000000000000

tbears totalsupply

Description

Query total supply of ICX.

Usage

usage: tbears totalsupply [-h] [-u URI] [-c CONFIG]

Query total supply of ICX in loop unit

optional arguments:
  -h, --help            show this help message and exit
  -u URI, --node-uri URI
                        URI of node (default: http://127.0.0.1:9000/api/v3)
  -c CONFIG, --config CONFIG
                        Configuration file path. This file defines the default
                        value for the "uri" (default: ./tbears_cli_config.json)

Options

shorthand, Name	default	Description
-h, --help		show this help message and exit
-u, --node-uri	http://127.0.0.1:9000/api/v3	URI of node
-c, --config	./tbears_cli_config.json	Configuration file path. This file defines the default value for the "uri".

Examples

(work) $ tbears totalsupply
Total supply of ICX in hex: 0x2961fff8ca4a62327800000
Total supply of ICX in decimal: 800460000000000000000000000

tbears txresult

Description

Get transaction result by transaction hash.

Usage

usage: tbears txresult [-h] [-u URI] [-c CONFIG] hash

Get transaction result by transaction hash

positional arguments:
  hash                  Transaction hash of the transaction to be queried.

optional arguments:
  -h, --help            show this help message and exit
  -u URI, --node-uri URI
                        URI of node (default: http://127.0.0.1:9000/api/v3)
  -c CONFIG, --config CONFIG
                        Configuration file path. This file defines the default
                        value for the "uri" (default: ./tbears_cli_config.json)

Options

shorthand, Name	default	Description
hash		Hash of the transaction to be queried
-h, --help		show this help message and exit
-u, --node-uri	http://127.0.0.1:9000/api/v3	URI of node
-c, --config	./tbears_cli_config.json	Configuration file path. This file defines the default value for the "uri".

Examples

(work) $ tbears txresult 0x227fb3e6fdc89de8d24e019b1ddc88538633c4202102297da204444d393249c2
Transaction result: {
    "jsonrpc": "2.0",
    "result": {
        "txHash": "0x227fb3e6fdc89de8d24e019b1ddc88538633c4202102297da204444d393249c2",
        "blockHeight": "0x2",
        "blockHash": "28e6e4710c56e053920b95df0058317a4ac641b16d17d64db7f958e8a5650391",
        "txIndex": "0x0",
        "to": "cx0000000000000000000000000000000000000000",
        "scoreAddress": "cx6bd390bd855f086e3e9d525b46bfe24511431532",
        "stepUsed": "0xe2a4",
        "stepPrice": "0x0",
        "cumulativeStepUsed": "0xe2a4",
        "eventLogs": [],
        "logsBloom": "0x00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000",
        "status": "0x1"
    },
    "id": 1
}

tbears txbyhash

Description

Get transaction by transaction hash

Usage

usage: tbears txbyhash [-h] [-u URI] [-c CONFIG] hash

Get transaction by transaction hash

positional arguments:
  hash                  Hash of the transaction to be queried

optional arguments:
  -h, --help            show this help message and exit
  -u URI, --node-uri URI
                        URI of node (default: http://127.0.0.1:9000/api/v3)
  -c CONFIG, --config CONFIG
                        Configuration file path. This file defines the default
                        value for the "uri" (default: ./tbears_cli_config.json)

Options

shorthand, Name	default	Description
hash		Hash of the transaction to be queried
-h, --help		show this help message and exit
-u, --node-uri	http://127.0.0.1:9000/api/v3	URI of node
-c, --config	./tbears_cli_config.json	Configuration file path. This file defines the default value for the "uri".

Examples

(work) $ tbears txbyhash 0x95be9f0247bc3b7ed07fe07c53613c580642ef991c574c85db45dbac9e8366df

Transaction: {
    "jsonrpc": "2.0",
    "result": {
        "version": "0x3",
        "from": "hxaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa",
        "value": "0x0",
        "stepLimit": "0x3000000",
        "timestamp": "0x572e8fd95db26",
        "nid": "0x3",
        "nonce": "0x1",
        "to": "cx0000000000000000000000000000000000000000",
        "data": {
            "contentType": "application/zip",
            "content": "0x32b34cfa39993fa093e",
            "params": {}
        },
        "dataType": "deploy",
        "signature": "sig",
        "txIndex": "0x0",
        "blockHeight": "0x2",
        "blockHash": "0x28e6e4710c56e053920b95df0058317a4ac641b16d17d64db7f958e8a5650391"
    },
    "id": 1
}

tbears lastblock

Description

Query last block info. When running on T-Bears service, "merkle_tree_root_hash" and "signature" will be empty.

Usage

usage: tbears lastblock [-h] [-u URI] [-c CONFIG]

Get last block info

optional arguments:
  -h, --help            show this help message and exit
  -u URI, --node-uri URI
                        URI of node (default: http://127.0.0.1:9000/api/v3)
  -c CONFIG, --config CONFIG
                        Configuration file path. This file defines the default
                        value for the "uri" (default: ./tbears_cli_config.json)

Options

shorthand, Name	default	Description
-h, --help		show this help message and exit
-u, --node-uri	http://127.0.0.1:9000/api/v3	URI of node
-c, --config	./tbears_cli_config.json	Configuration file path. This file defines the default value for the "uri".

Examples

(work) $ tbears lastblock

block info : {
    "jsonrpc": "2.0",
    "result": {
        "version": "tbears",
        "prev_block_hash": "815c0fd7a0dd4594bb19ee39030c1bd91c200878f1f456fe8dd7ff4e0a19b839",
        "merkle_tree_root_hash": "tbears_does_not_support_merkel_tree",
        "time_stamp": 1533719896011654,
        "confirmed_transaction_list": [
            {
                "version": "0x3",
                "from": "hxaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa",
                "value": "0x0",
                "stepLimit": "0x3000000",
                "timestamp": "0x572e8fd95db26",
                "nid": "0x3",
                "nonce": "0x1",
                "to": "cx0000000000000000000000000000000000000000",
                "data": {
                    "contentType": "application/zip",
                    "content": "0x32b34cfa39993fa093e",
                    "params": {}
                },
                "dataType": "deploy",
                "signature": "sig"
            }
        ],
        "block_hash": "28e6e4710c56e053920b95df0058317a4ac641b16d17d64db7f958e8a5650391",
        "height": 2,
        "peer_id": "fb5f43dc-9aeb-11e8-a31b-acde48001122",
        "signature": "tbears_does_not_support_signature"
    },
    "id": 1
}

tbears blockbyheight

Description

Get block info using given block height.

Usage

usage: tbears blockbyheight [-h] [-u URI] [-c CONFIG] height

Get block info using given block height

positional arguments:
  height                  height of the block to be queried

optional arguments:
  -h, --help            show this help message and exit
  -u URI, --node-uri URI
                        URI of node (default: http://127.0.0.1:9000/api/v3)
  -c CONFIG, --config CONFIG
                        Configuration file path. This file defines the default
                        value for the "uri" (default: ./tbears_cli_config.json)

Options

shorthand, Name	default	Description
height		Height of the block to be queried
-h, --help		show this help message and exit
-u, --node-uri	http://127.0.0.1:9000/api/v3	URI of node
-c, --config	./tbears_cli_config.json	Configuration file path. This file defines the default value for the "uri".

Examples

(work) $ tbears blockbyheight 0x1

block info : {
    "jsonrpc": "2.0",
    "result": {
        "version": "tbears",
        "prev_block_hash": "859083707985809a8b52982b9d8d86bfe48c0020a478b3a99d7eeb3c74c38e7c",
        "merkle_tree_root_hash": "tbears_does_not_support_merkel_tree",
        "time_stamp": 1533719753948440,
        "confirmed_transaction_list": [
            {
                "version": "0x3",
                "from": "hxef73db5d0ad02eb1fadb37d0041be96bfa56d4e6",
                "value": "0x8ac7230489e80000",
                "stepLimit": "0x2000",
                "timestamp": "0x572e8f51e4481",
                "nid": "0x3",
                "nonce": "0x1",
                "to": "hxbbaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaab",
                "signature": "f2B3r27u7peL3I9uBnKA8yn82odqlMECU+UBkRiZTJIwWFo57AmlUjKhoK8OZBBRdaWWmLF+JTZNs70yF8+zIwA="
            }
        ],
        "block_hash": "815c0fd7a0dd4594bb19ee39030c1bd91c200878f1f456fe8dd7ff4e0a19b839",
        "height": 1,
        "peer_id": "a6b22354-9aeb-11e8-a0ae-acde48001122",
        "signature": "tbears_does_not_support_signature"
    },
    "id": 1
}

tbears blockbyhash

Description

Get block info using given block hash.

Options

shorthand, Name	default	Description
hash		Hash of the block to be queried
-h, --help		show this help message and exit
-u, --node-uri	http://127.0.0.1:9000/api/v3	URI of node
-c, --config	./tbears_cli_config.json	Configuration file path. This file defines the default value for the "uri".

Usage

usage: tbears blockbyhash [-h] [-u URI] [-c CONFIG] hash

Get block info using given block hash

positional arguments:
  hash                  hash of the block to be queried

optional arguments:
  -h, --help            show this help message and exit
  -u URI, --node-uri URI
                        URI of node (default: http://127.0.0.1:9000/api/v3)
  -c CONFIG, --config CONFIG
                        Configuration file path. This file defines the default
                        value for the "uri" (default: ./tbears_cli_config.json)

Examples

(work) $ tbears blockbyhash 0xce00facd0ac3832e1e6e623d8f4b9344782da881e55abb48d1494fde9e465f78

block info : {
    "jsonrpc": "2.0",
    "result": {
        "version": "tbears",
        "prev_block_hash": "859083707985809a8b52982b9d8d86bfe48c0020a478b3a99d7eeb3c74c38e7c",
        "merkle_tree_root_hash": "tbears_does_not_support_merkel_tree",
        "time_stamp": 1533719753948440,
        "confirmed_transaction_list": [
            {
                "version": "0x3",
                "from": "hxef73db5d0ad02eb1fadb37d0041be96bfa56d4e6",
                "value": "0x8ac7230489e80000",
                "stepLimit": "0x2000",
                "timestamp": "0x572e8f51e4481",
                "nid": "0x3",
                "nonce": "0x1",
                "to": "hxbbaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaab",
                "signature": "f2B3r27u7peL3I9uBnKA8yn82odqlMECU+UBkRiZTJIwWFo57AmlUjKhoK8OZBBRdaWWmLF+JTZNs70yF8+zIwA="
            }
        ],
        "block_hash": "815c0fd7a0dd4594bb19ee39030c1bd91c200878f1f456fe8dd7ff4e0a19b839",
        "height": 1,
        "peer_id": "a6b22354-9aeb-11e8-a0ae-acde48001122",
        "signature": "tbears_does_not_support_signature"
    },
    "id": 1
}

tbears console

Description

Enter T-Bears interactive mode using IPython. (Ipython.org)

Usage

usage: tbears console [-h]


Get into tbears interactive mode by embedding IPython

optional arguments:
  -h, --help  show this help message and exit

Examples

In the interactive mode, you can execute command in short form (without tbears) by predefined IPython's magic command. TAB will complete T-Bears's command or variable names. Use TAB.

(work) $ tbears console
tbears) start
Started tbears service successfully
...

tbears) balance hxef73db5d0ad02eb1fadb37d0041be96bfa56d4e6

balance : 0x0

In IPython, you can access previous output using "_" expression.

tbears) pwd
'/Users/username/working/'

tbears) _
'/Users/username/working/'

You can access nth-output using _n-th expression. The Out object is a dictionary mapping input numbers to their outputs.

tbears) '1'
'1'

tbears) 'second'
'second'

tbears) 3
3

tbears) _2
'second'

tbears) Out
{1: '1', 2: 'second', 3: 3, 4: 'second'}

You can pass the value of a variable as an argument by prefixing the variable name with "$".

tbears) address = f"hx{'0'*40}"

tbears) balance $address

balance : 0x2961fff8ca4a62327800000

You should use "{}" expression when you pass a member of list or dictionary.

tbears) deploy sample_token

Send deploy request successfully.
transaction hash: 0x541d8c9d3e12d92ad50897f81178301f21650b0b48dd5cc722b28b5c56cbc29a


tbears) txresult {_['result']}

{'jsonrpc': '2.0',
 'result': {'txHash': '0xd1ee48aa5d26c1deb275da644e4ffe607c9e556474403c51040dfa59b0dd563c',
  'blockHeight': '0x3',
...

In the interactive mode, deployresults command is available to list up the SCOREs that have been deployed while T-Bears interactive mode is running.

tbears) deployresults
1.path : hello/, txhash : 0x583a89ec656d71d1641945a39792e016eefd6221ad536f9c312957f0c4336774, deployed in : http://127.0.0.1:9000/api/v3
2.path : token/, txhash : 0x8c2fe3c877d46b7a1ba7feb117d0b12c8b88f33517ad2315ec45e8b7223c22f8, deployed in : http://127.0.0.1:9000/api/v3
3.path : abctoken/, txhash : 0xee6e311d2652fd5ed5981f4906bca5d4d6933400721fcbf3528249d7bf460e42, deployed in : http://127.0.0.1:9000/api/v3

T-Bears assigns T-Bears command execution result to '_r' variable.

tbears) deploy sample_token
Send deploy request successfully.
transaction hash: 0x5257b44fe0f36c492e255dbfcdb2ca1134dc9a942b875241d01db3d36ac2bdc8

tbears) result = _r

tbears) result
{'jsonrpc': '2.0',
 'result': '0x5257b44fe0f36c492e255dbfcdb2ca1134dc9a942b875241d01db3d36ac2bdc8',
 'id': 1}

tbears) txresult {result['result']}
Transaction result: {
    "jsonrpc": "2.0",
    "result": {
        "txHash": "0x5257b44fe0f36c492e255dbfcdb2ca1134dc9a942b875241d01db3d36ac2bdc8",
        "blockHeight": "0x1",
        "blockHash": "9c06e5c1bbd8ed1efc1ec7d1be59b64dd102bde43fc13c3f22e25e5aaa1eda51",
        "txIndex": "0x0",
        "to": "cx0000000000000000000000000000000000000000",
        "scoreAddress": "cxb8f2c9ba48856df2e889d1ee30ff6d2e002651cf",
...

tbears) scoreapi {_r['result']['scoreAddress']}
SCORE API: [
    {
        "type": "fallback",
        "name": "fallback",
        "inputs": []
    },
...

Configuration Files

tbears_server_config.json

When starting T-Bears (tbears start), tbears_server_config.json is used to configure the parameters and initial settings.

{
    "hostAddress": "127.0.0.1",
    "port": 9000,
    "scoreRootPath": "./.score",
    "stateDbRootPath": "./.statedb",
    "log": {
        "logger": "tbears",
        "level": "info",
        "filePath": "./tbears.log",
        "colorLog": true,
        "outputType": "file",
        "rotate": {
            "type": "bytes",
            "maxBytes": 10485760,
            "backupCount": 10
        }
    },
    "service": {
        "fee": false,
        "audit": false,
        "deployerWhiteList": false
    },
    "genesis": {
        "nid": "0x3",
        "accounts": [
            {
                "name": "genesis",
                "address": "hx0000000000000000000000000000000000000000",
                "balance": "0x2961fff8ca4a62327800000"
            },
            {
                "name": "fee_treasury",
                "address": "hx1000000000000000000000000000000000000000",
                "balance": "0x0"
            },
            {
                "name": "test1",
                "address": "hxe7af5fcfd8dfc67530a01a0e403882687528dfcb",
                "balance": "0x2961fff8ca4a62327800000"
            }
        ]
    },
    "blockConfirmInterval": 2,
    "blockConfirmEmpty": true,
    "mainPRepCount": 4,
    "iissCalculatePeriod": 30,
    "termPeriod": 30
}

Field	Data type	Description
hostAddress	string	IP address that T-Bears service will listen on.
port	int	Port number that T-Bears service will listen on.
scoreRootPath	string	Root directory where SCORE will be installed.
stateDbRootPath	string	Root directory where state DB file will be created.
log	dict	T-Bears log setting
log.logger	string	Main logger in process
log.level	string	log level. "debug", "info", "warning", "error"
log.filePath	string	Log file path.
log.colorLog	boolean	Log display option (color or black)
log.outputType	string	“console”: log outputs to the console that T-Bears is running. “file”: log outputs to the file path. “console|file”: log outputs to both console and file.
log.rotate	dict	Log rotate setting
log.rotate.type	string	"peroid": rotate by period. "bytes": rotate by maxBytes. "period|bytes": log rotate to both period and bytes.
log.rotate.period	string	use logging.TimedRotatingFileHandler 'when' ex) daily, weekly, hourly or minutely
log.rotate.interval	string	use logging.TimedRotatingFileHandler 'interval' ex) (period: hourly, interval: 24) == (period: daily, interval: 1)
log.rotate.maxBytes	integer	use logging.RotatingFileHandler 'maxBytes' ex) 10mb == 10 * 1024 * 1024
log.rotate.backupCount	integer	limit log file count
service	didct	T-Bears service setting
service.fee	boolean	true | false. Charge a fee per transaction when enabled
service.audit	boolean	true | false. Audit deploy transactions when enabled
service.deployerWhiteList	boolean	true | false. Limit SCORE deploy permission when enabled
genesis	dict	Genesis information of T-Bears node.
genesis.nid	string	Network ID.
genesis.accounts	list	List of accounts that holds initial coins. (index 0) genesis: account that holds initial coins. (index 1) fee_treasury: account that collects transaction fees. (index 2~): test accounts that you can add.
channel	string	channel name interact with iconrpcserver and iconservice
amqpKey	string	amqp key name interact with iconrpcserver and iconservice
amqpTarget	string	amqp target name interact with iconrpcserver and iconservice
blockConfirmInterval	integer	Confirm block every N seconds
blockConfirmEmpty	boolean	true | false. Confirm empty block when enabled
mainPRepCount	integer	IISS main P-Rep count
termPeriod	integer	Term of main P-Rep

tbears_cli_config.json

For every T-Bears CLI commands except start, stop, clear, init and keystore, this file is used to configure the default parameters and initial settings.

In this configuration file, you can define default options values for some CLI commands. For example, SCORE's on_install() or on_update() method is called on deployment. You can set the deploy mode and the parameters (scoreParams) of on_install() or on_update() as shown below.

{
    "uri": "http://127.0.0.1:9000/api/v3",
    "nid": "0x3",
    "keyStore": null,
    "from": "hxe7af5fcfd8dfc67530a01a0e403882687528dfcb",
    "to": "cx0000000000000000000000000000000000000000",
    "deploy": {
        "mode": "install",
        "scoreParams": {}
    },
    "txresult": {},
    "transfer": {}
}

Field	Data type	Description
uri	string	URI to send the request.
nid	string	Network ID. 0x3 is reserved for T-Bears.
keyStore	string	Keystore file path.
from	string	From address. It is ignored if 'keyStore' is set.
to	string	To address.
stepLimit	string	(optional) stepLimit value.
deploy	dict	Options for deploy command.
deploy.mode	string	Deploy mode. install: new SCORE deployment. update: update the SCORE that was previously deployed.
deploy.scoreParams	dict	Parameters to be passed to on_install() or on_update()
deploy.from	string	Address of the SCORE deployer Optional. This value will override "from" value. If not given, "from" value will be used.
deploy.to	string	Used when update SCORE (The address of the SCORE being updated). In the case of "install" mode, the address should be 'cx0000~'. Optional. This value will override "to" value. If not given, "to" value will be used.
txresult	dict	Options for txresult command. You can define command options in a dict.
transfer	dict	Options for transfer command. You can define command options in a dict.

Following CLI commands and options can be defined in the configuration file.

Command	Options
deploy	uri, nid, keyStore, from, to, mode, scoreParams, stepLimit
transfer	uri, nid, keyStore, from, stepLimit
sendtx	uri, nid, keyStore, from, stepLimit
txresult balance totalsupply scoreapi txbyhash lastblock blockbyhash blockbyheight call	uri

keystore files

• keystore_test1 Keystore file for the test account. Password of this keystore file is test1_Account. You can find the test account 'test1' in tbears_server_config.json and this test account has enough balance to test on local environment.

  Do not transfer any ICX or tokens to 'test1' account.

• prepN_keystore Keystore files for the main P-Rep. Password of these keystore files are prepN_Account. sync_mainnet command makes 4 main P-Reps and you can manage these 4 main P-Rep accounts with prepN_keystore files.

References

• ICON JSON-RPC API v3
• earlgrey
• ICON Commons
• ICON RPC Server
• ICON Service
• SCORE integration Test

License

This project follows the Apache 2.0 License. Please refer to LICENSE for details.
