terminal-layout 3.0.0

The project help you to quickly build layouts in terminal (命令行ui布局工具)

terminal_layout

The project help you to quickly build layouts in terminal

(这个一个命令行ui布局工具)

---

Some extensions base on terminal_layout

• progress

• choice

---

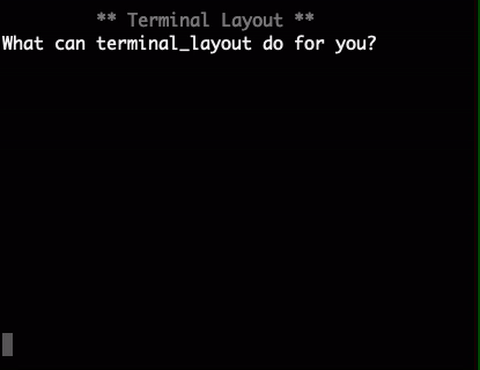

** video demo **

link

• All Demo

• Github

• Docs

• https://asciinema.org/a/226120

install

pip install terminal-layout

Dependencies

• Python 3.5+ (maybe 3.4)

• Linux, OS X, and Windows systems.

Python Support

Python	terminal_layout
2.7	2.1.x
3.5+	3.x

Usage

• easy demo:

import time
from terminal_layout import *

ctl = LayoutCtl.quick(TableLayout,
                      # table id: root
                      [
                          [TextView('t1', 'Hello World!', width=Width.fill, back=Back.blue)],  # <- row id: root_row_0,
                          [TextView('t2', '', fore=Fore.magenta)],  # <- row id: root_row_1,
                      ],
                      )

# or layout=ctl.get_layout()
layout = ctl.find_view_by_id('root')
layout.set_width(20)

# default: auto_re_draw=True
ctl.draw()

# call delay_set_text() must be set auto_re_draw=True,
# otherwise you must start a thread to call re_draw() by yourself
ctl.find_view_by_id('t2').delay_set_text('你好,世界!', delay=0.2)

time.sleep(0.5)
row3 = TableRow.quick_init('', [TextView('t3', 'こんにちは、世界!')])
layout.add_view(row3)

# If you call draw() with auto_re_draw=True, you must stop()
ctl.stop()

• disable auto_re_draw

import time
from terminal_layout import *

ctl = LayoutCtl.quick(TableLayout,
                      # table id: root
                      [
                          [TextView('t1', 'Hello World!', width=Width.fill, back=Back.blue)],  # <- row id: root_row_1,
                          [TextView('t2', '', fore=Fore.magenta)],  # <- row id: root_row_2,
                      ],
                      )


layout = ctl.find_view_by_id('root')
layout.set_width(20)

ctl.draw(auto_re_draw=False)

ctl.find_view_by_id('t2').set_text('你好,世界!')
ctl.re_draw()

time.sleep(0.5)
row3 = TableRow.quick_init('', [TextView('t3', 'こんにちは、世界!')])
layout.add_view(row3)
ctl.re_draw()

# don't need call stop()
# ctl.stop()

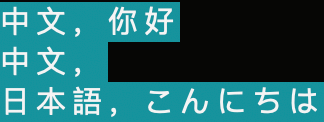

• use python2 unicode

# -*- coding: utf-8 -*-
from terminal_layout import *
import sys
reload(sys)
sys.setdefaultencoding('utf-8')

ctl = LayoutCtl.quick(TableLayout,
                      [
                          [TextView('', u'中文，你好', back=Back.cyan, width=Width.wrap)],
                          [TextView('', u'中文，你好', back=Back.cyan, width=6)],
                          [TextView('', u'日本語，こんにちは', back=Back.cyan, width=Width.wrap)],
                      ]

                      )

ctl.draw()

Properties

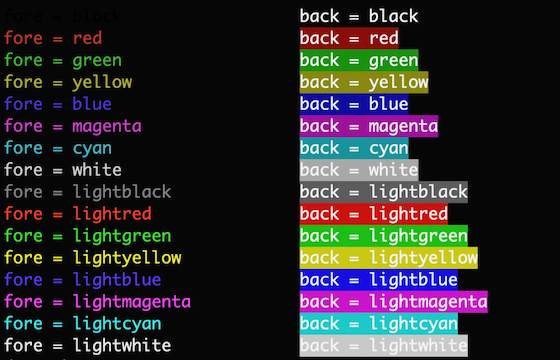

• fore & back

TextView('','fore',fore=Fore.red)
TextView('','back',back=Back.red)

• style

TextView('','style',style=Style.dim)

• width

TextView('','width',width=10)

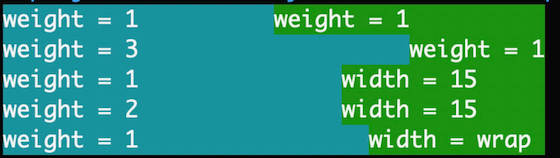

• weight

TextView('','weight',weight=1)

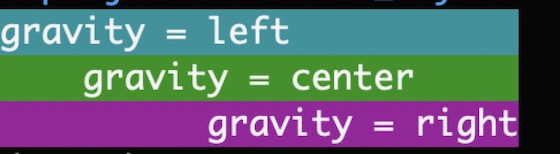

• gravity

TextView('','gravity',gravity=Gravity.left)

• visibility

TextView('','',visibility=Visibility.visible)

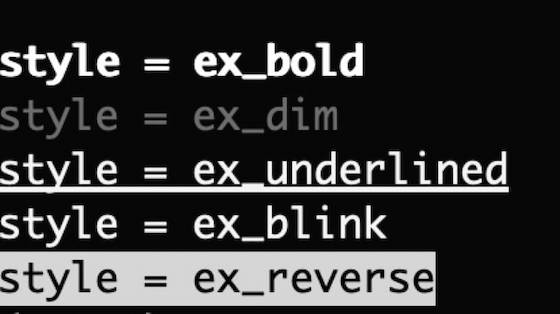

• ex_style (not support windows)

TextView('','ex_style',style=Style.ex_blink)

• ex_fore & ex_back (not support windows)

TextView('','ex_fore',fore=Fore.ex_red_1)
TextView('','ex_back',back=Back.ex_red_1)

LICENSE

GPLv3

Thanks

• colorama : Simple cross-platform colored terminal text in Python

• colored : Very simple Python library for color and formatting in terminal
